Control Assembly, HVAC
>>
Air Conditioning Control Assembly
Air Conditioning Control Assembly

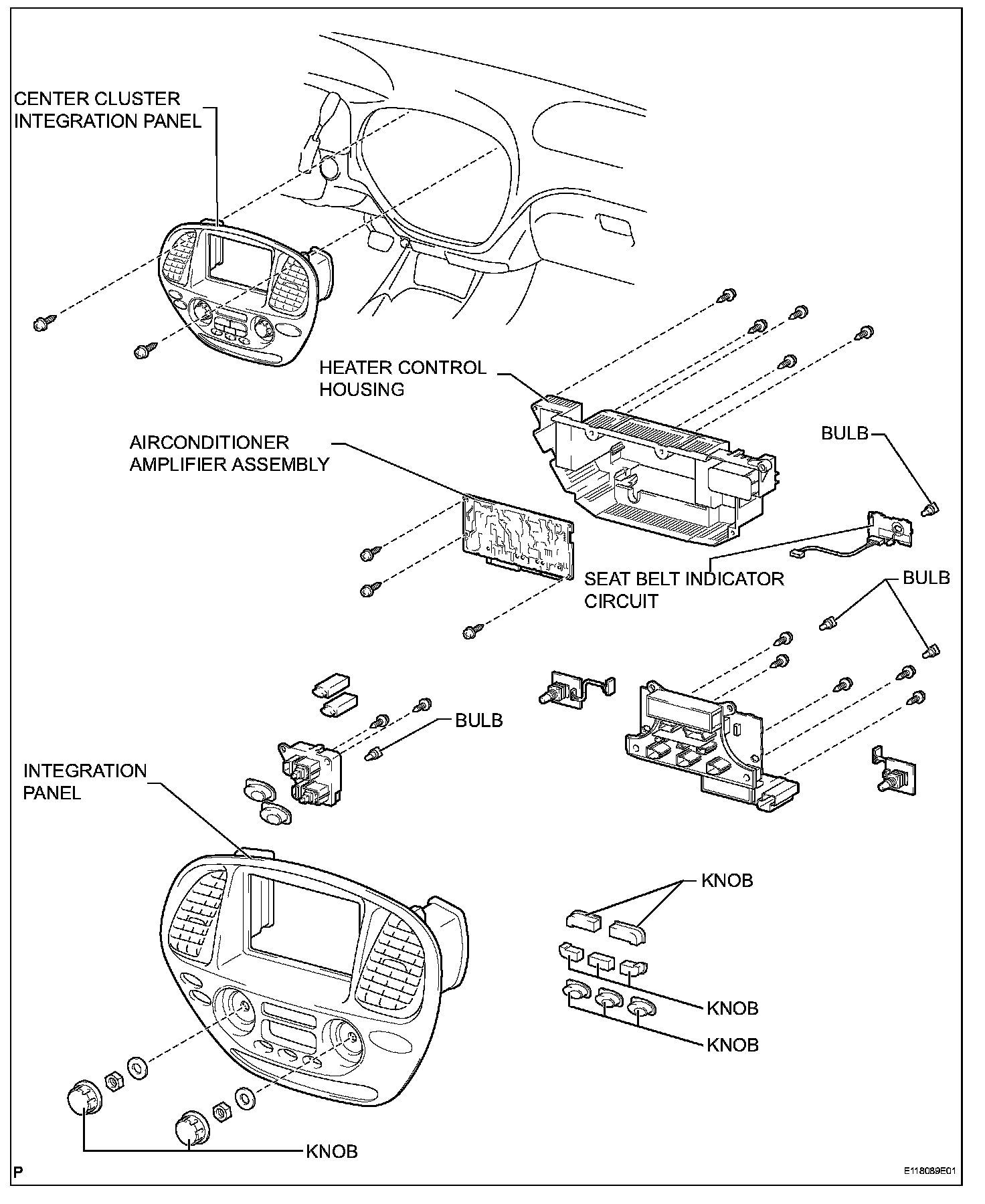

Air Conditioning Control Assembly:
