Housing Assembly HVAC
Housing Assembly HVAC

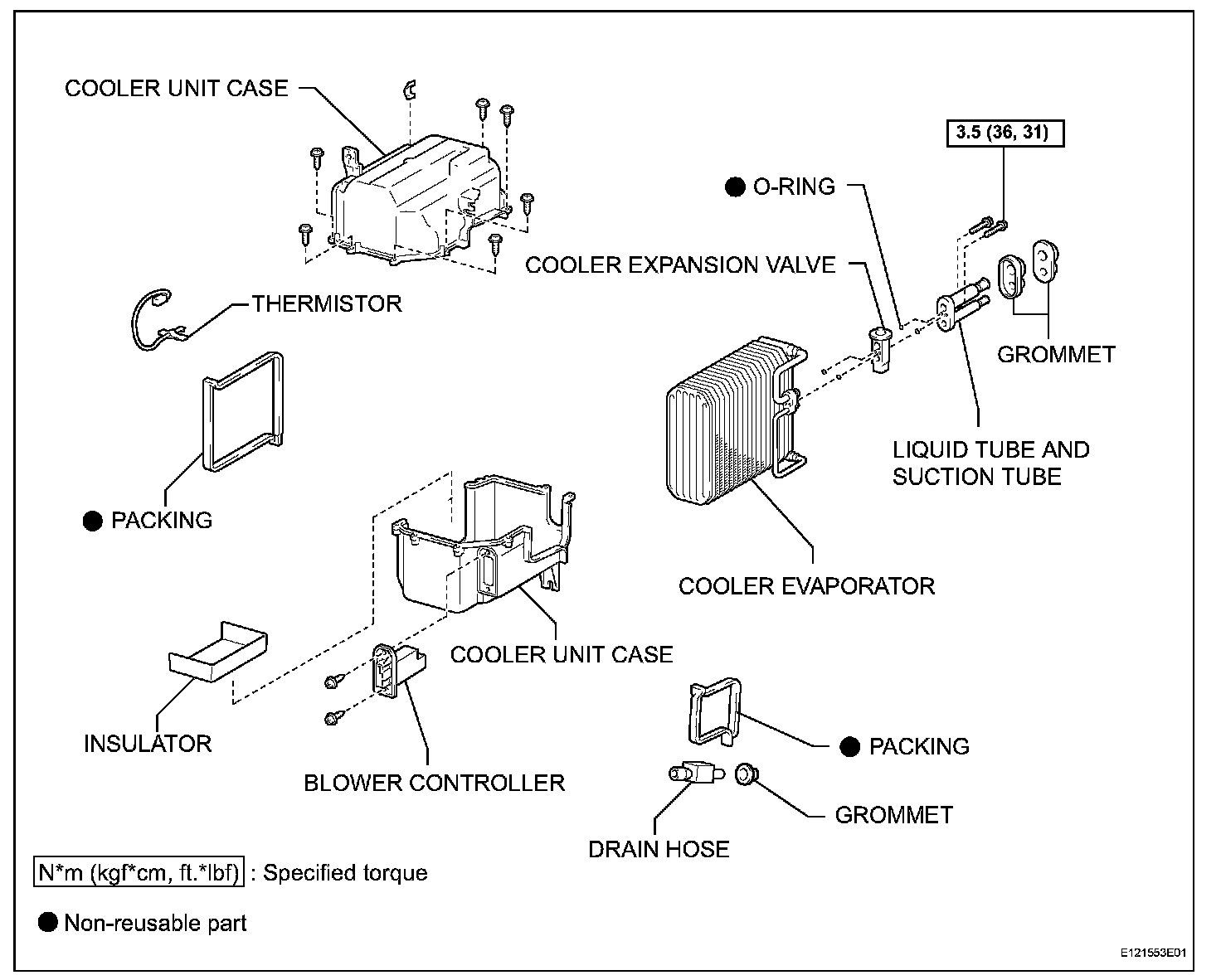

Blower Unit:

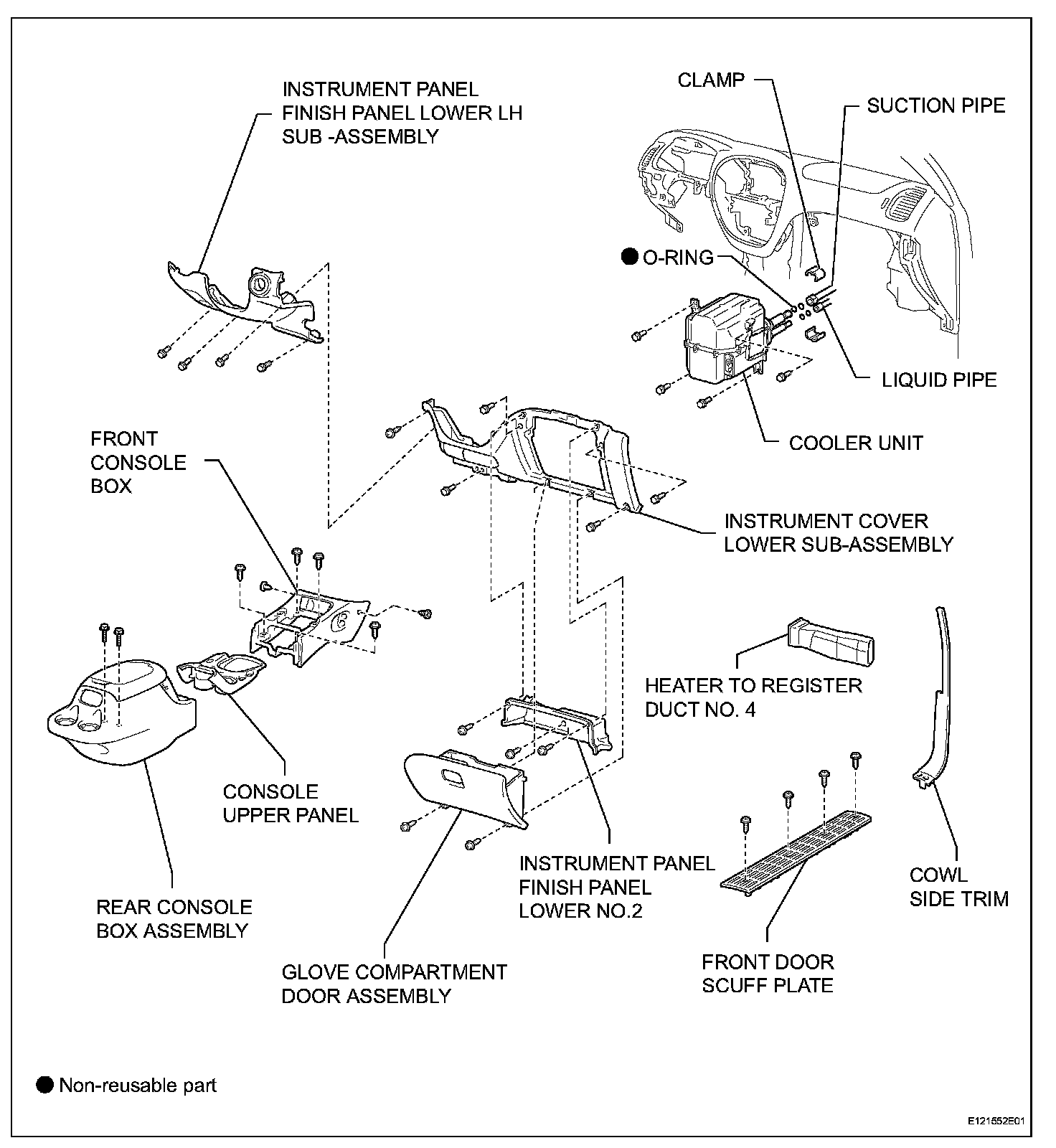

Rear Cooling Unit (Part 1):

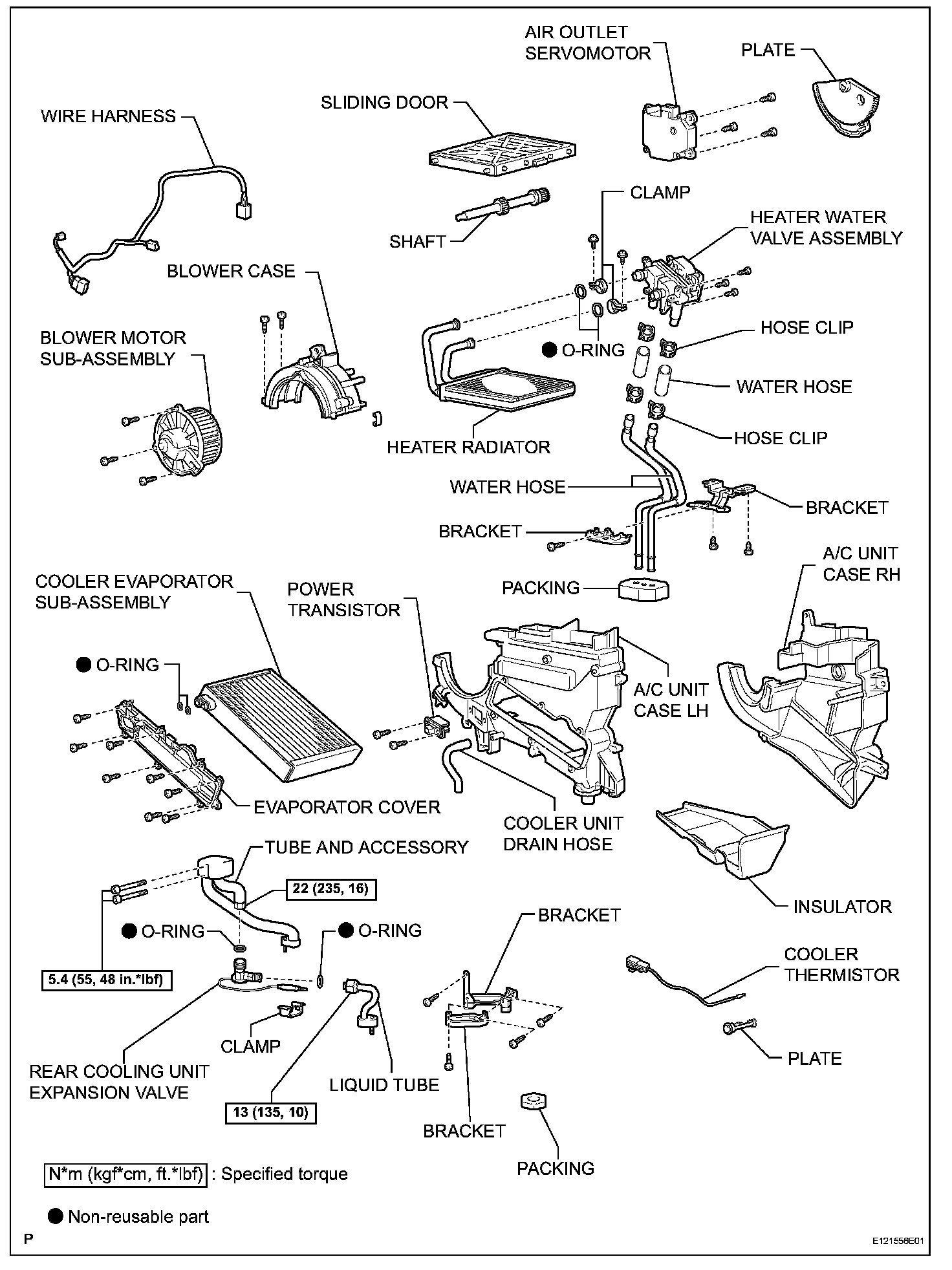

Rear Cooling Unit (Part 2):

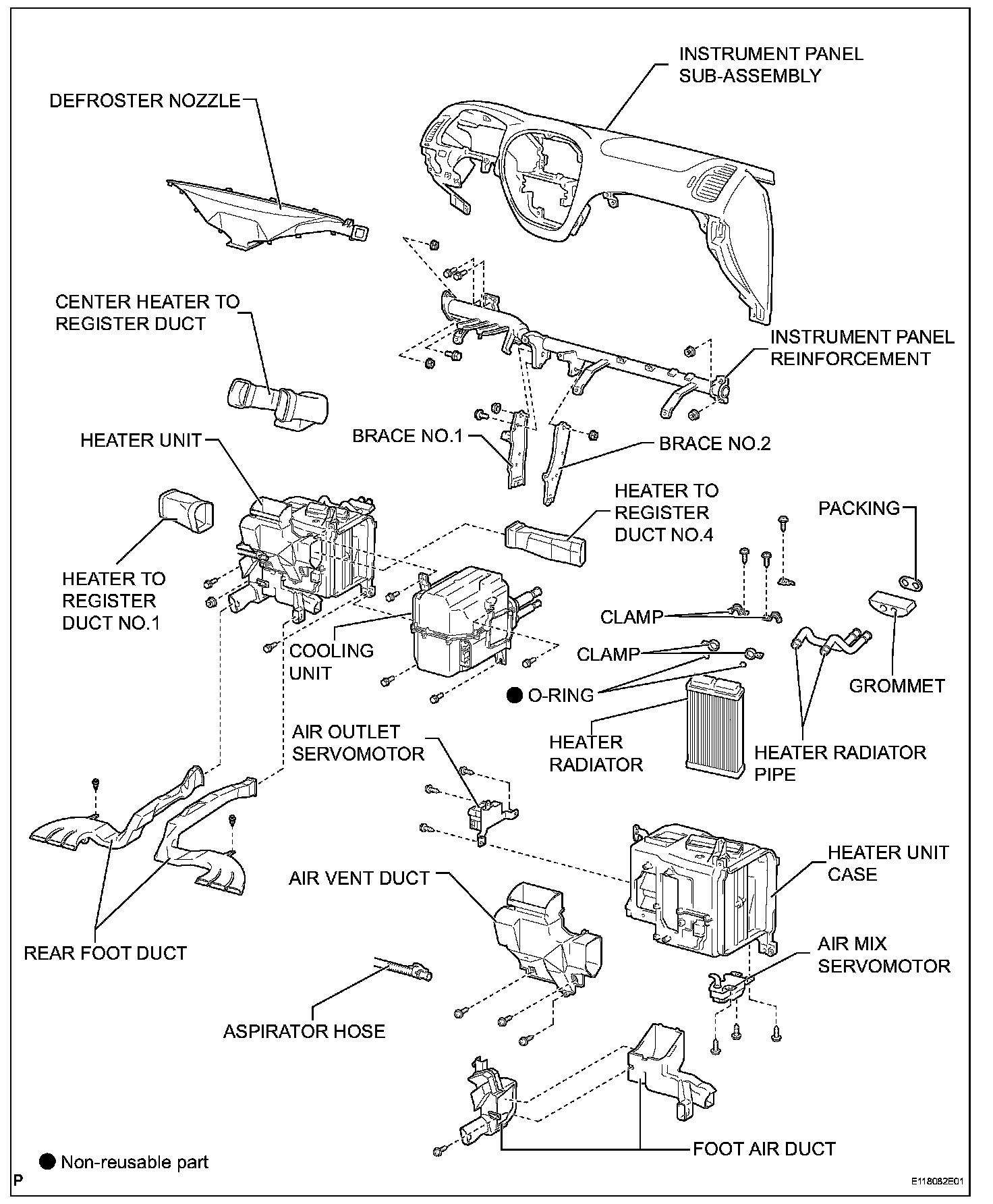

Front Heater Unit:
Front Cooling Unit:
Front Cooling Unit:
