Disassembly and Reassembly

DISASSEMBLY




1. REMOVE BULBS
a. Remove the 3 bulbs.

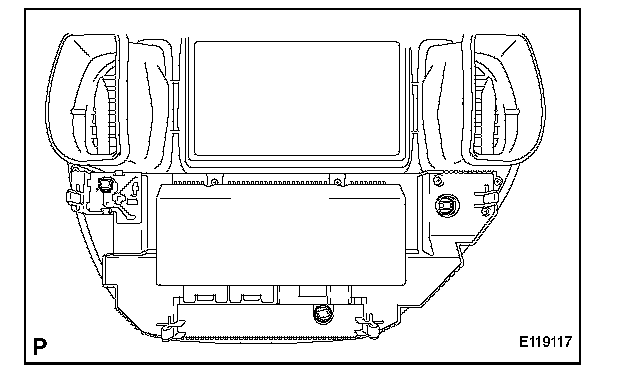

2. REMOVE AIR CONDITIONER AMPLIFIER ASSEMBLY

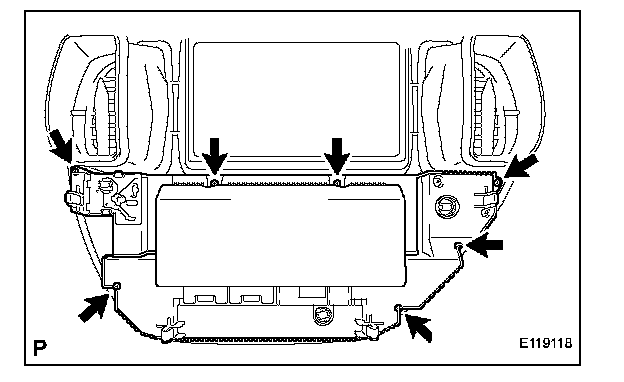

a. Remove the 7 screws and heater control housing.




b. Disconnect the 2 connectors.

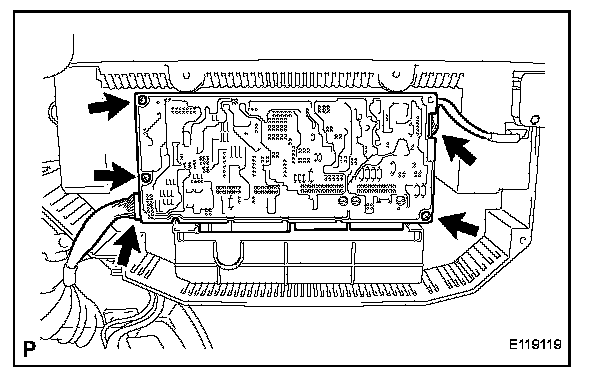

c. Remove the 3 screws and A/C amplifier.
d. Remove the passenger seat belt indicator circuit.




3. REMOVE INTEGRATION CIRCUIT

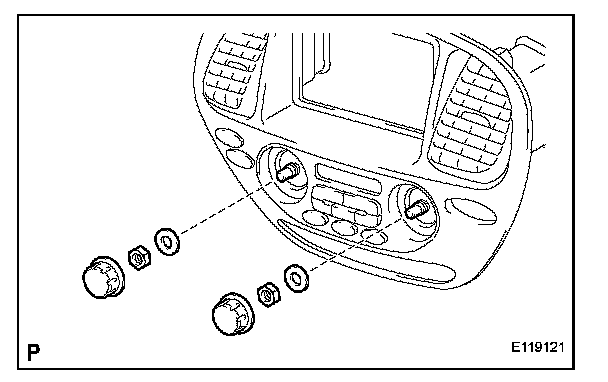

a. Remove the 2 knobs.
b. Remove the 2 nuts and 2 washer

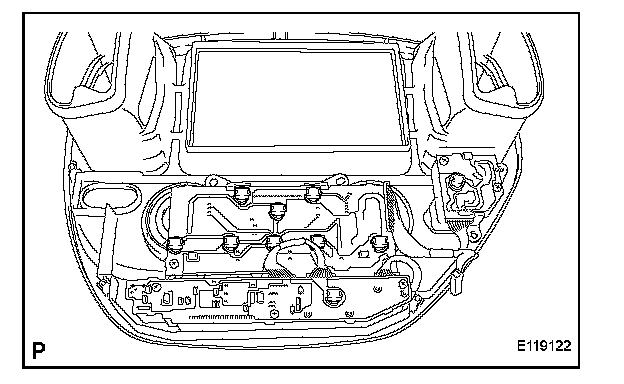

c. Remove the 8 bulbs.

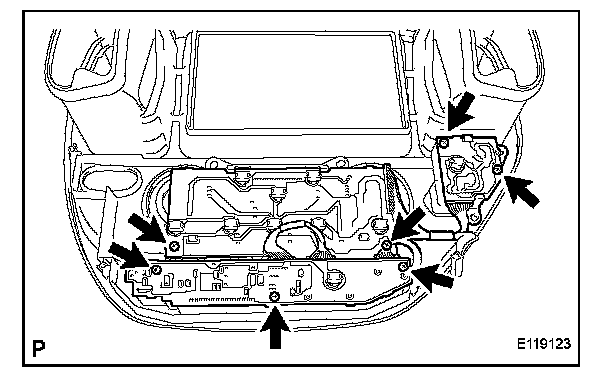

d. Remove the 7 screws and integration circuit.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
