Removal and Installation

REMOVAL

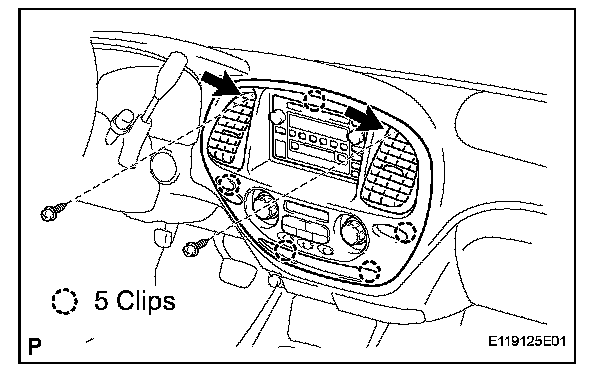

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
a. Remove the 2 screws.
b. Remove the integration control panel by pulling the portions indicated by arrows in the illustration.
c. Disconnect the connector.

INSTALLATION
Installation is in the reverse order of removal.
