Disassembly And Reassembly

DISASSEMBLY




1. REMOVE AIR CONDITIONER AMPLIFIER

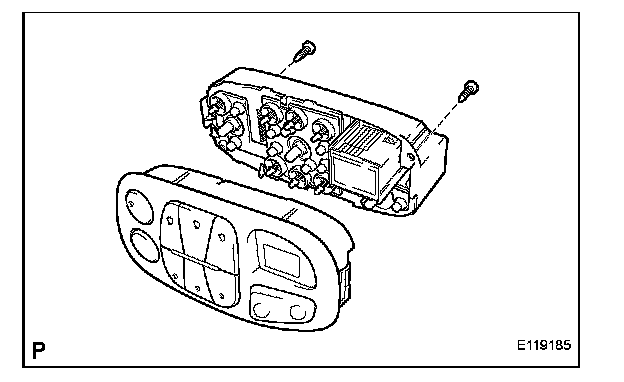

a. Remove the 2 screws and heater control switch.

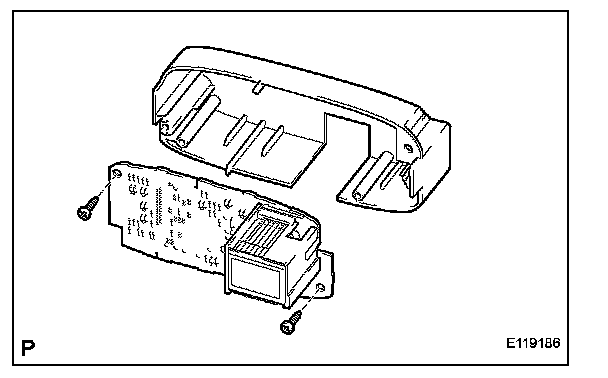

b. Remove the 4 screws, A/C amplifier and PC board.

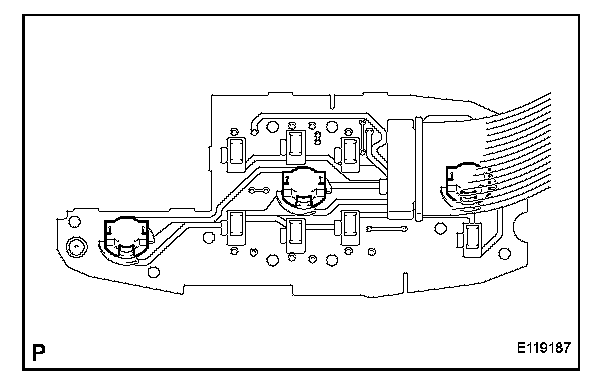

c. Remove the 3 bulbs from the PC board.

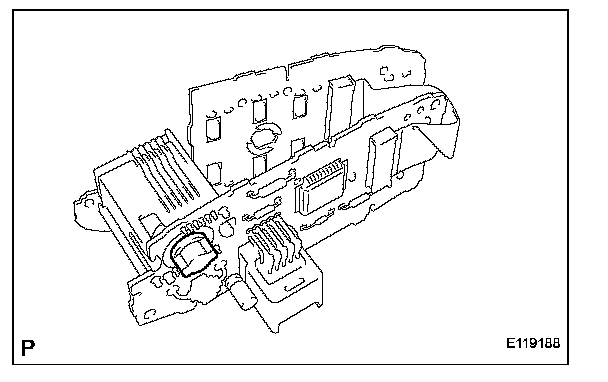

d. Remove the bulb from the A/C amplifier.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
