Fuse Block: Locations

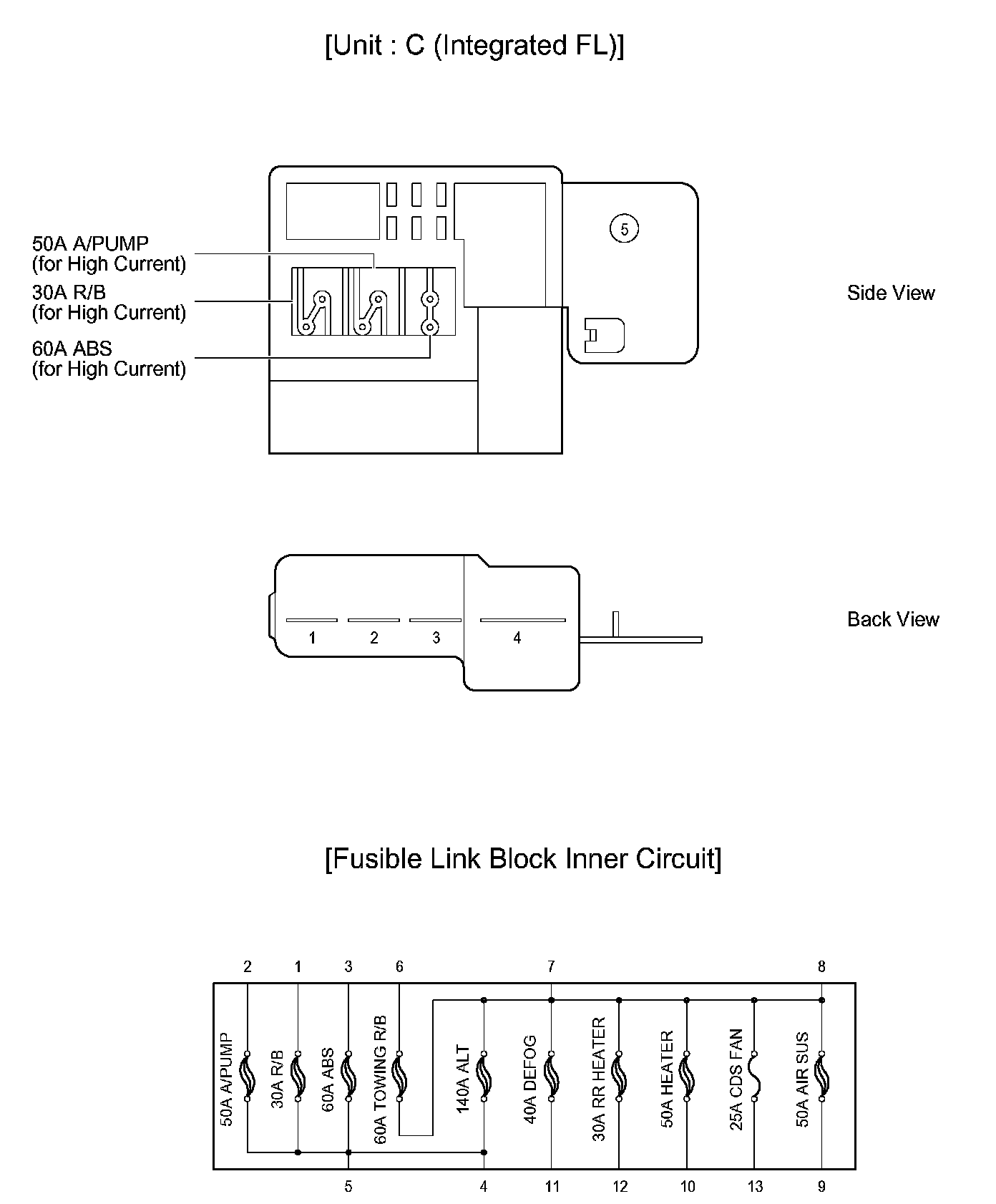

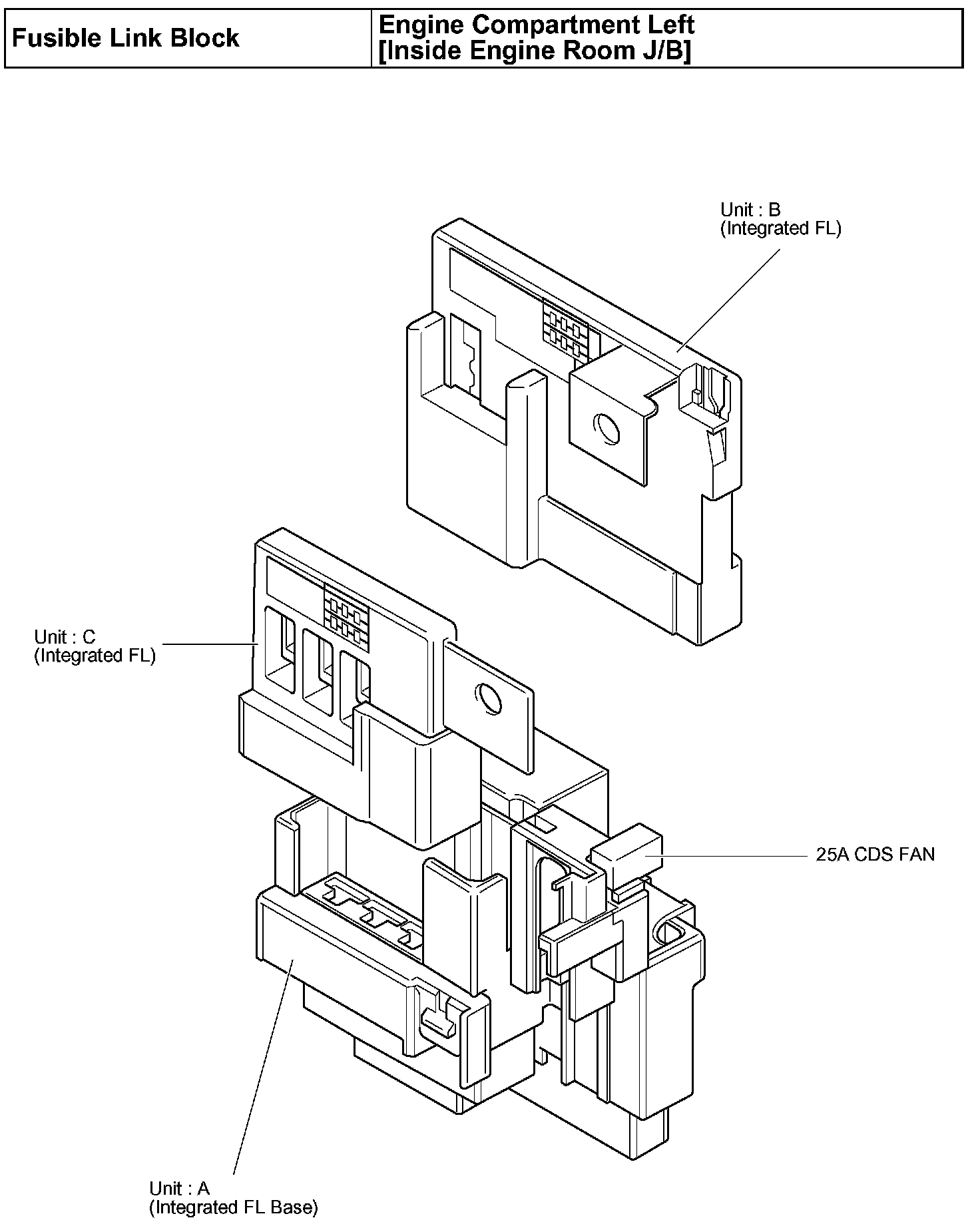

Fusible Link Block:

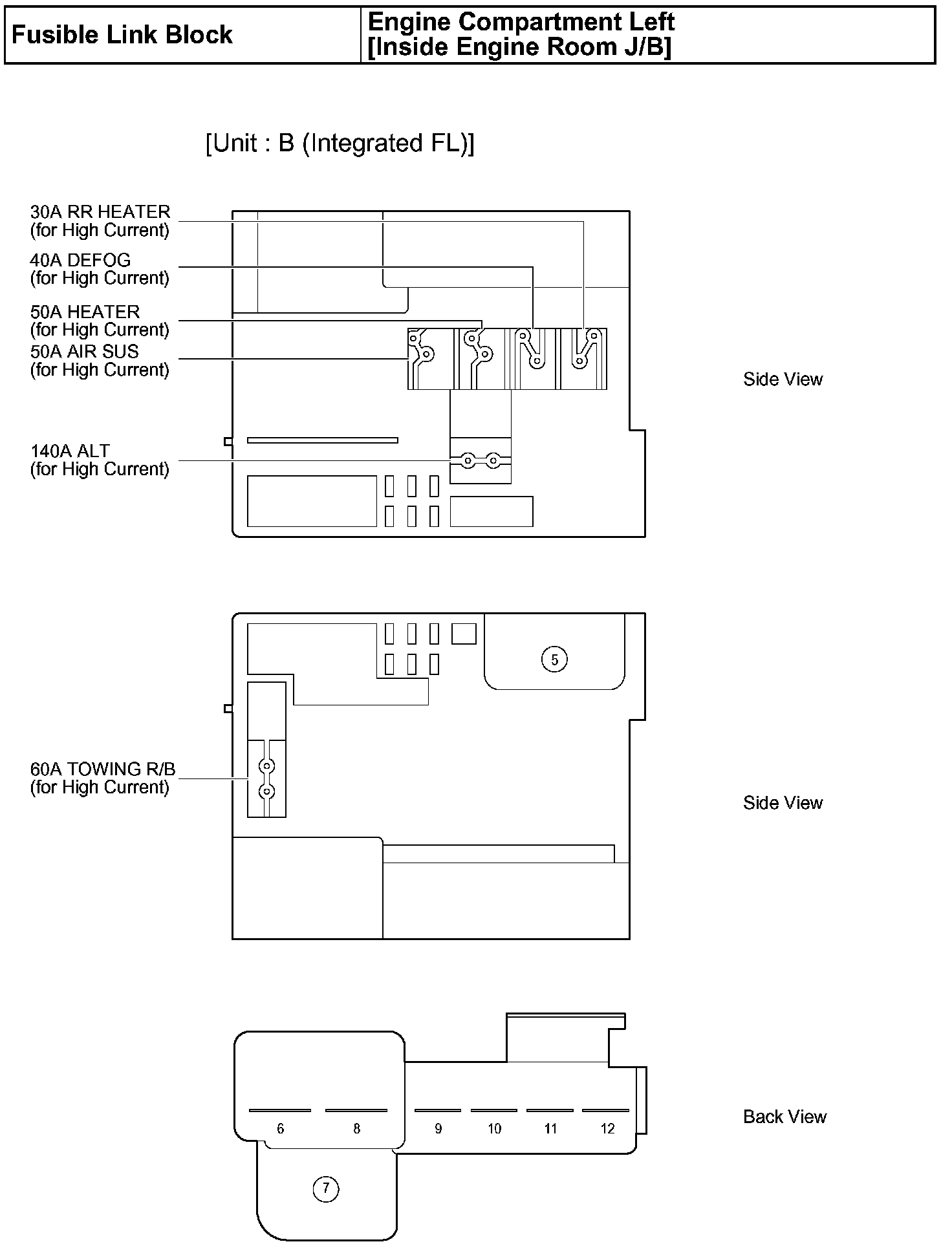

Fusible Link Block:

Fusible Link Block:

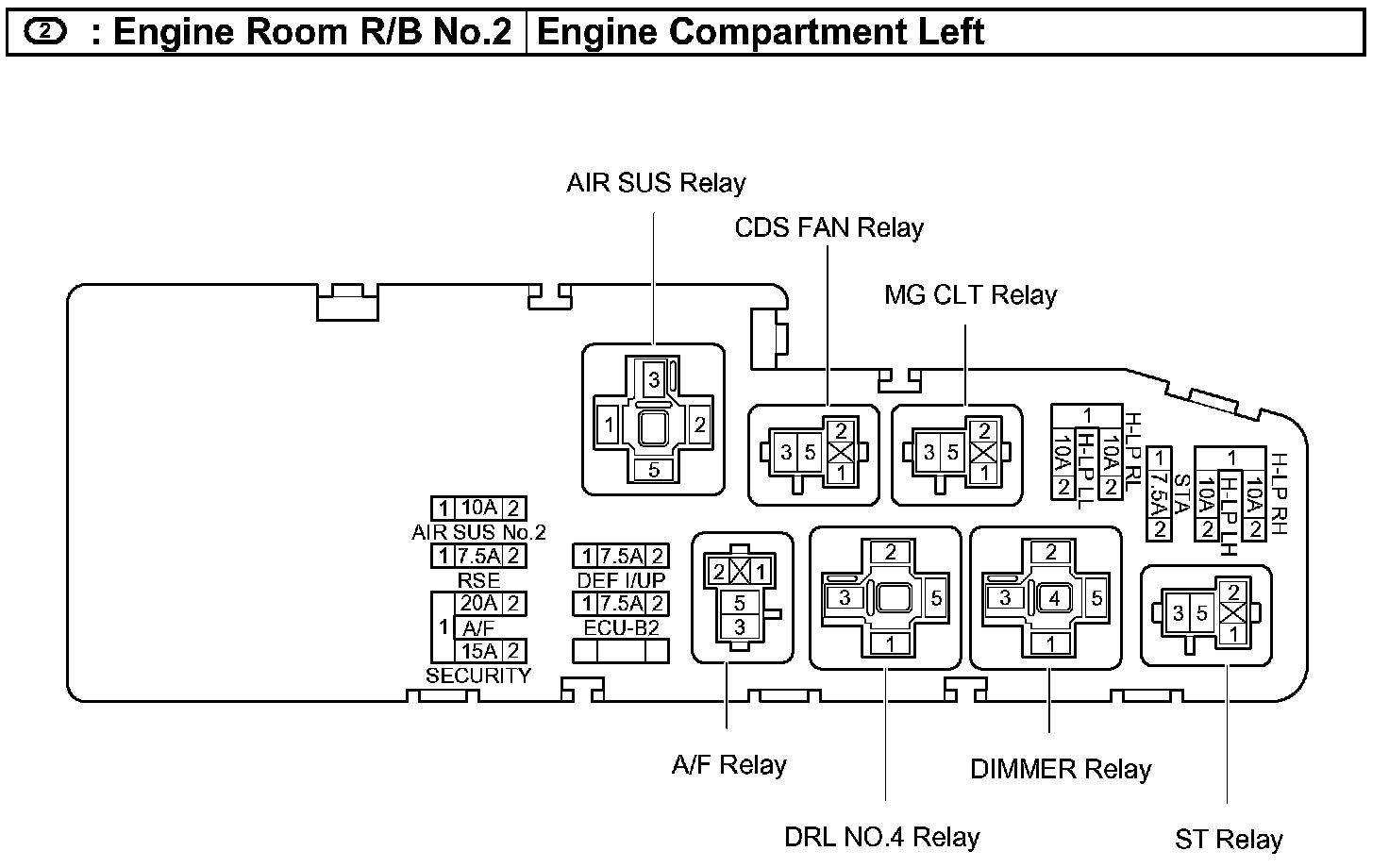

Engine Room R/B 2:

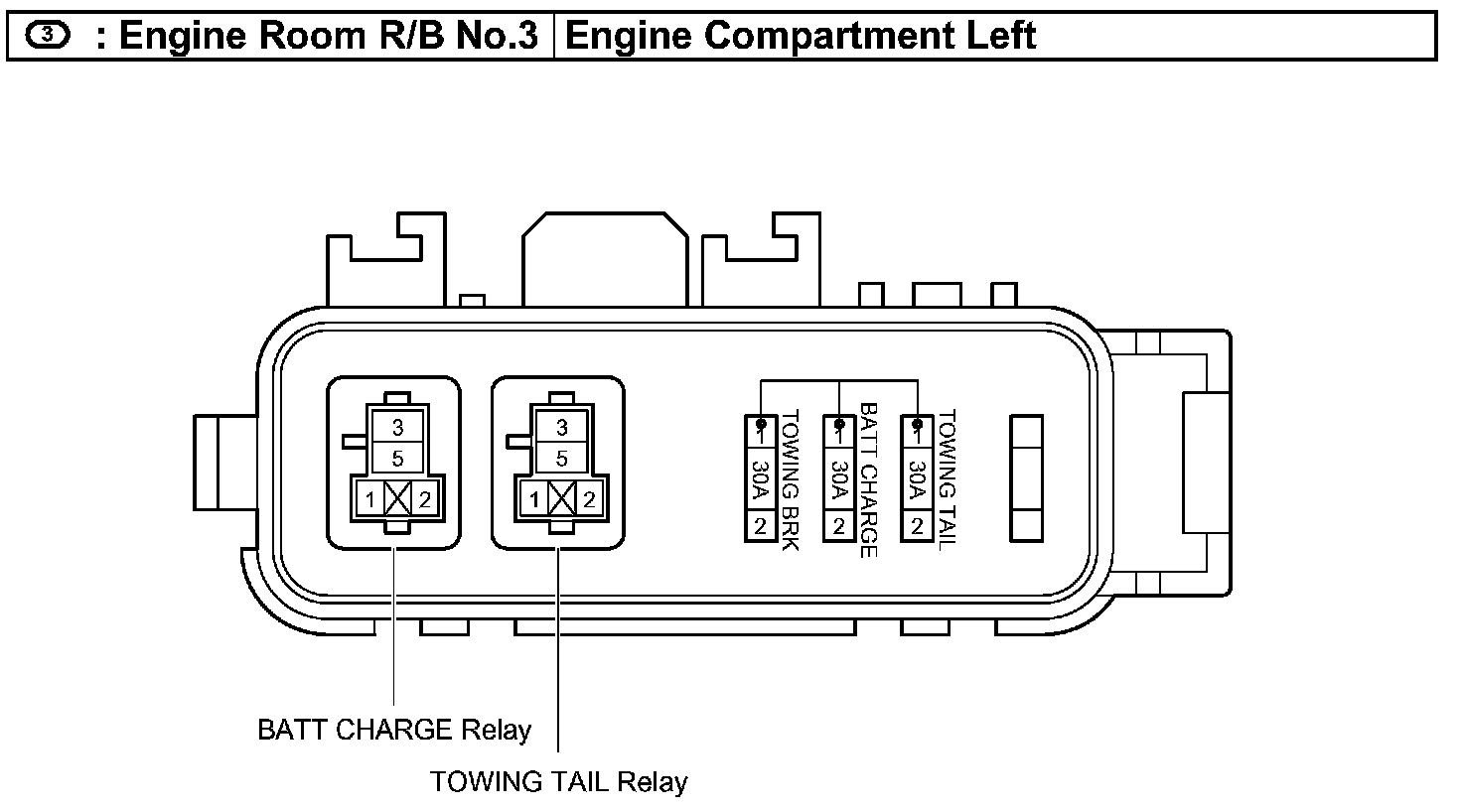

Engine Room R/B 3:

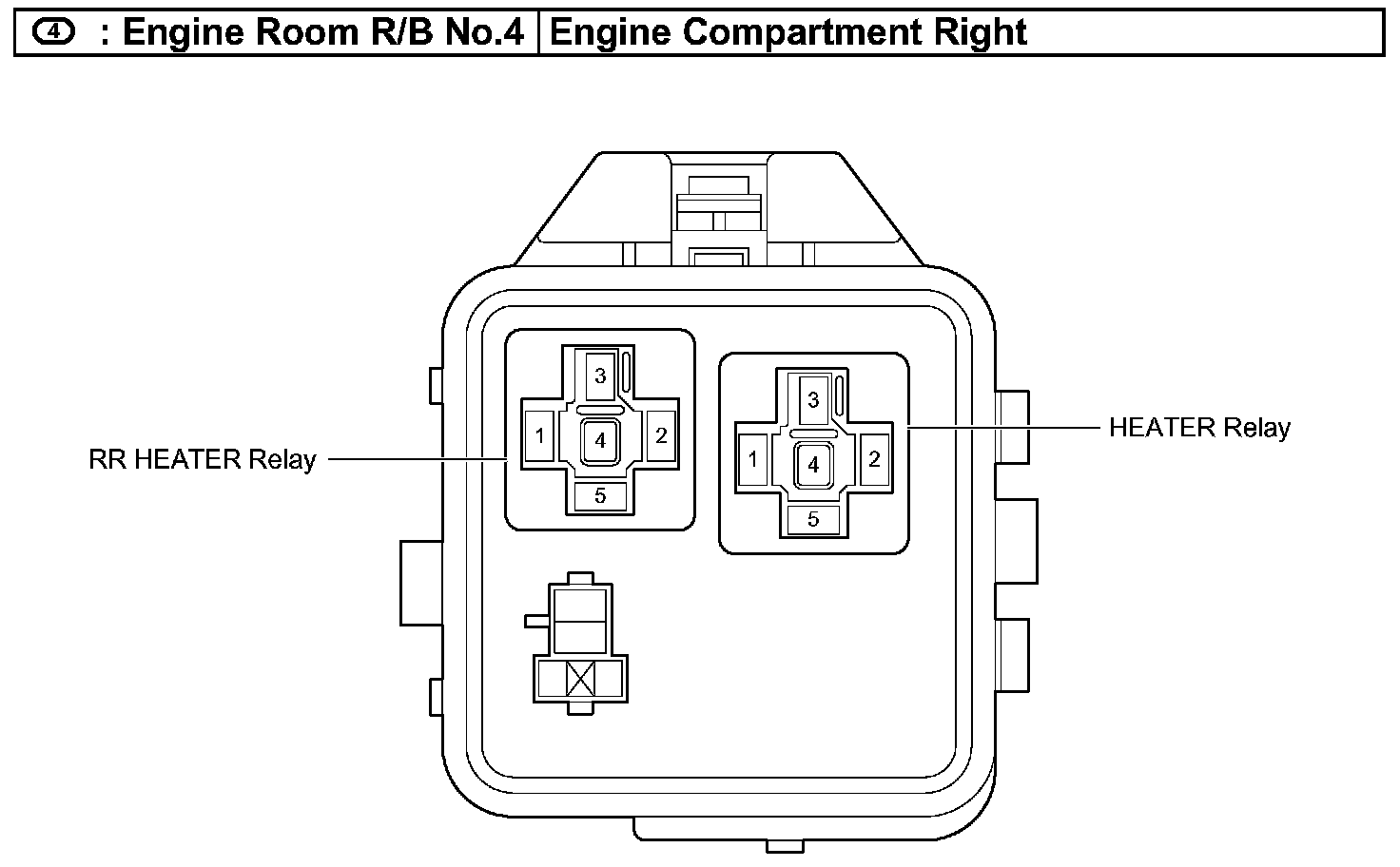

Engine Room R/B 4:

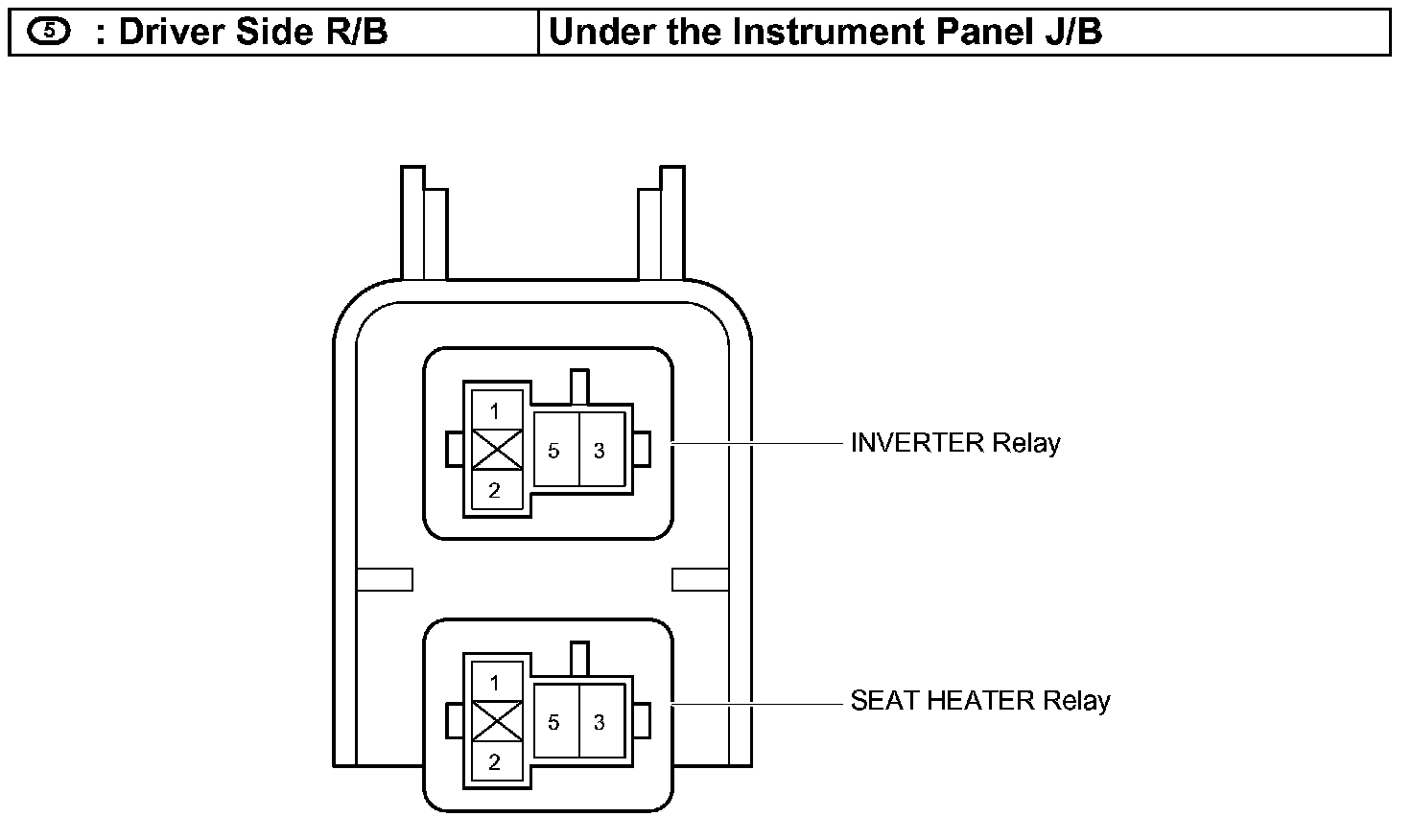

Driver Side R/B:

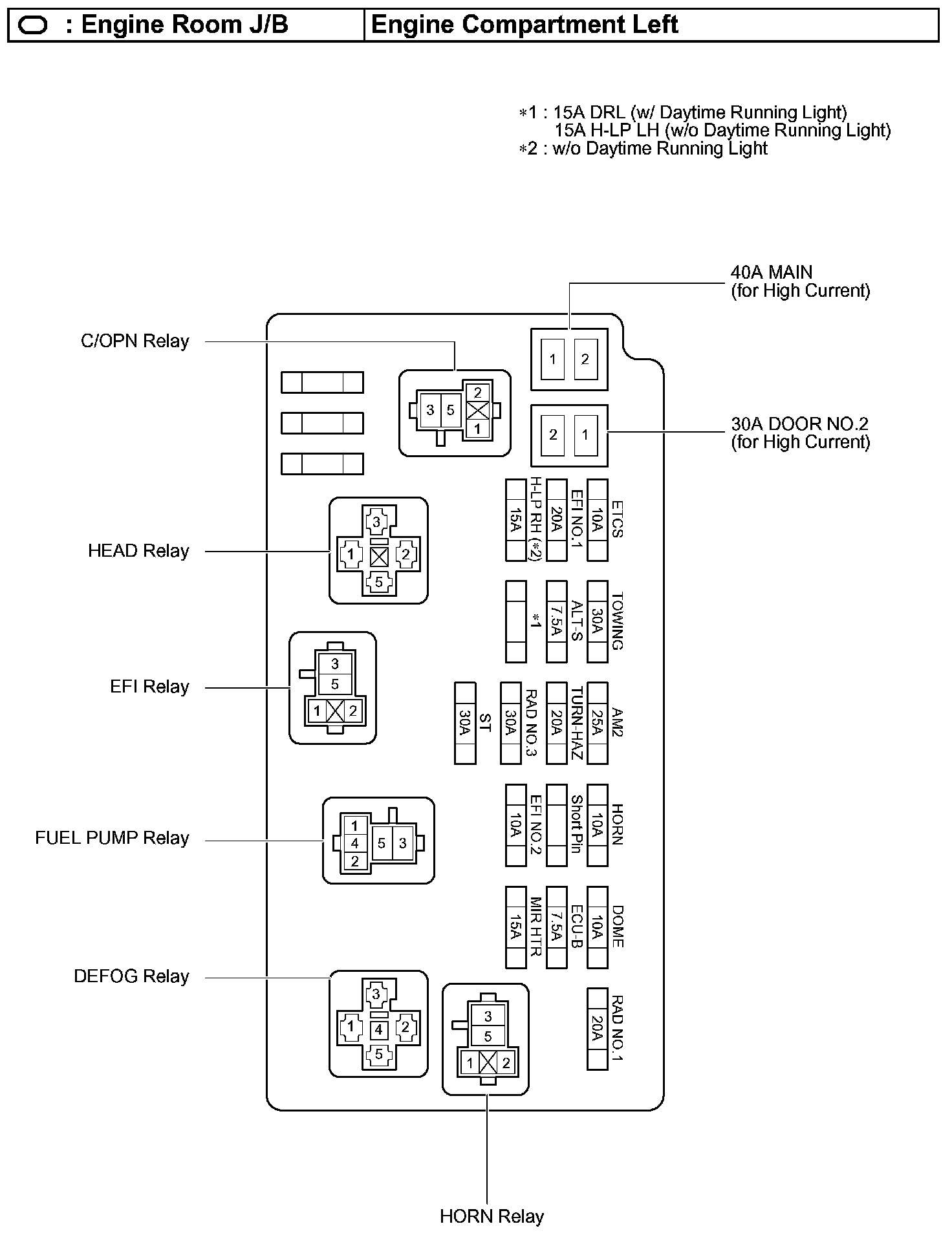

Engine Room R/B:

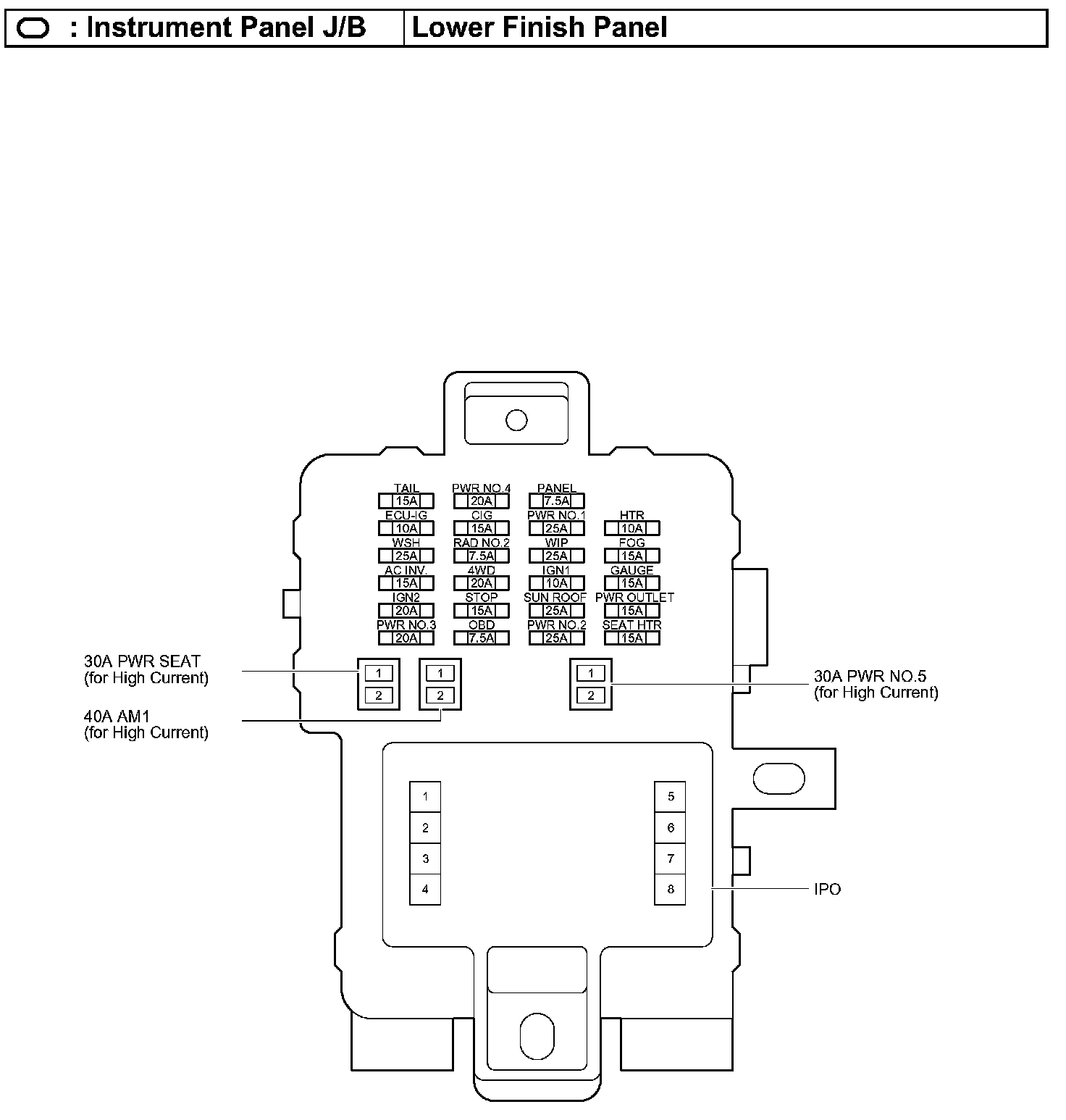

Instrument Panel J/B - Lower Finish Panel:

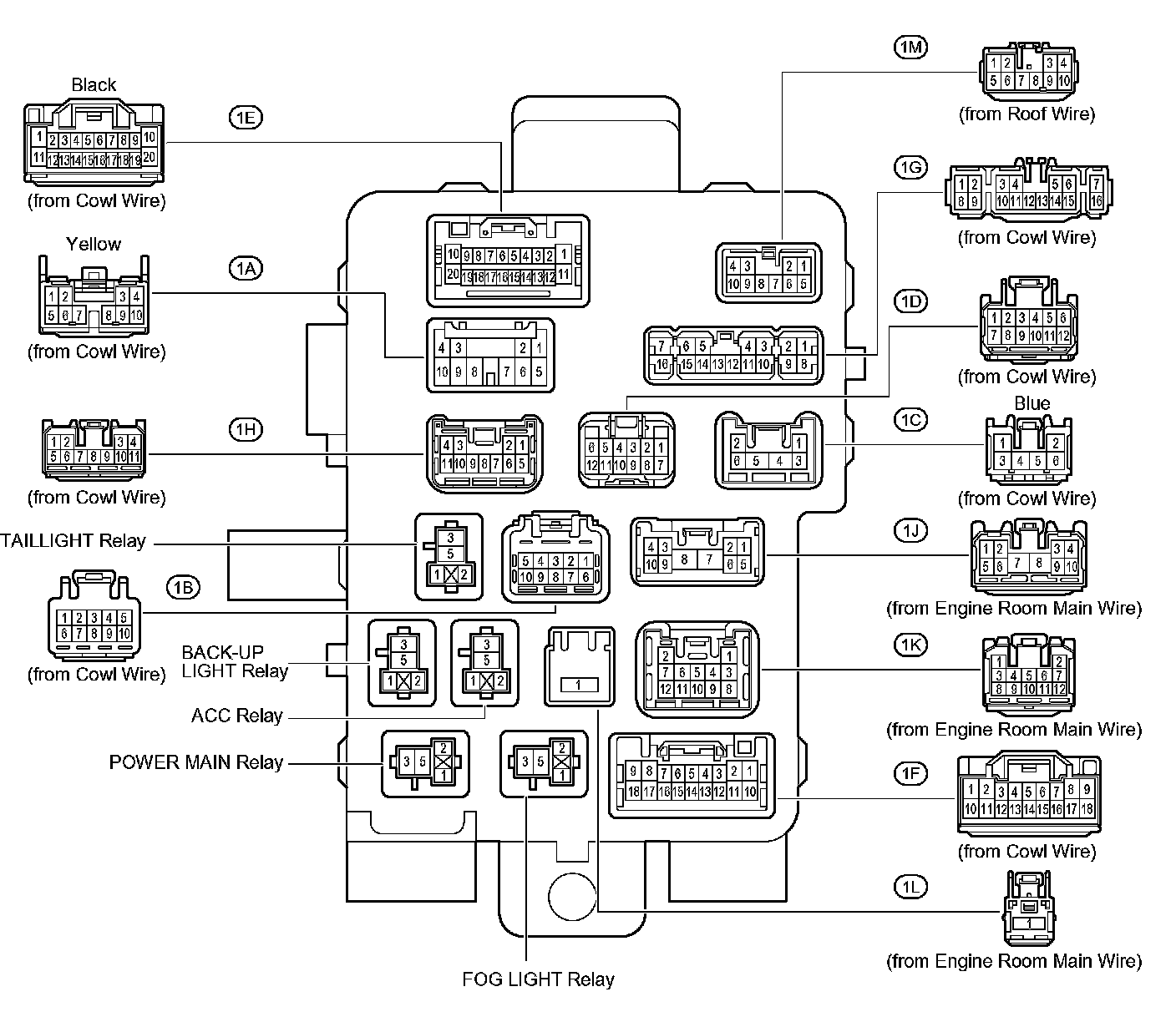

Instrument Panel J/B - Lower Finish Panel:

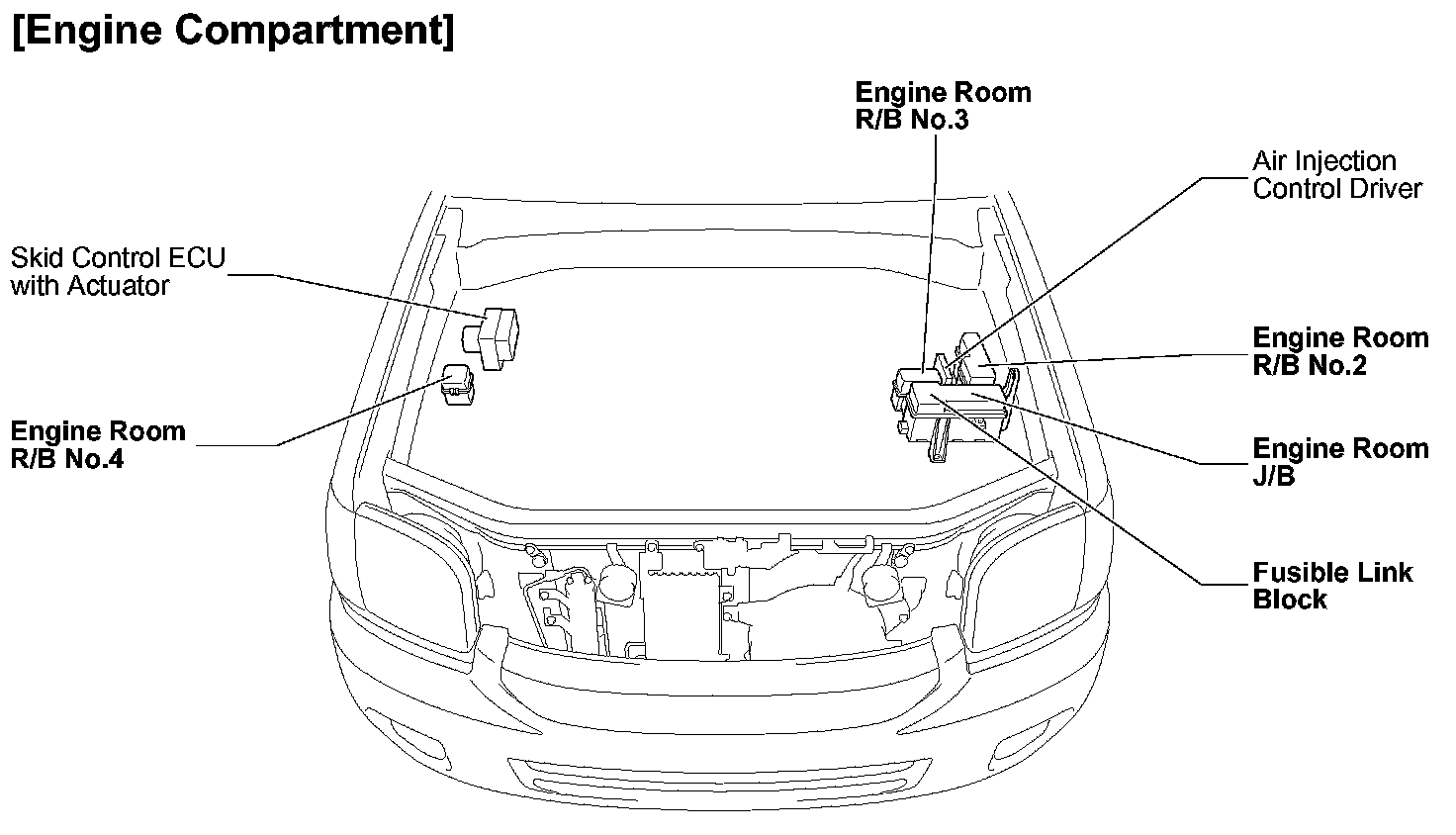

Engine Compartment:

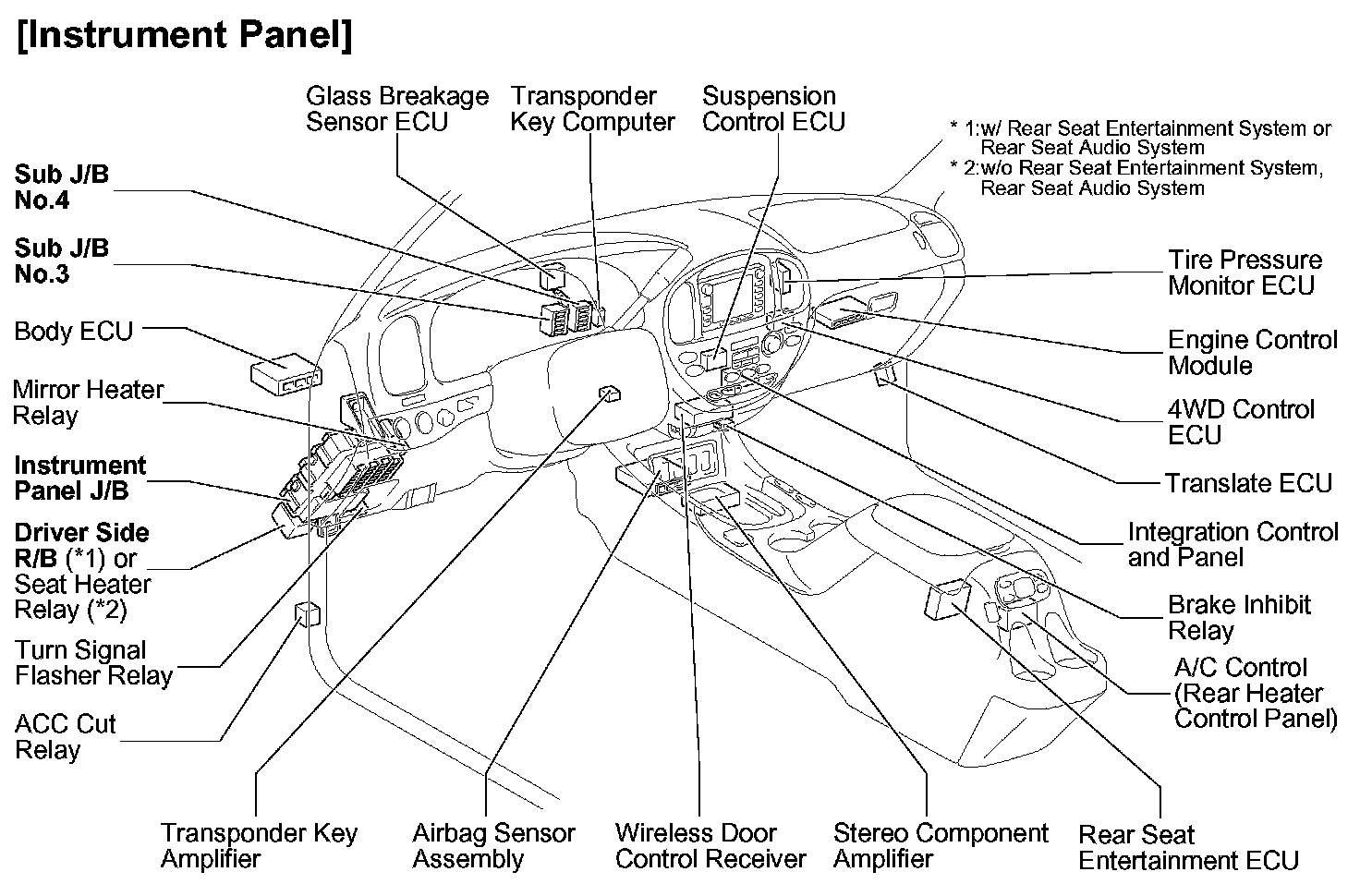

Instrument Panel:

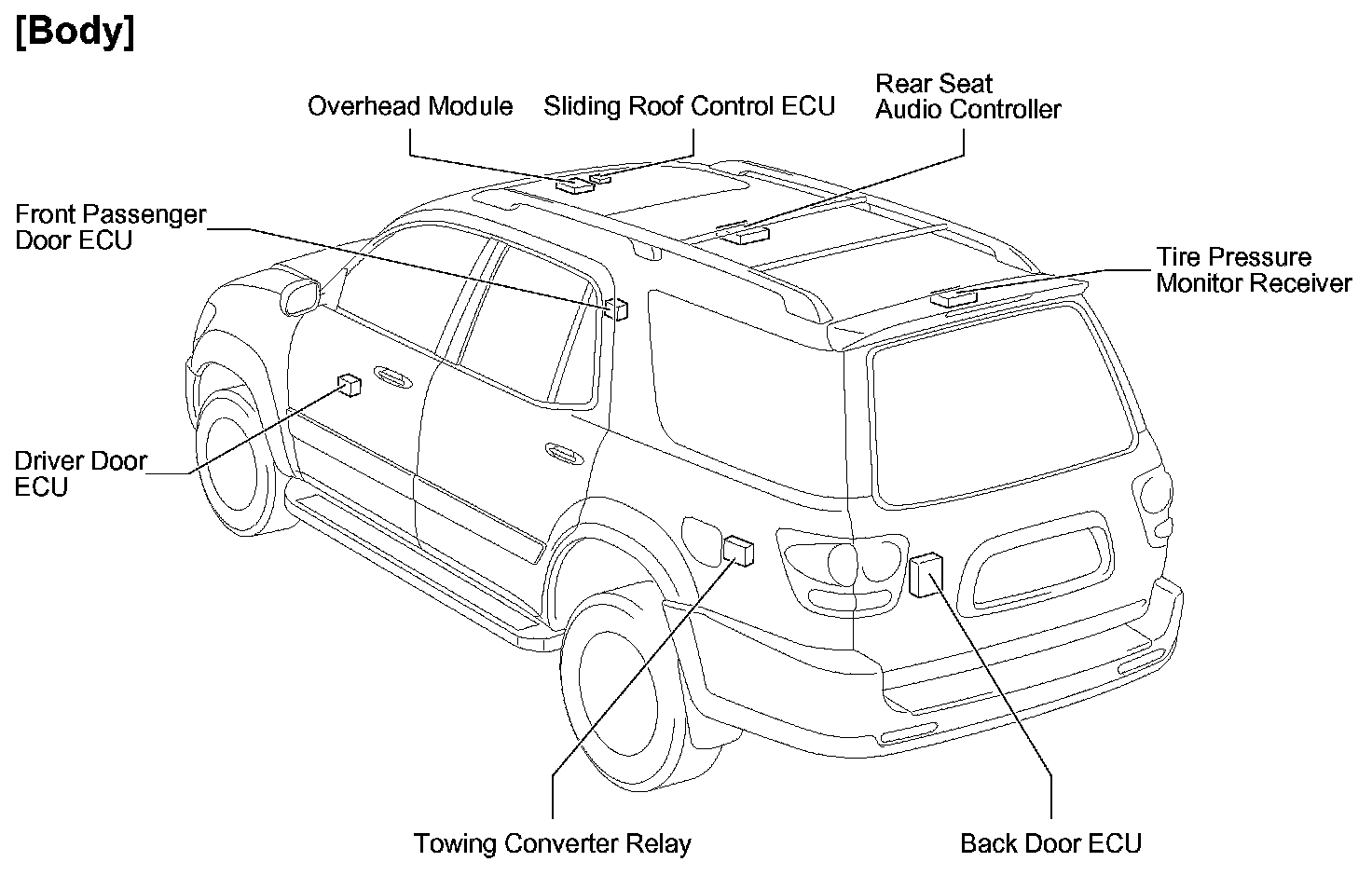

Body:
