Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor:

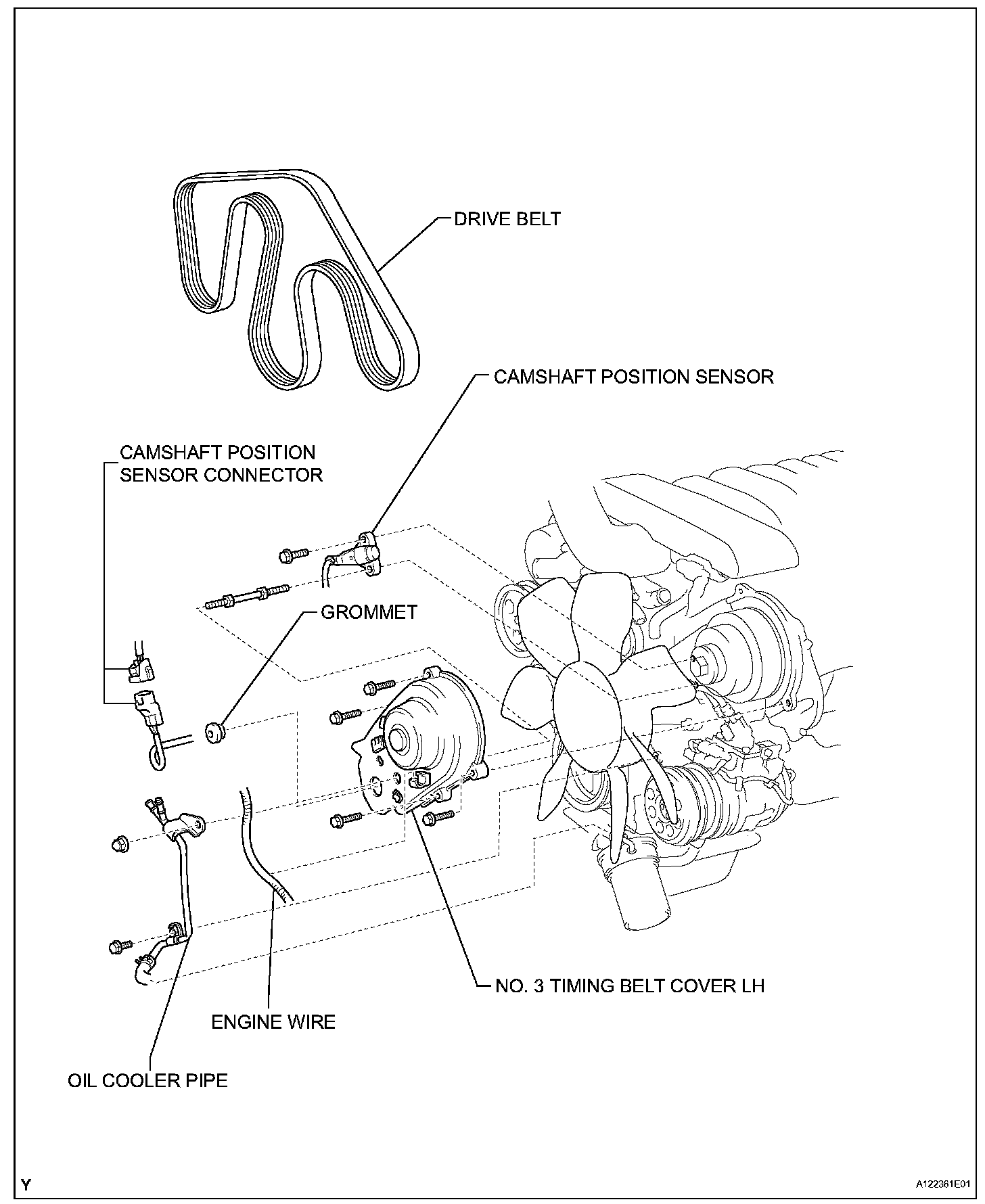

REMOVAL

1. DRAIN ENGINE COOLANT
2. REMOVE DRIVE BELT
3. REMOVE NO. 3 TIMING BELT COVER LH




4. REMOVE CAMSHAFT POSITION SENSOR

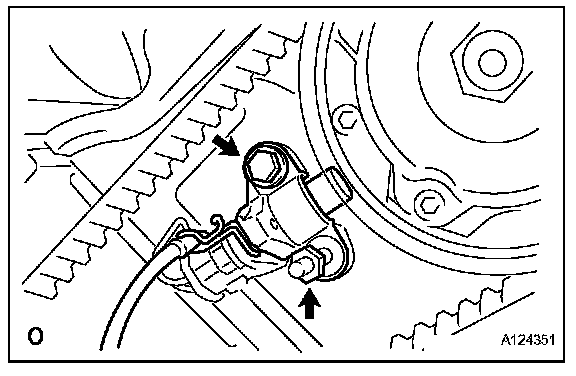

Remove the bolt, stud bolt and camshaft position

INSTALLATION




1. INSTALL CAMSHAFT POSITION SENSOR

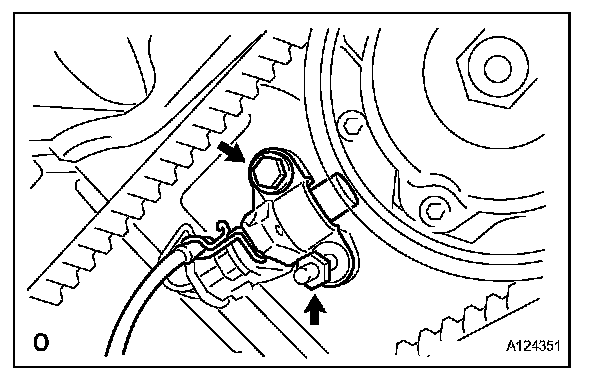

Install the camshaft position sensor with the bolt stud bolt

Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

2. INSTALL NO. 3 TIMING BELT COVER LH
3. INSTALL DRIVE BELT
4. FILL ENGINE COOLANT
5. CHECK ENGINE COOLANT FOR LEAKS
6. CHECK IGNITION TIMING
