Component Inspection

INSPECTION

1. INSPECT HEATER RESISTANCE OF HEATED OXYGEN SENSOR




a. Disconnect the oxygen sensor connector.

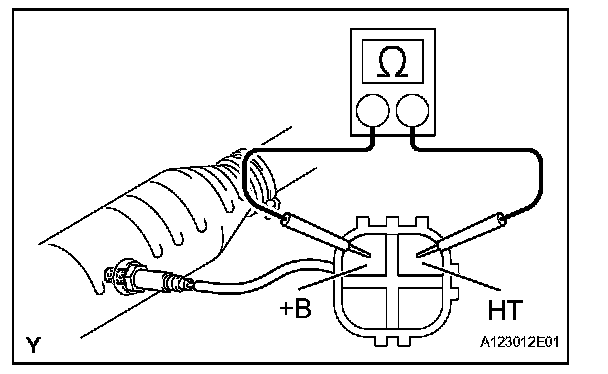

b. Using an ohmmeter, measure the resistance between terminals +B and HT.

Resistance: 11 to 16 ohms at 20 degree C (68 degree F)

If the resistance is not as specified, replace the sensor.

Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)

c. Reconnect the oxygen sensor connector.

2. INSPECT OPERATION OF HEATED OXYGEN SENSOR
