Piston, Engine

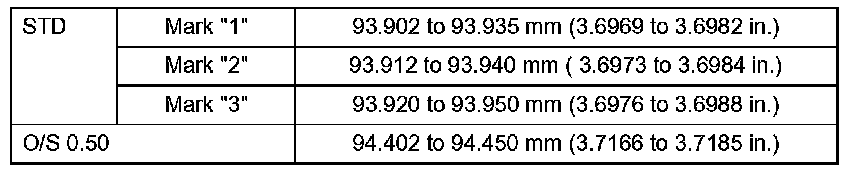

Piston Diameter:





Piston Diameter

Piston Ring Groove Clearance:





Piston Ring Groove Clearance

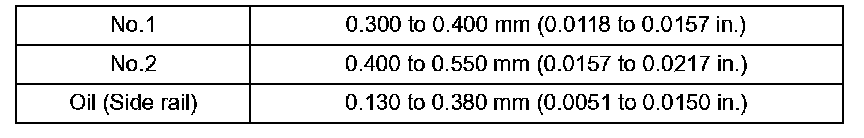

Standard End Gap:

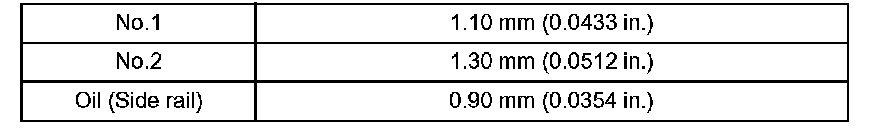

Maximum End Gap:





Piston Ring End Gap
