Sound Signal Circuit Between Radio Receiver and Stereo Component Amplifier
Sound Signal Circuit between Radio Receiver and Stereo Component AmplifierDESCRIPTION
The radio receiver assembly sends a sound signal to the stereo component amplifier assembly through this circuit.
The sound signal that has been sent is amplified by the stereo component amplifier assembly, and then sent to the speakers.
If there is an open or short in the circuit, sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier assembly, or the speakers.

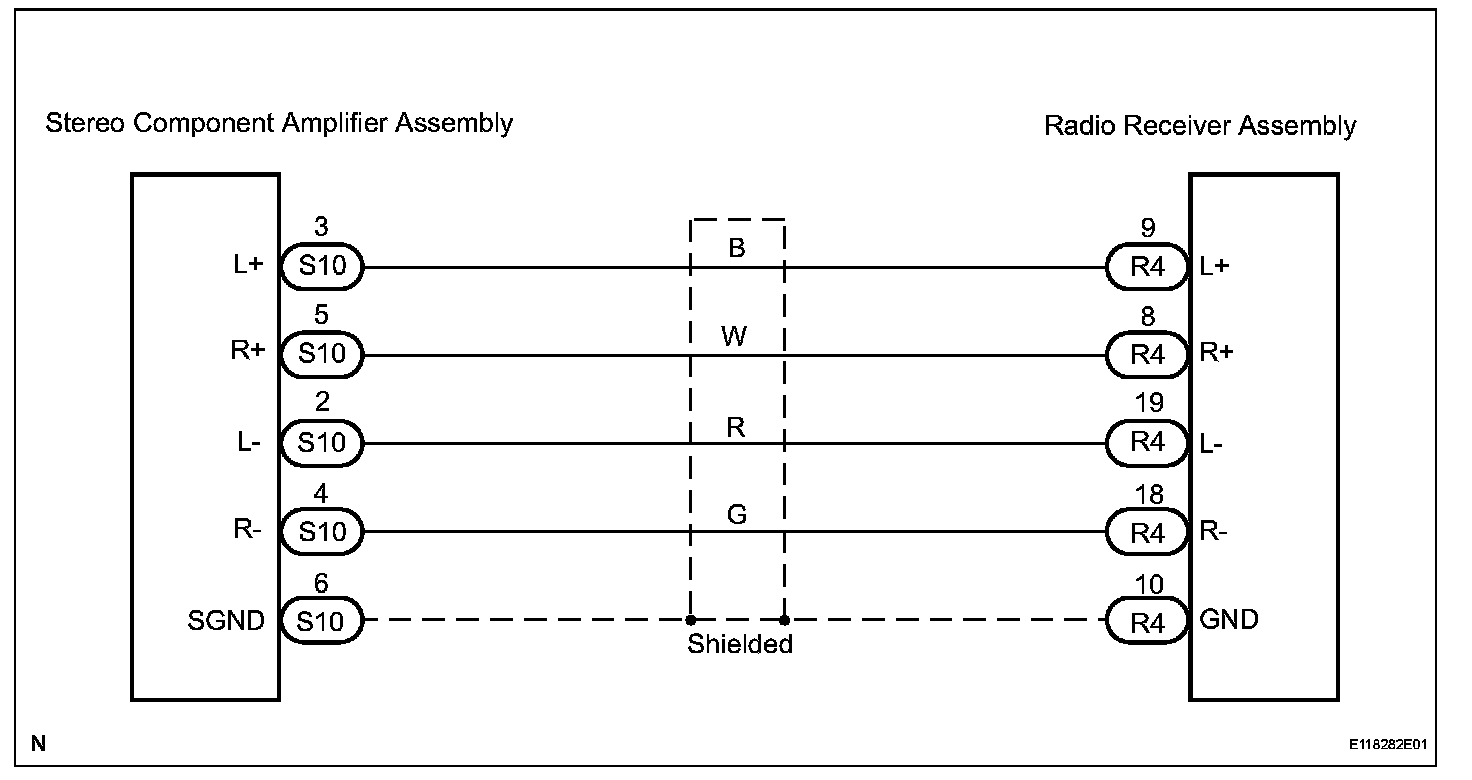

Wiring Diagram:

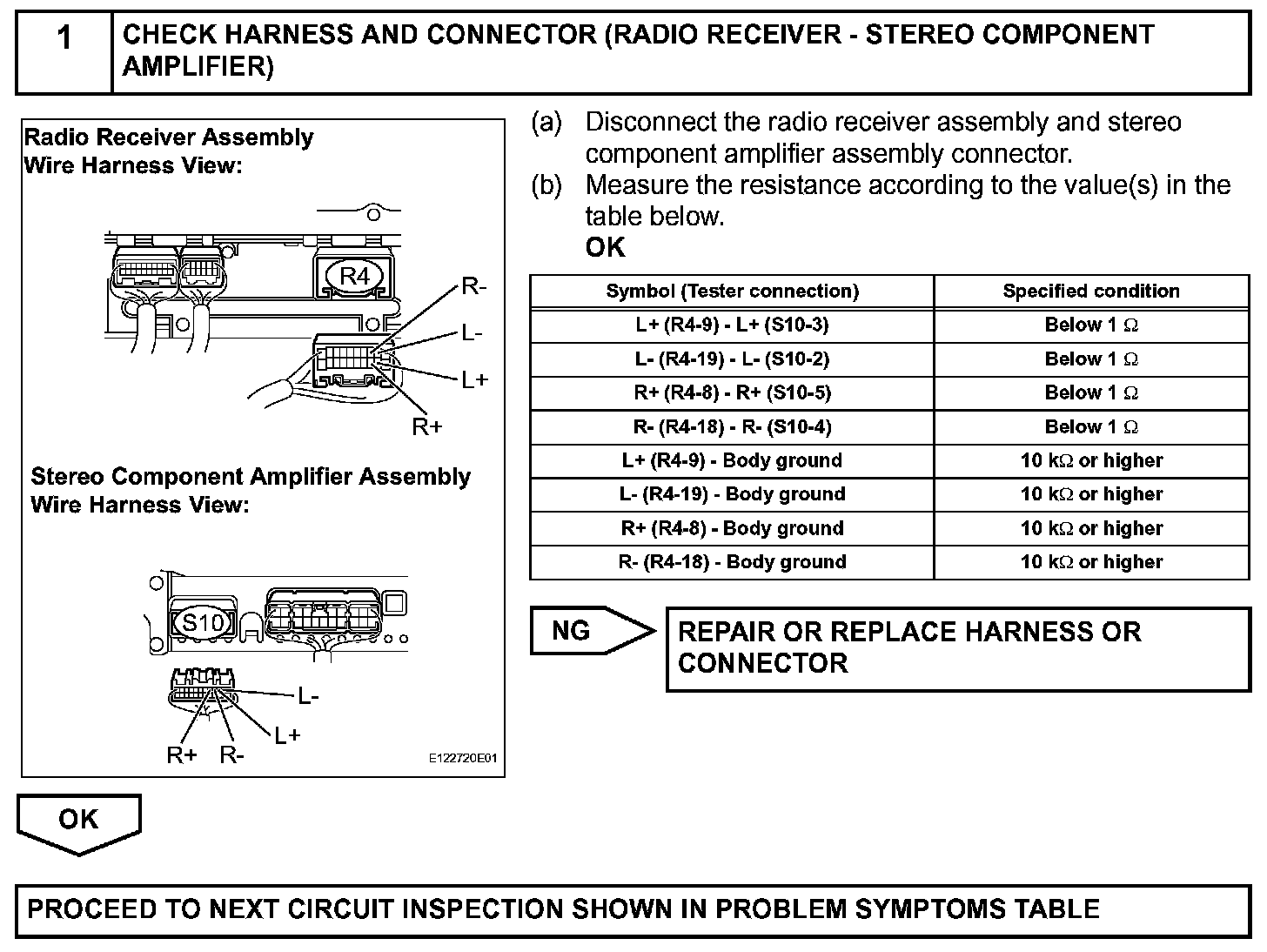

Step 1:
INSPECTION PROCEDURE
