Brakes and Traction Control: Testing and Inspection

PROBLEM SYMPTOMS TABLE

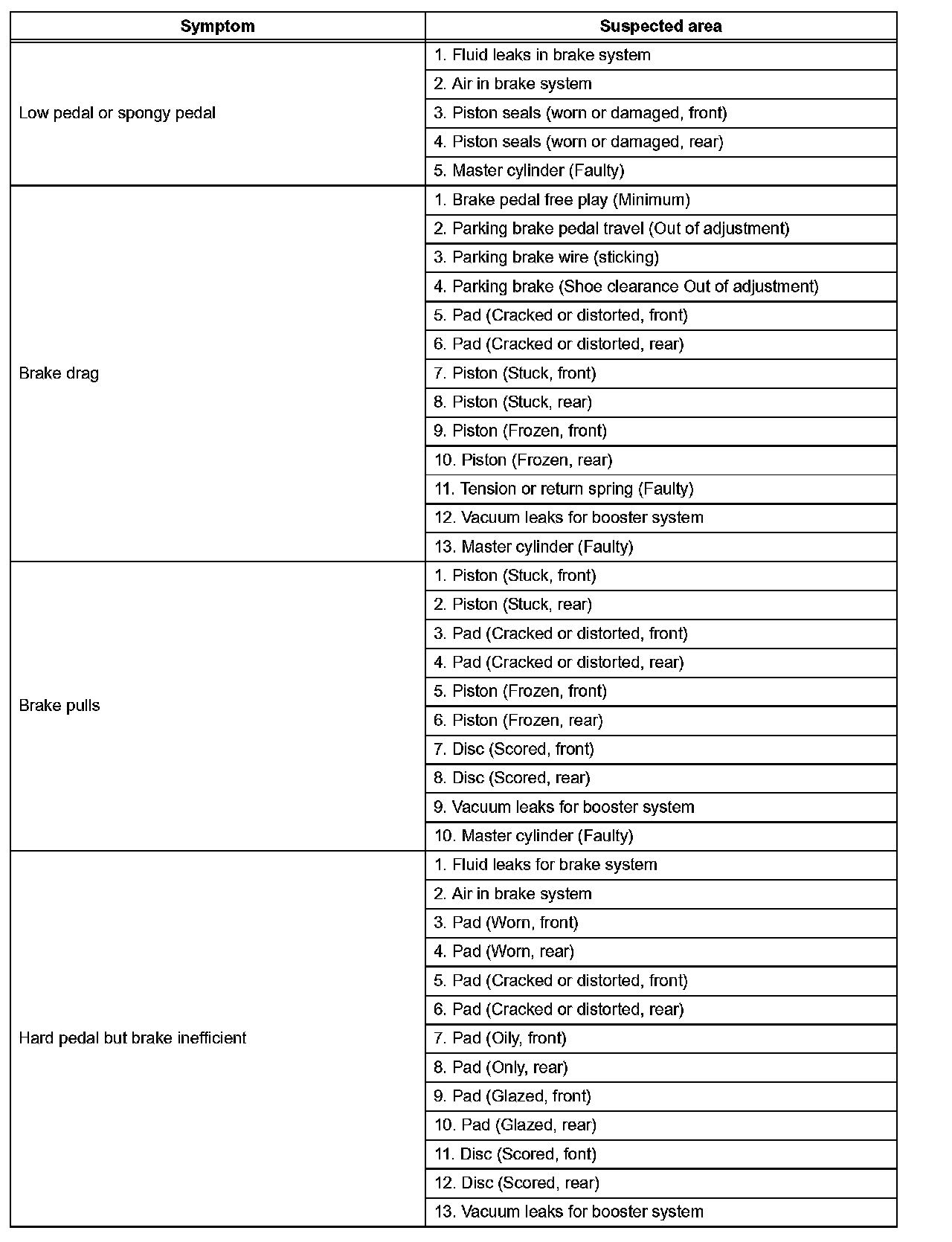

Brake System Problem Symptoms Table (Part 1):

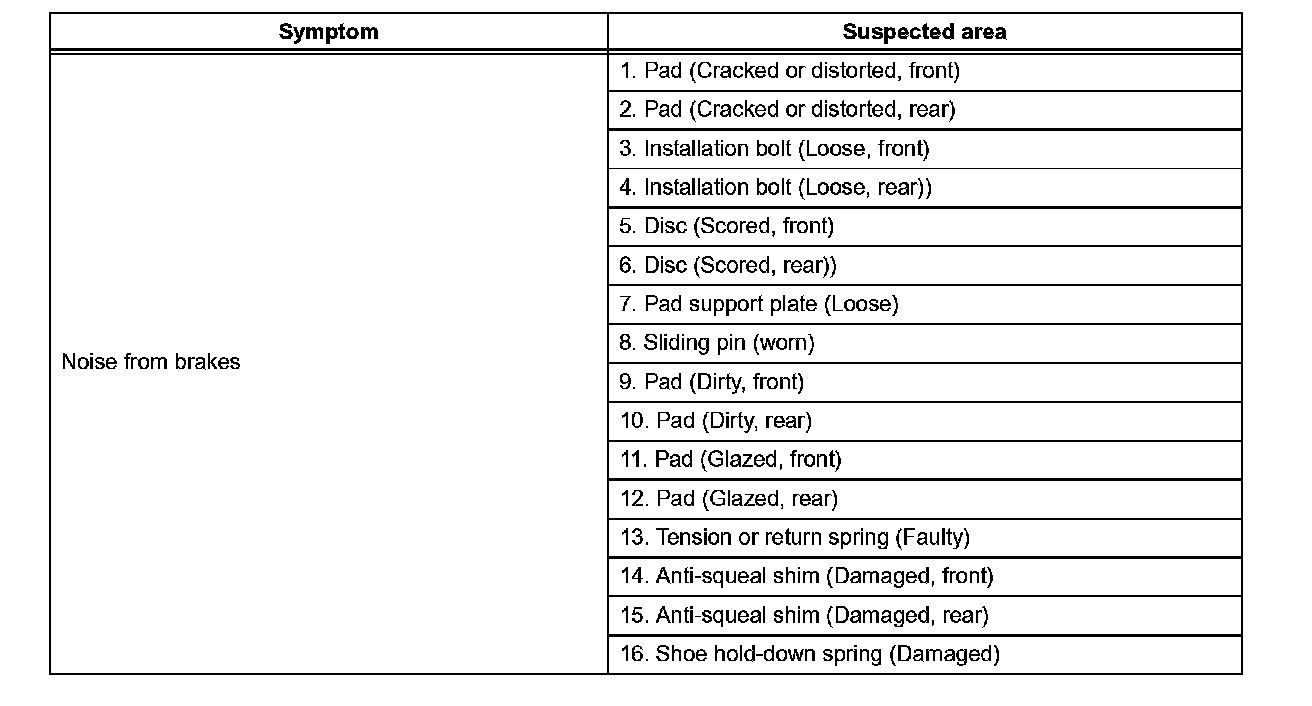

Brake System Problem Symptoms Table (Part 2):





Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
