Check Indicator

CHECK INDICATOR




a. Turn the ignition switch to the ON position.

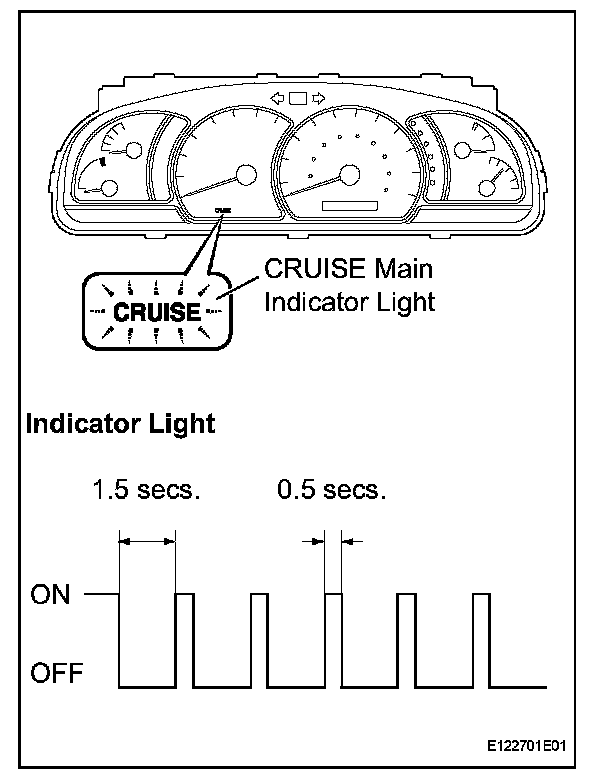

b. Check that the CRUISE main indicator light comes on when the cruise control main switch ON-OFF button is pushed on, and that the indicator light goes off when the ON-OFF button is pushed off.

HINT: If there is a problem with the indicator, inspect the cruise main indicator light circuit.

HINT: If a malfunction occurs in the vehicle speed sensors, stop lamp switch assembly, or other related parts during cruise control driving, the ECM will actuate AUTO CANCEL of the cruise control. The CRUISE main indicator light will then start to blink, informing the driver of the malfunction. At the same time, data concerning the malfunction is stored as a diagnostic trouble code (DTC).
