Suspension Control ( Automatic - Electronic )

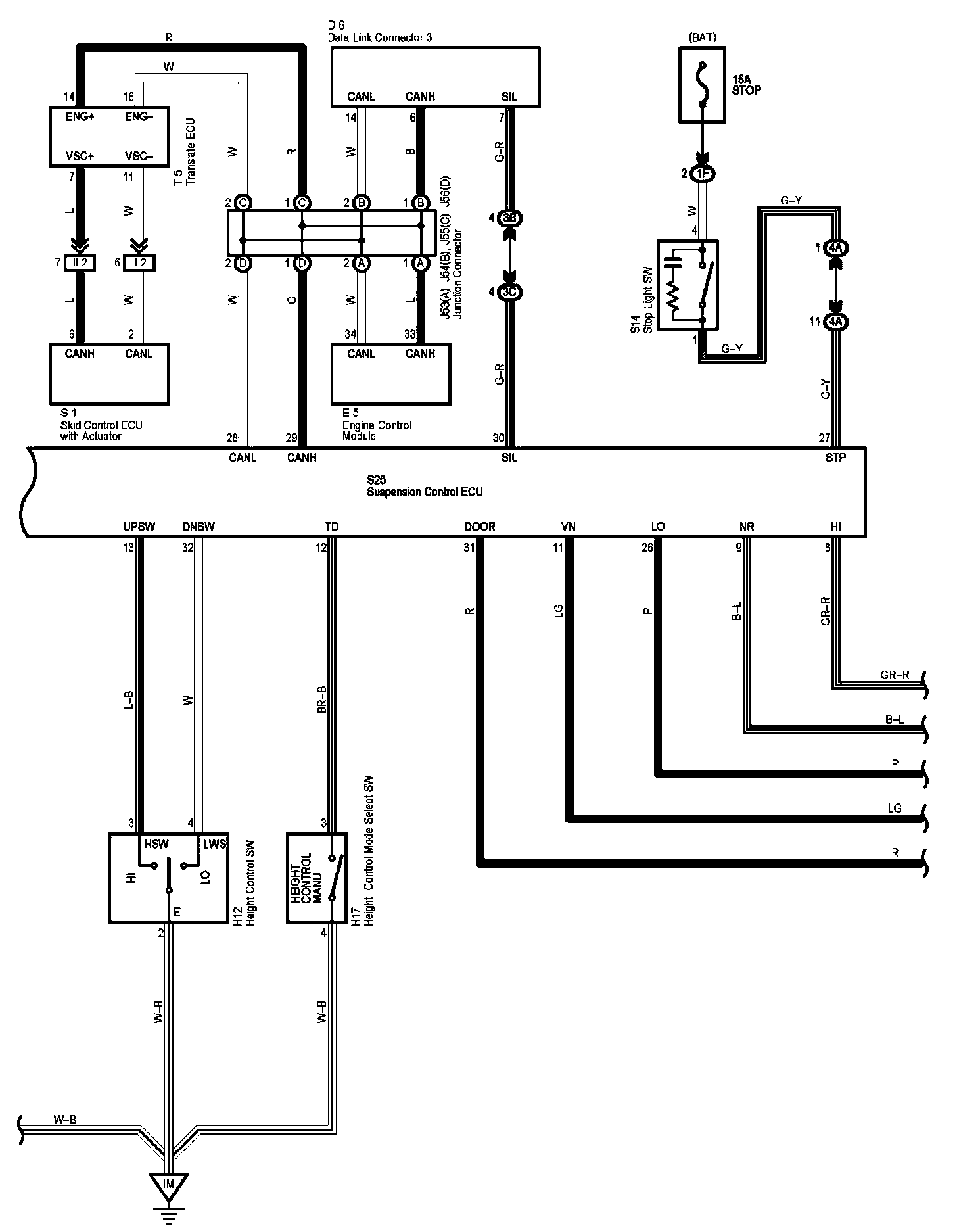

Electric Modulated Air Suspension Part 1:

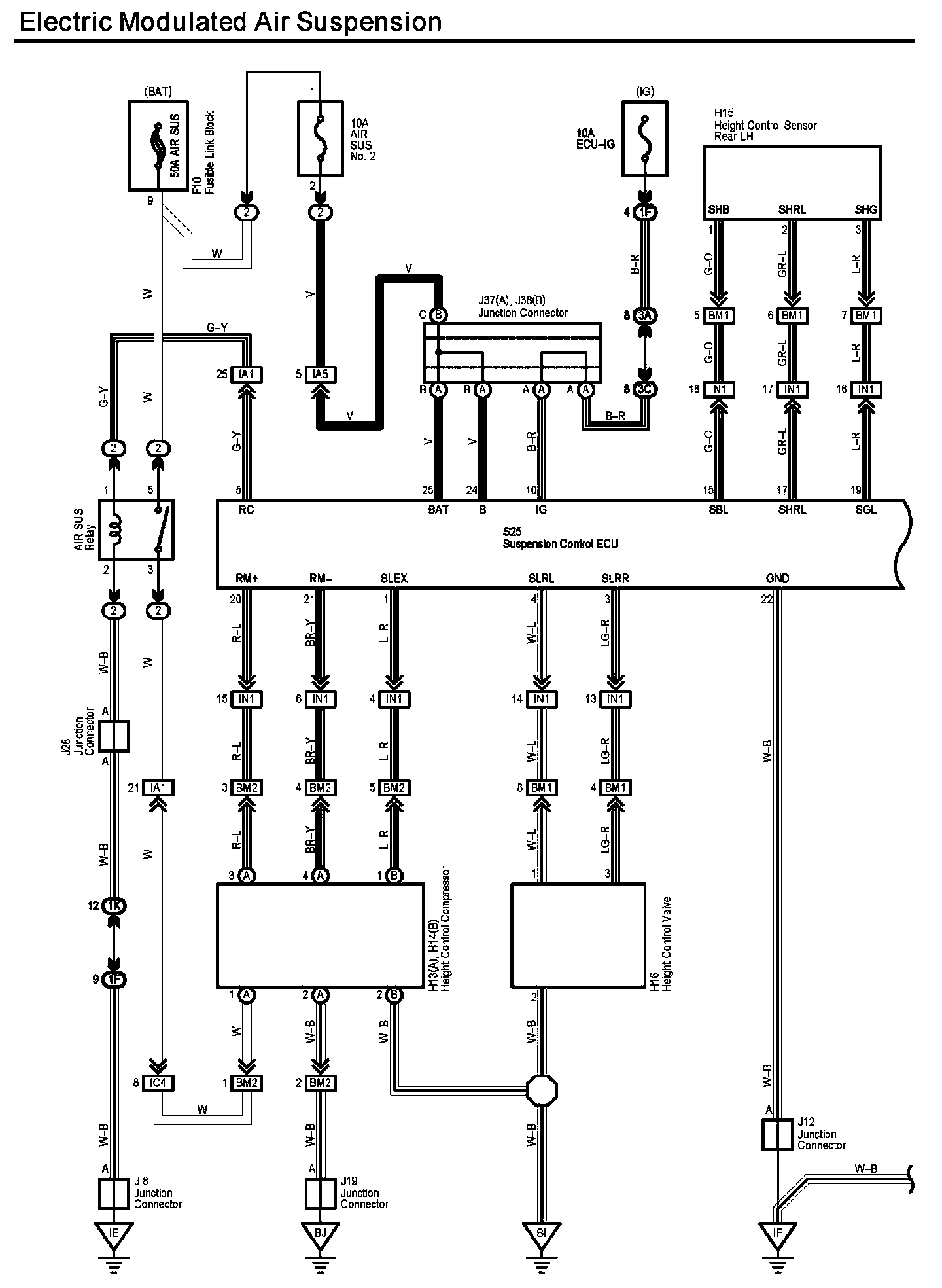

Electric Modulated Air Suspension Part 2:

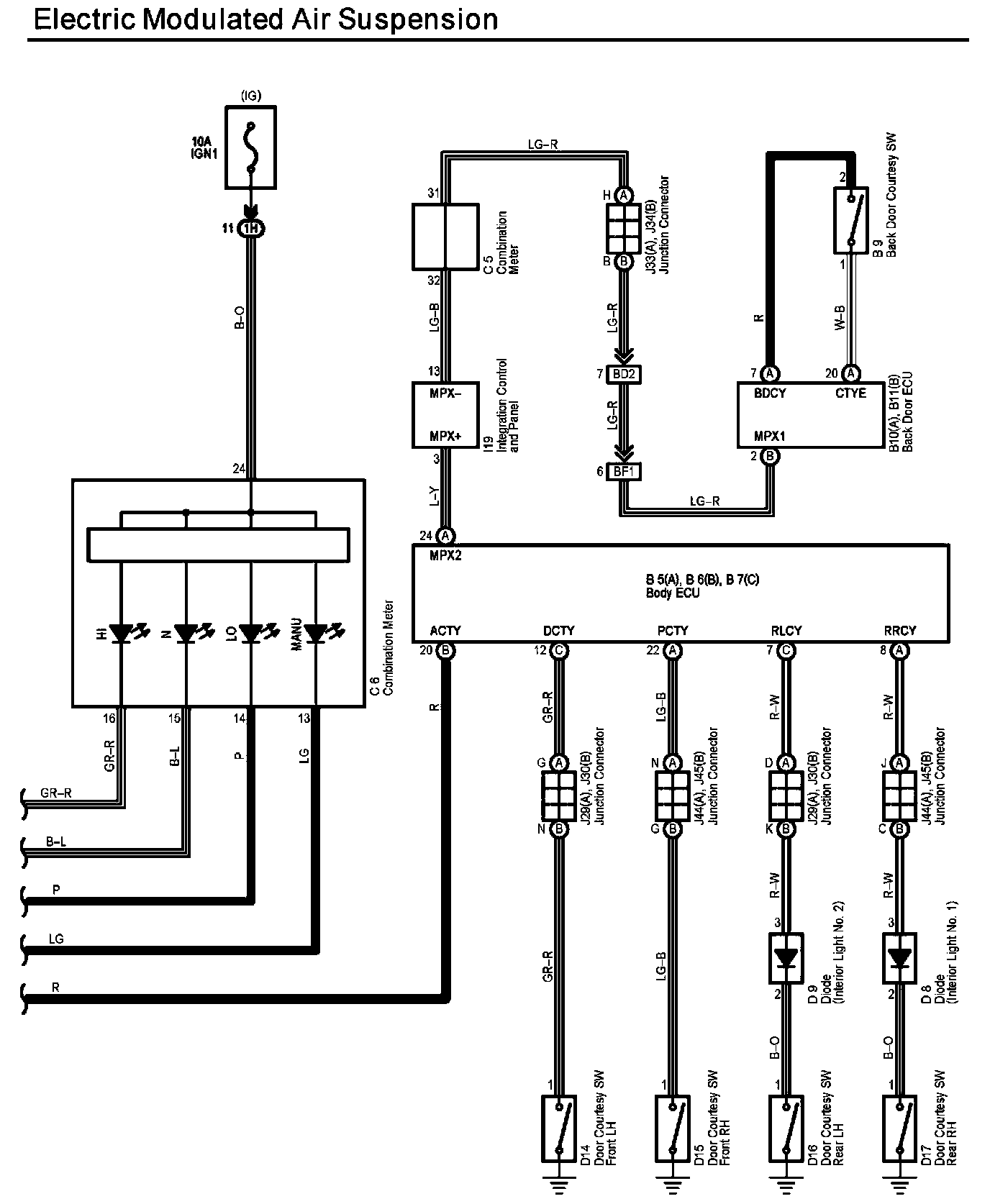

Electric Modulated Air Suspension Part 3:

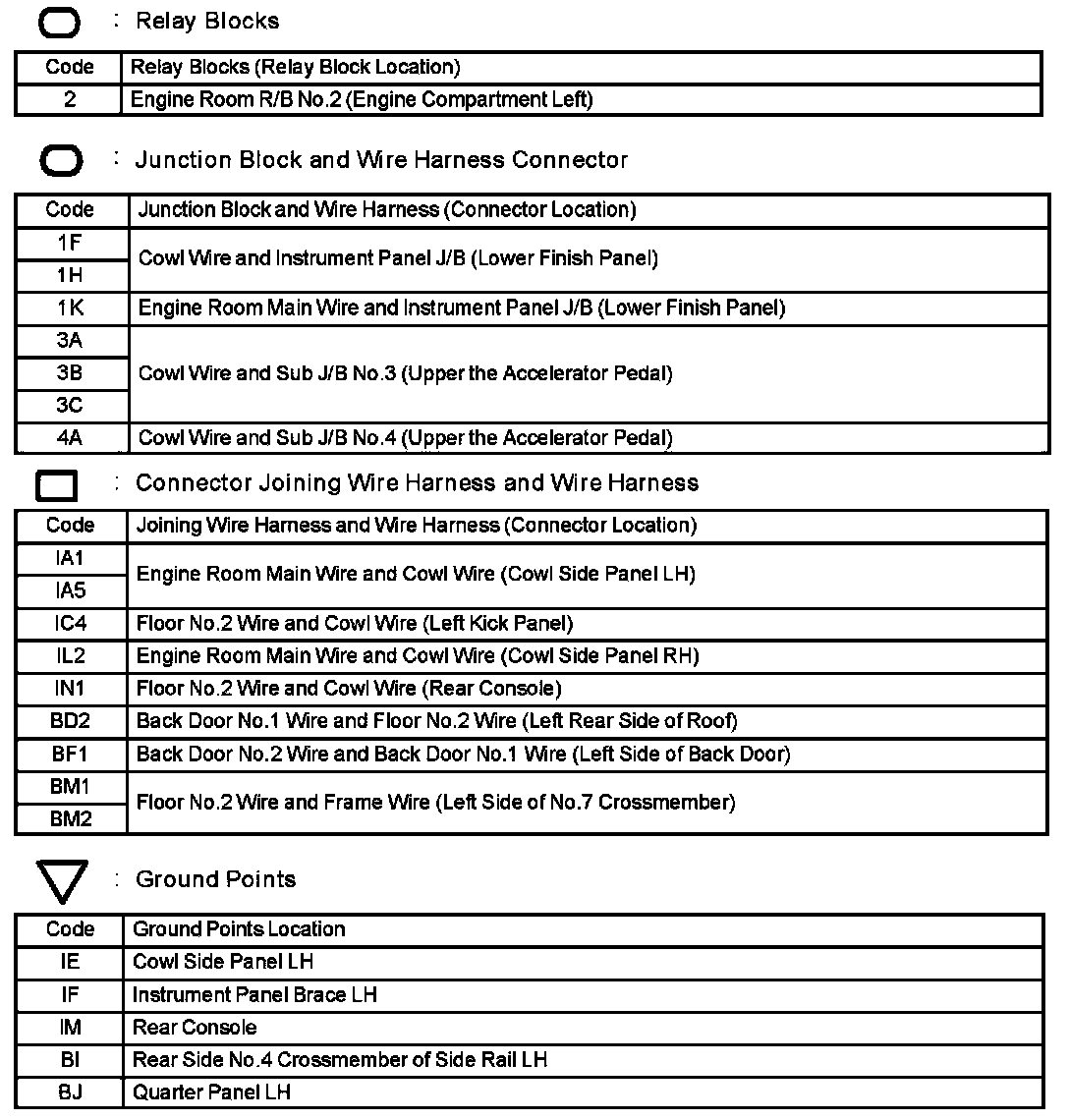

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
