Operating Light Control Rheostat Does Not Change Light Brightness

Operating Light Control Rheostat does not Change Light Brightness

DESCRIPTION
Illumination intensity of the meter is increased by turning the knob of the light control rheostat switch clockwise, and it is decreased by turning the knob counterclockwise.

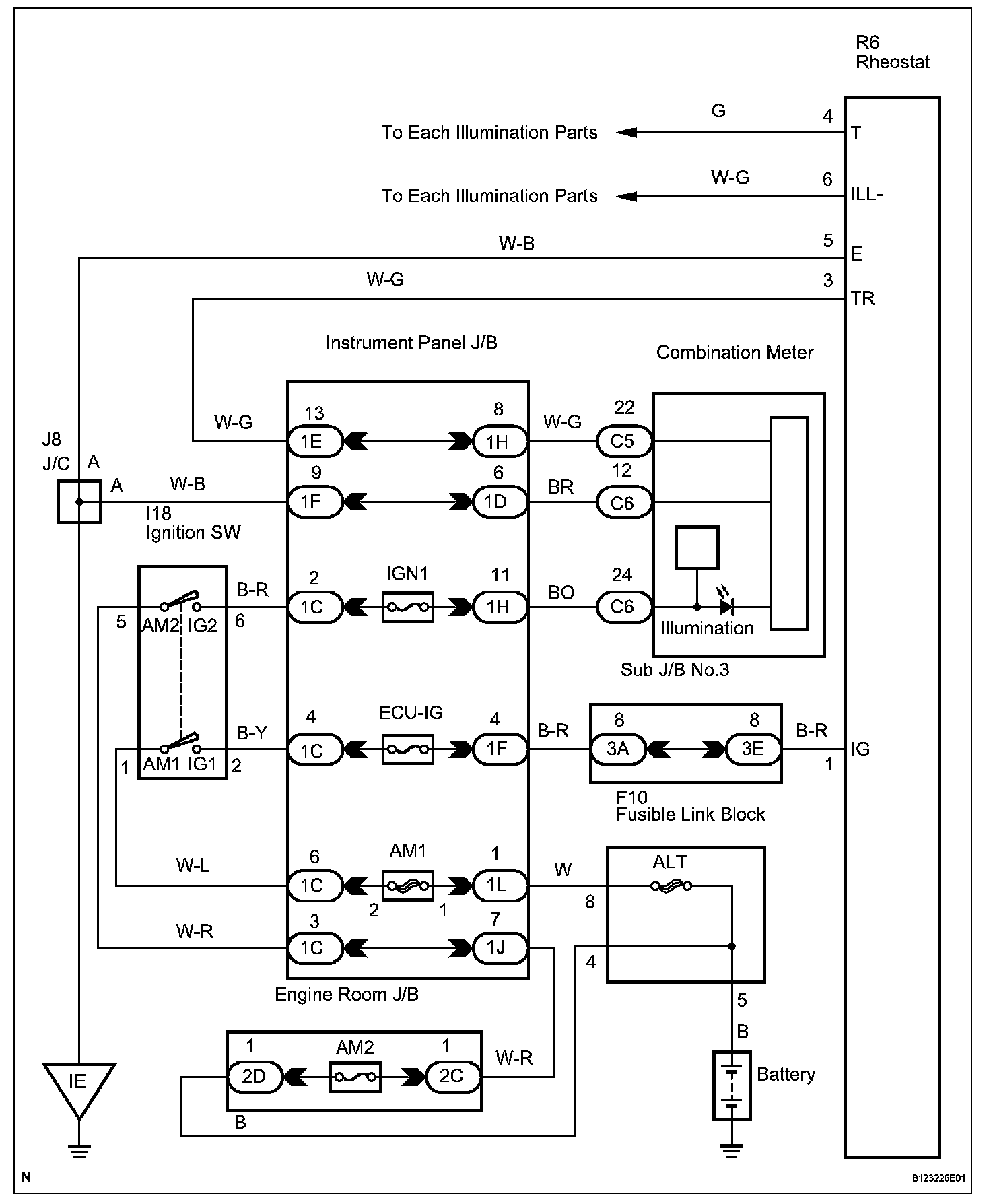

Wiring Diagram:

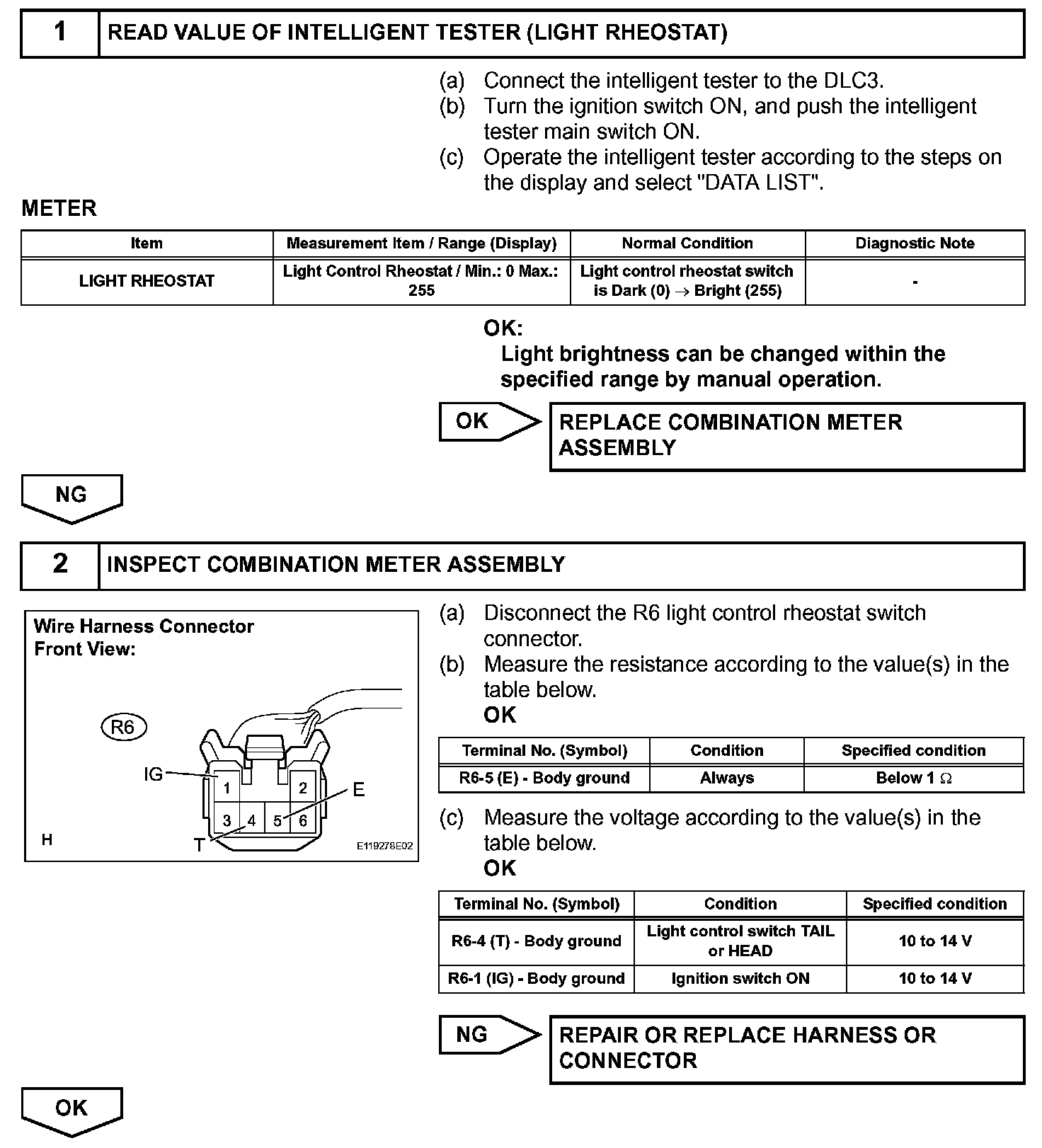

Step 1-2:

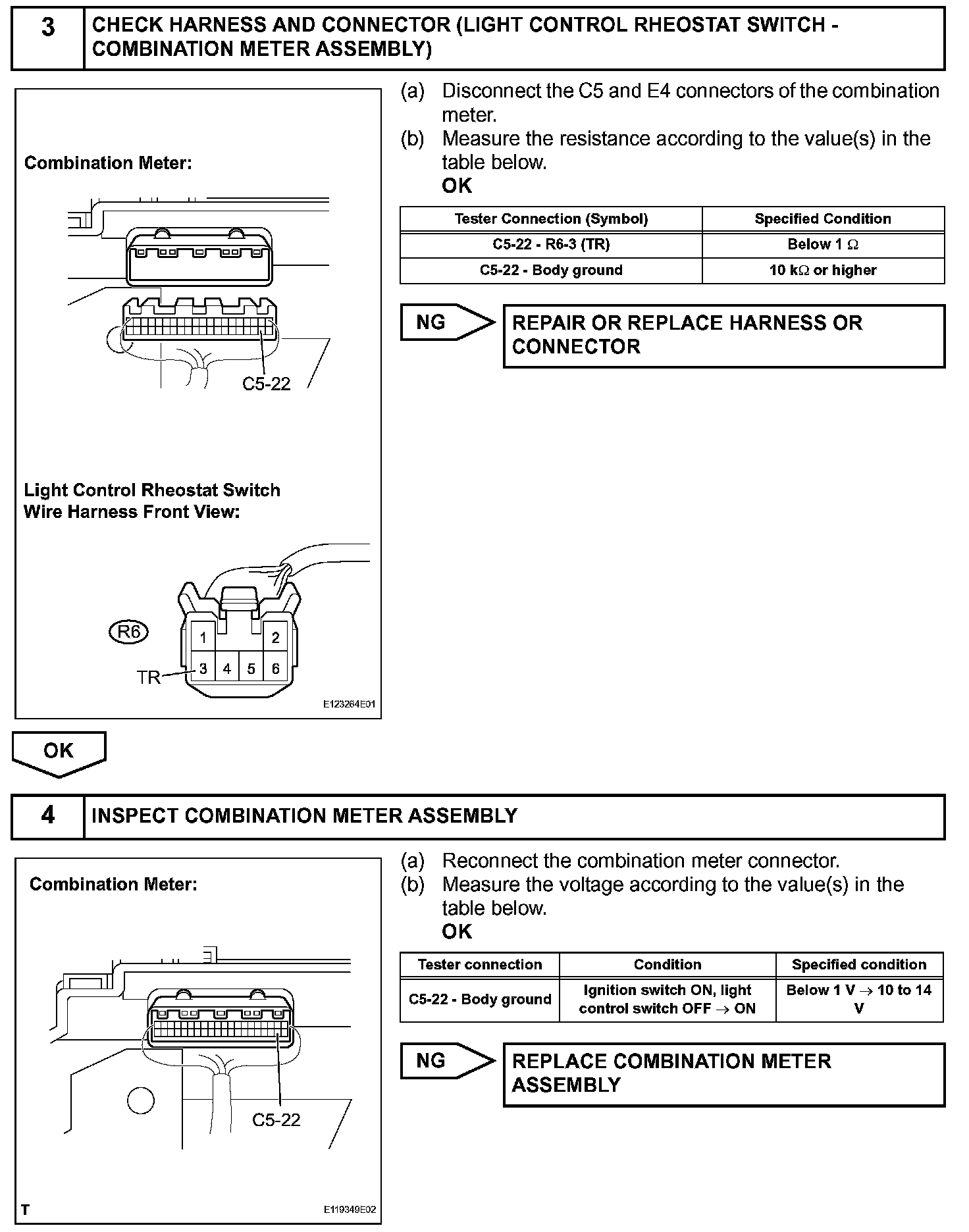

Step 3-4:

Step 4(Continued)-5:

INSPECTION PROCEDURE
