Open in CAN Main Bus Line

Open in CAN Main Bus Line

DESCRIPTION

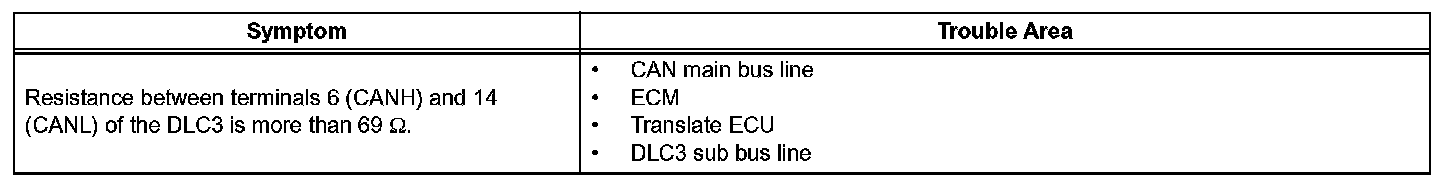

The CAN main bus line and DLC3 sub bus line may have a disconnection when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is more than 69 Ohms.

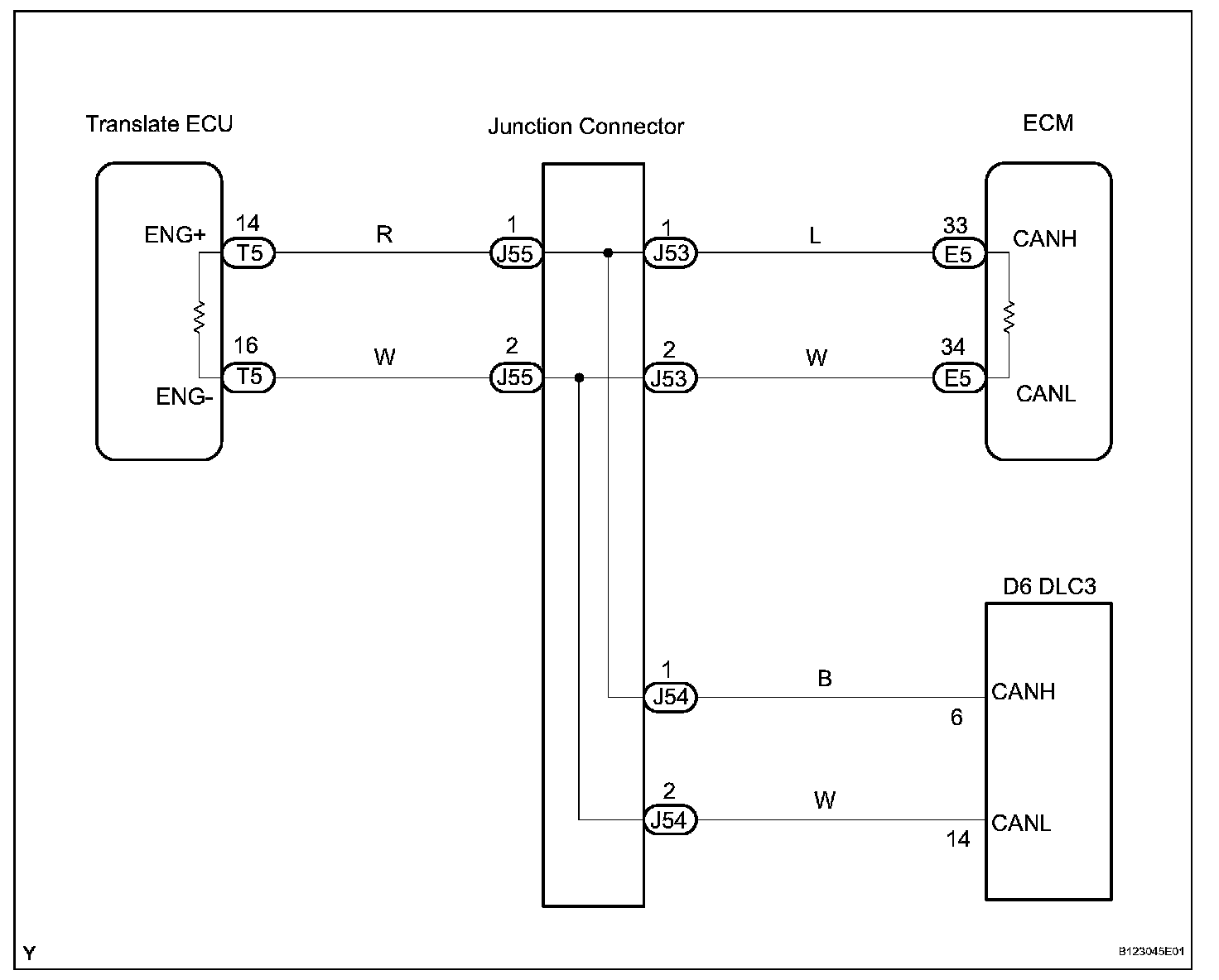

Wiring Diagram:

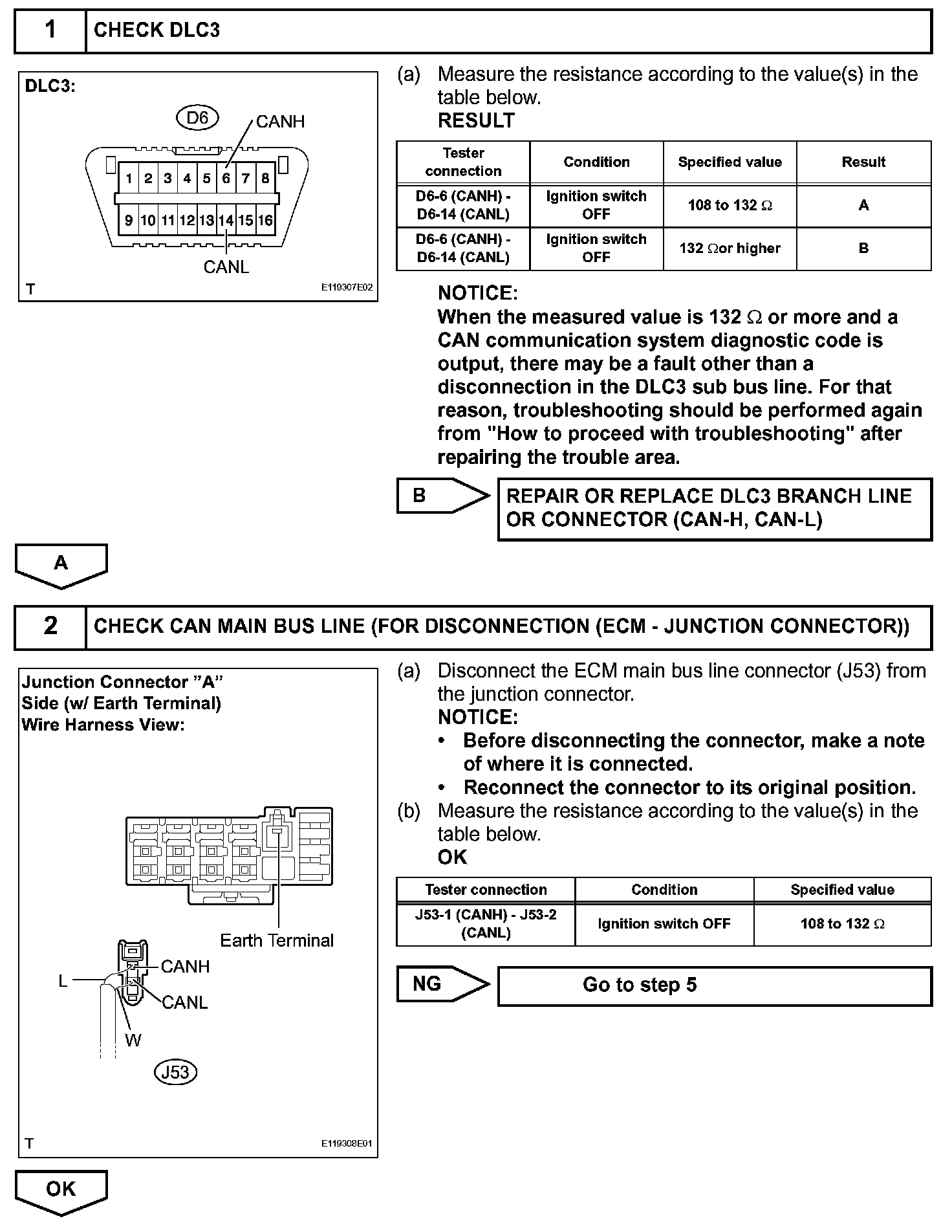

Step 1-2:

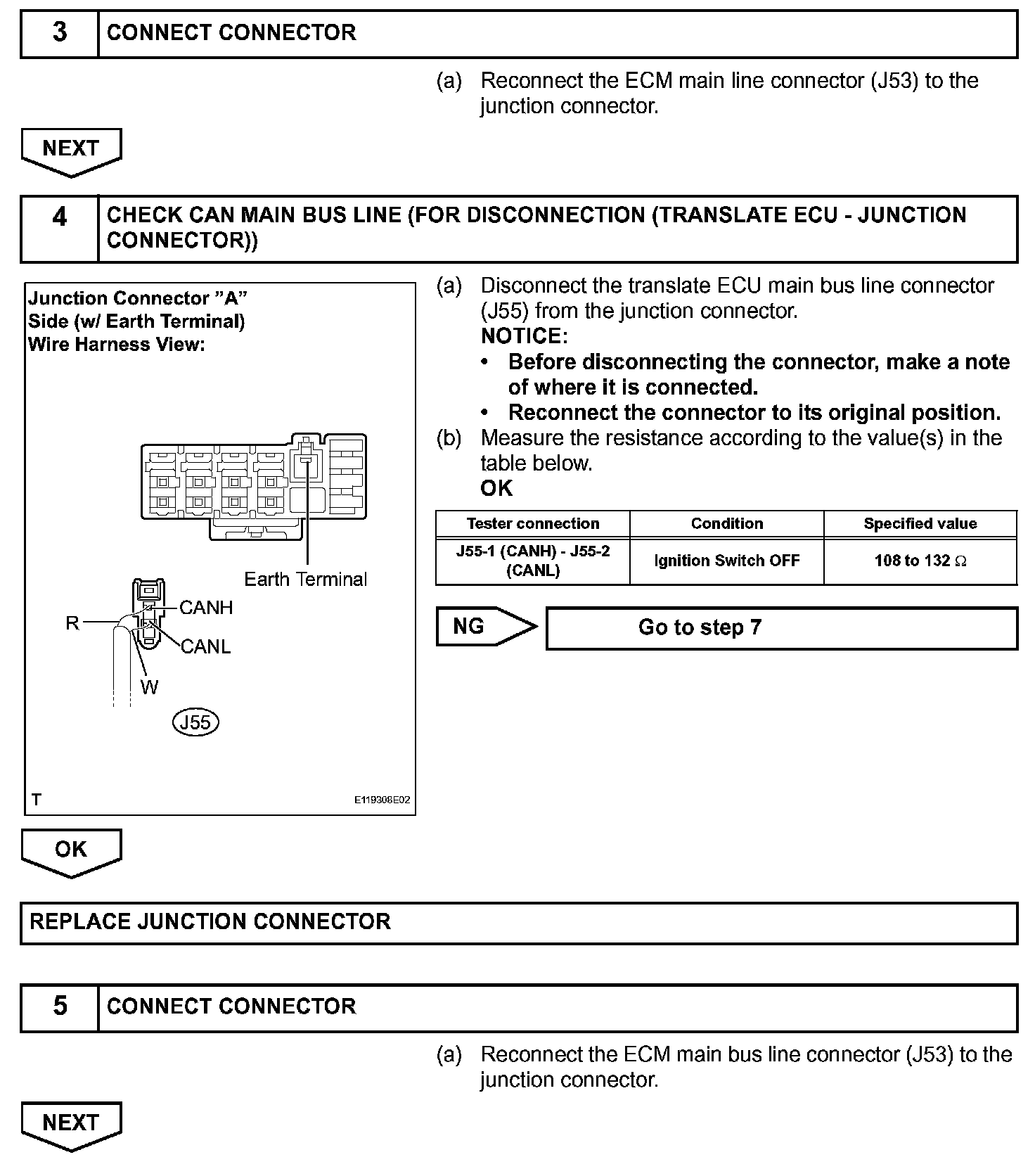

Step 3-5:

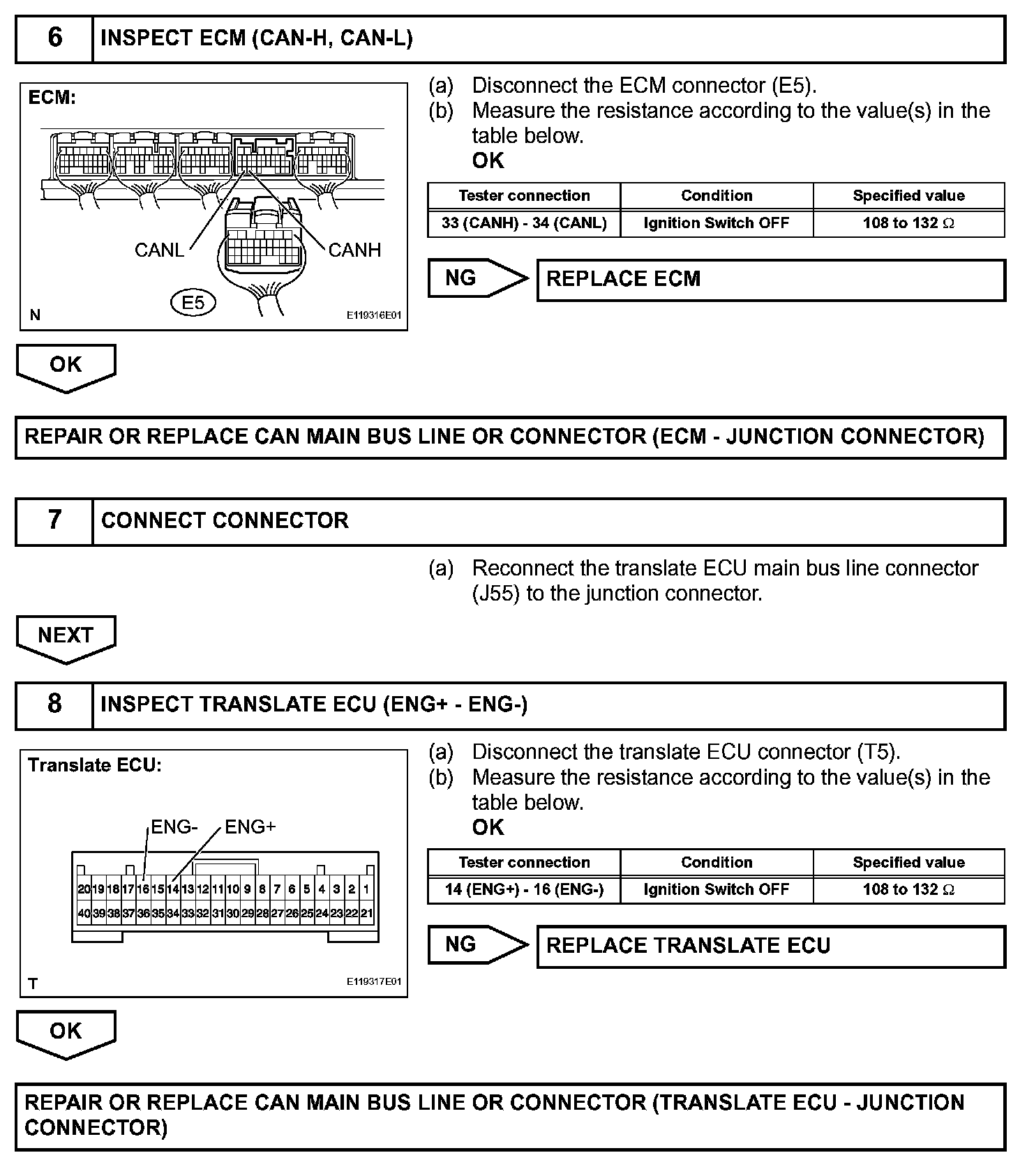

Step 6-8:

INSPECTION PROCEDURE
