Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLE1. COMMUNICATION STOP MODE TABLE
a. Complete "Check CAN Bus Line" to confirm that there is no malfunction in the CAN bus line. Select "BUS CHECK" on the intelligent tester via the CAN VIM.

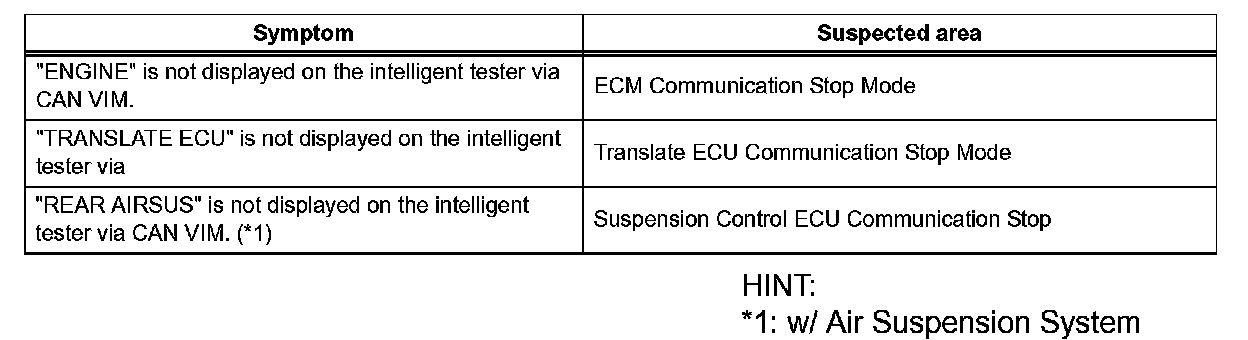

Problem Symptoms Table:
b. Check the communication stop mode of the ECUs not displayed among the following: "ENGINE", "TRANSLATE ECU", or "REAR AIRSUS".

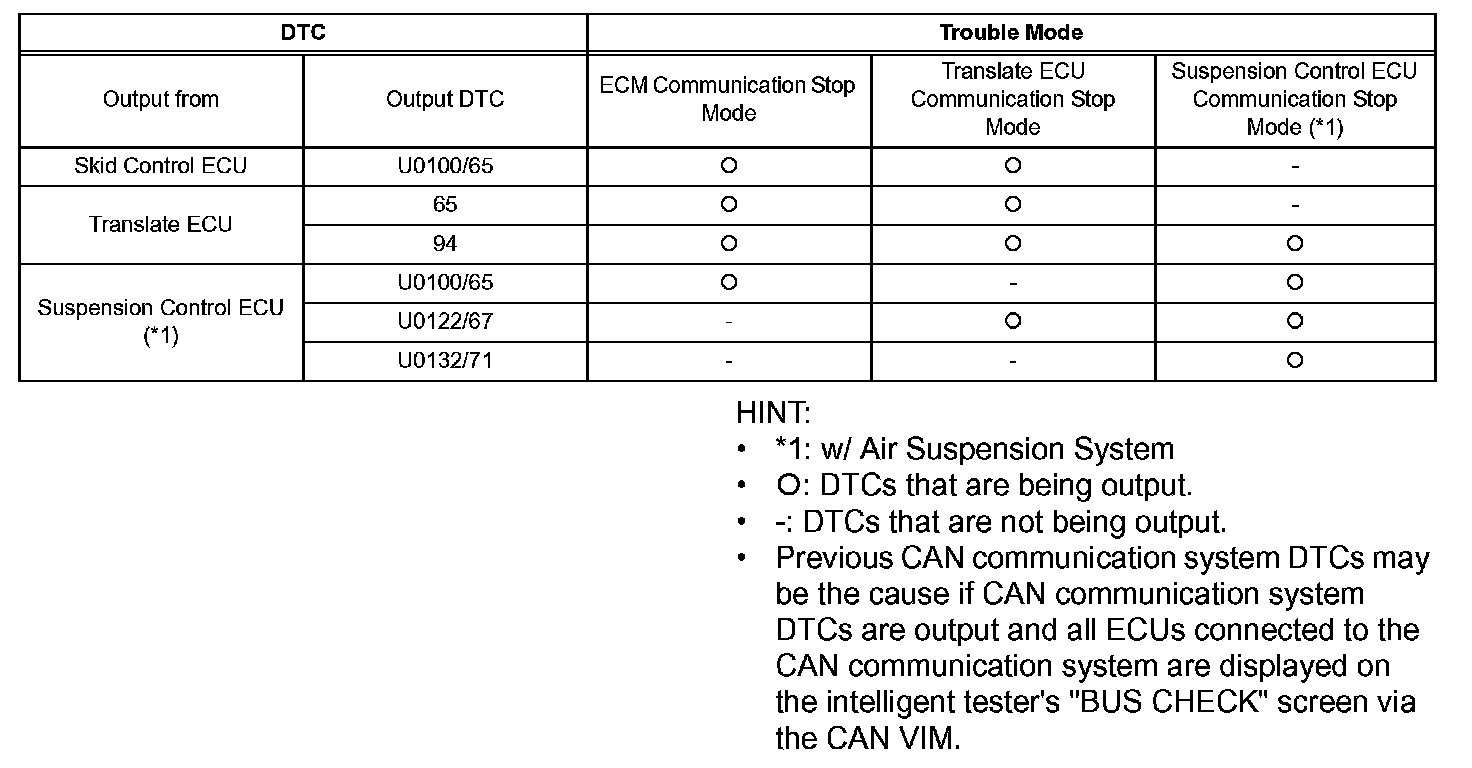

2. DTC COMBINATION TABLE
a. Perform troubleshooting according to combination of DTCs output.
