Pinout Values and Diagnostic Parameters

TERMINALS OF ECM











HINT:

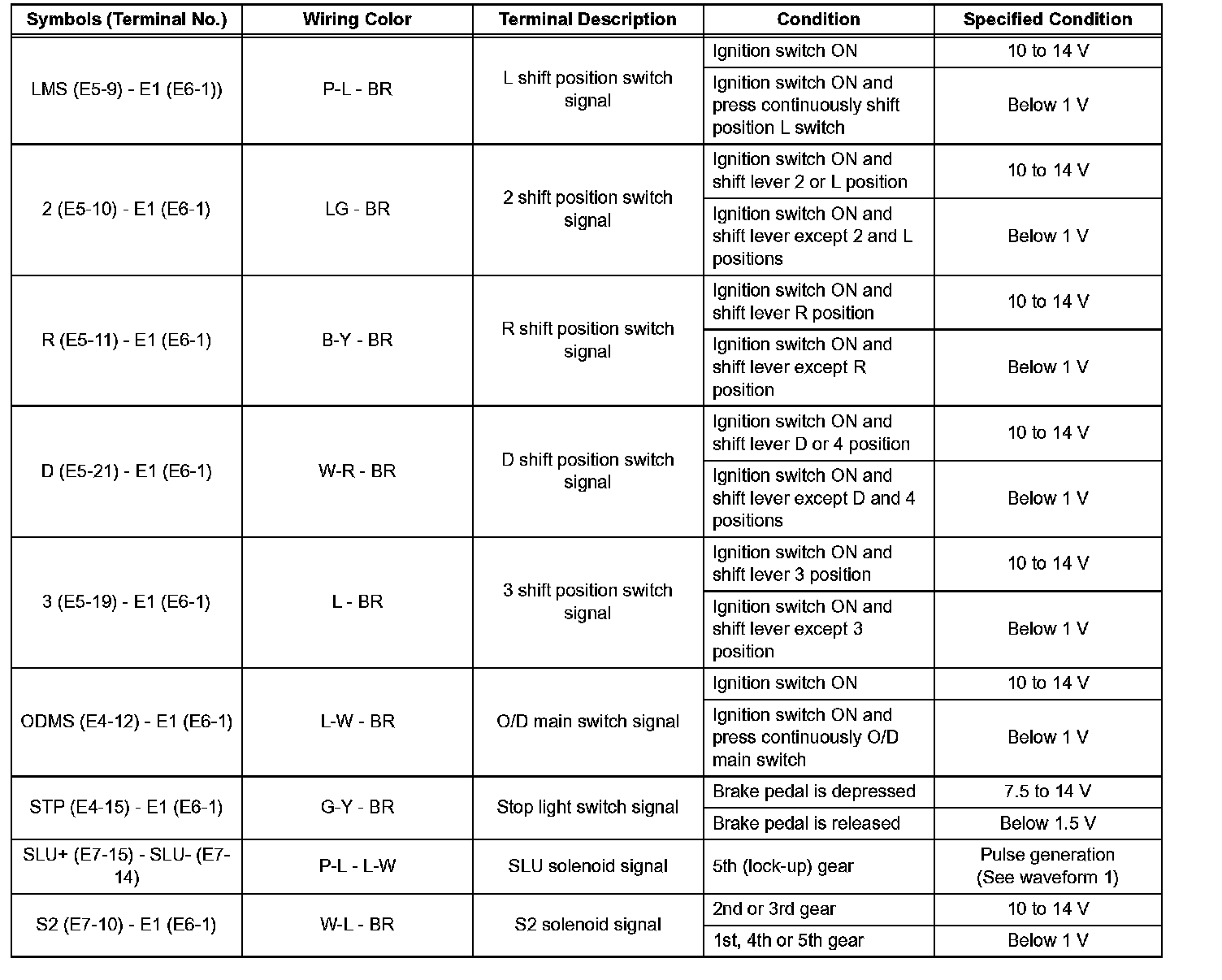

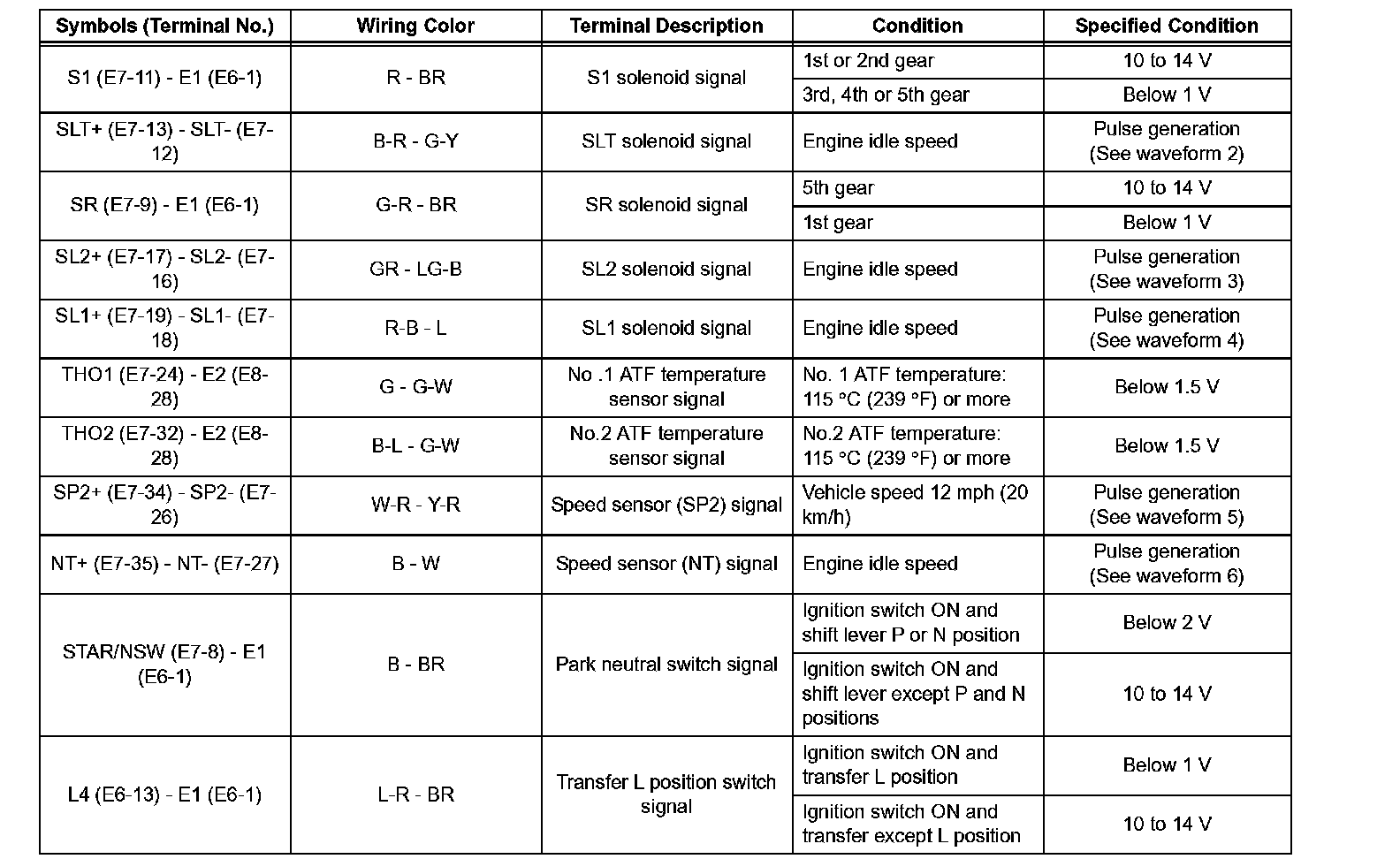

Each ECM terminal,s standard voltage is shown in the table.

In the table, first follow the information under Condition. Look under Symbols (Terminal No.) for the terminals to be inspected. The standard voltage between the terminals is shown under Specified Condition.

Use the illustration above as a reference for the ECM terminals.

Waveform 1 (Reference):

Waveform 2 (Reference):

Waveform 3 (Reference):

Waveform 4 (Reference):

Waveform 5 (Reference):

Waveform 6 (Reference):
