Function of RSCA Off Indicator

FUNCTION RSCA OFF INDICATOR

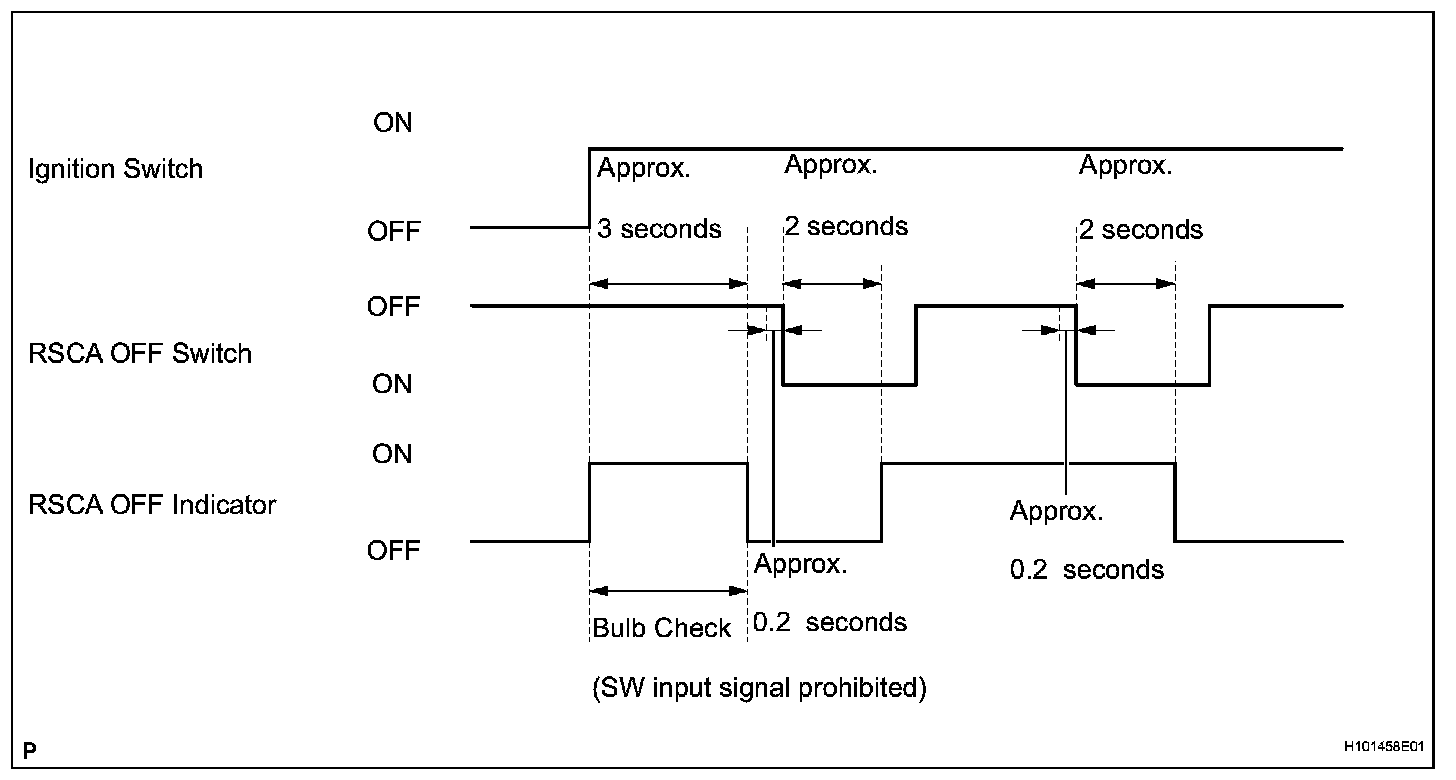

a. The RSCA OFF indicator comes on for approximately 3 seconds after the ignition switch is turned ON, then goes off.




b. Approximately 3 seconds after the turning the ignition switch ON, the RSCA OFF indicator comes on or goes off every time it detects OFF (press the switch for approximately 0.2 seconds) or ON (press the switch for approximately 2 seconds).

HINT: The RSCA OFF switch is reset by turning the ignition switch to the LOCK position.

As a result, the RSCA OFF switch and RSCA OFF indicator are off when the ignition switch is turned to the ON position.
