Trouble In Passenger Airbag ON/OFF Indicator

Trouble in Passenger Airbag ON / OFF Indicator

DESCRIPTION




The occupant classification system detects the front passenger seat condition. It then informs a passenger of the front passenger airbag assembly condition (activated/not activated) by the passenger airbag ON/OFF indicator.

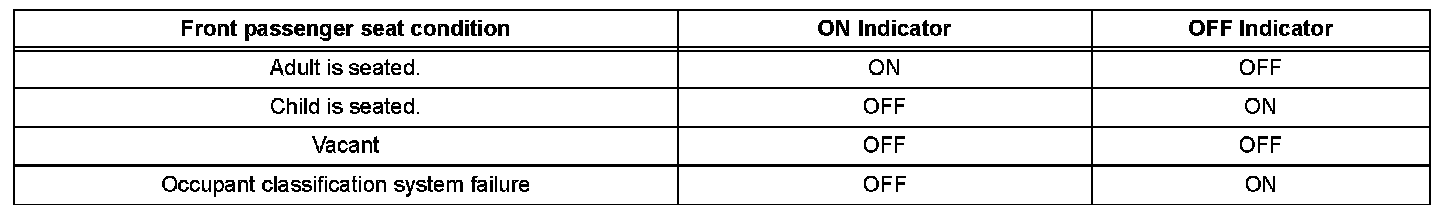

The table shows the normal indication condition of the passenger airbag ON/OFF indicator and the front passenger seat condition.

Step 1-2:

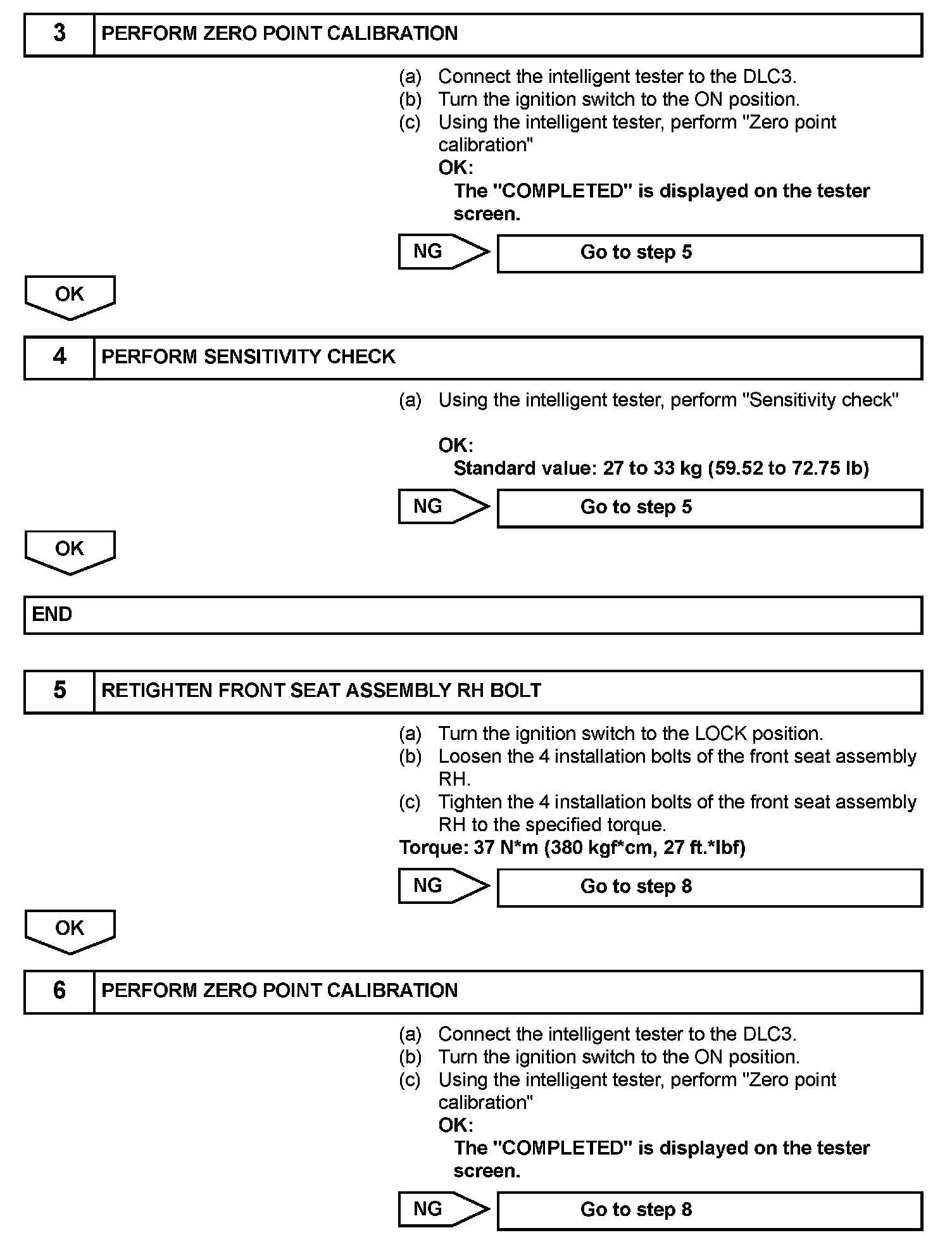

Step 3-6:

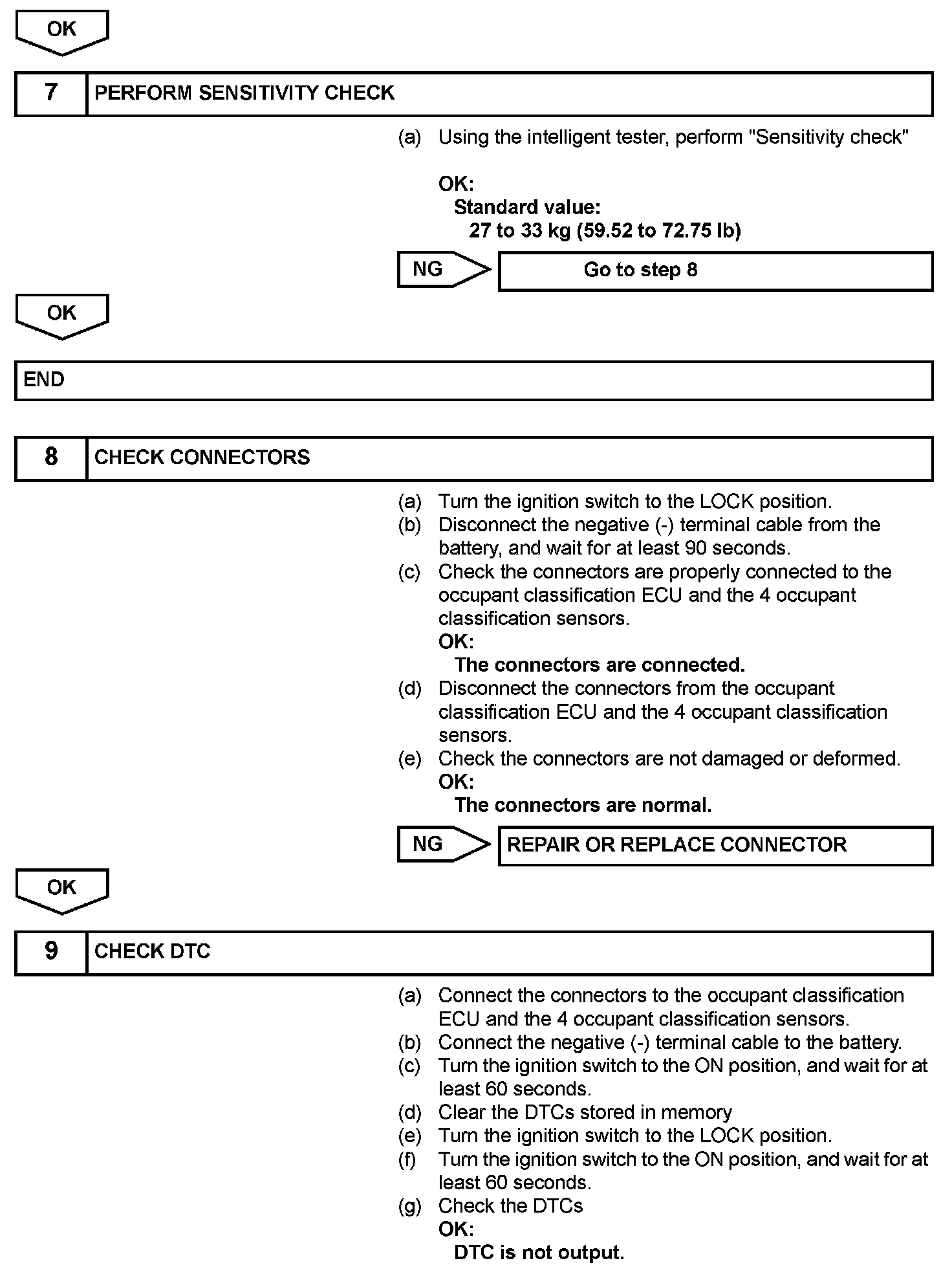

Step 6(Continued)-9:

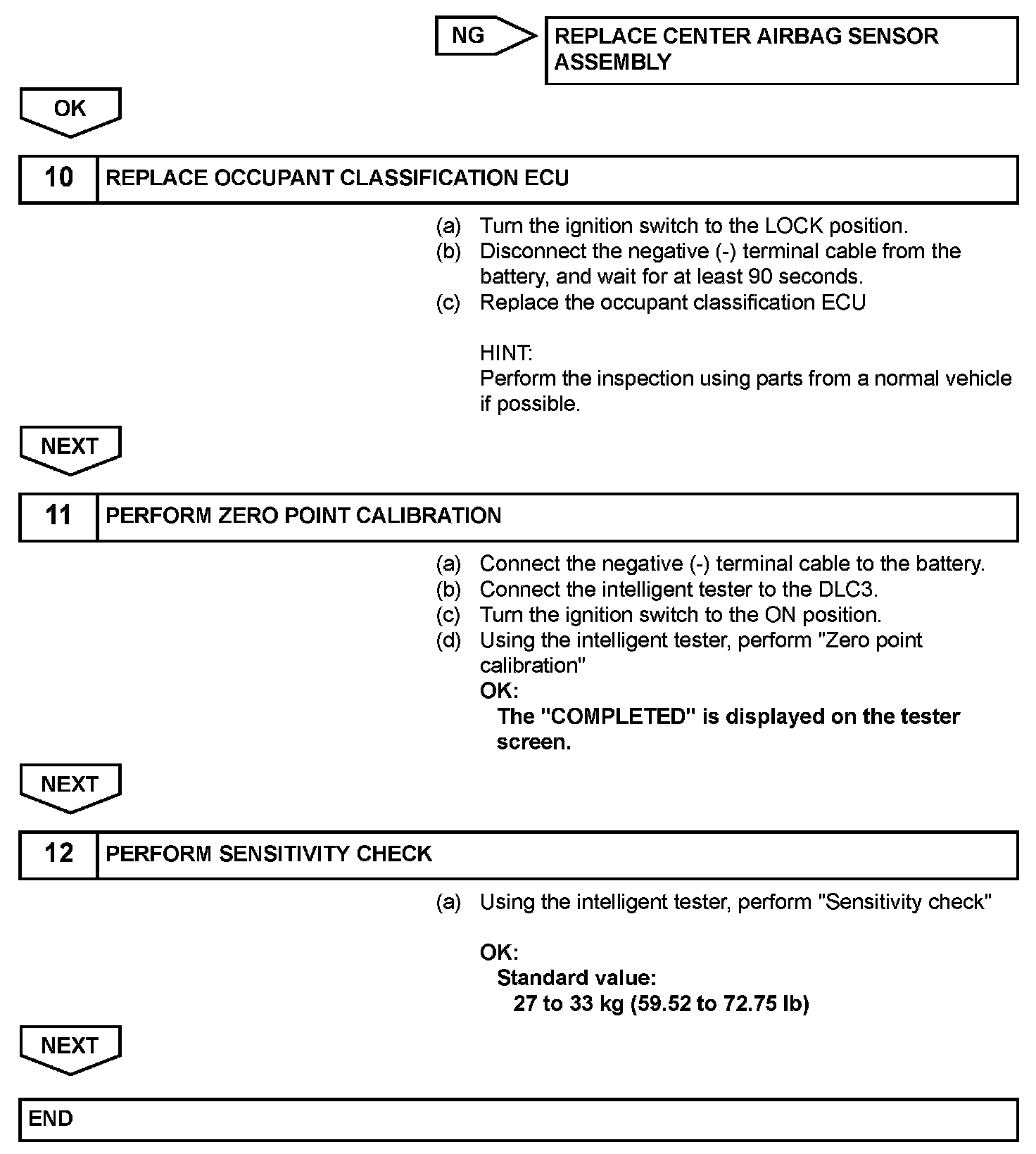

Step 9(Continued)-12:

INSPECTION PROCEDURE
