Cruise Control Switch Circuit
Cruise Control Switch CircuitDESCRIPTION
This circuit carries the -/SET, +/RES, MODE and CANCEL signals (each voltage) to the ECM. The mode switch on cruise control main switch changes the vehicle-to-vehicle mode to constant speed control mode.

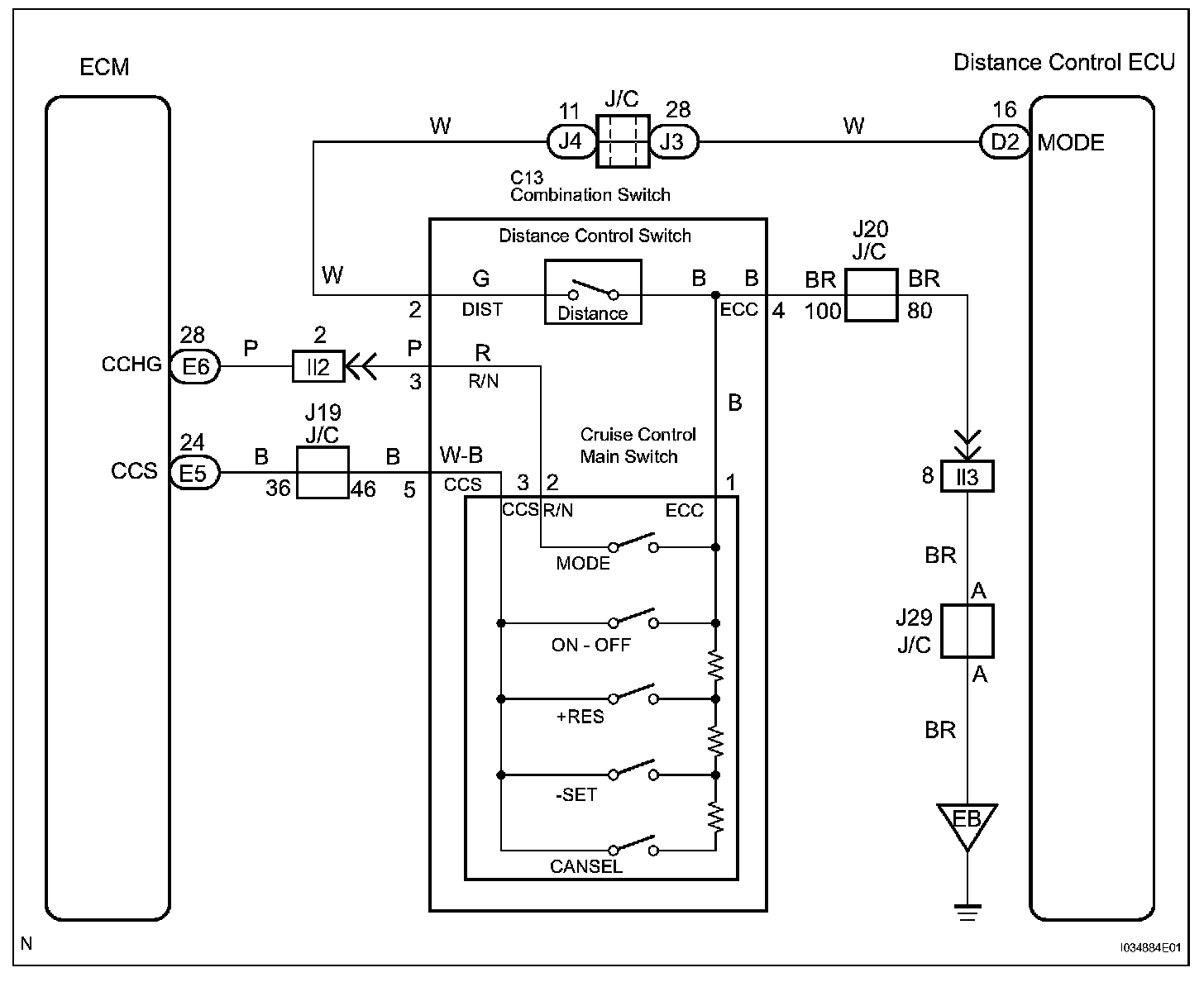

Wiring Diagram:

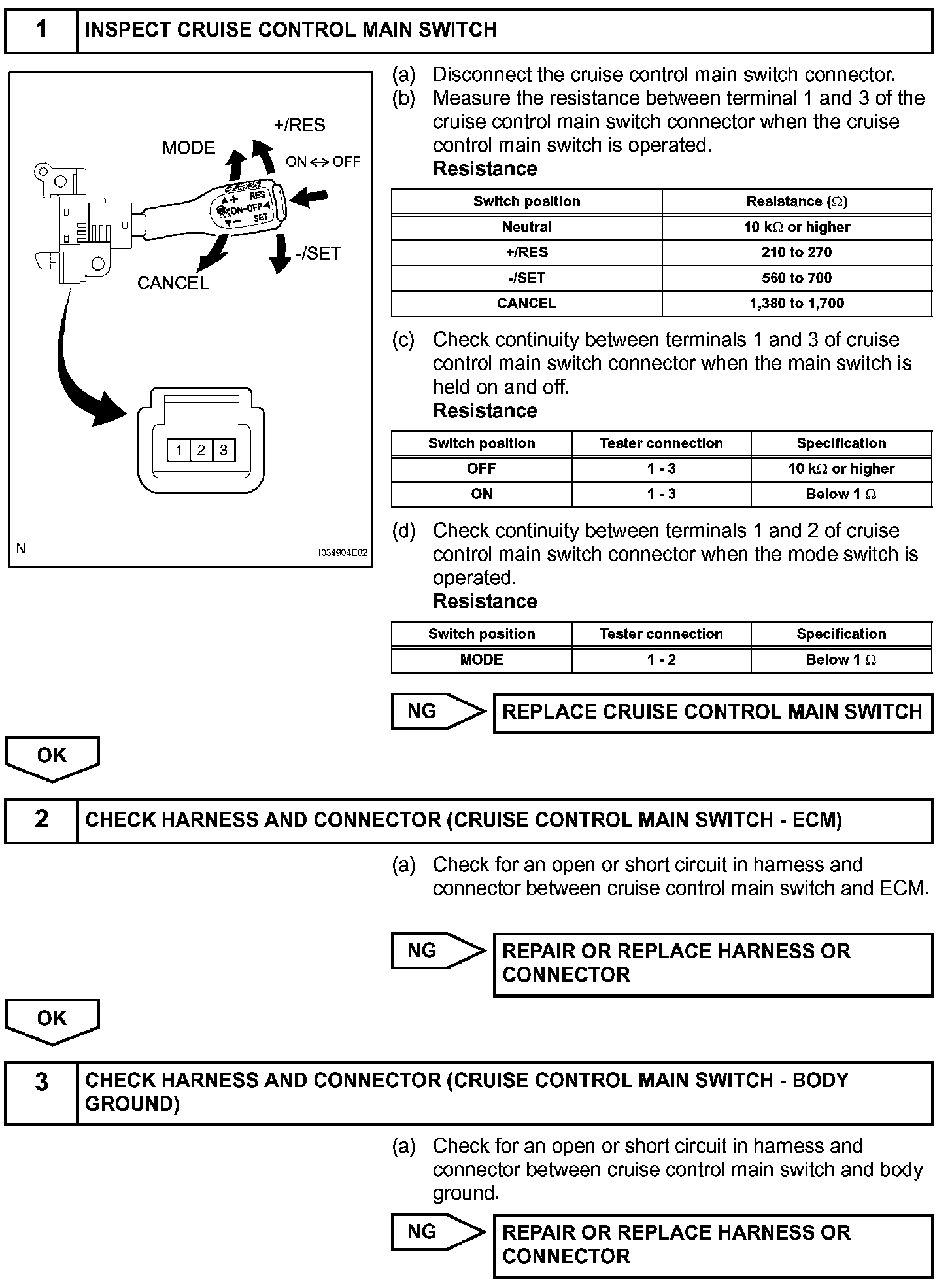

Step 1-3:

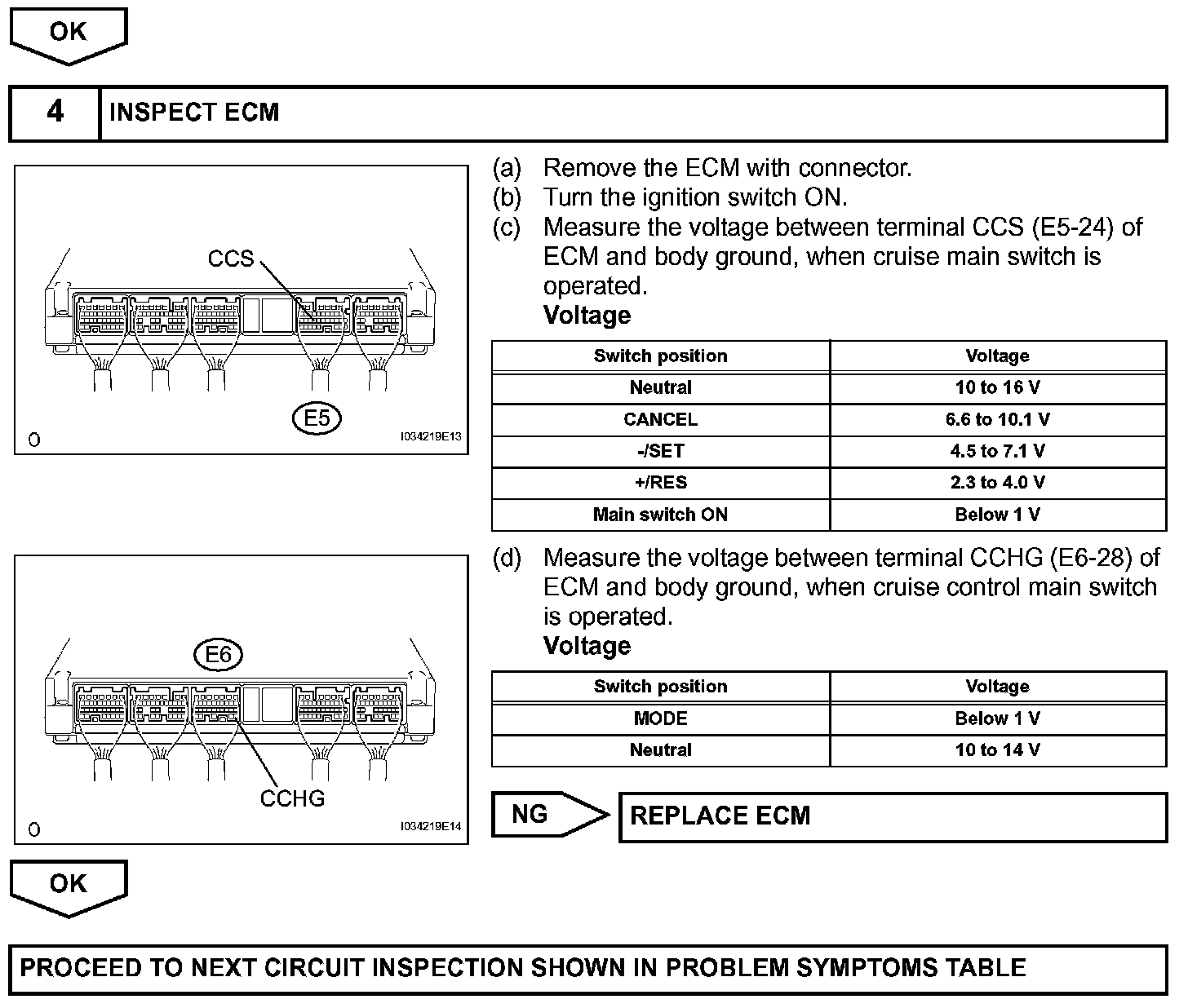

Step 3(continued)-4:
INSPECTION PROCEDURE
