Distance Control Switch Circuit
Distance Control Switch CircuitDESCRIPTION
This switch sets the vehicle-to-vehicle mode.

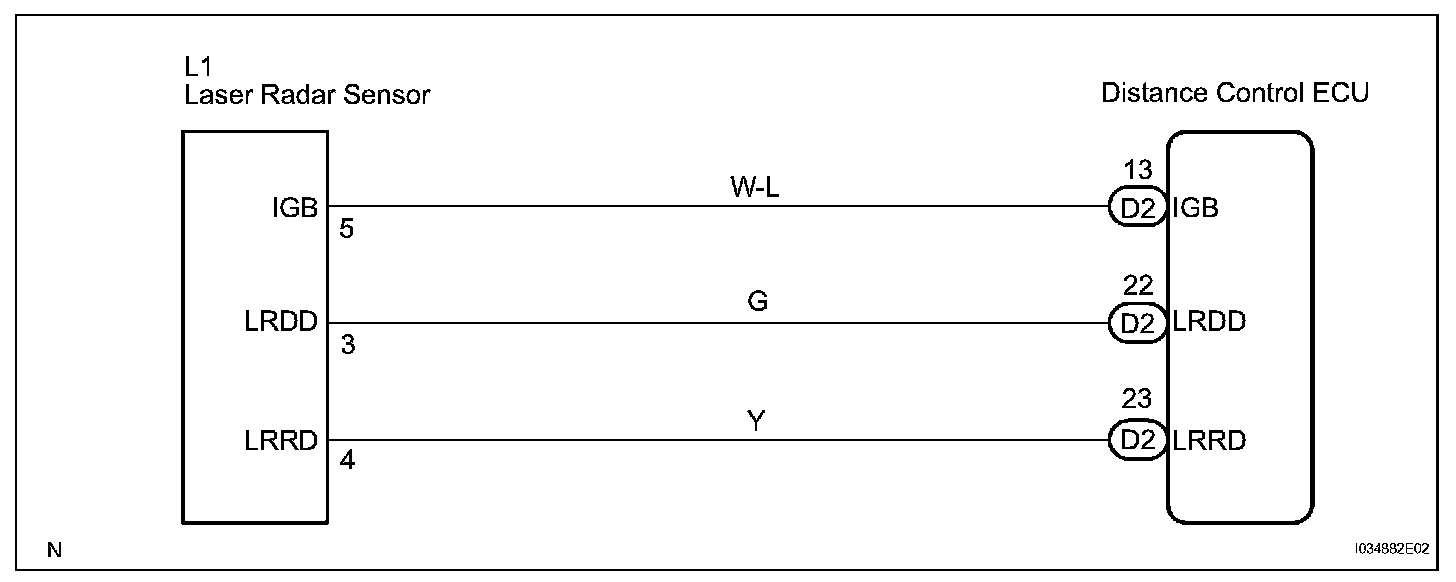

Wiring Diagram:

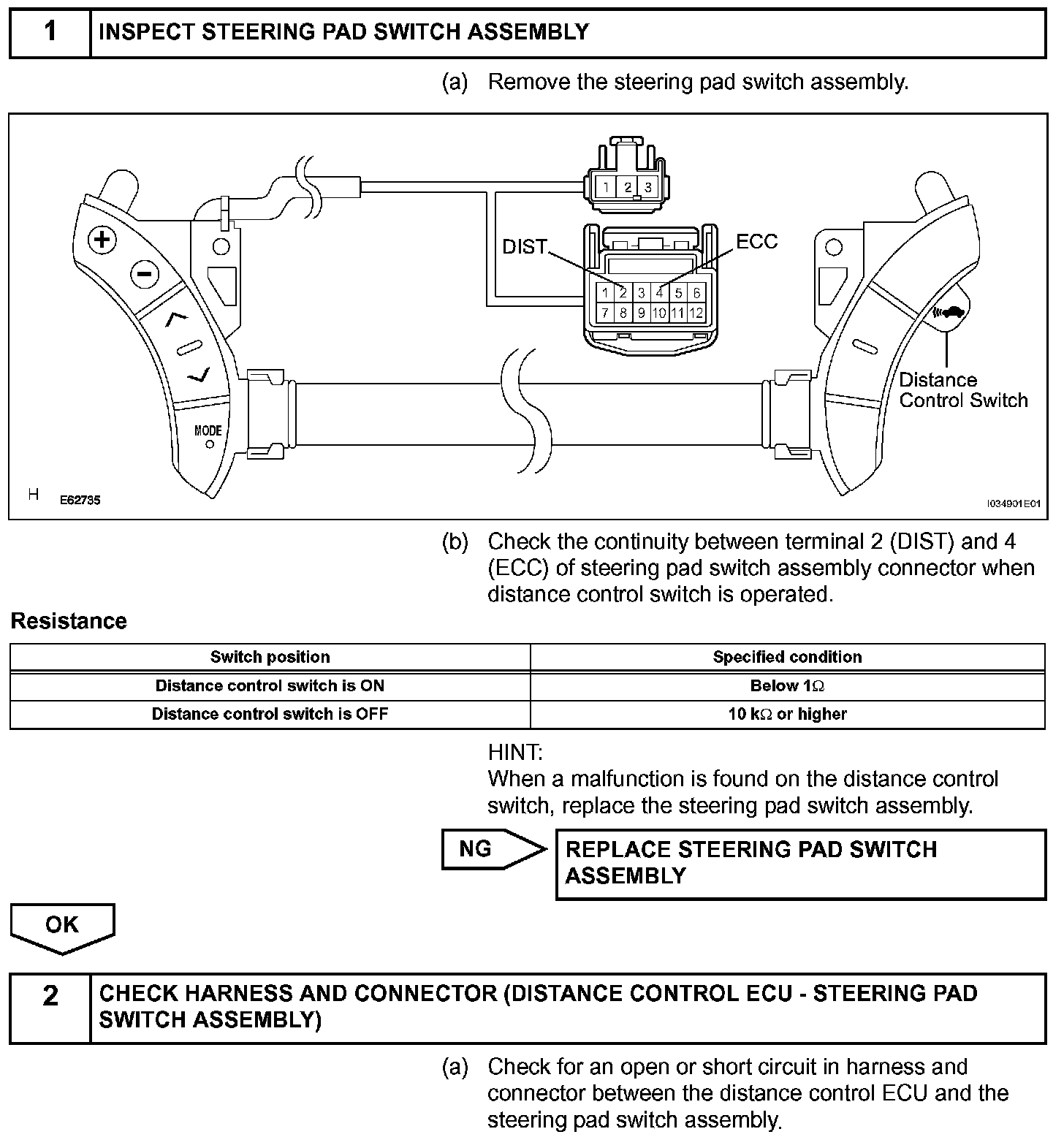

Step 1-2:

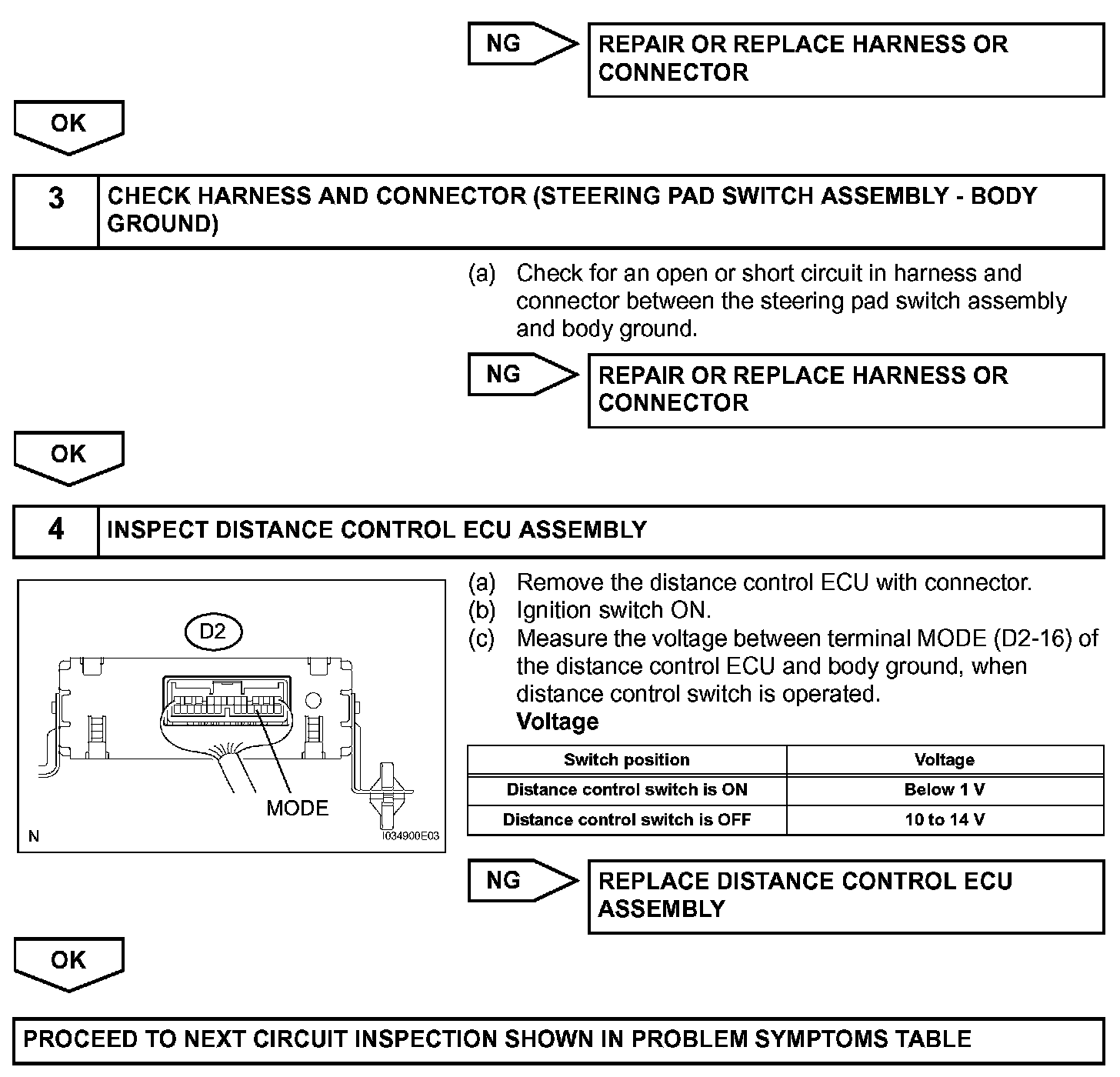

Step 2(continued)-4:
INSPECTION PROCEDURE
DESCRIPTION
This switch sets the vehicle-to-vehicle mode.
INSPECTION PROCEDURE
