Home >> Toyota >> 2006 >> Sienna AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wiper Motor

Wiper Motor

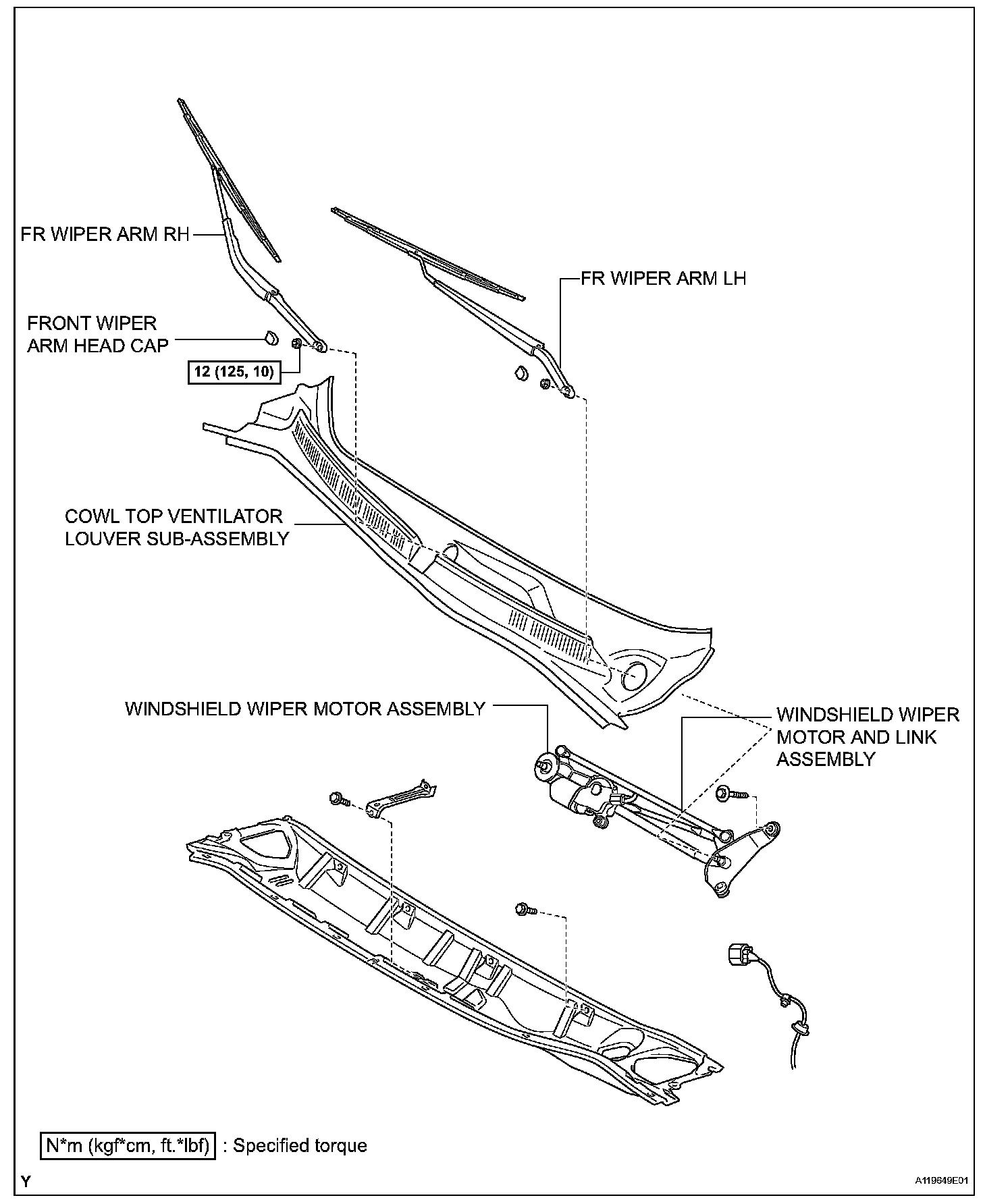

Front Wiper Motor:

Rear Wiper Motor And Bracket:

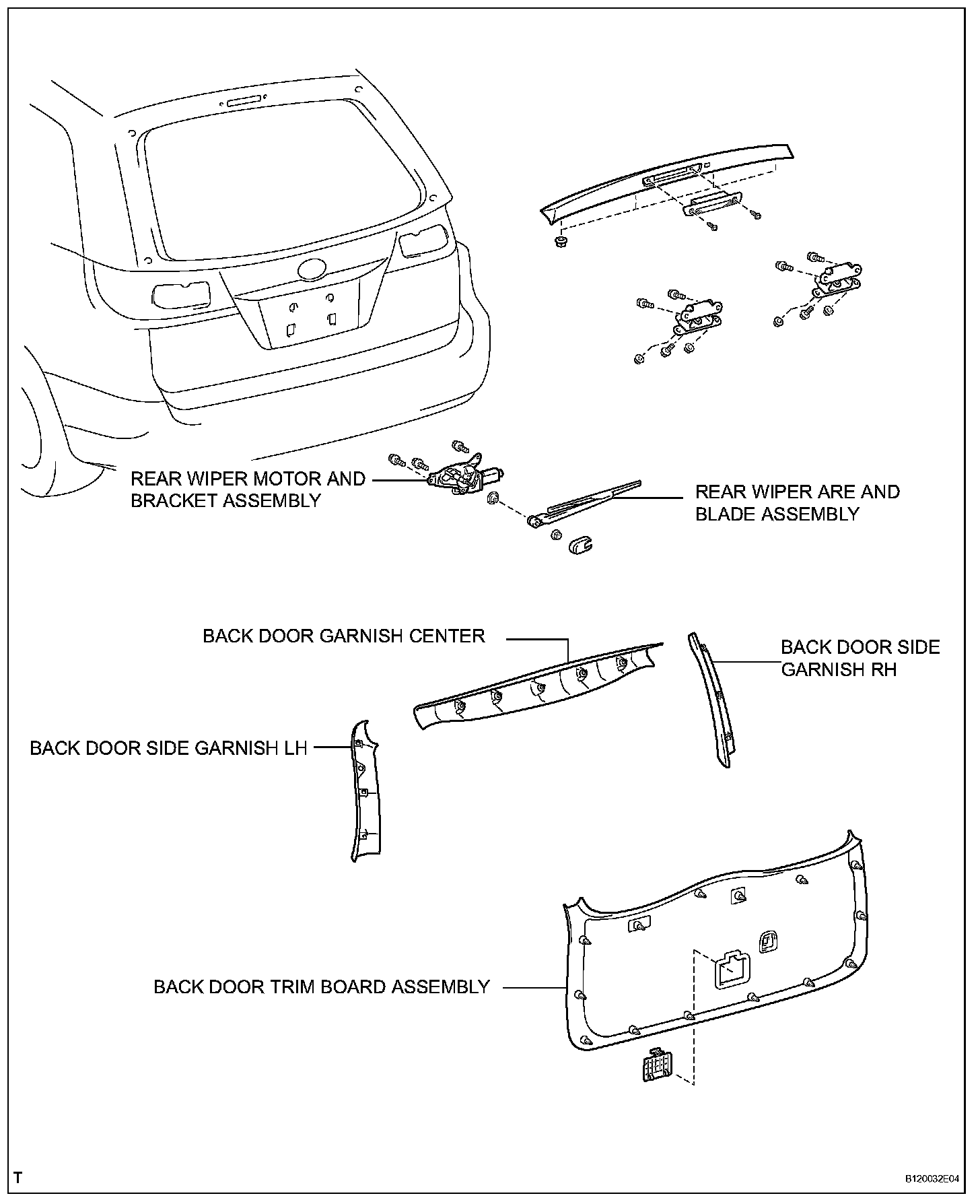

Rear Wiper Motor And Bracket:
