Removal and Installation

REMOVAL




1. REMOVE AIR CONDITIONING NO.2 CONTROL ASSEMBLY

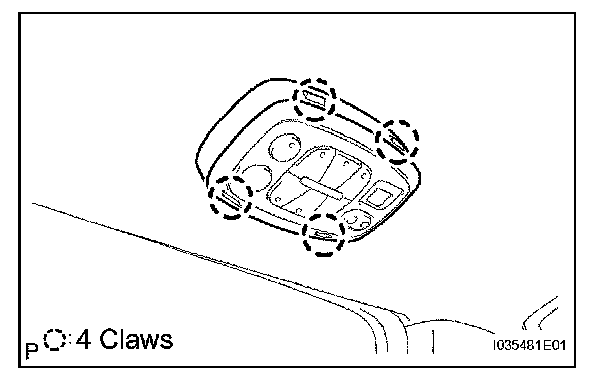

a. Release the 4 claw fittings and release the air conditioning No. 2 control assembly.
b. Disconnect the connectors and remove the air conditioning No. 2 control assembly.

INSTALLATION
1. INSTALL AIR CONDITIONING NO.2 CONTROL ASSEMBLY
