Locations
>>
Connector Locations
Connector Locations

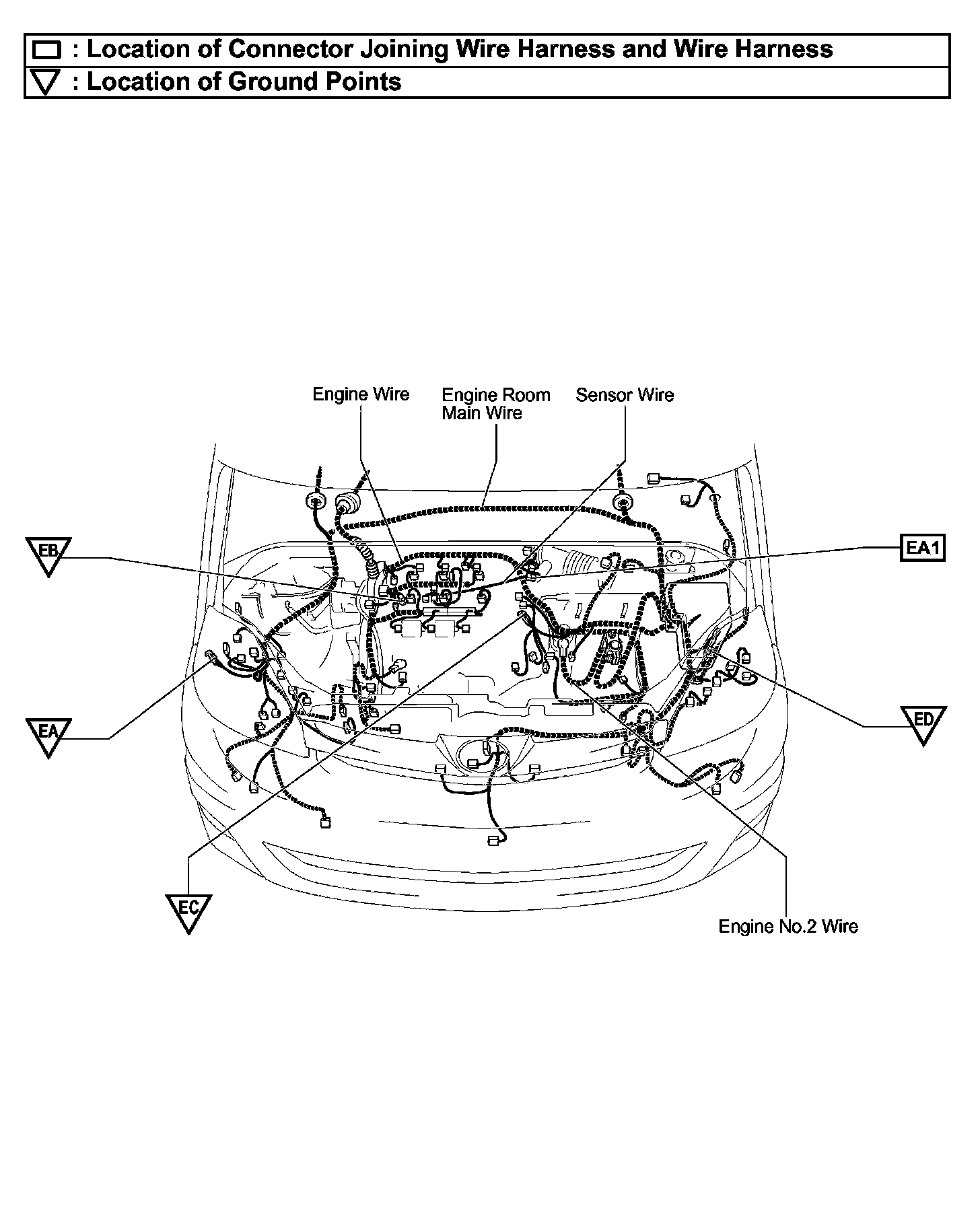

EA1, EA - ED:

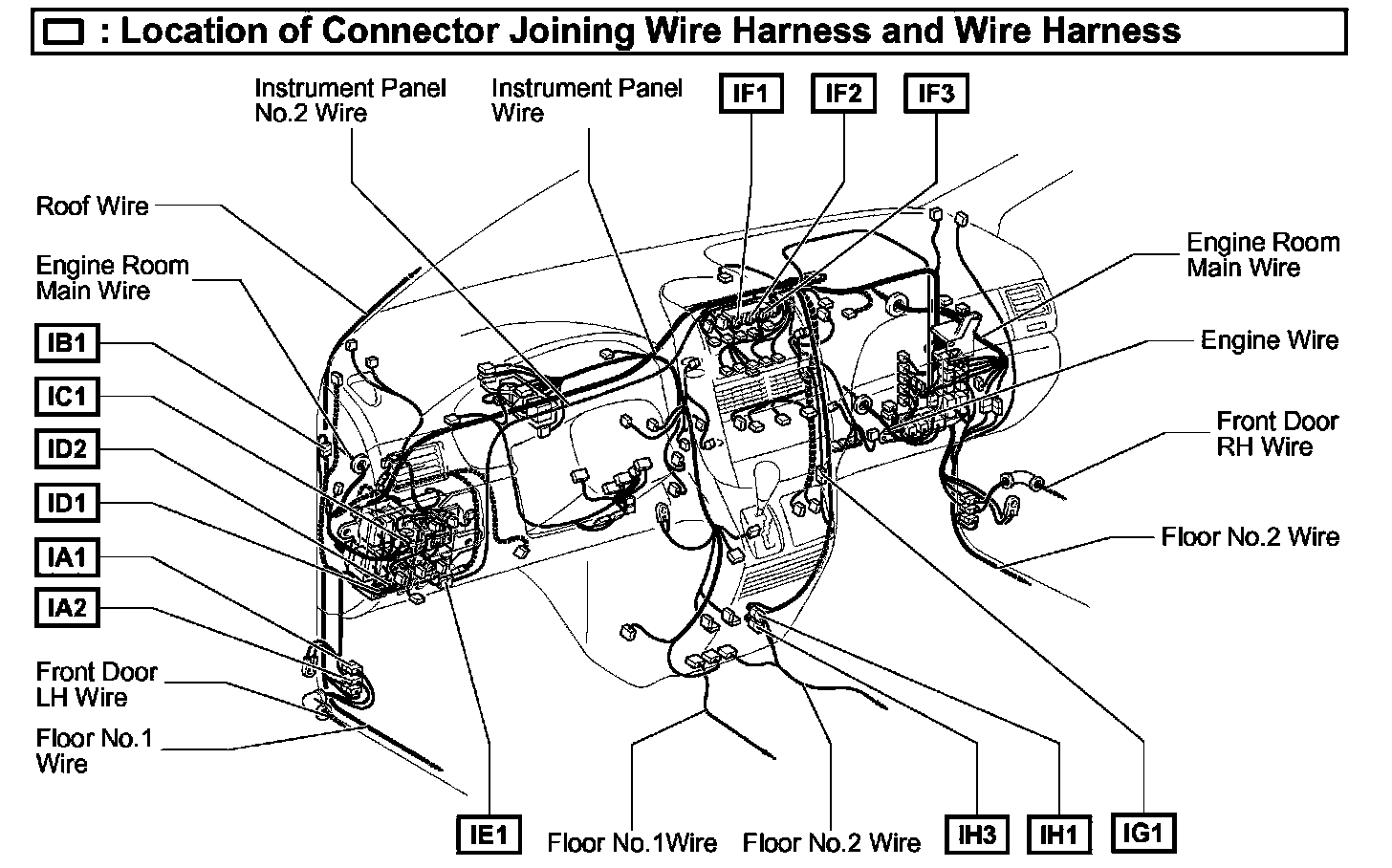

IA1 - IH3:

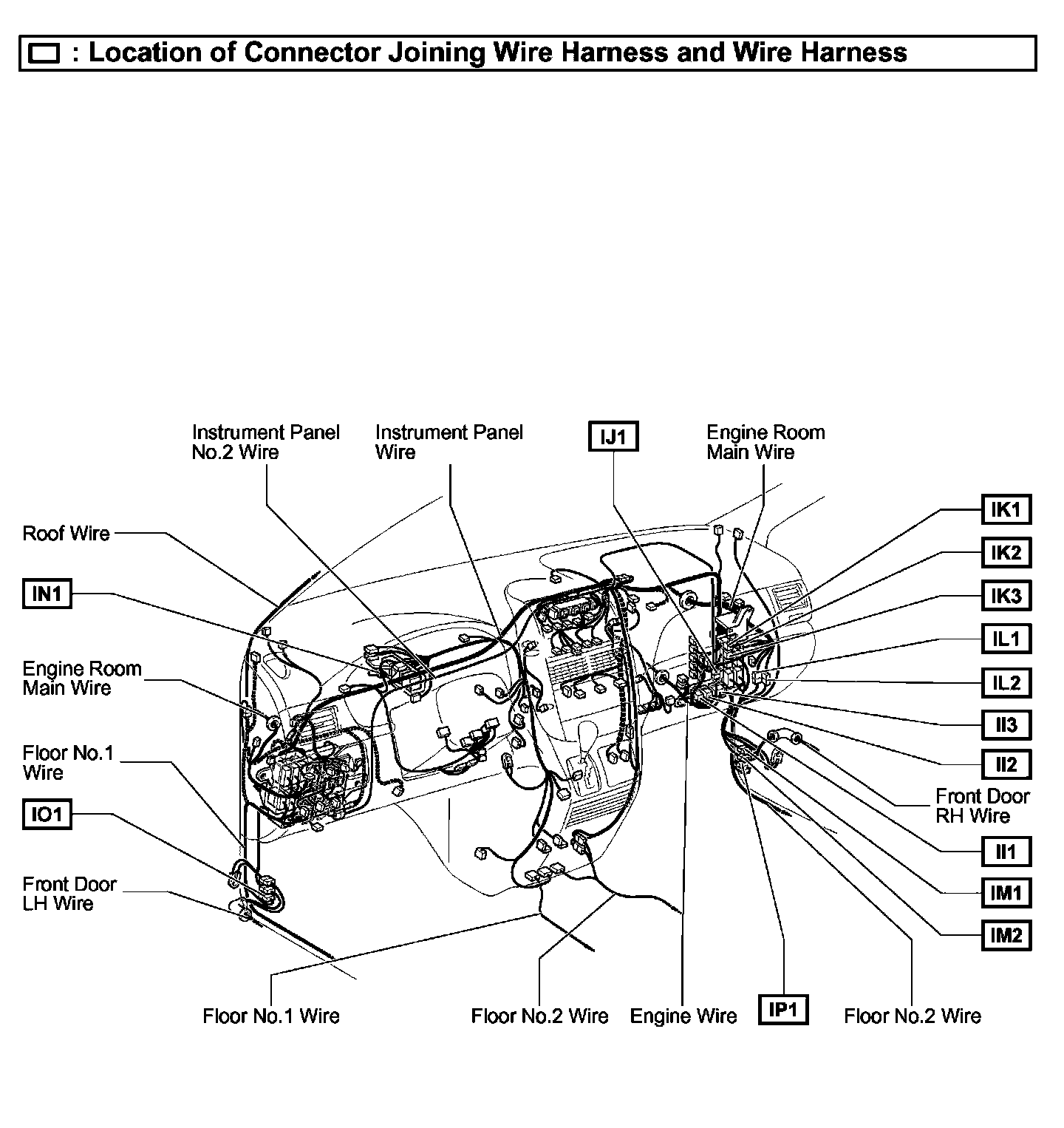

II1 - IP1:

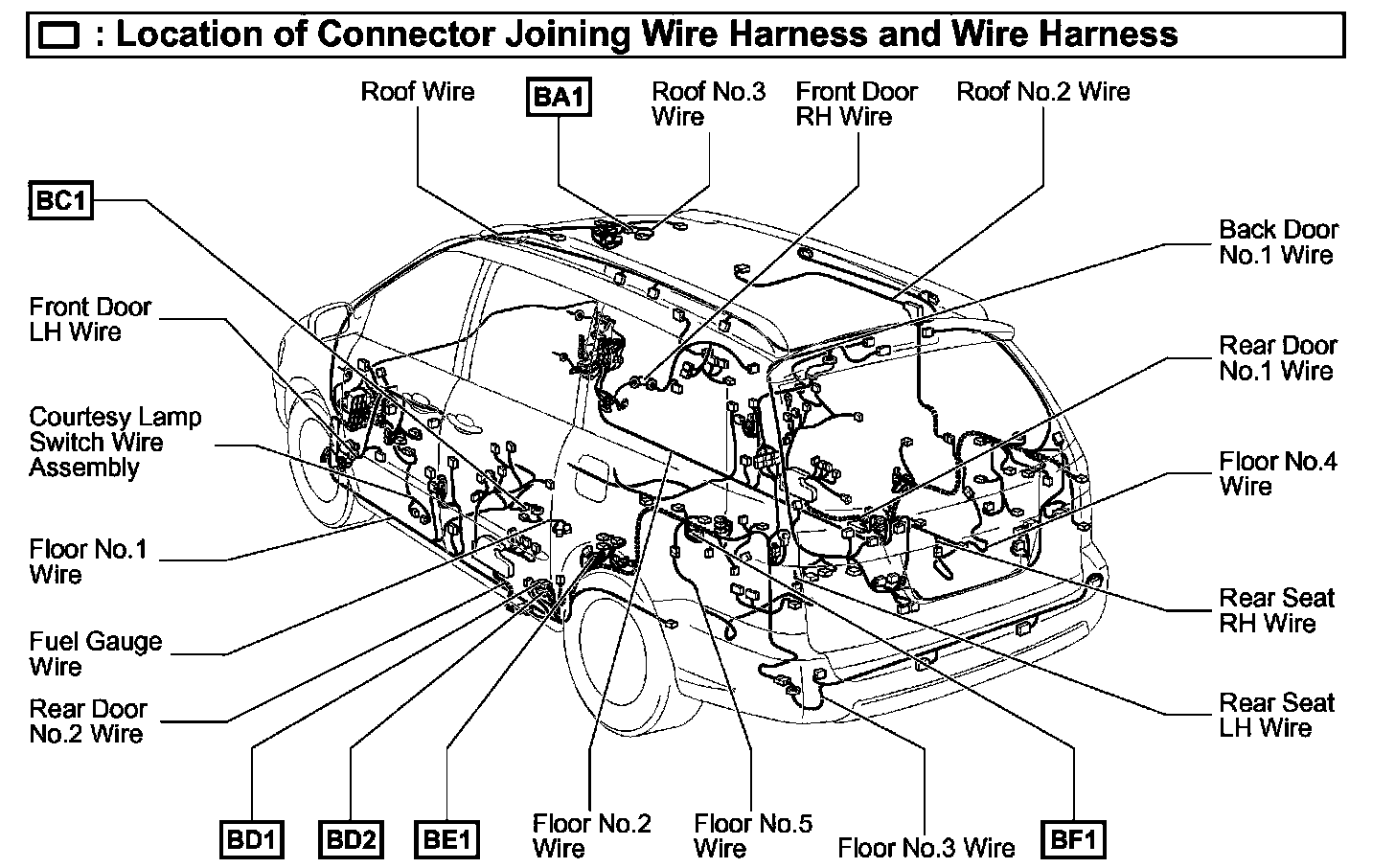

BA1 - BF1:

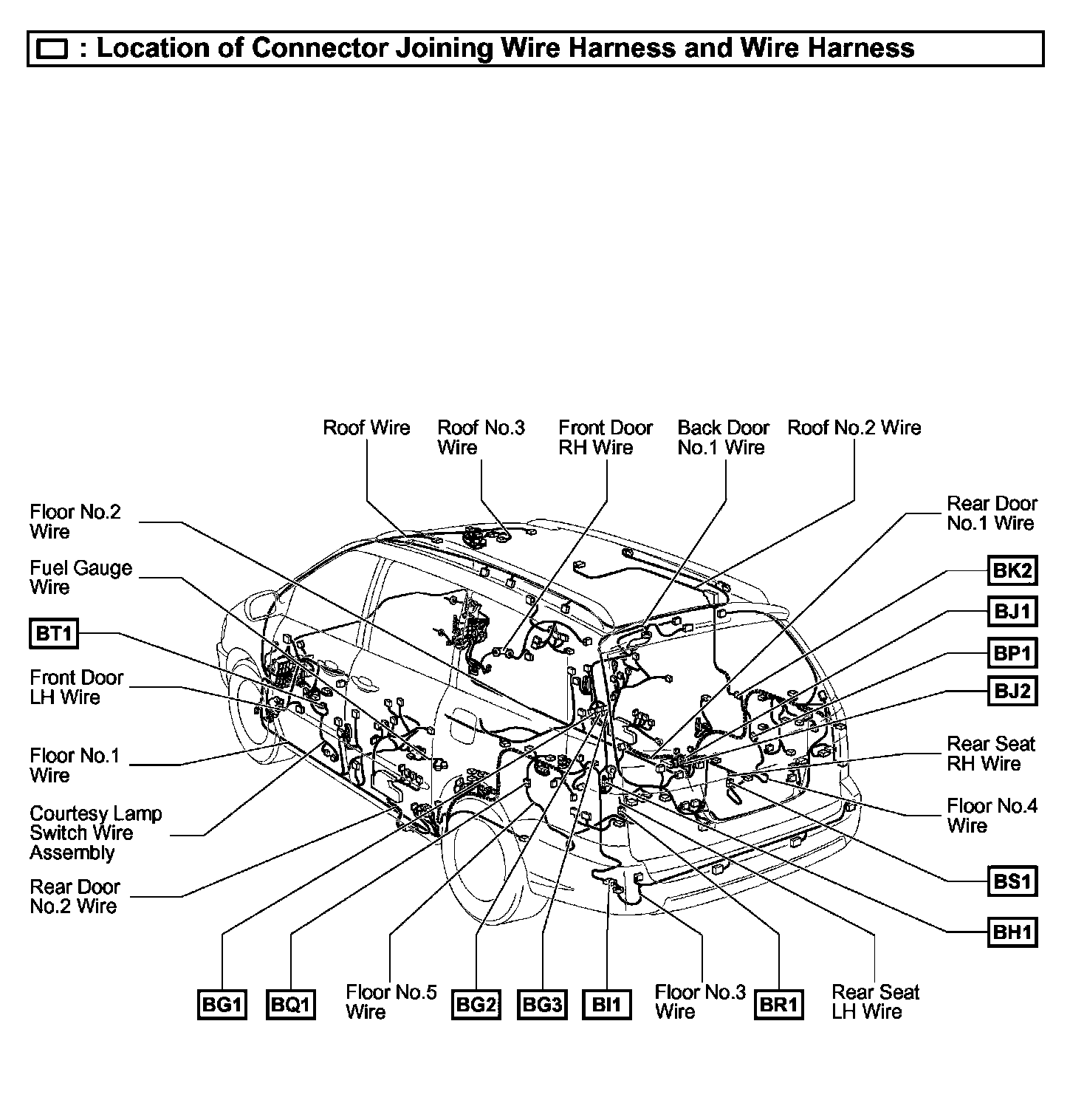

BG1 - BT1:

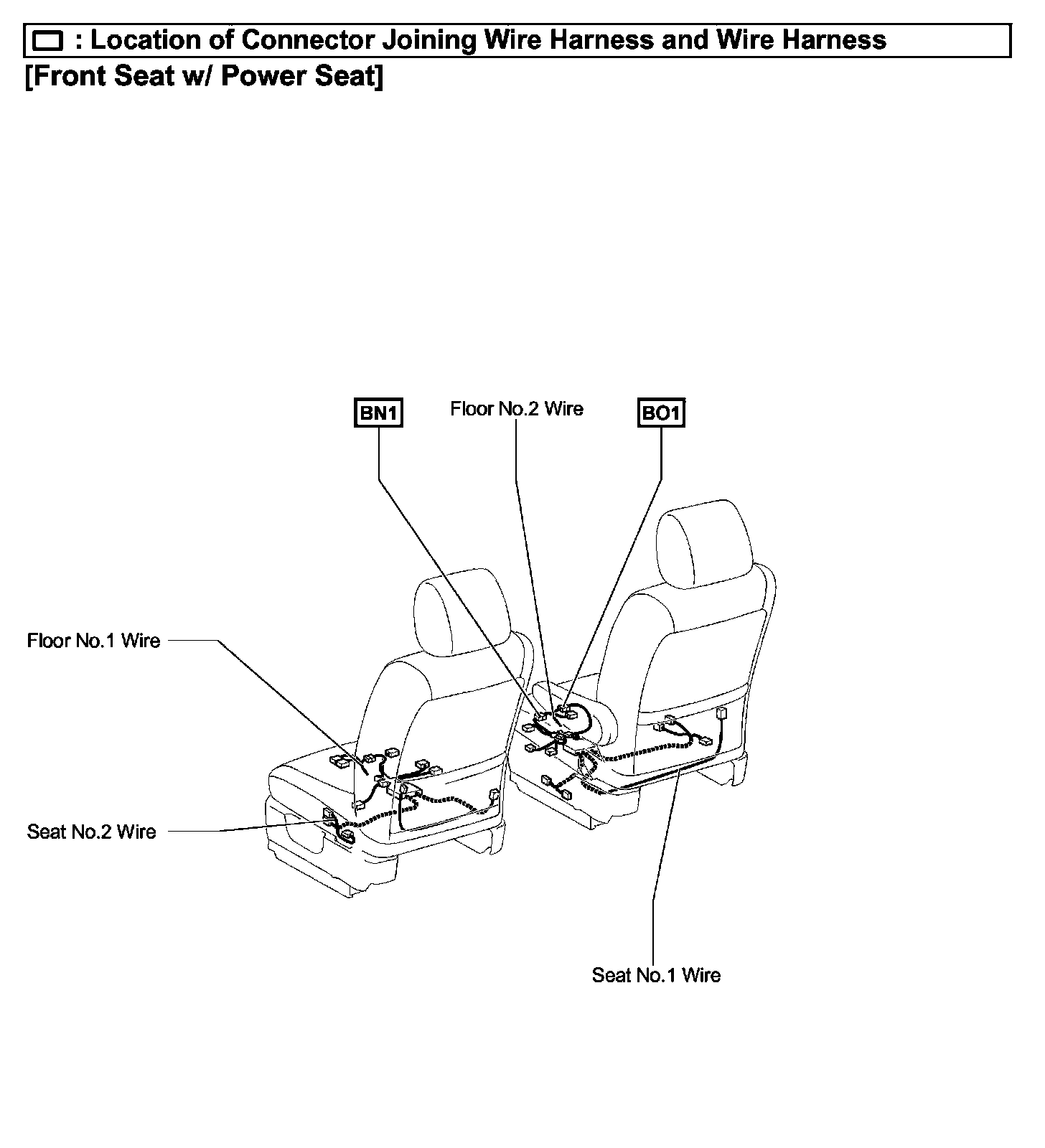

BN1 - BO1:
BM1:
