Fuse Block: Locations

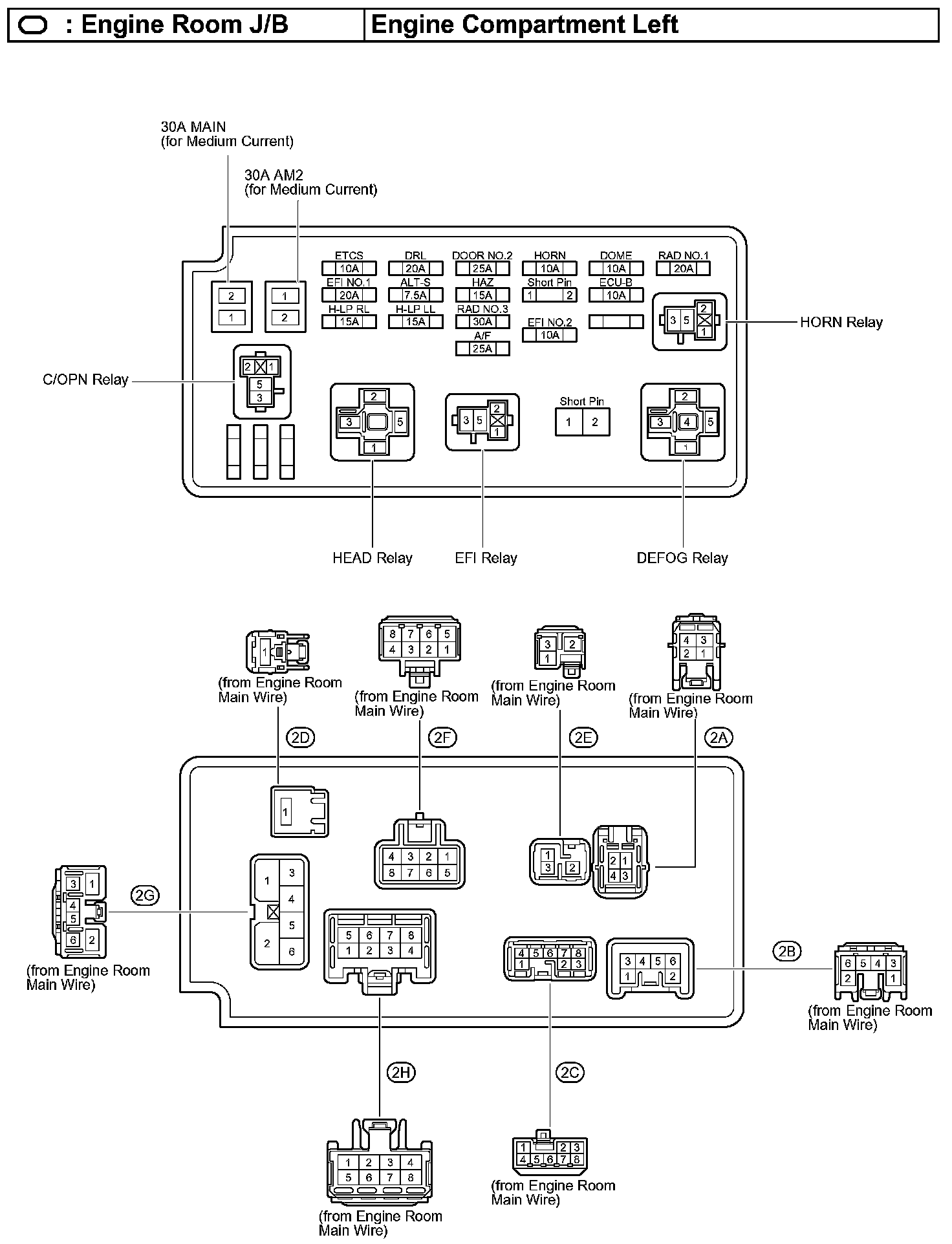

Engine Room J/B:

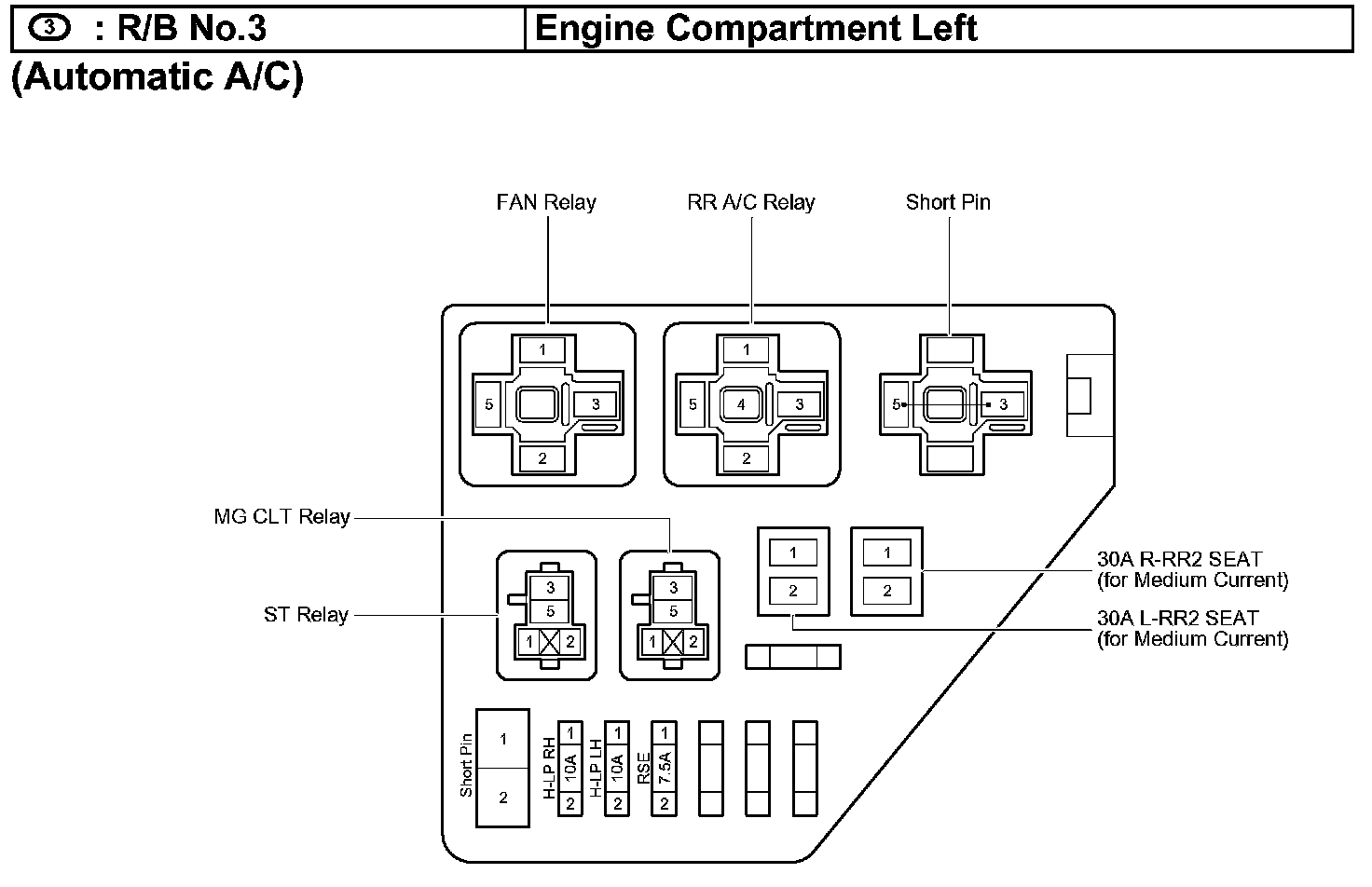

Engine Room R/B 3 - Left:

Engine Room R/B 3 - Left:

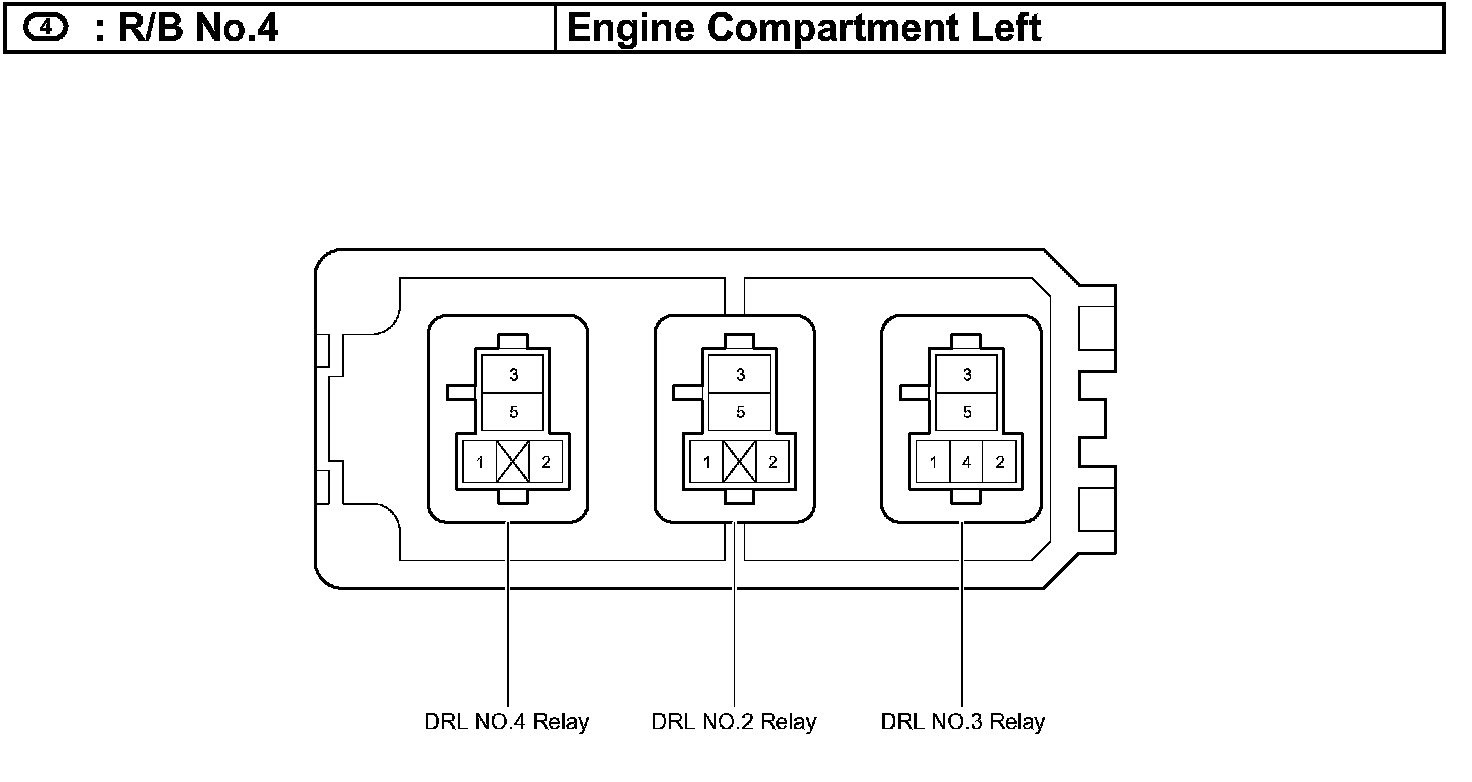

Engine Room R/B 4 - Left:

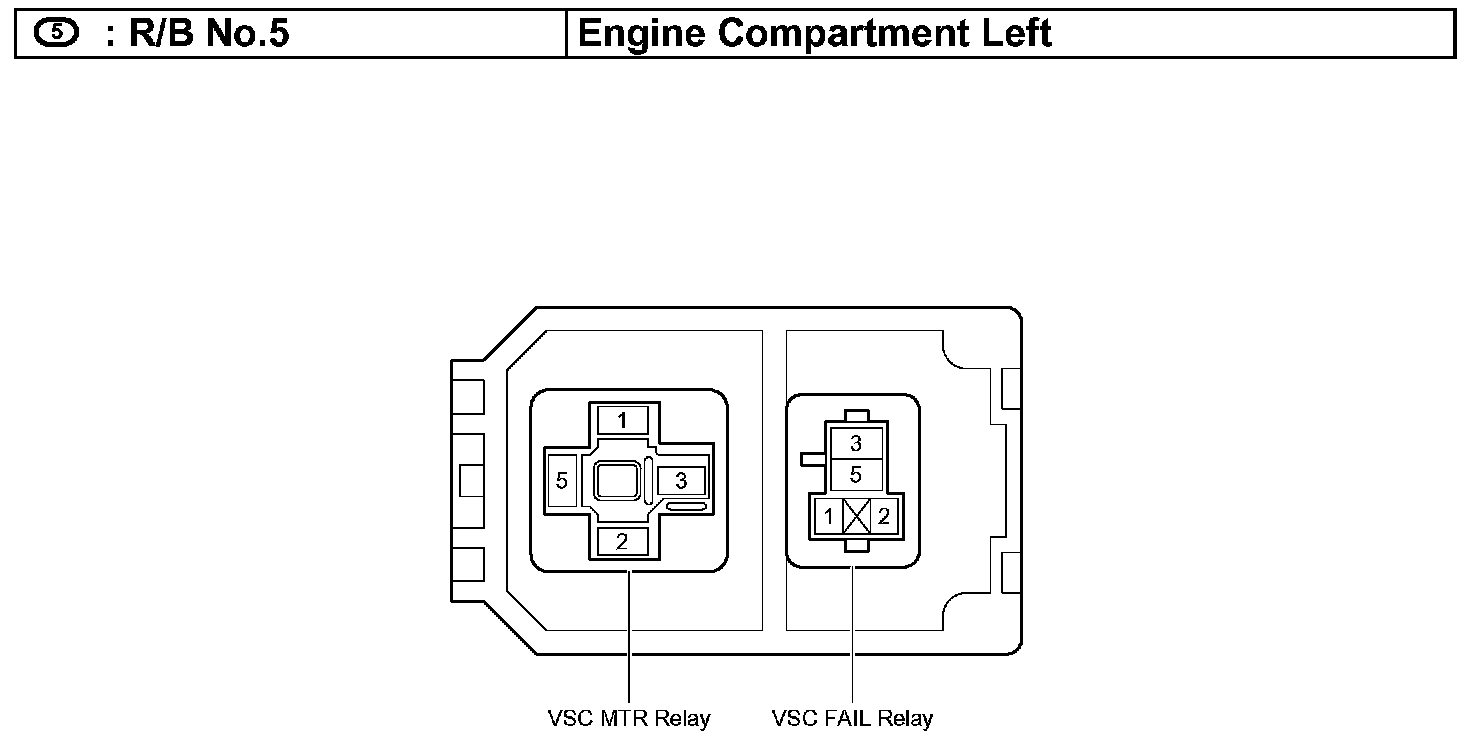

Engine Room R/B 5 - Left:

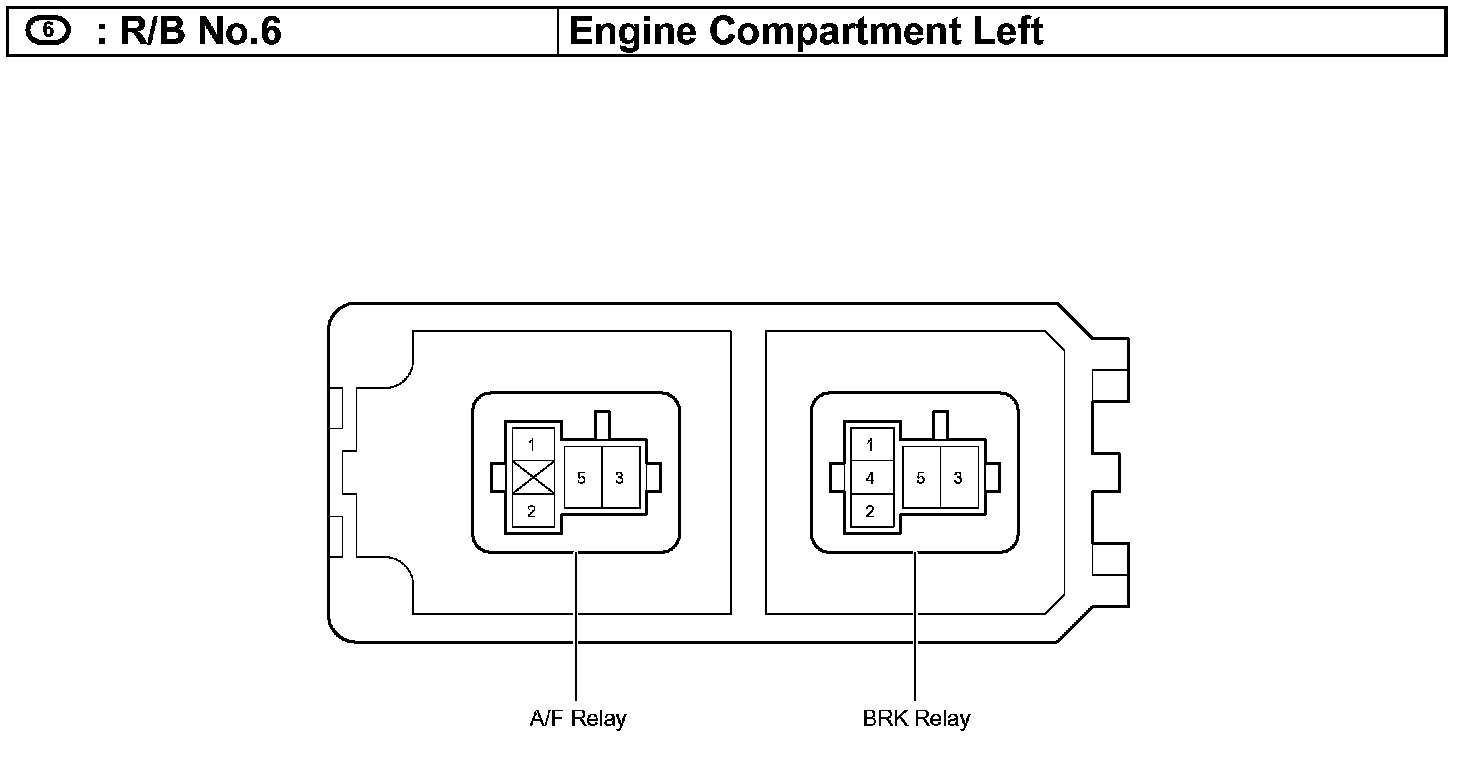

Engine Room R/B 6 - Left:

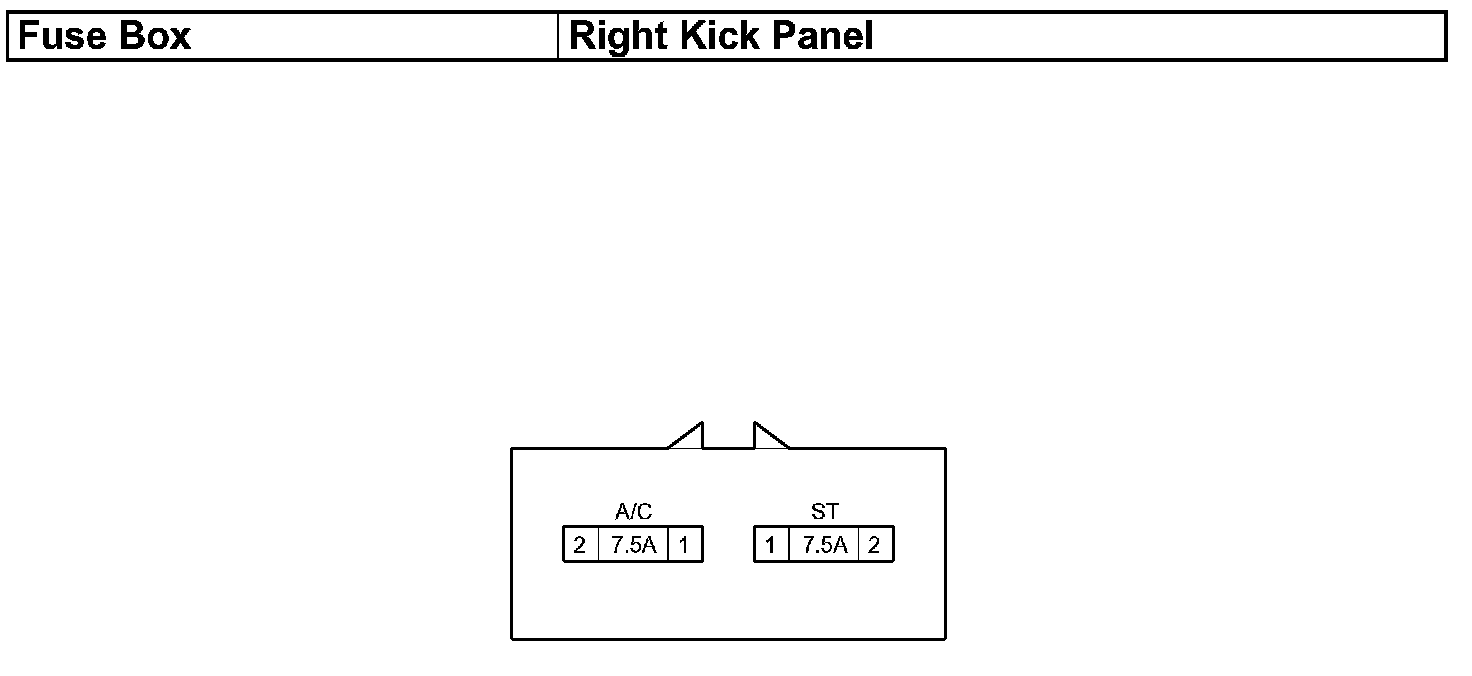

Fuse Box:

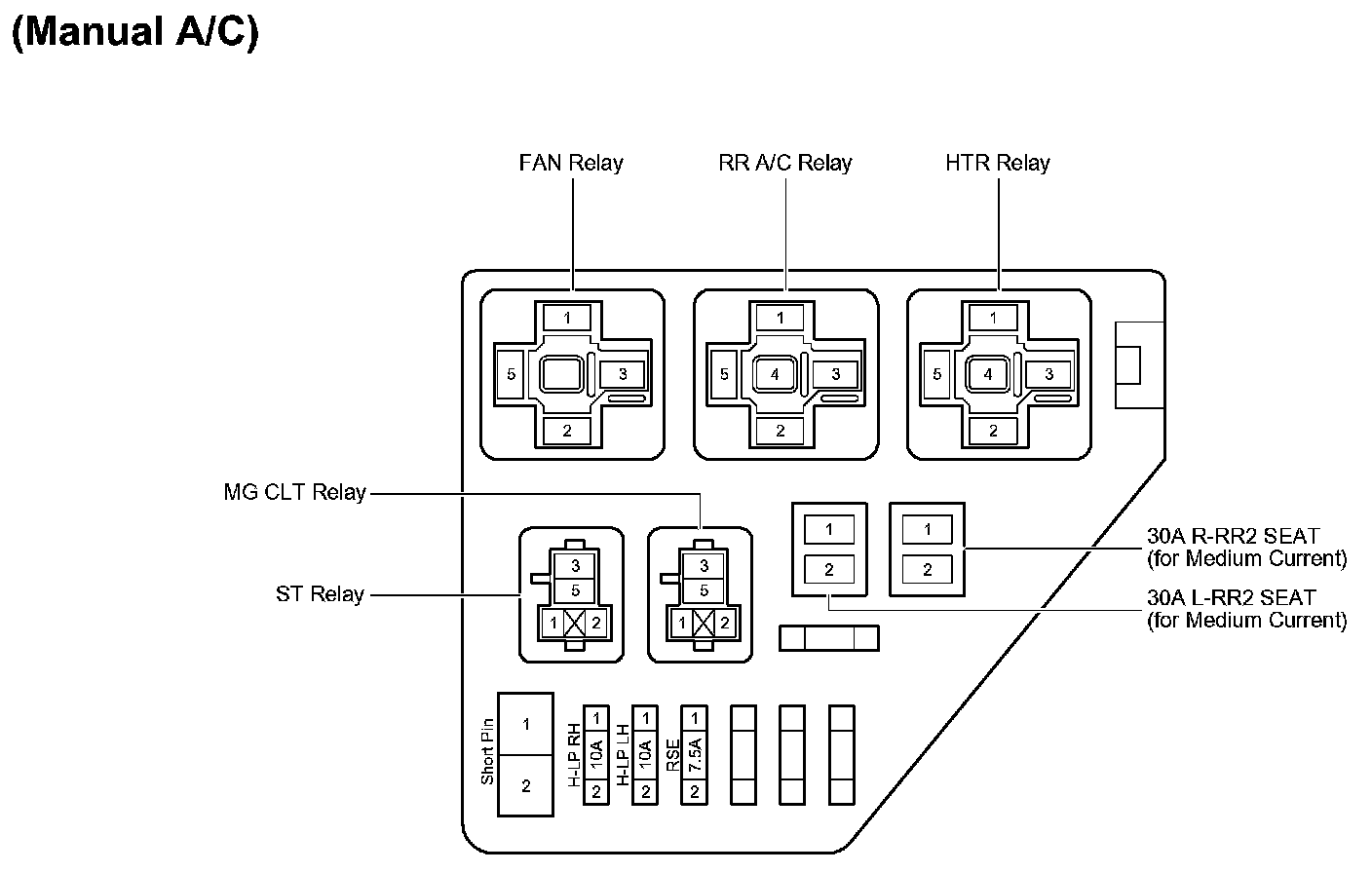

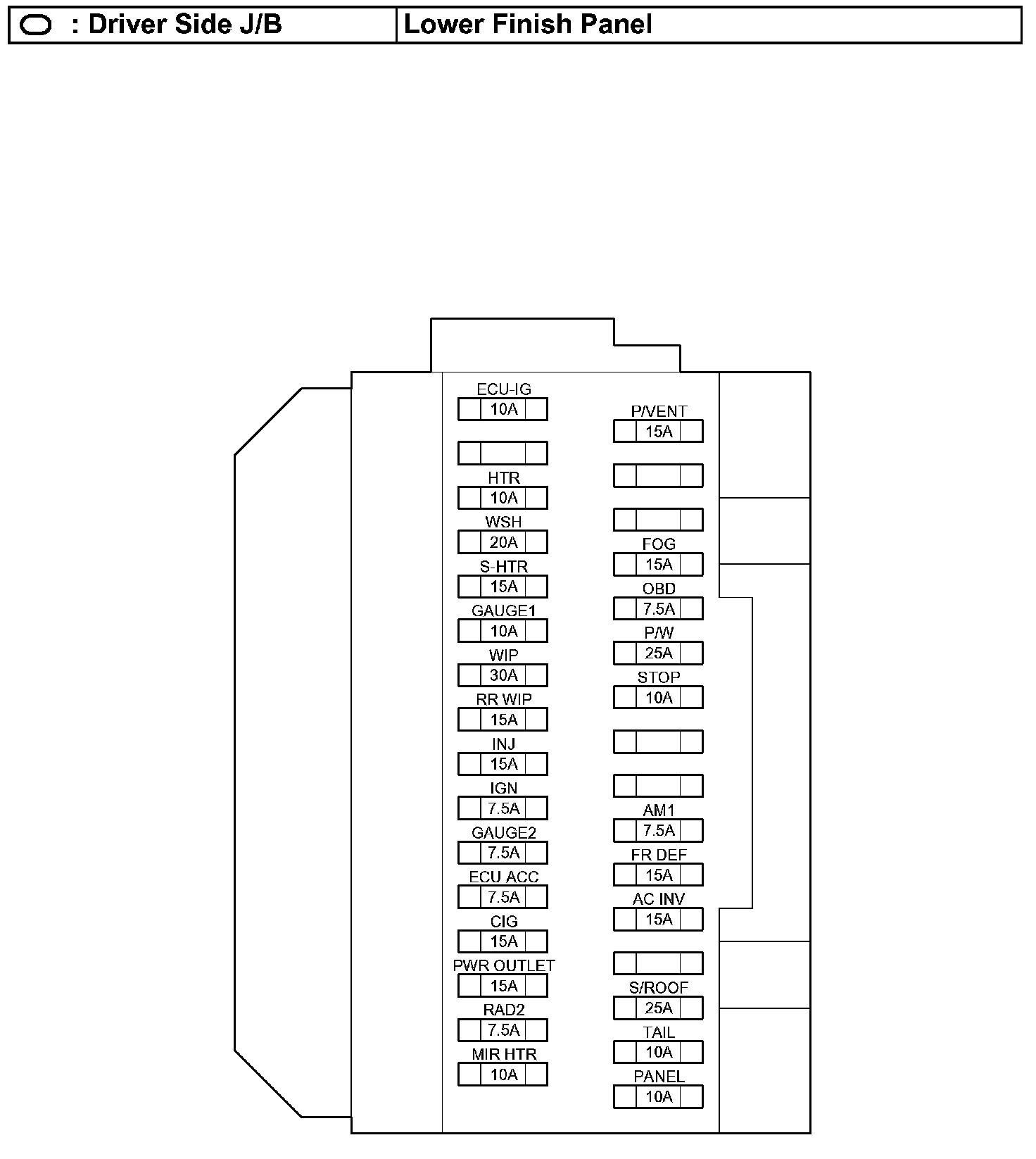

Driver Side J/B - Lower Finish Panel:

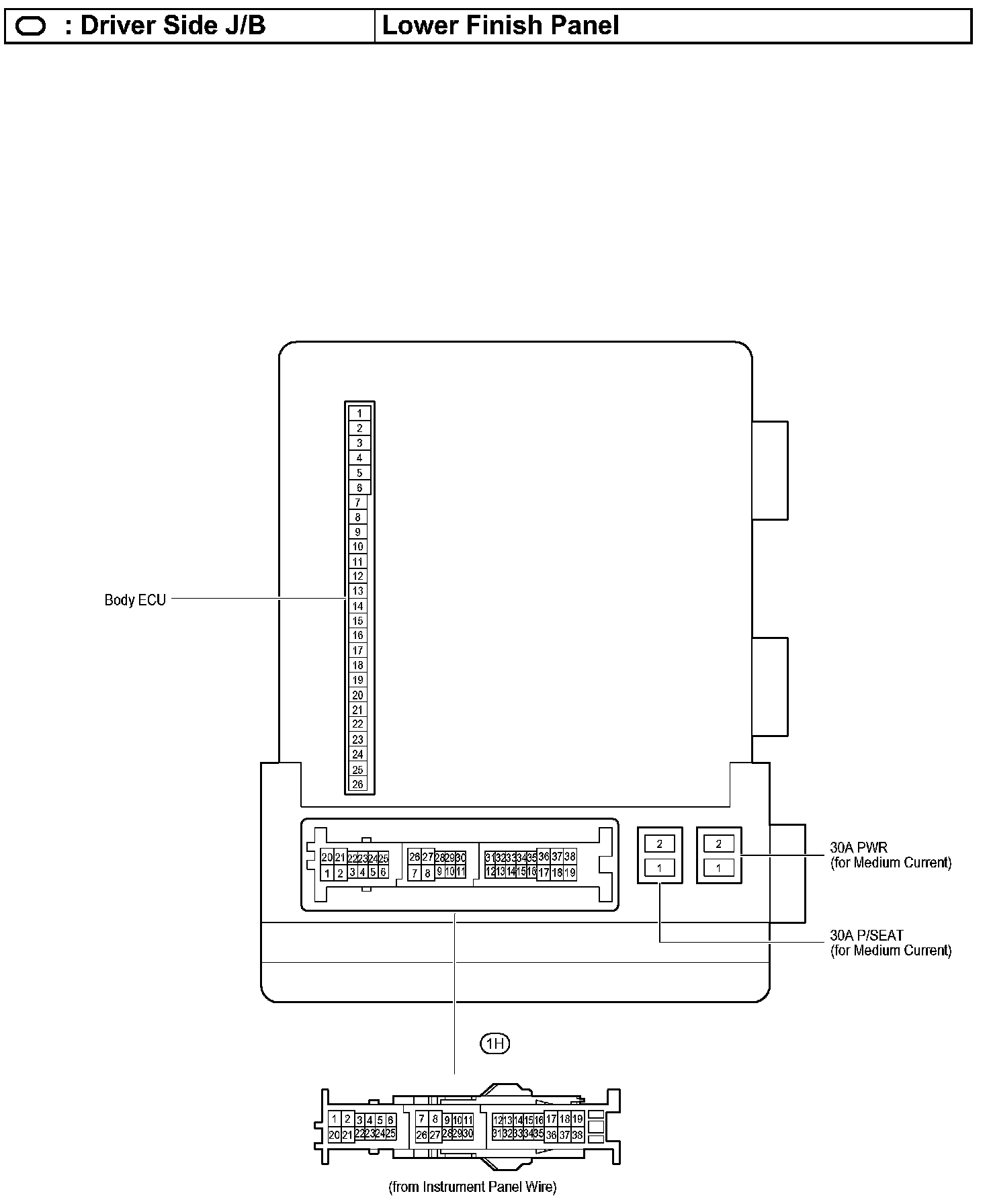

Driver Side J/B - Lower Finish Panel:

Driver Side J/B - Lower Finish Panel:

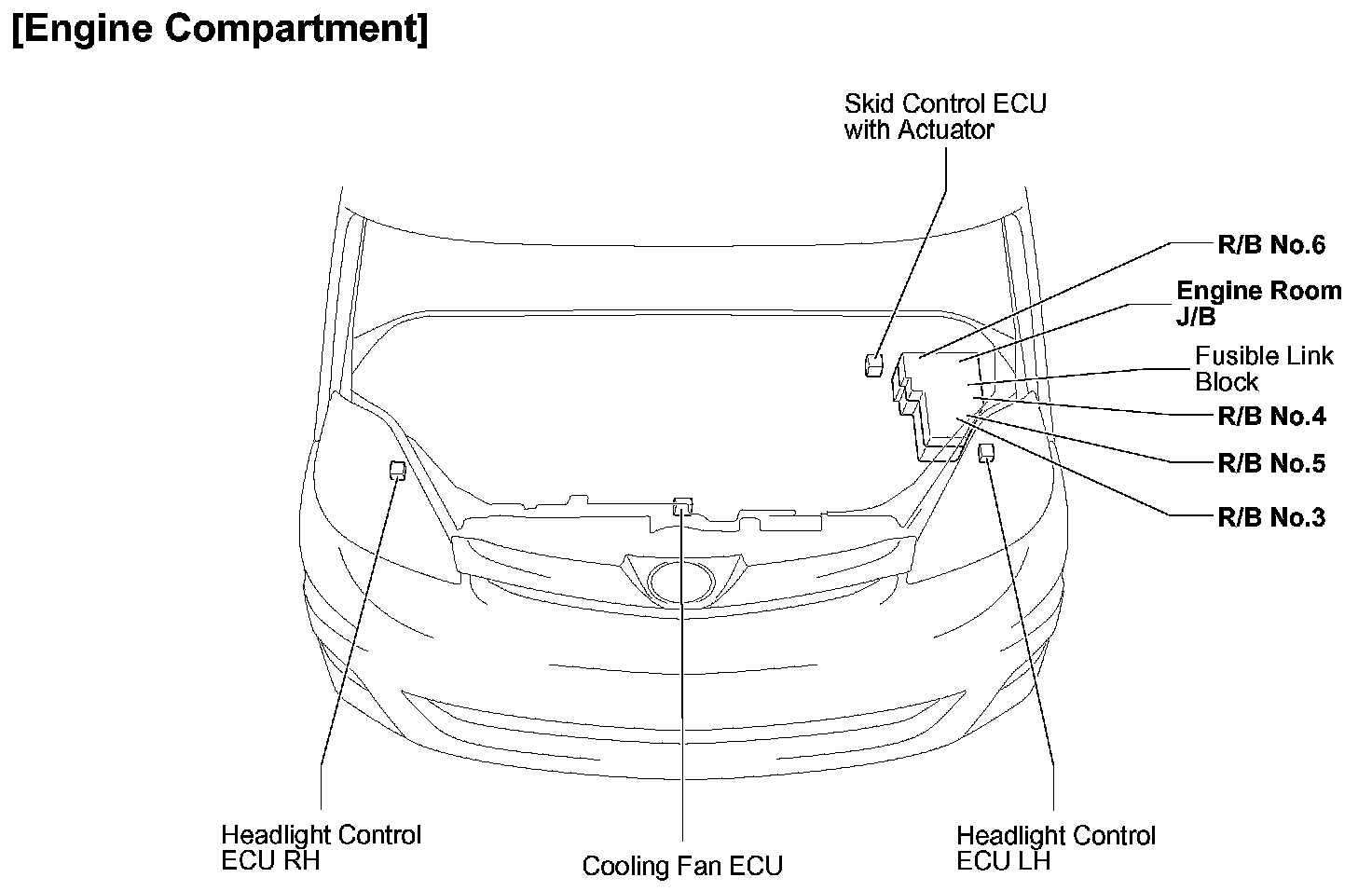

Engine Compartment:

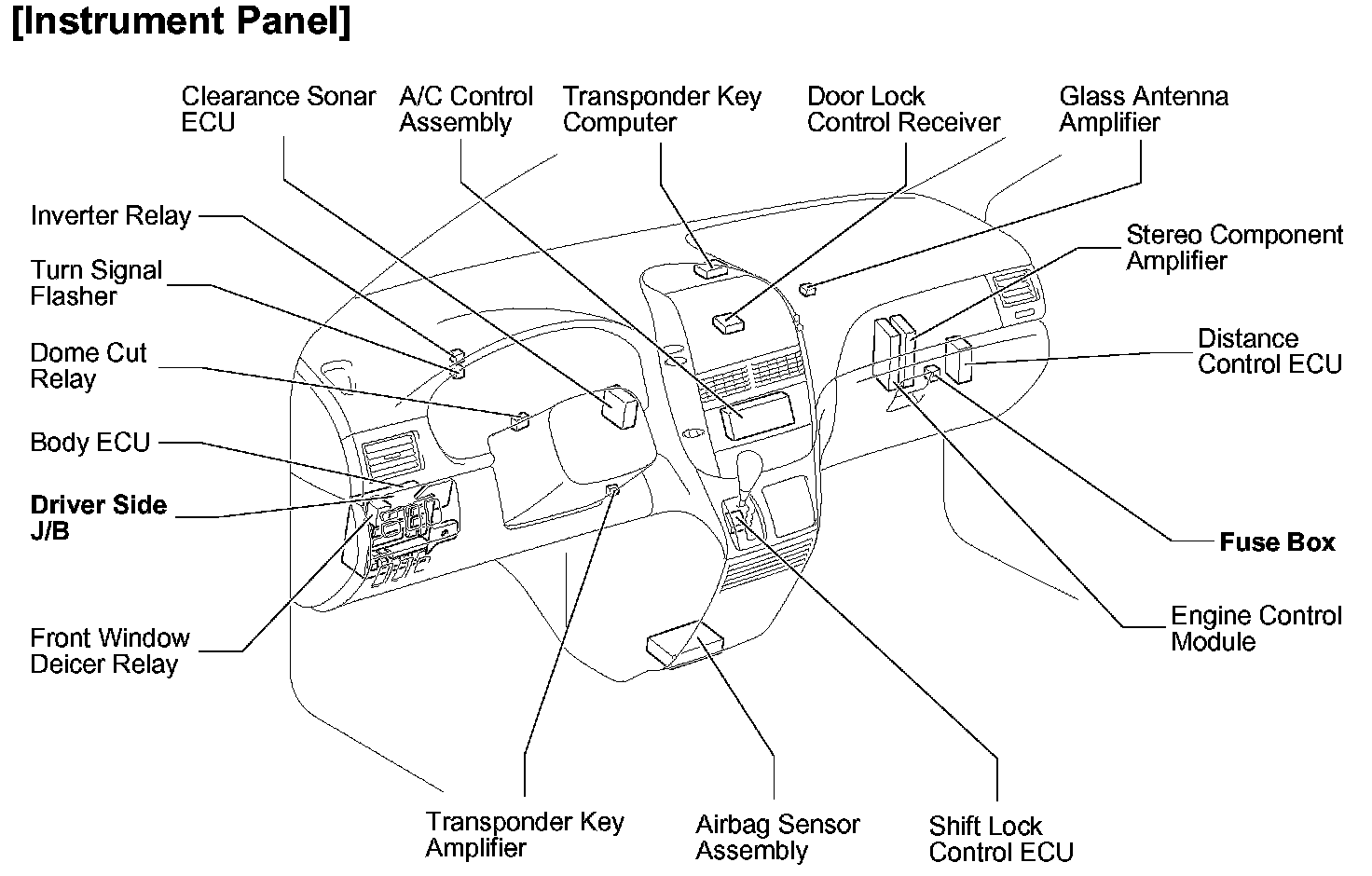

Instrument Panel:

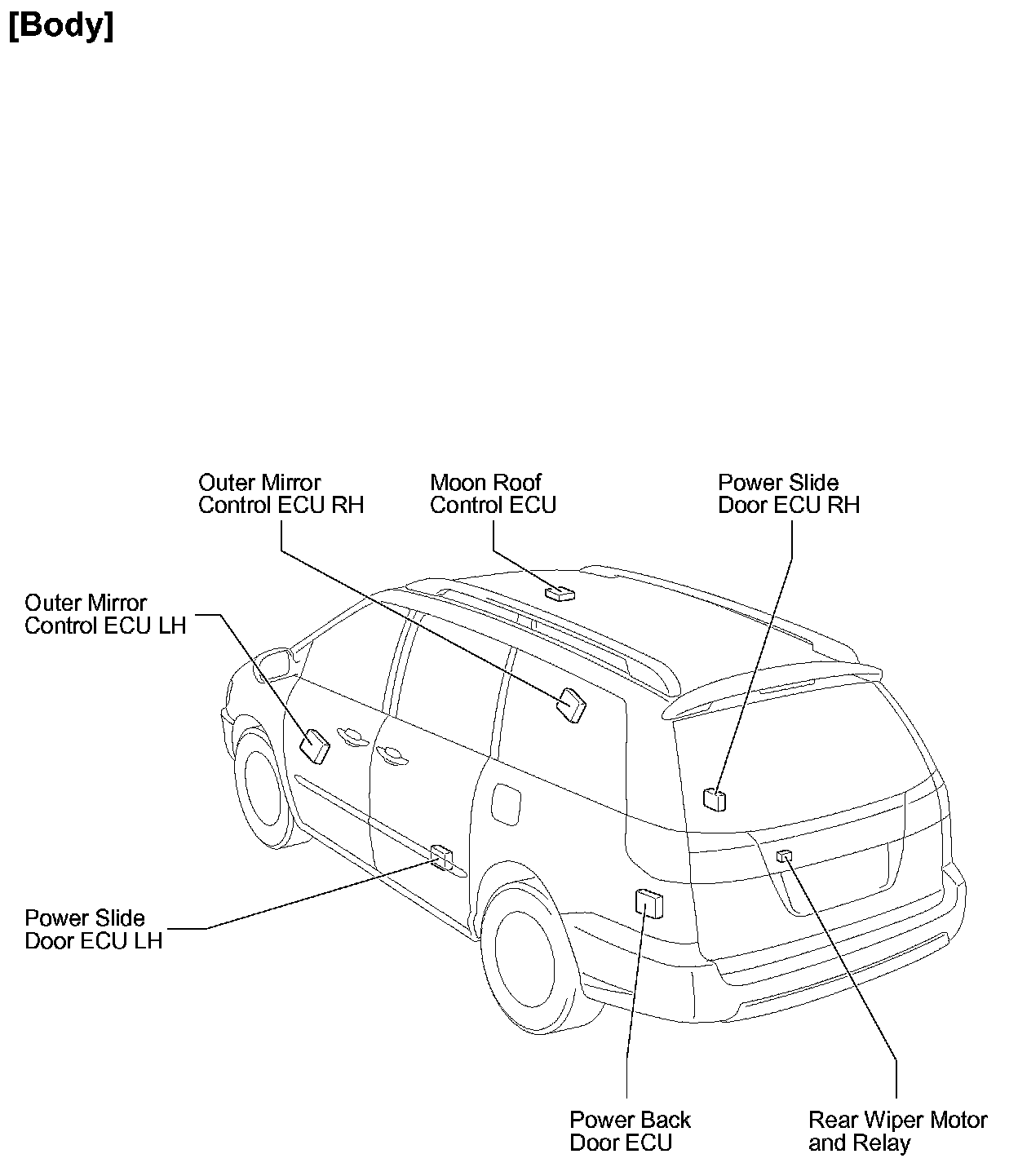

Body:
