Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

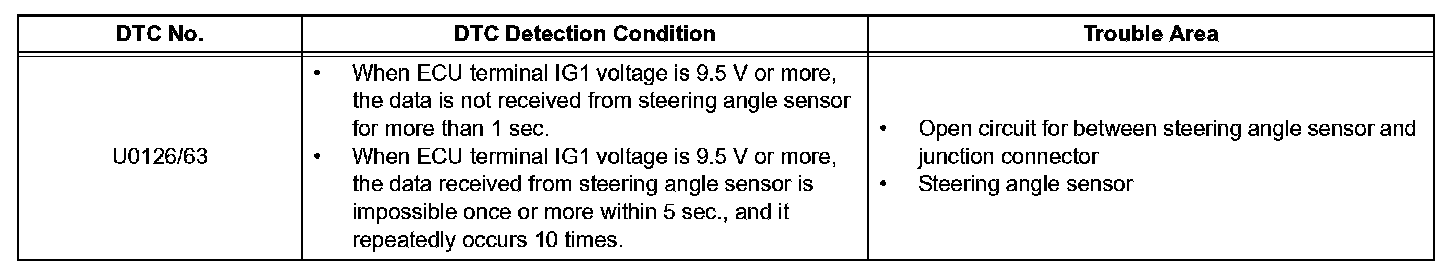

DTC Detection Condition:




DESCRIPTION

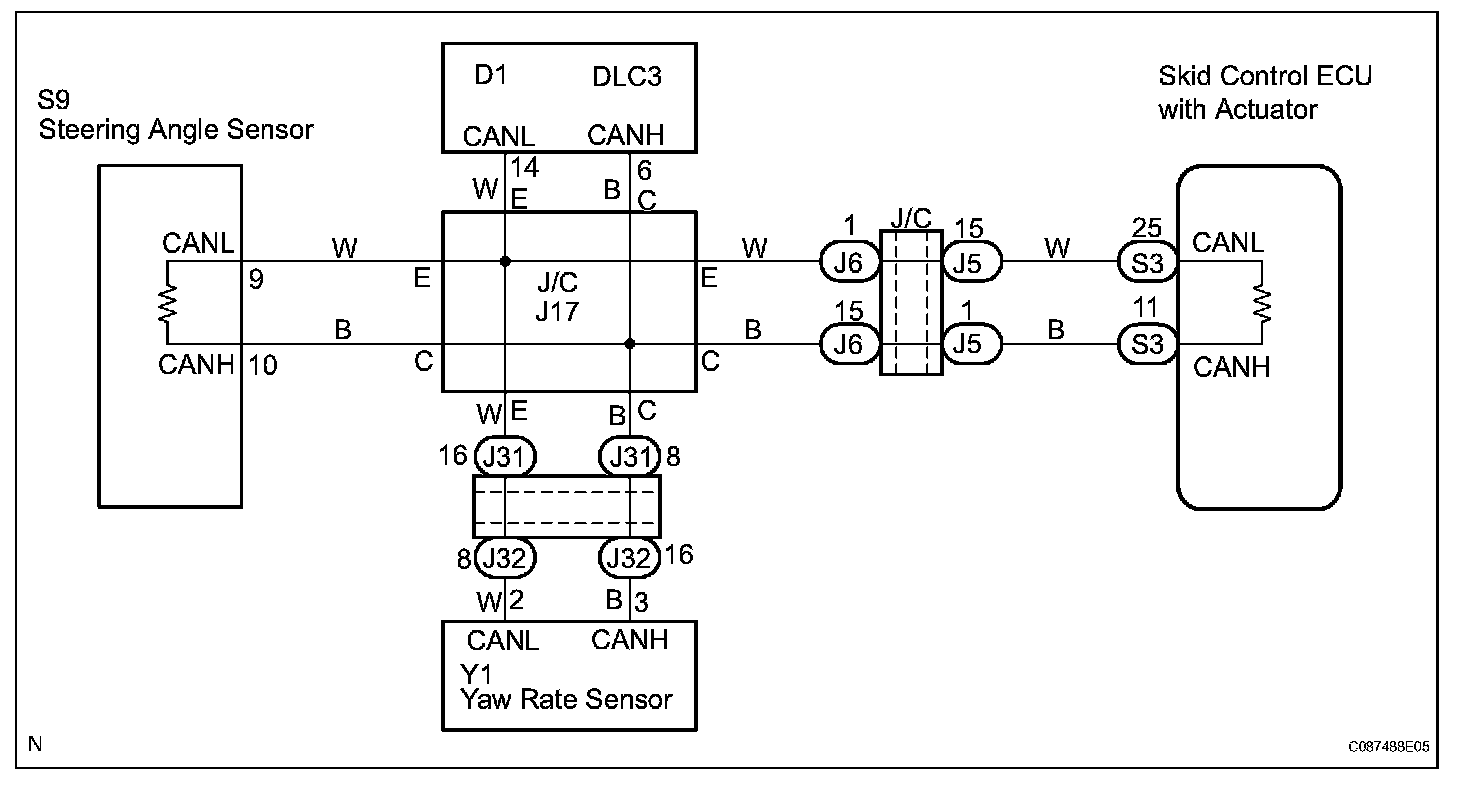

Wiring Diagram:

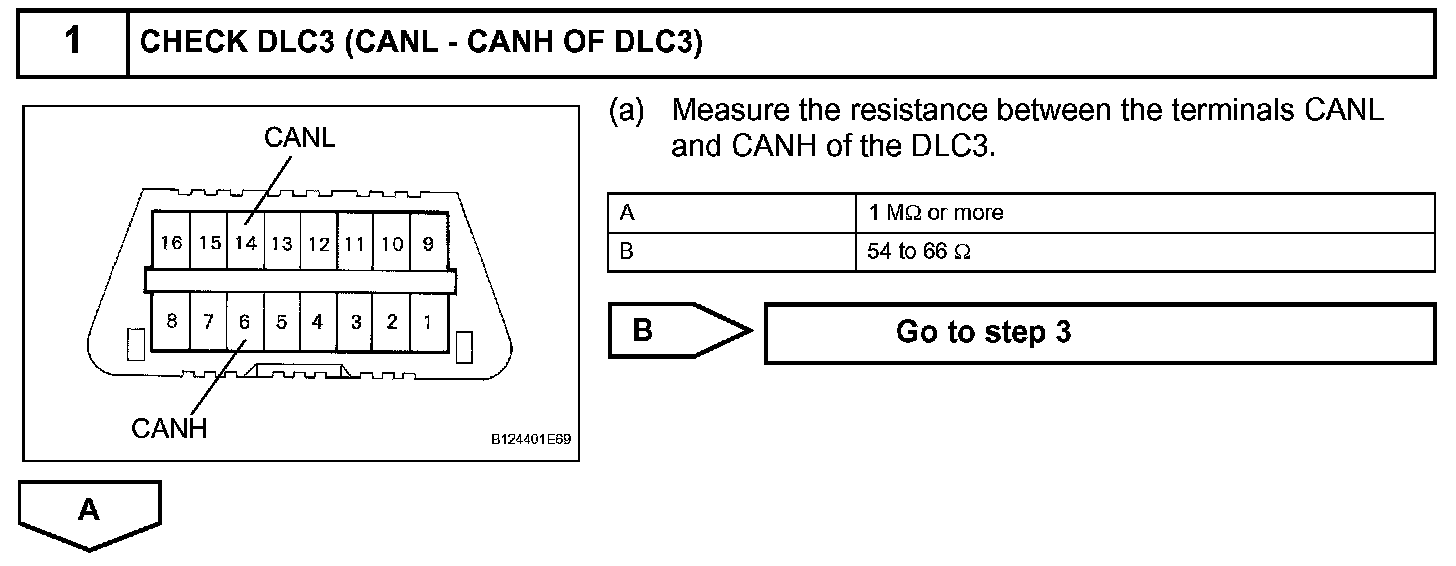

Step 1:




Step 2-3:

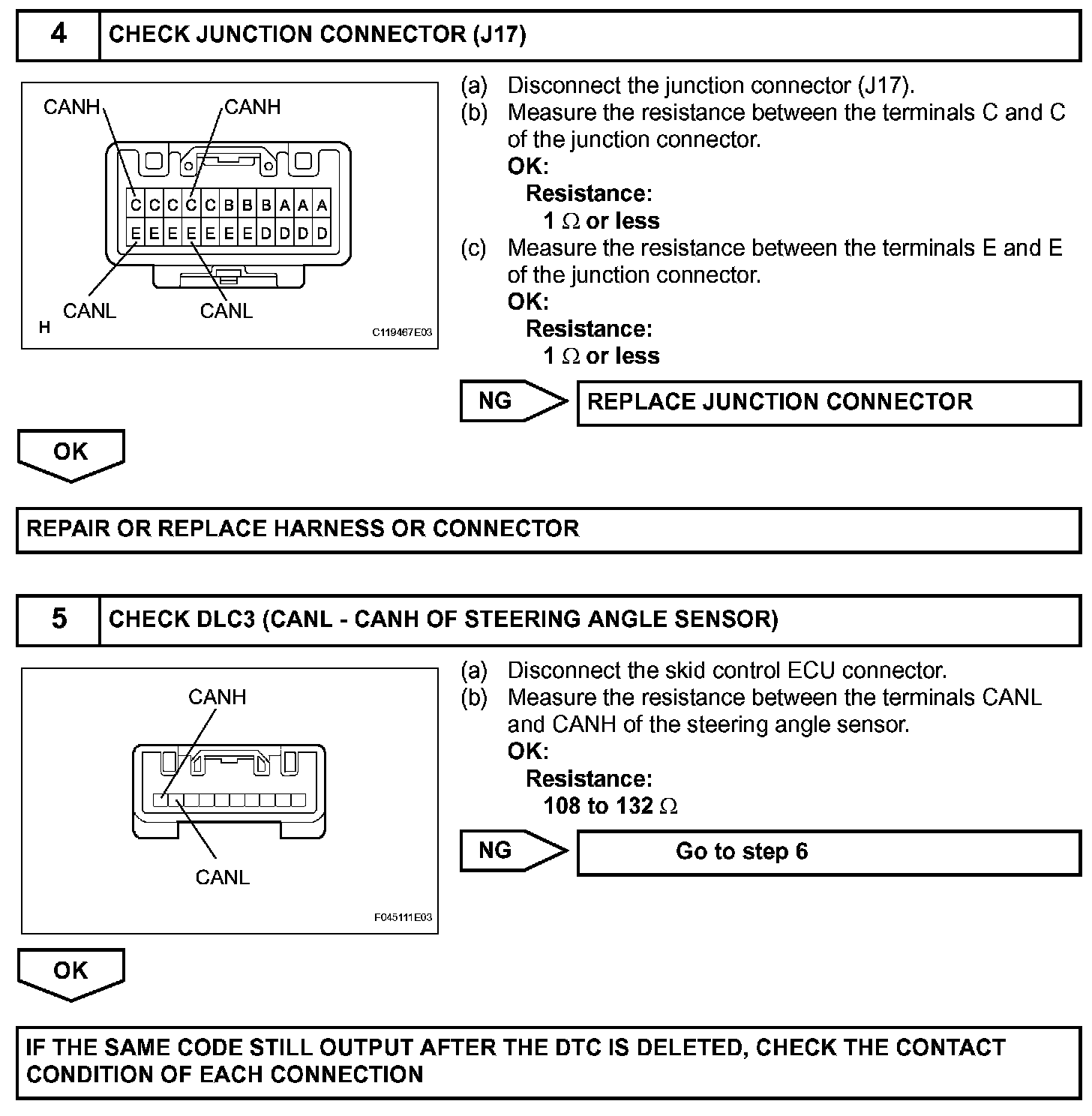

Step 4-5:

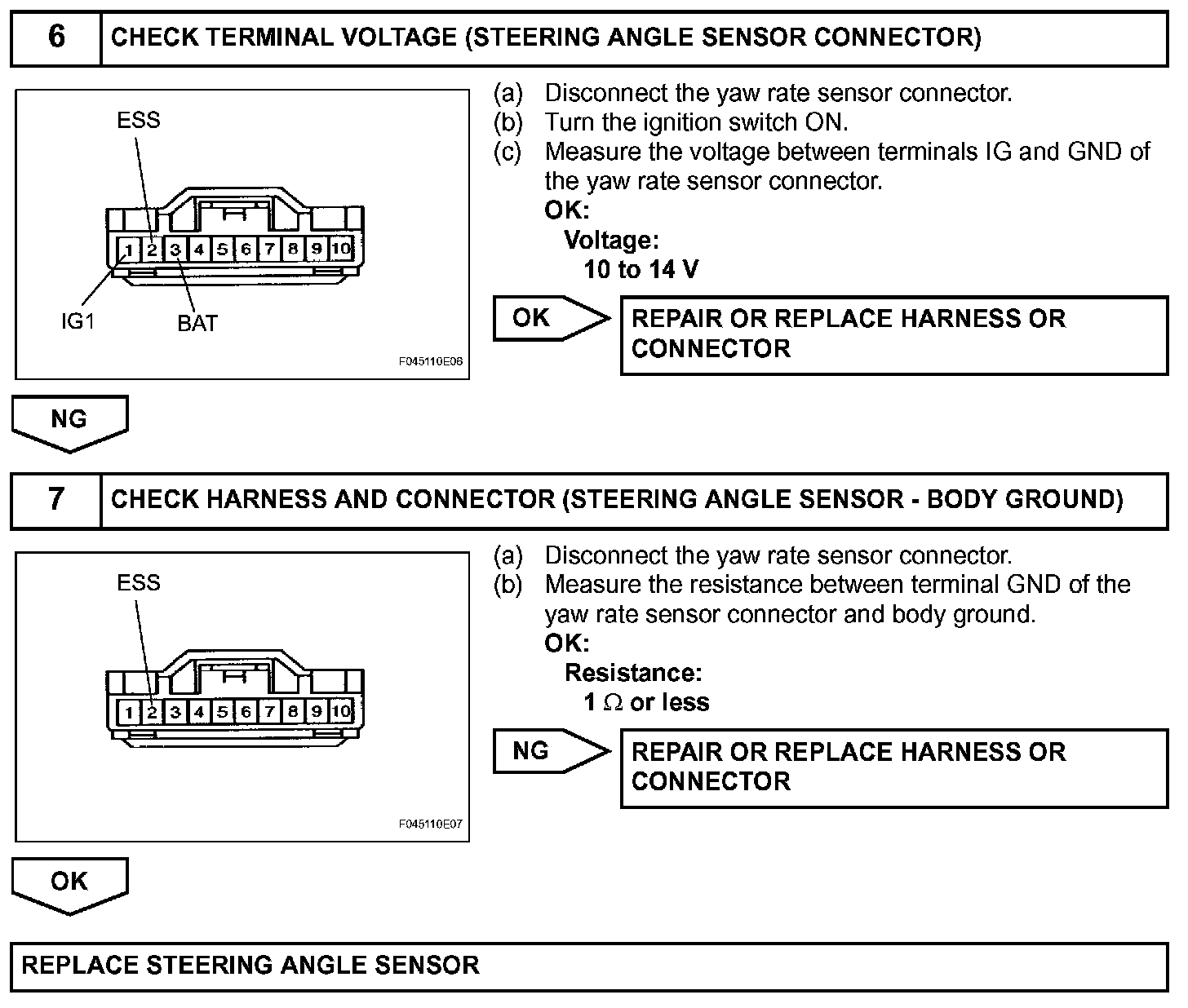

Step 6-7:




INSPECTION PROCEDURE
