Yaw Rate Sensor Communication Stop Mode
Yaw Rate Sensor Communication Stop Mode
Yaw Rate Sensor Communication Stop Mode

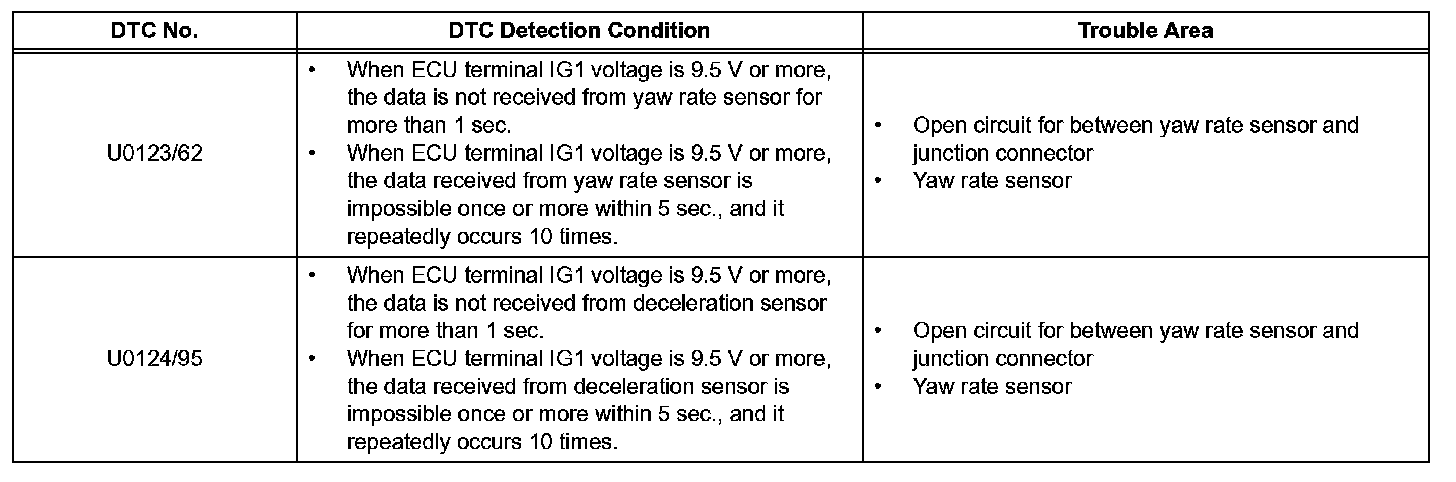

DTC Detection Condition:
DESCRIPTION

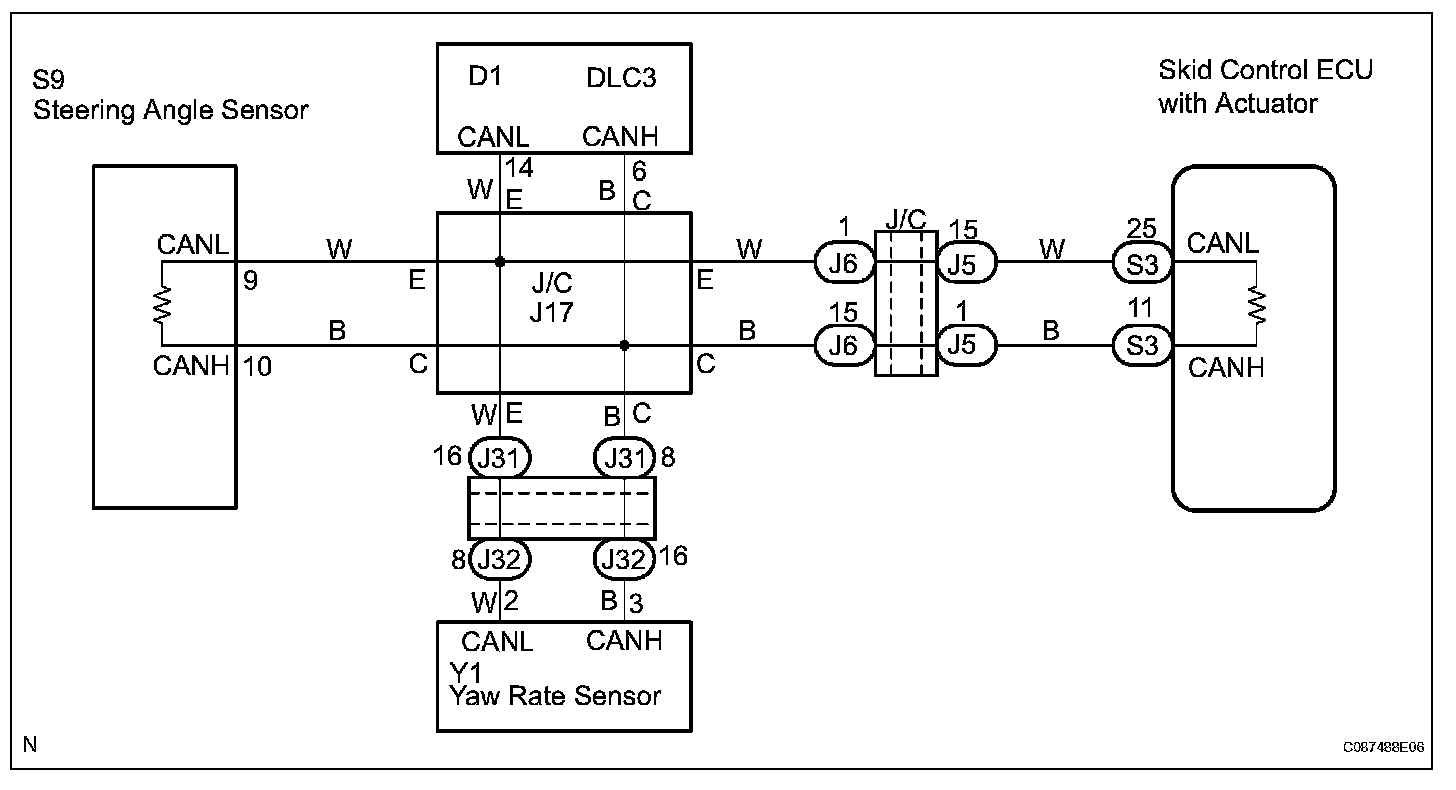

Wiring Diagram:

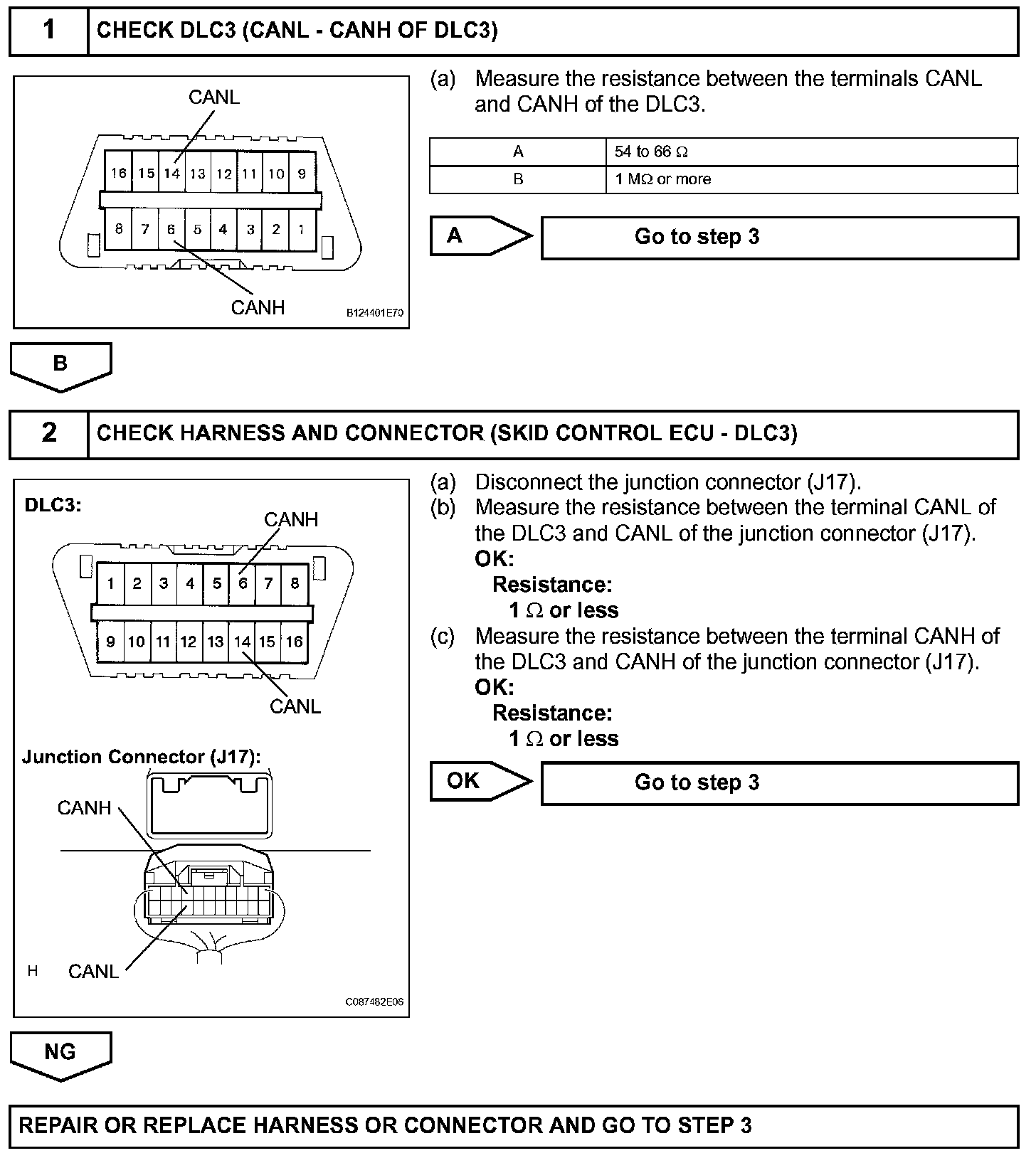

Step 1-2:

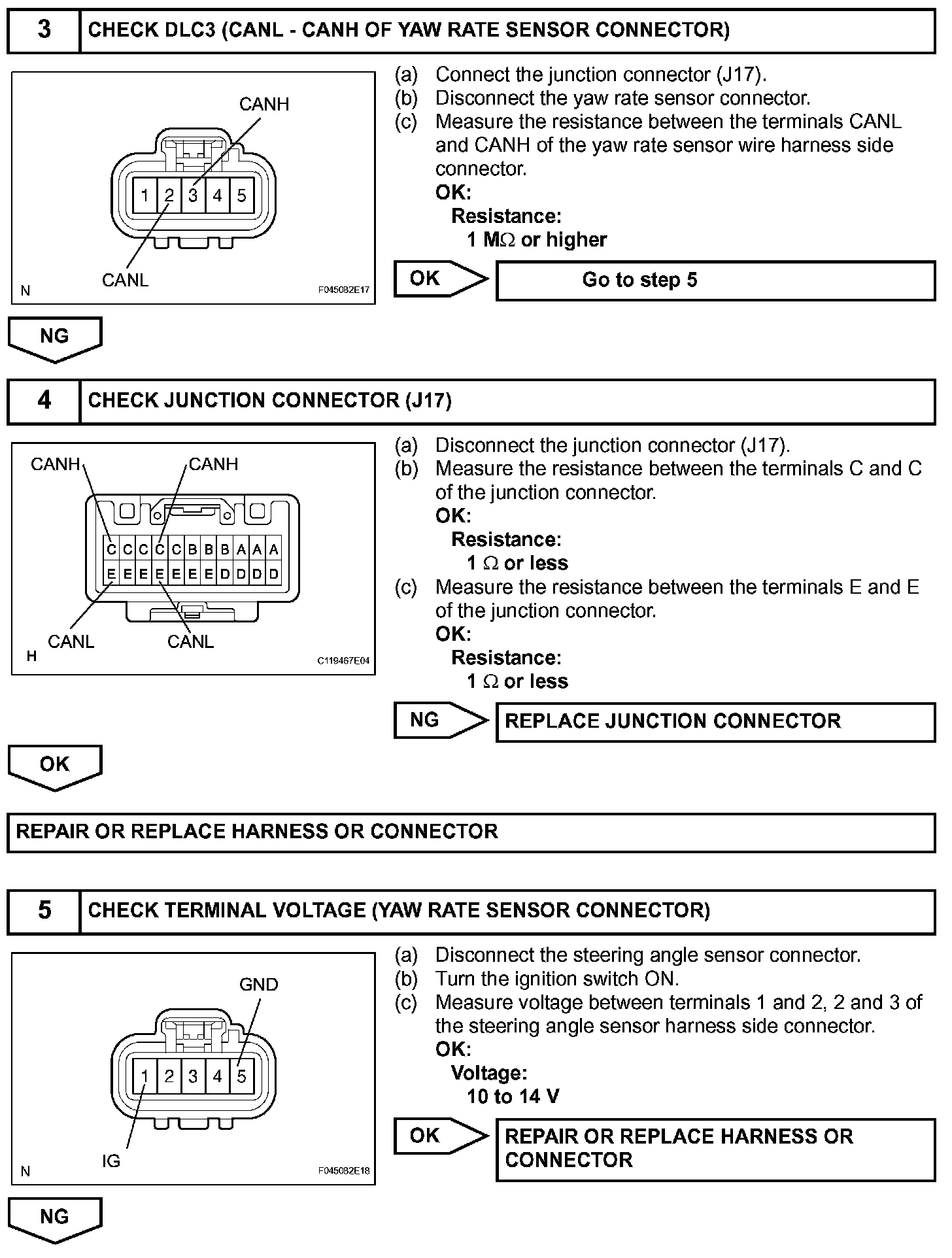

Step 3-5:

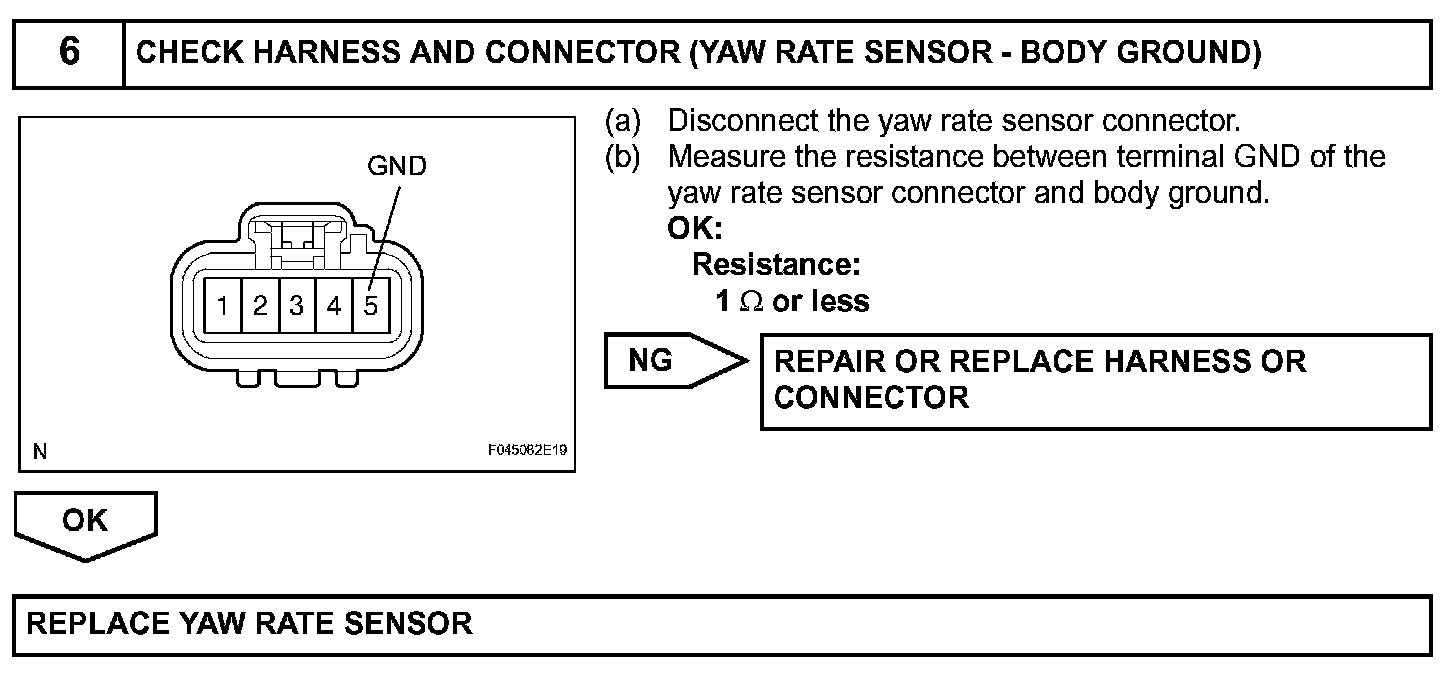

Step 6:
INSPECTION PROCEDURE
