Speed Sensor
SPEED SENSORINSPECTION
1. INSPECT SPEED SENSOR (NT SENSOR)

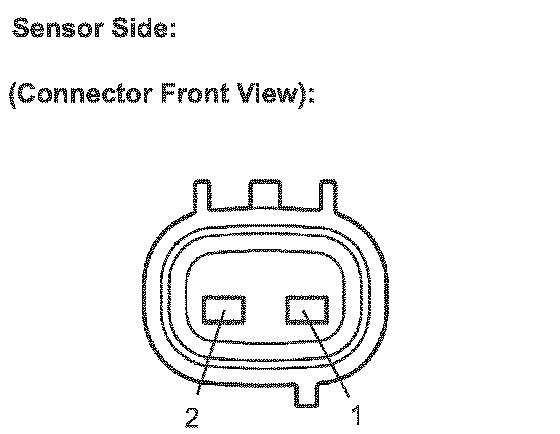

a. Disconnect the speed sensor connector from the transaxle.
b. Measure the resistance according to the value(s) in the table below.

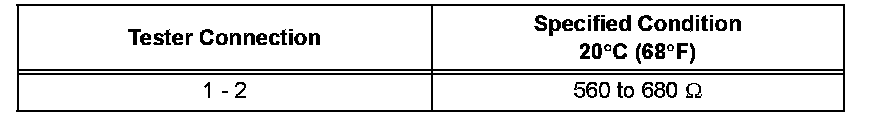

Aisin Made Resistance:

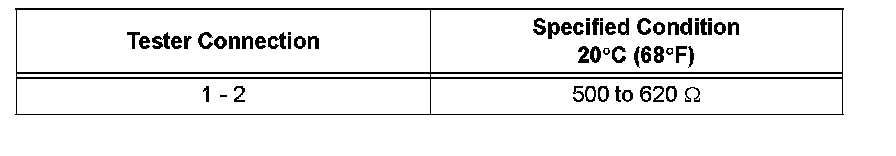

Toyota Made Resistance:
2. INSPECT SPEED SENSOR (NC SENSOR)
a. Disconnect the speed sensor connector from the transaxle.
b. Measure the resistance according to the value(s) in the table below.

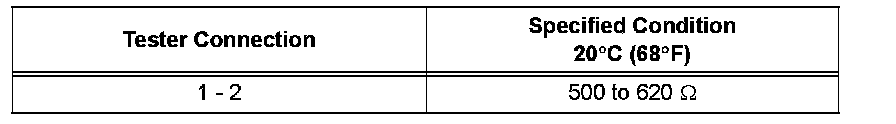

Aisin Made Resistance:
Toyota Made Resistance:
