Oil Pump, Engine
OIL PUMP

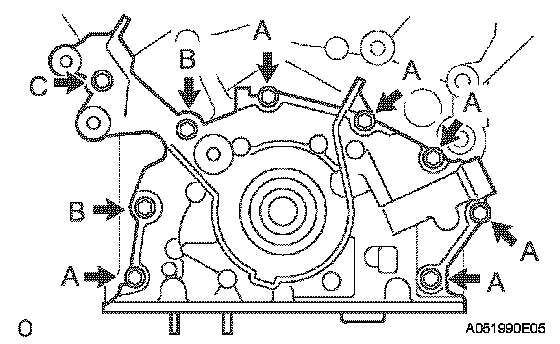

Install the oil pump with the 9 bolts. Tighten the bolts uniformly in several steps.
Torque:
8.0 Nm (82 kgf-cm, 71 inch lbs.) for Bolt A
20 Nm (199 kgf-cm, 14 ft. lbs.) for Bolt B
43 Nm (439 kgf-cm, 32 ft. lbs.) for Bolt C
Install the oil pump with the 9 bolts. Tighten the bolts uniformly in several steps.
Torque:
8.0 Nm (82 kgf-cm, 71 inch lbs.) for Bolt A
20 Nm (199 kgf-cm, 14 ft. lbs.) for Bolt B
43 Nm (439 kgf-cm, 32 ft. lbs.) for Bolt C
