Intake Manifold

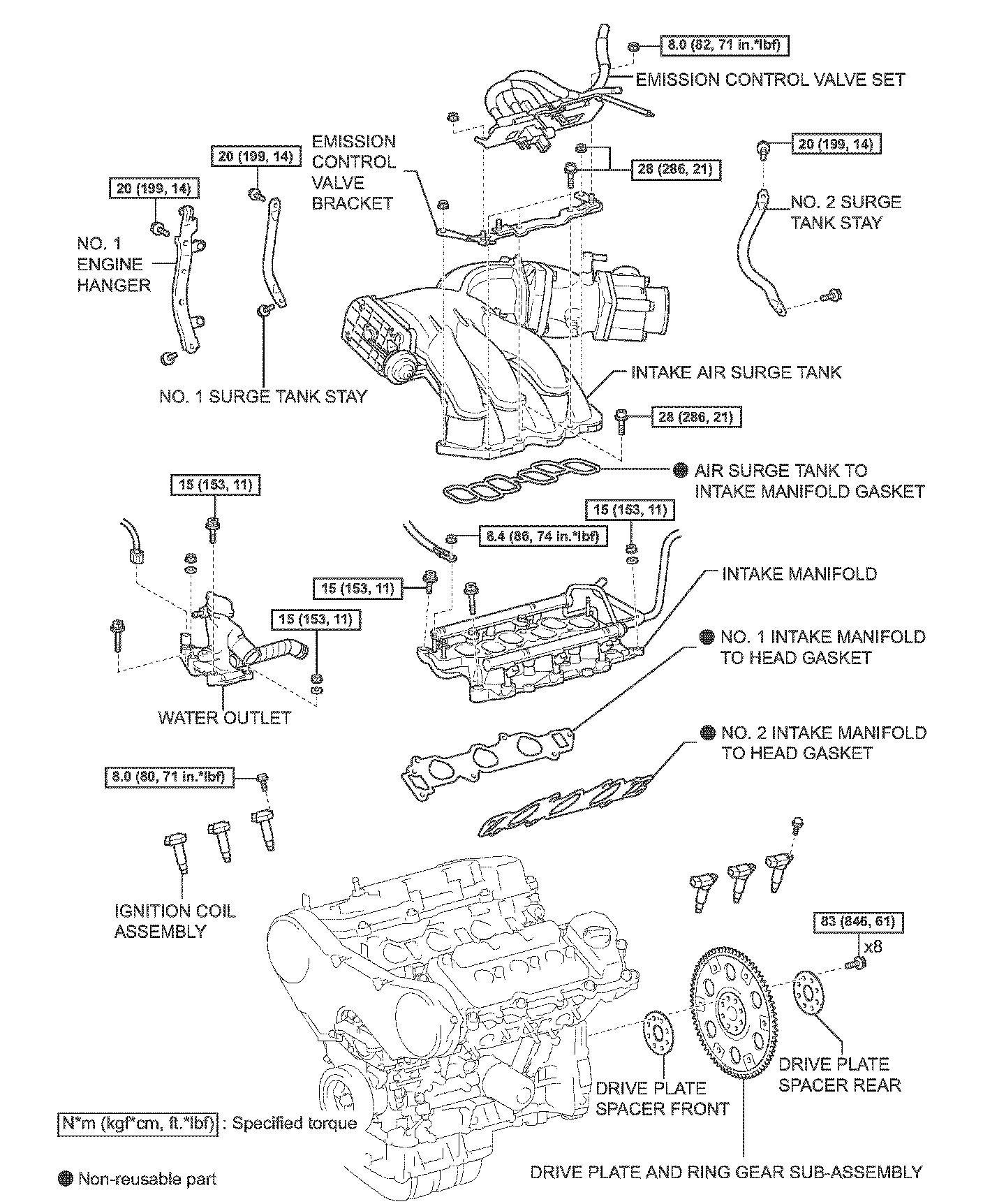

Components:

INTAKE MANIFOLD

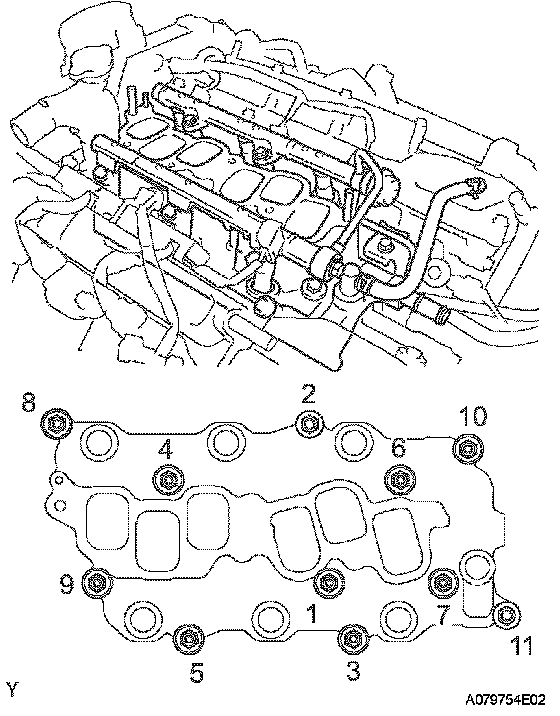

Install the intake manifold with the 9 bolts, 2 nuts and 2 washers. Using several steps, tighten the bolts and nuts uniformly in the sequence shown in the illustration.
Torque 15 Nm (153 kgf-cm, 11 ft. lbs.)
