Power Window Master Switch
Power Window Master Switch
INSPECTION
1.
INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
a.

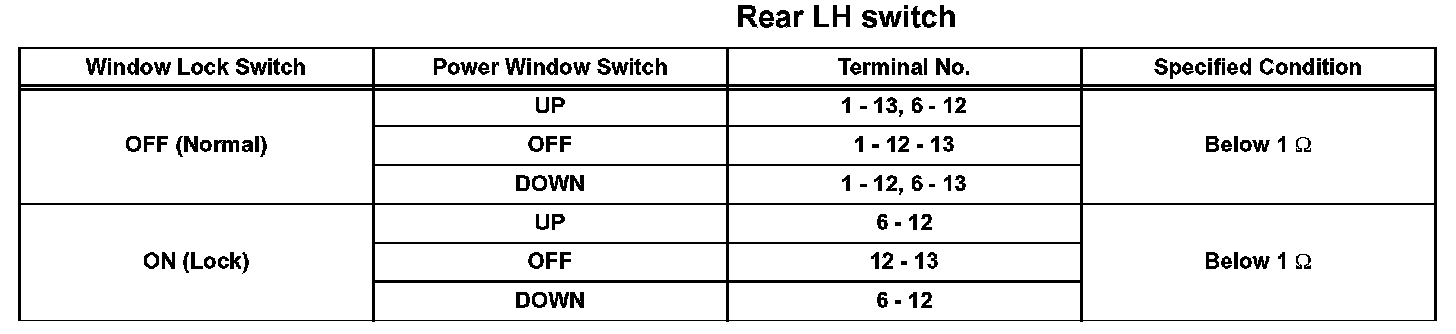

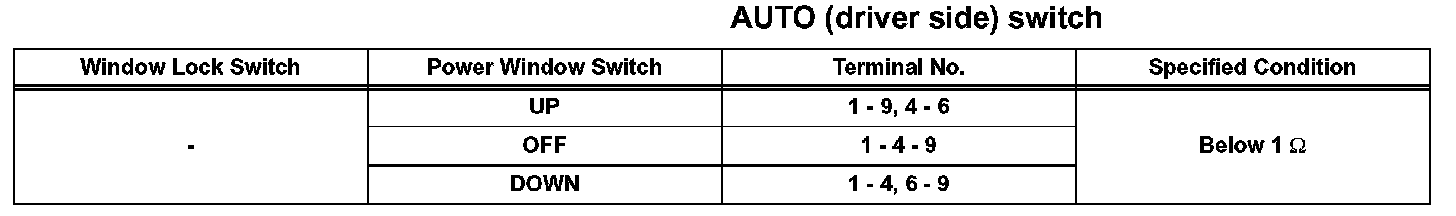

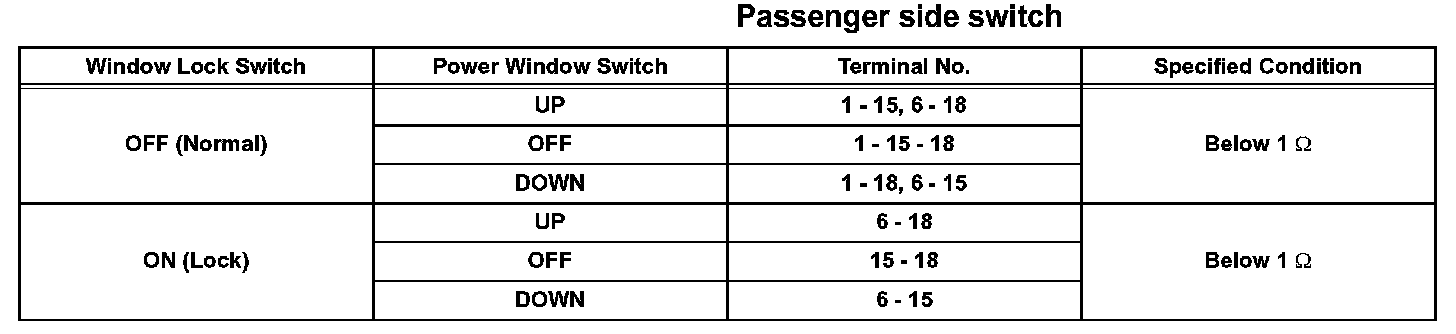

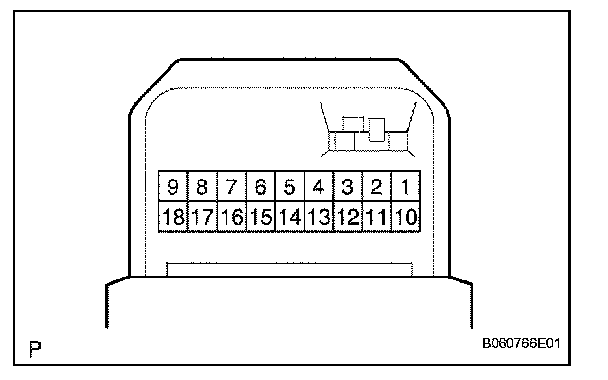

Check the resistance between the terminals of the switch when the switch is operated.
If the result is not as specified, replace the switch assembly.
