Data List

Power Window Control System (W/ Jam Protection Function)

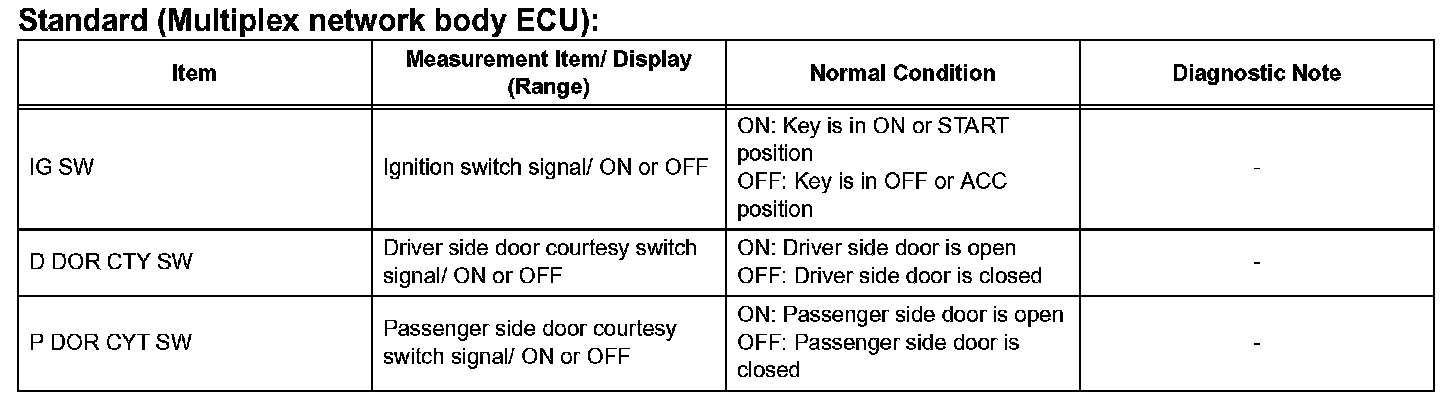

DATA LIST

HINT: Using the DATA LIST displayed by the intelligent tester, you can read the values of the switch, sensor, actuator, etc.. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten the labor time.




a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch ON.
c. Read the DATA LIST according to the display on the tester.
