Remote Up / Down Function Does Not Operate

Remote Up / Down Function does not Operate

DESCRIPTION
If the REMOTE UP/DOWN function does not operate, any of the following troubles may be the cause:
- There is an open or short circuit in the wiring between the power window master switch and the applicable power window regulator switch.
- The power window master switch has a malfunction.

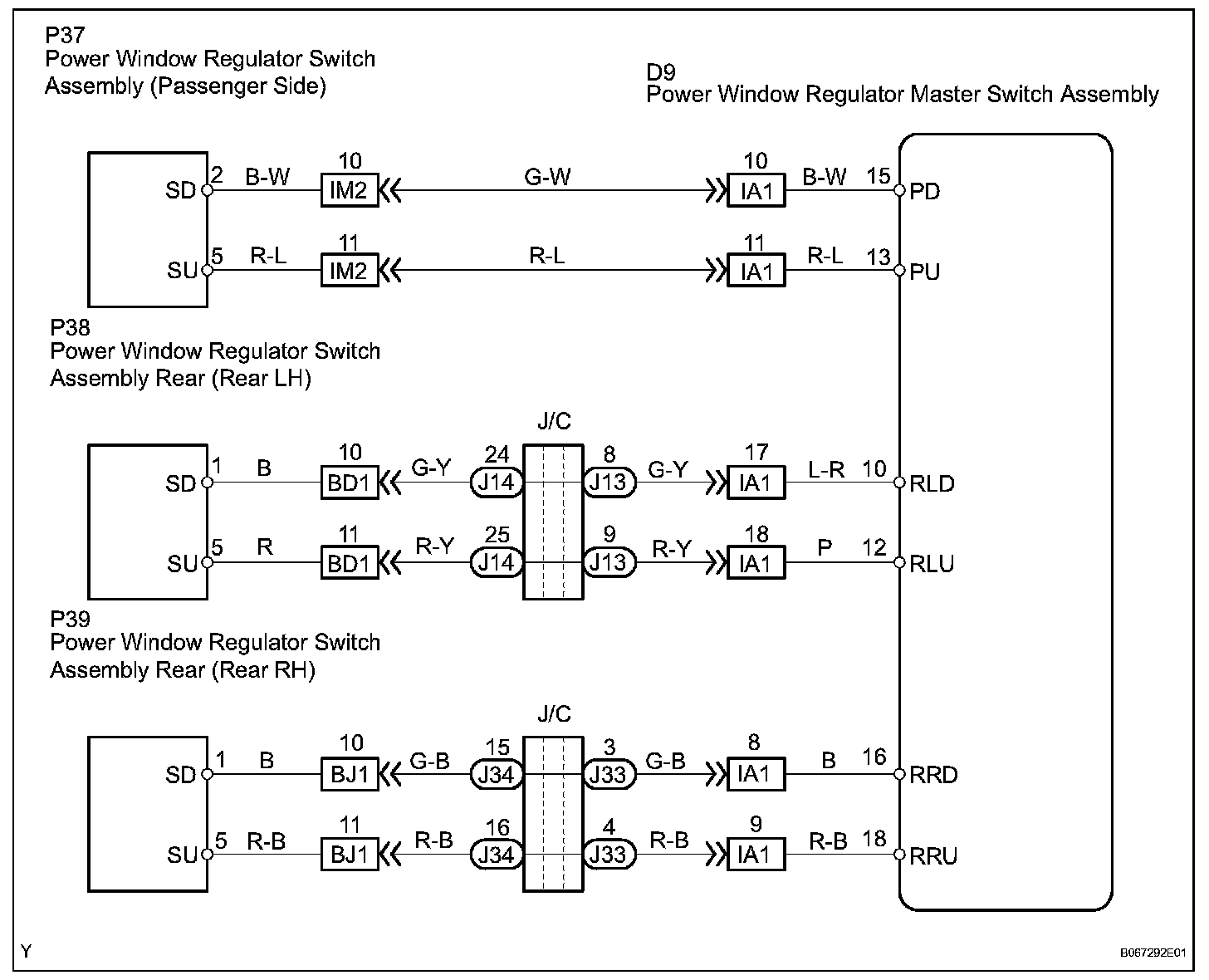

Wiring Diagram:

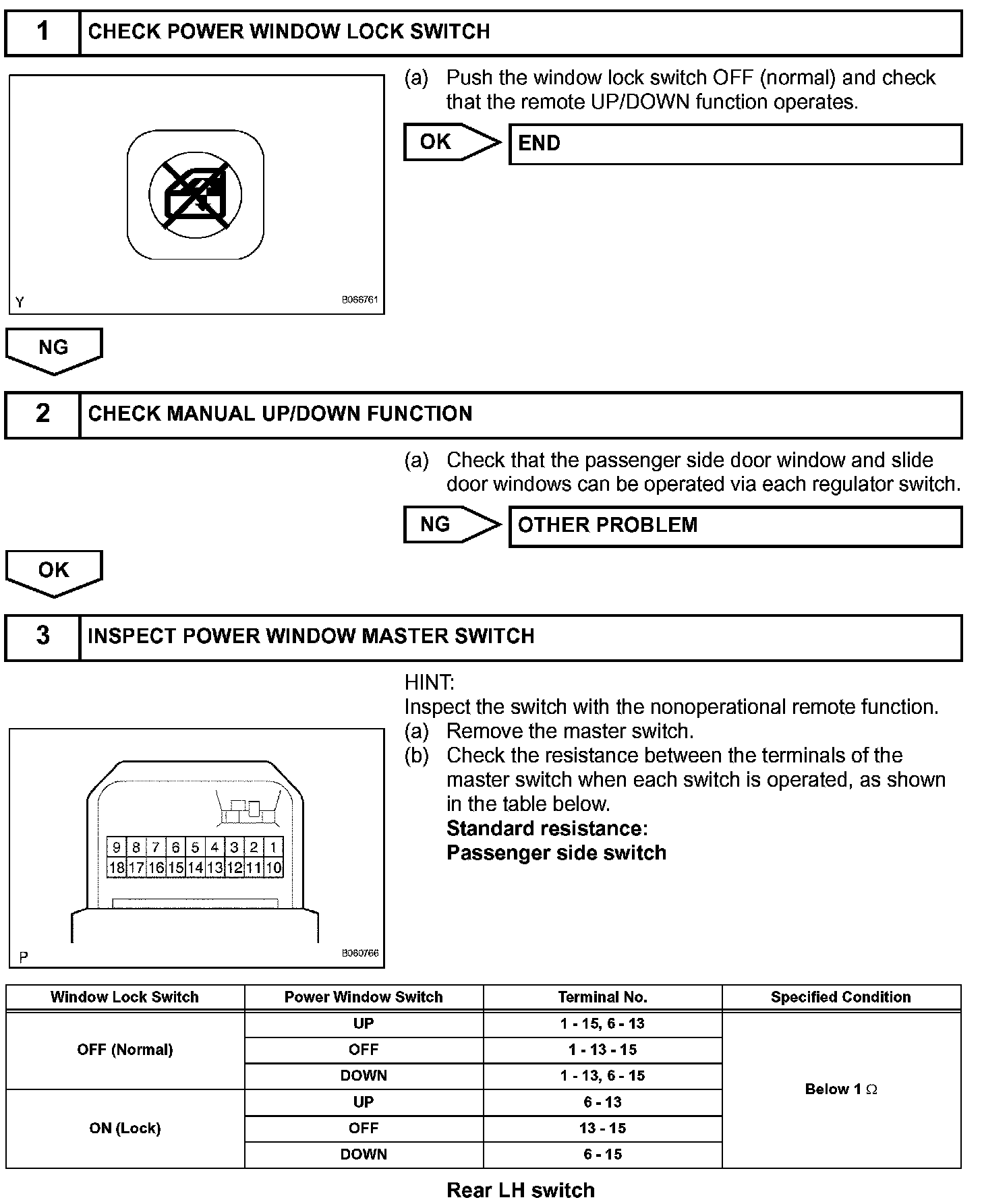

Step 1-3:

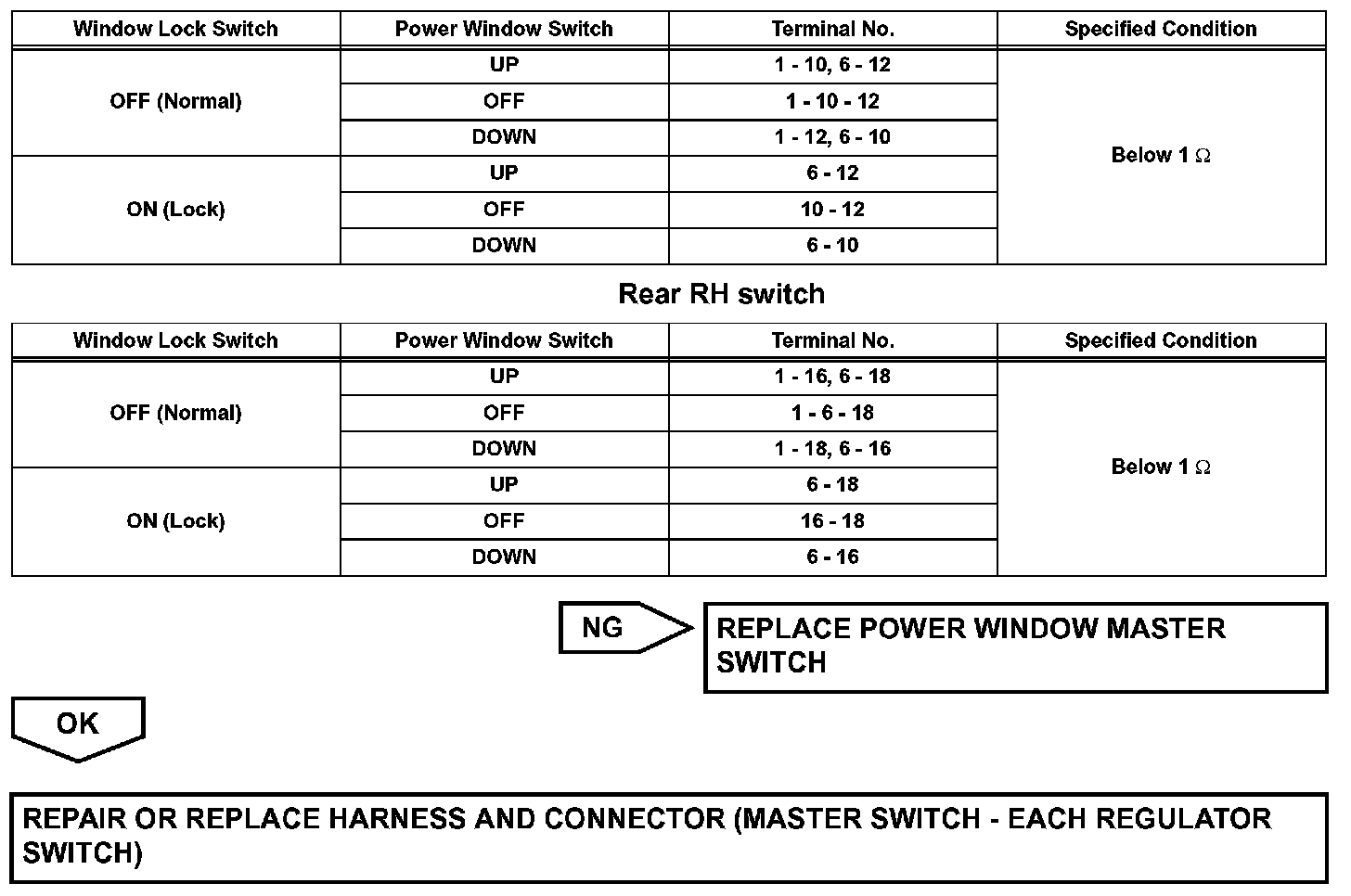

Step 3(Continued):

INSPECTION PROCEDURE
