Park / Neutral Position Switch Circuit

Park / Neutral Position Switch Circuit

DESCRIPTION
The clearance warning ECU receives the reverse or park position signal from the park / neutral position switch.

Wiring Diagram:

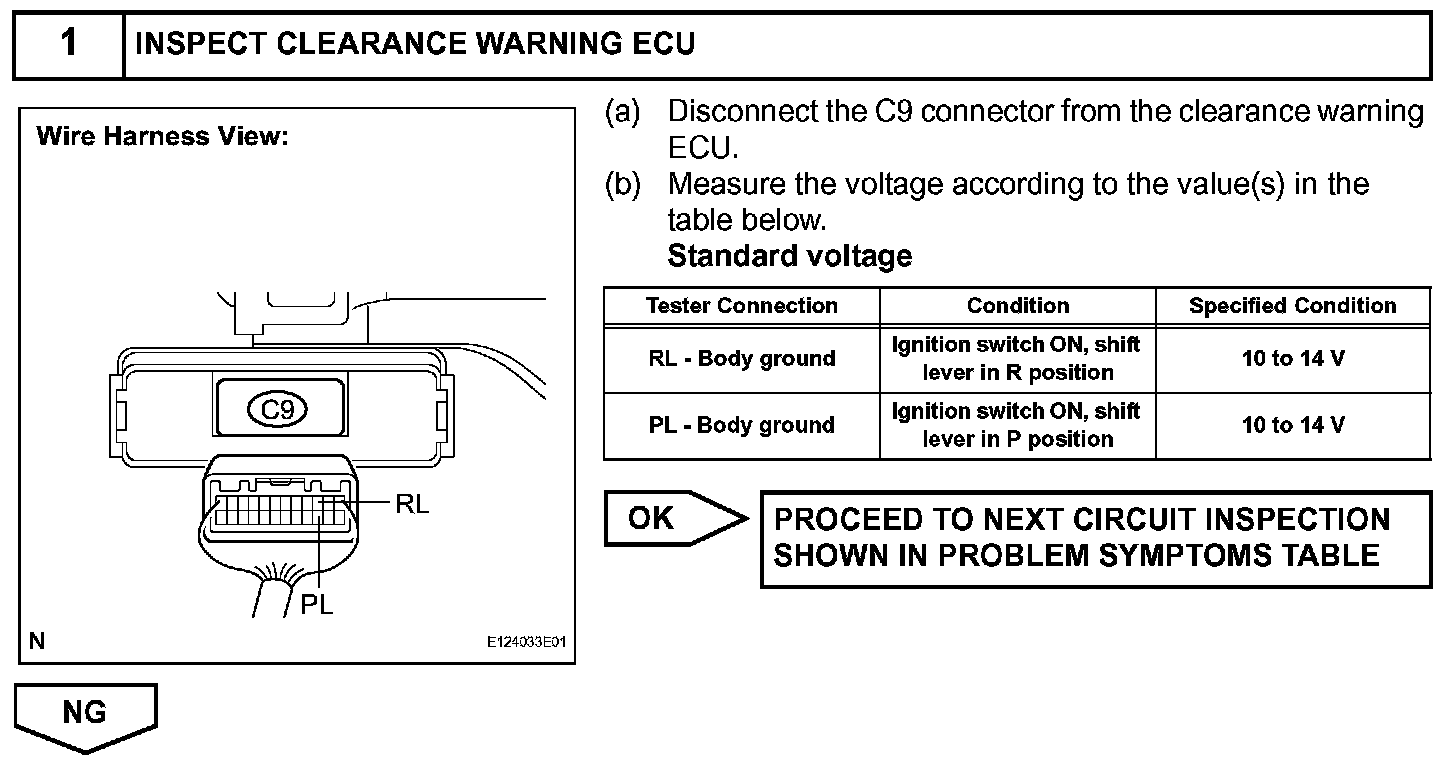

Step 1:

Step 2-3:

Step 3(Continued):

INSPECTION PROCEDURE
