Radio/Stereo: Service and Repair

Radio Receiver

REMOVAL
1. REMOVE INSTRUMENT CLUSTER CENTER NO. 1 FINISH PANEL
2. REMOVE INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH




4. REMOVE RADIO RECEIVER

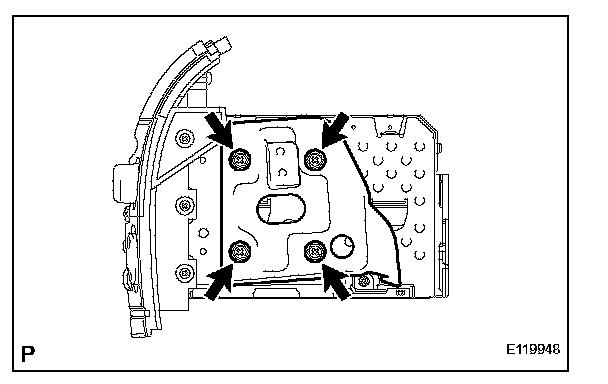

a. Remove the 4 screws.
b. Disconnect the connectors and remove the radio receiver with bracket.




5. REMOVE RADIO NO. 1 BRACKET
a. Remove the 4 screws and radio No. 1 bracket.




6. REMOVE RADIO NO. 2 BRACKET
a. Remove the 4 screws and radio No. 2 bracket.

INSTALLATION




1. INSTALL RADIO NO. 2 BRACKET
a. Install radio No. 2 bracket with the 4 screws.




2. INSTALL RADIO NO. 1 BRACKET
a. Install radio No. 1 bracket with the 4 screws.




3. INSTALL RADIO RECEIVER
a. Connect the connector.
b. Install the radio receiver with the 4 screws.

4. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH
5. INSTALL INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL
6. INSTALL INSTRUMENT CLUSTER CENTER NO. 1 FINISH PANEL
