Memory Positioning Switch: Testing and Inspection

INSPECTION

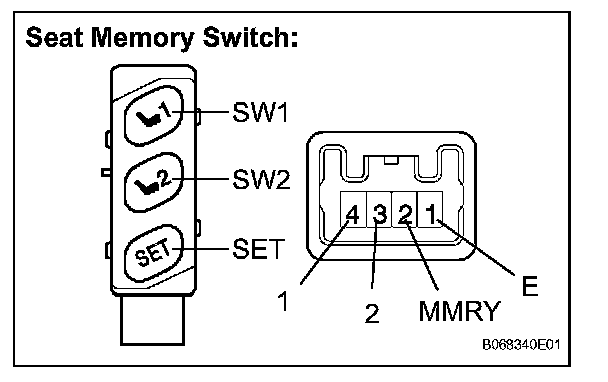

1. INSPECT SEAT MEMORY SWITCH

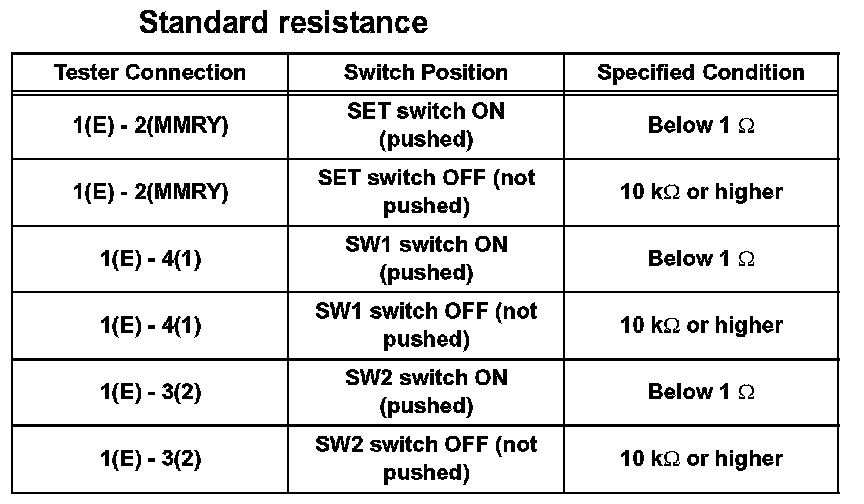

a. Measure the resistance according to the value(s) shown in the table.
If the result is not as specified, replace the switch.
