ABS Warning Light Does Not Come ON
ABS Warning Light Does Not Come ON
ABS Warning Light does not Come ON

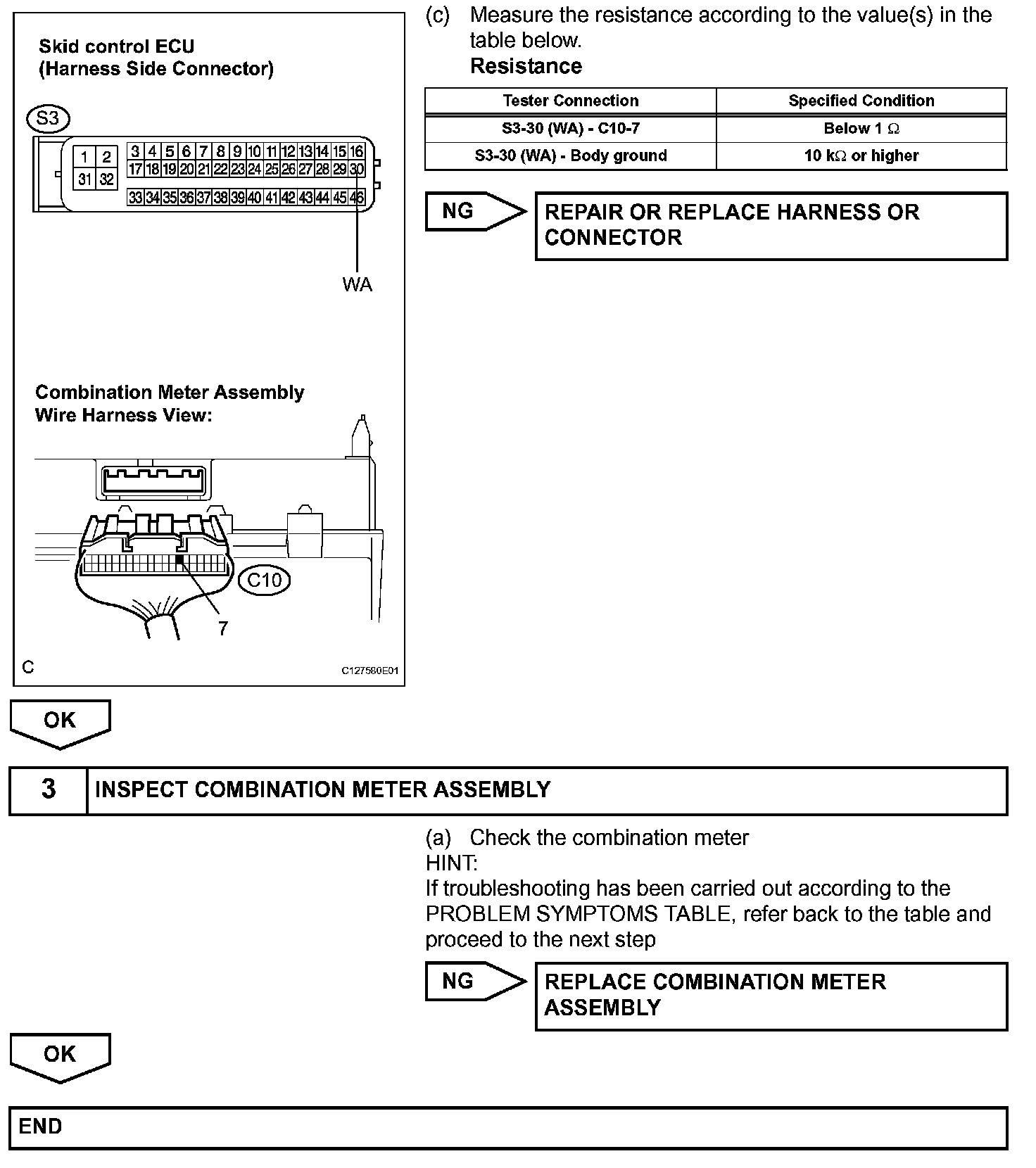

Wiring Diagram:
Step 1-2:
Step 2(contd.)-3:
INSPECTION PROCEDURE
