Air Bag Control Module

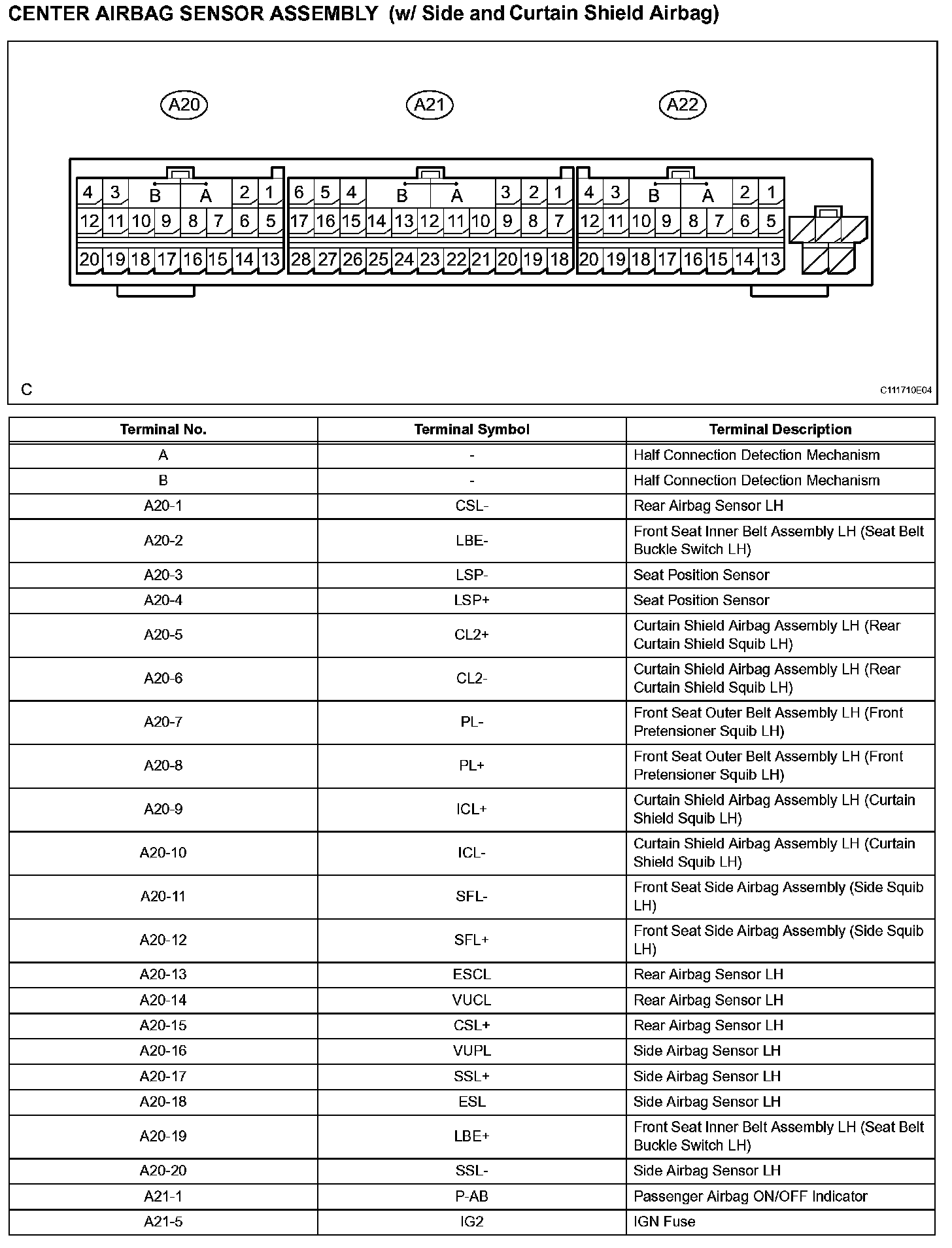

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (W/ Side And Curtain Sheild Airbag) (Part 1):

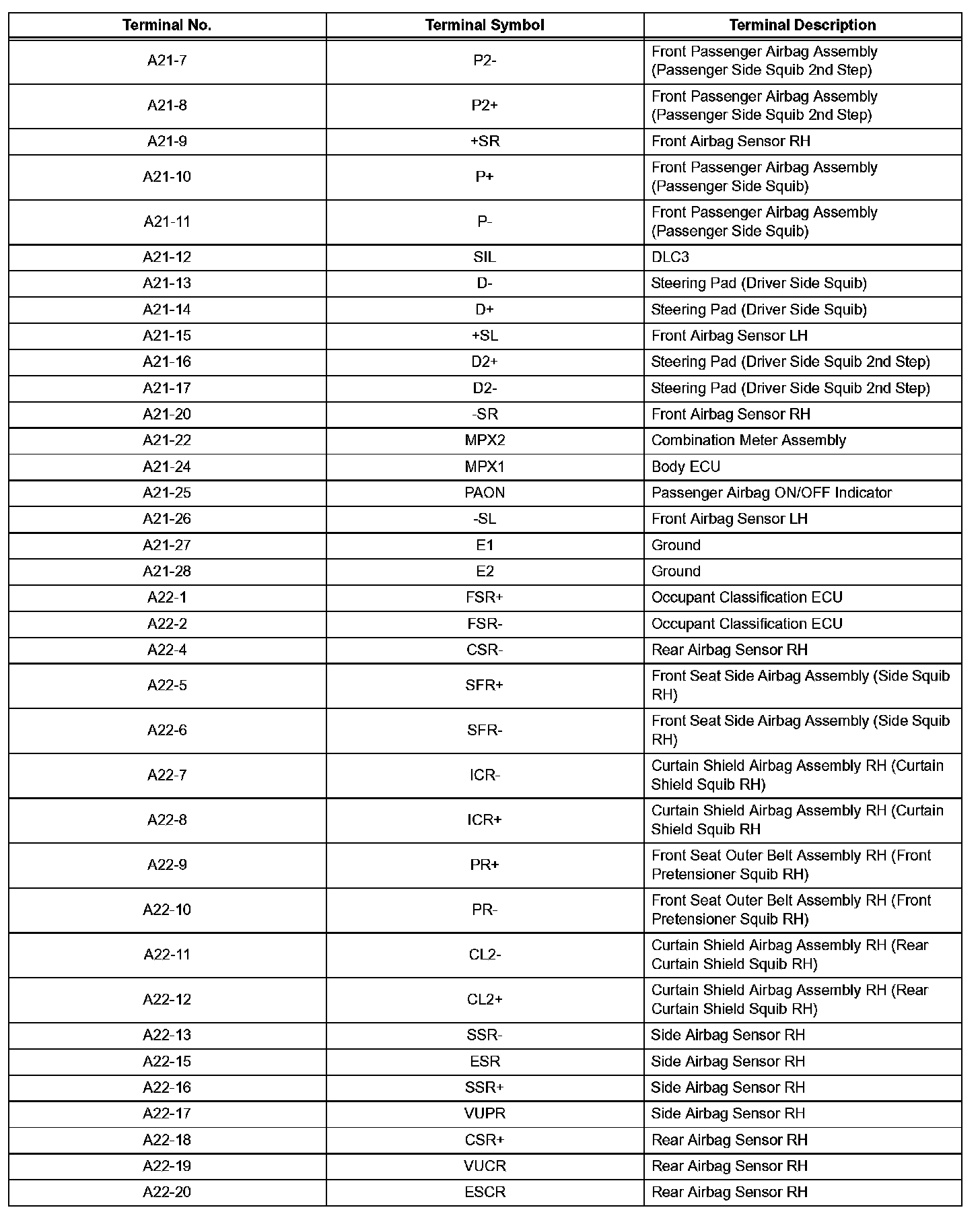

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (W/ Side And Curtain Shield Airbag) (Part 2):

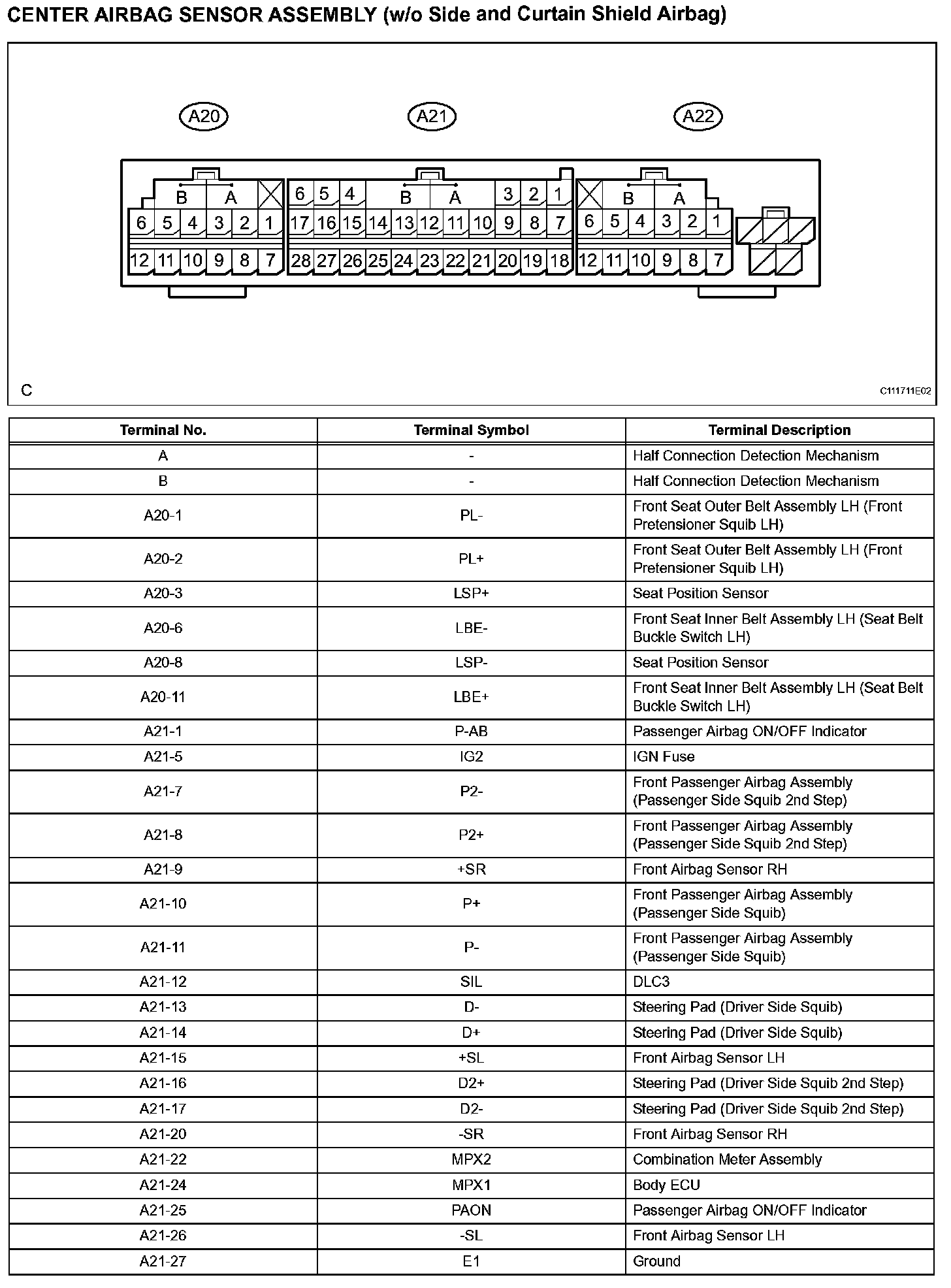

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (W/o Side And Curtain Shield Airbag) (Part 1):

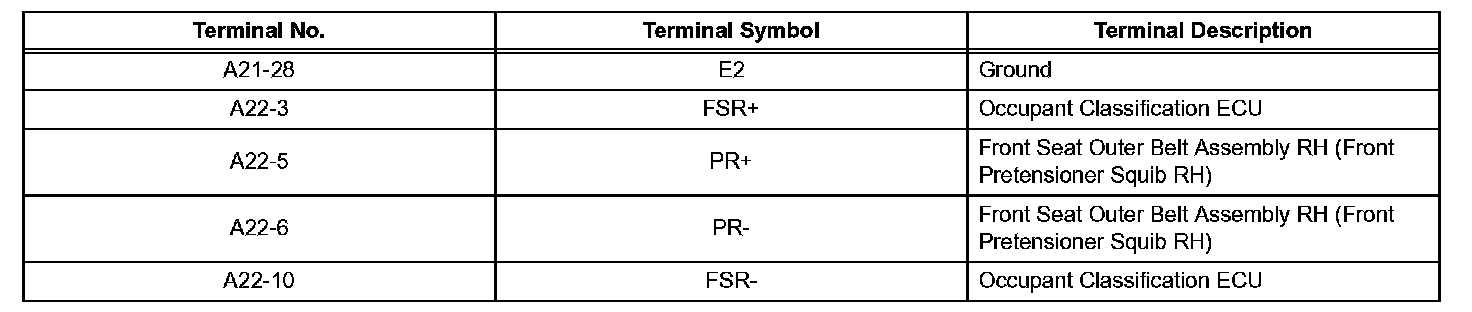

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (W/o Side And Curtain Shield Airbag) (Part 2):
