Electronic Brake Control Module
>>
Vehicle Stability Control System
Vehicle Stability Control System

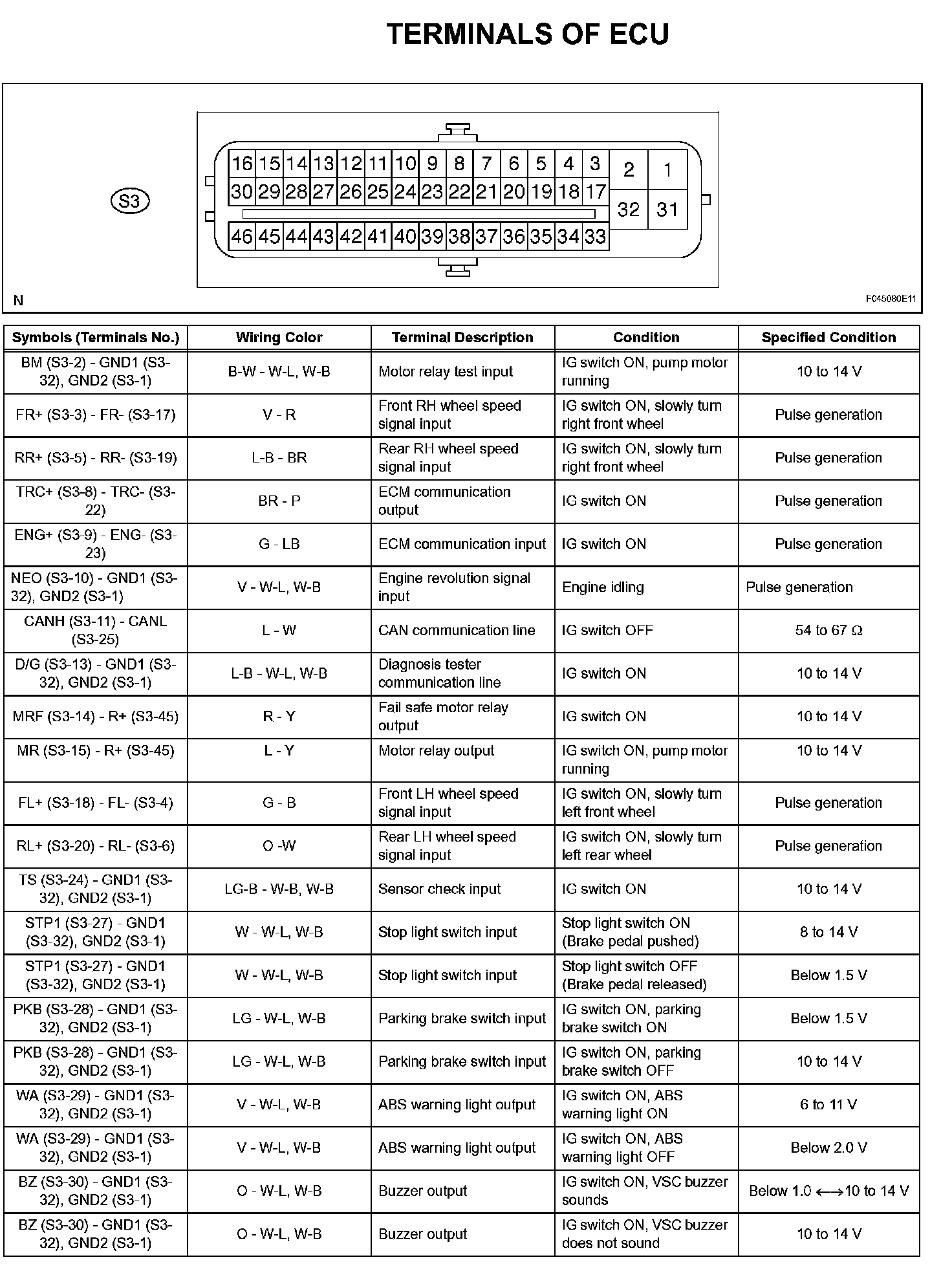

Terminals Of Control Module/Pinouts - Skid Control ECU (Part 1):

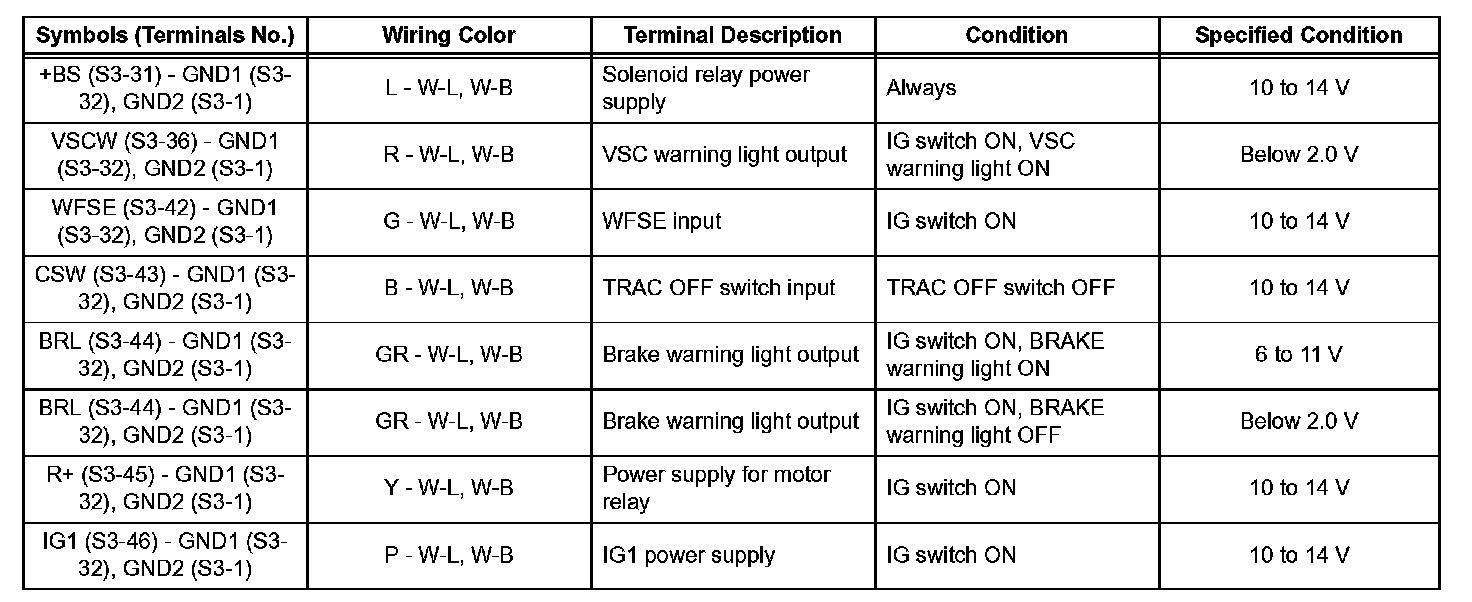

Terminals Of Control Module/Pinouts - Skid Control ECU Part 2:
