Control Assembly, HVAC

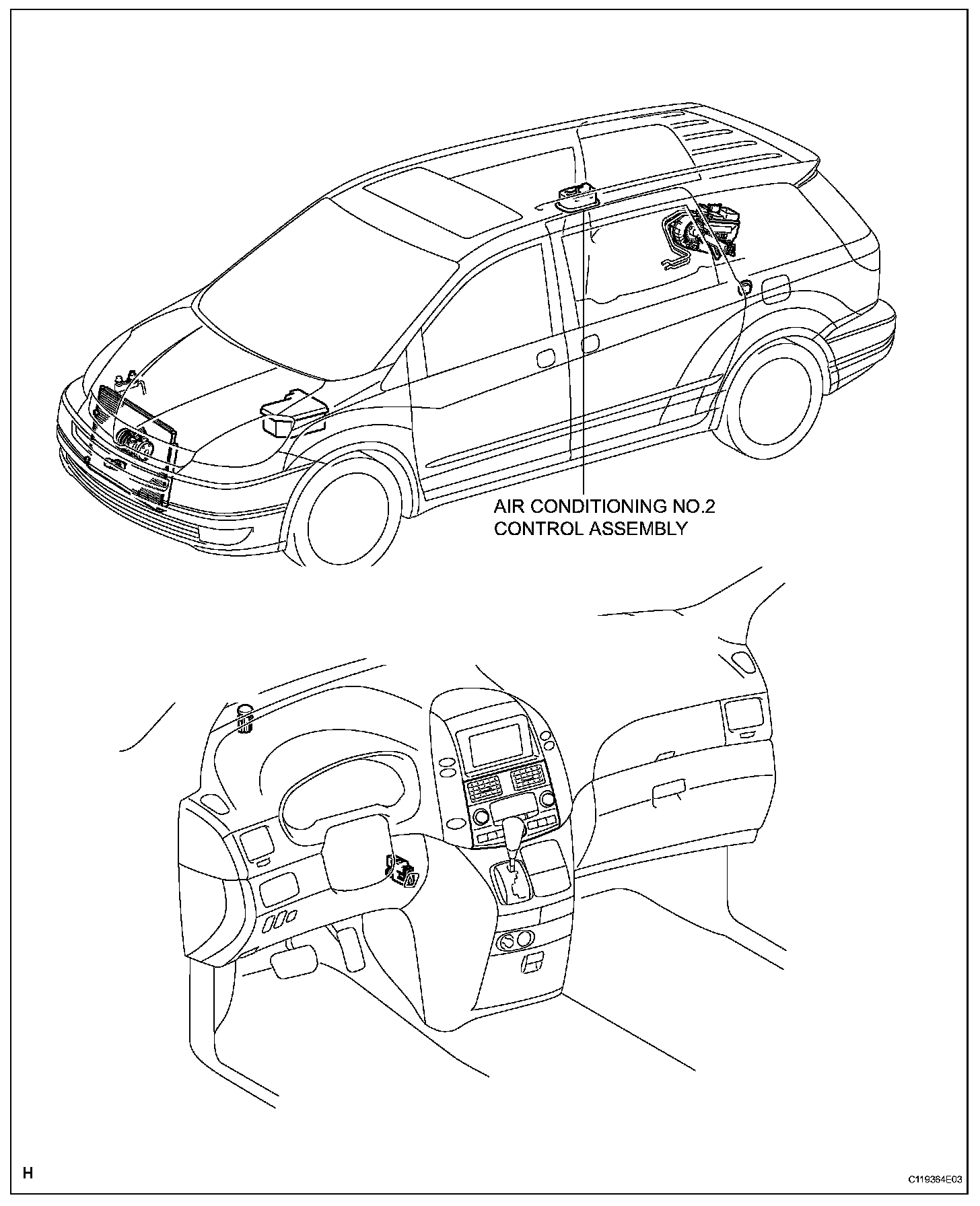

Air Conditioning Control Assembly:

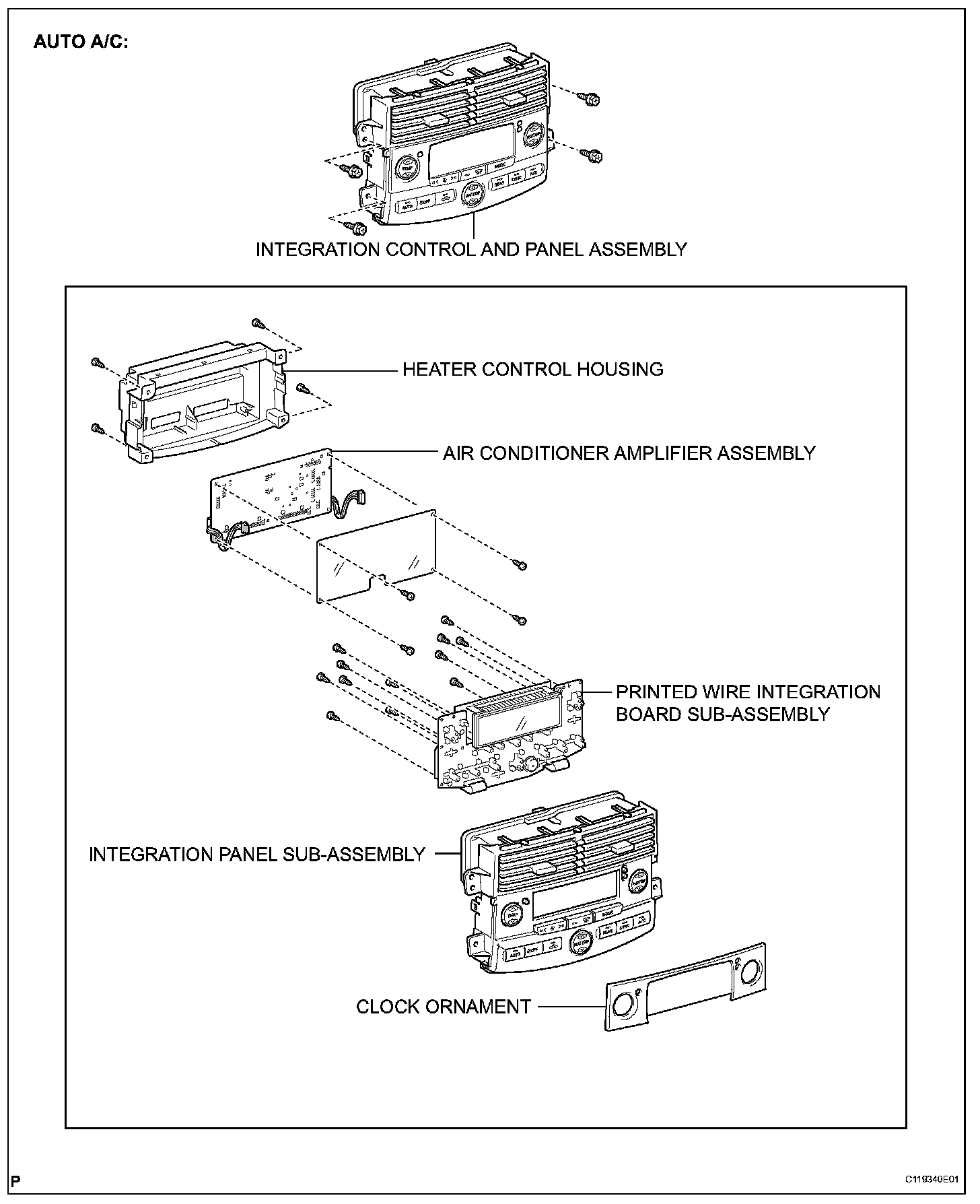

Integration Control And Panel:

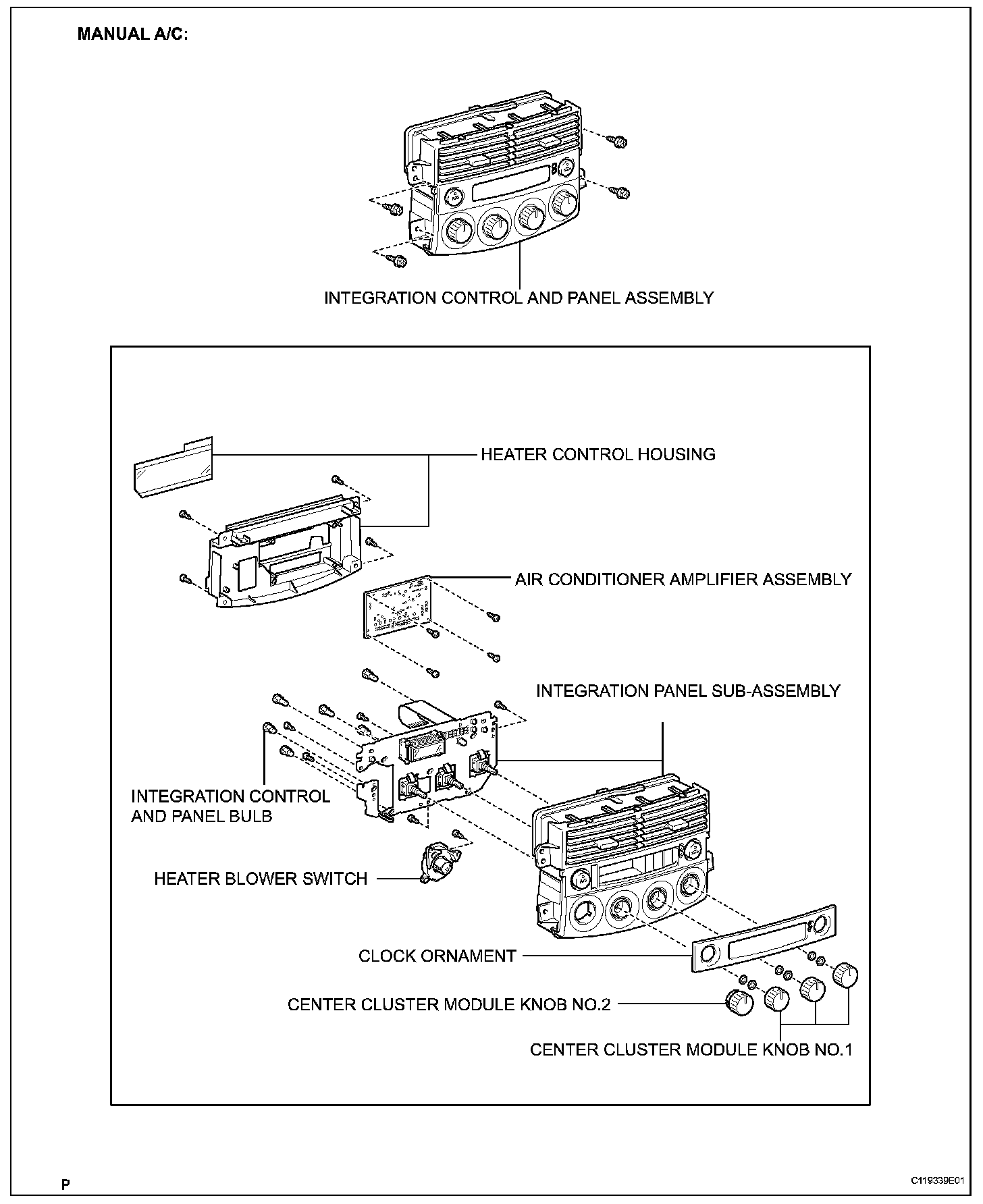

Integration Control And Panel:
