Home >> Toyota >> 2006 >> Sienna FWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Dashboard / Instrument Panel >> Diagrams

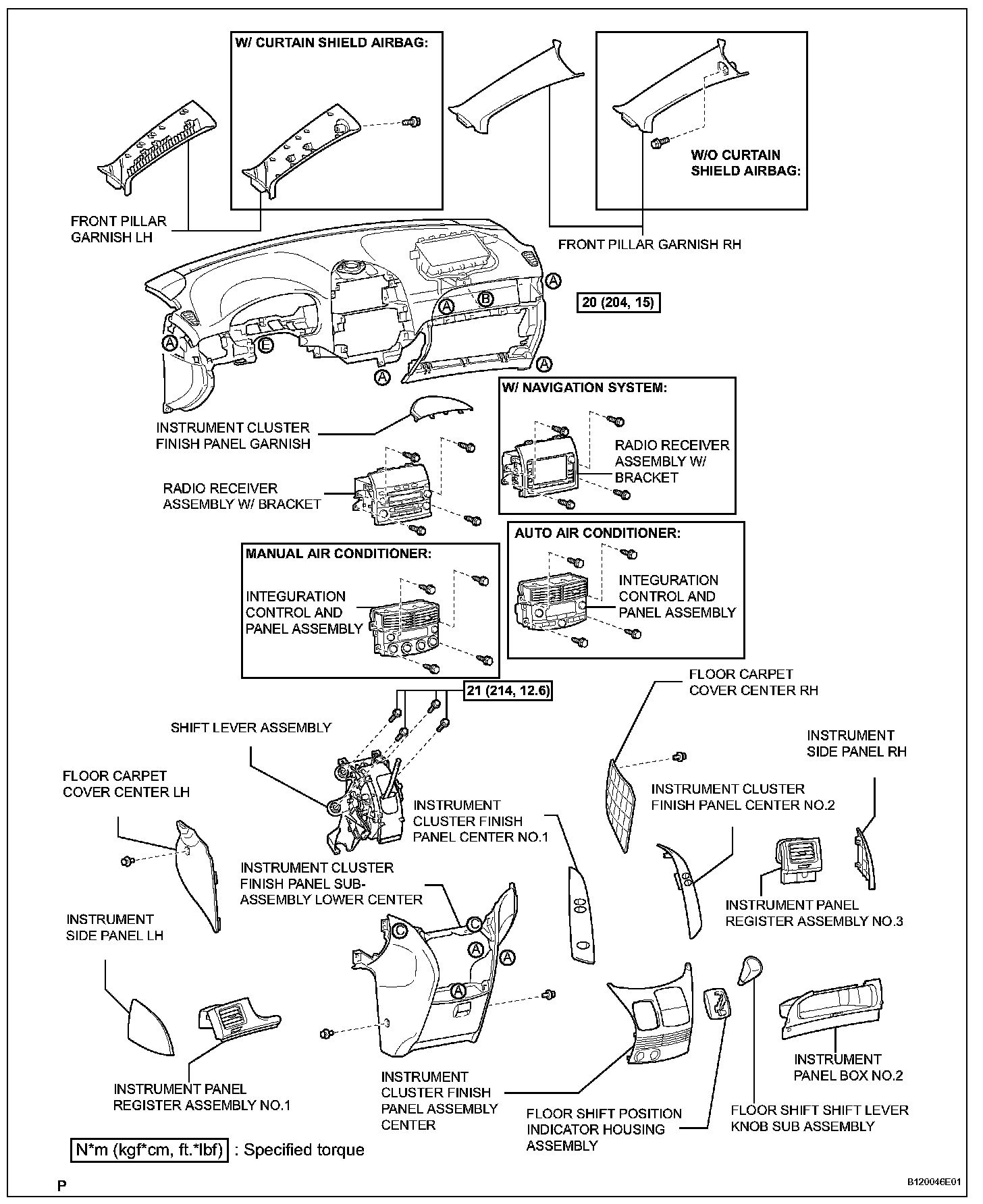

Dashboard / Instrument Panel: Diagrams

Instrument Panel Safety Pad:



Instrument Panel Safety Pad:



Instrument Panel Safety Pad:
