Rear Wheel Alignment

NOTICE: For Zero Point Calibration information, please refer to: TSB T-SB-0020-8 (3/25/08).

REAR WHEEL ALIGNMENT

ADJUSTMENT
1. INSPECT TIRE
2. MEASURE VEHICLE HEIGHT

NOTICE: Before inspecting the wheel alignment, adjust the vehicle height to the specified valve.





3. INSPECT TOE-IN
a. Inspect the toe-in.

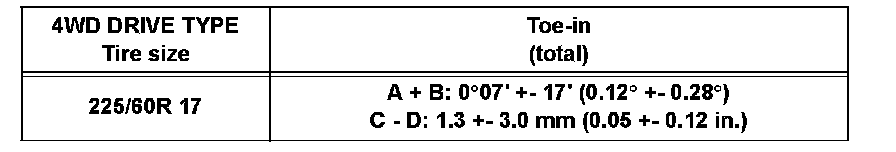

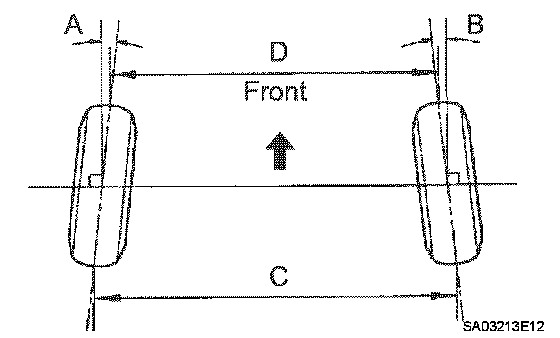

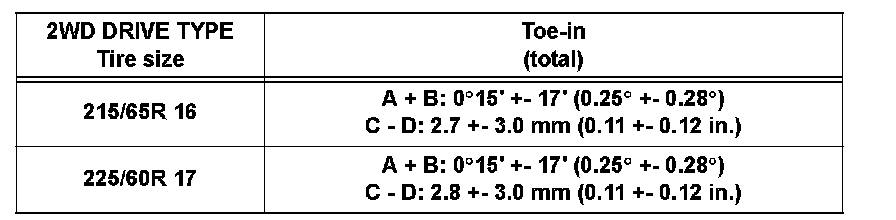

Toe-in:

If the toe-in is not within the specified value, inspect the suspension parts and replace them if necessary.

4. INSPECT CAMBER
a. Install the camber-caster-kingpin gauge or position the vehicle on the wheel alignment tester.
b. Inspect the camber.

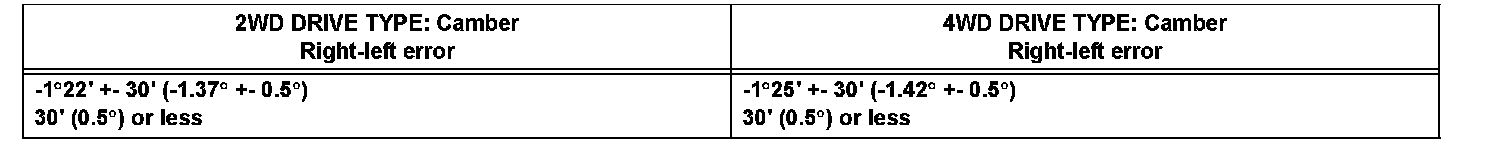

Camber:

If the measured valve is not within the specified value, inspect the suspension parts for damage and / or wear and replace them if necessary because camber is not adjustable.
