Accelerator Pedal Position Sensor: Testing and Inspection
INSPECTIONINSPECT ACCELERATOR PEDAL ROD ASSEMBLY
a. Resistance inspection

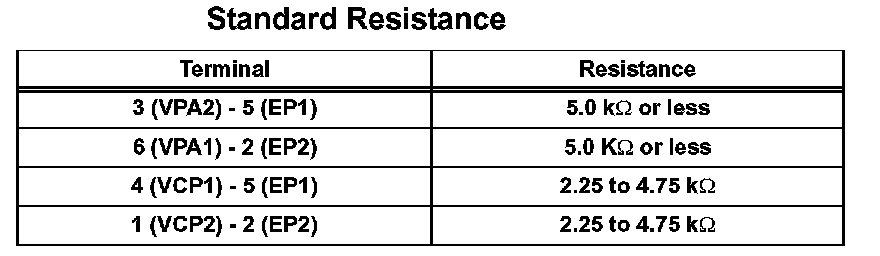

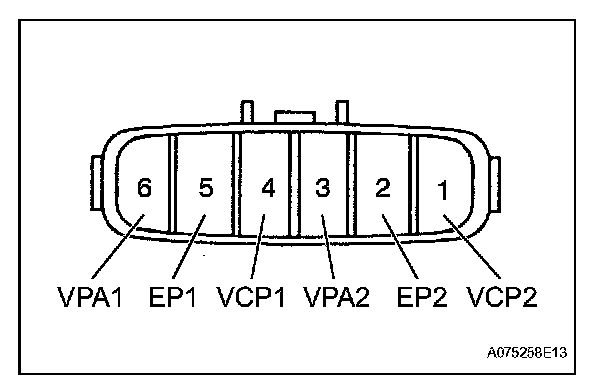

1. Using an ohmmeter, measure the resistance between the terminals.
INSPECT ACCELERATOR PEDAL ROD ASSEMBLY
a. Resistance inspection
1. Using an ohmmeter, measure the resistance between the terminals.
