Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

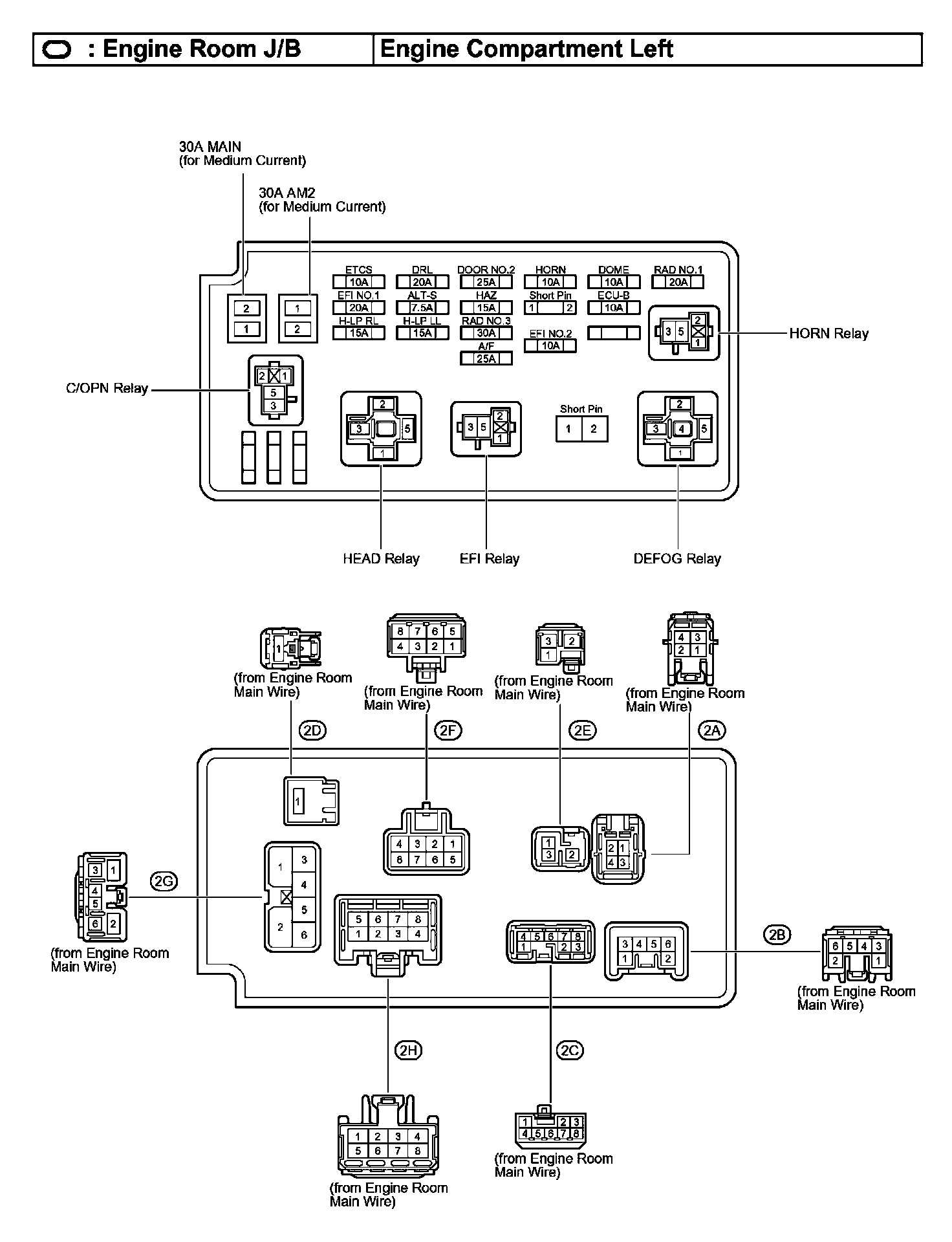

Engine Room J/B - Engine Compartment Left:
Ce - In:

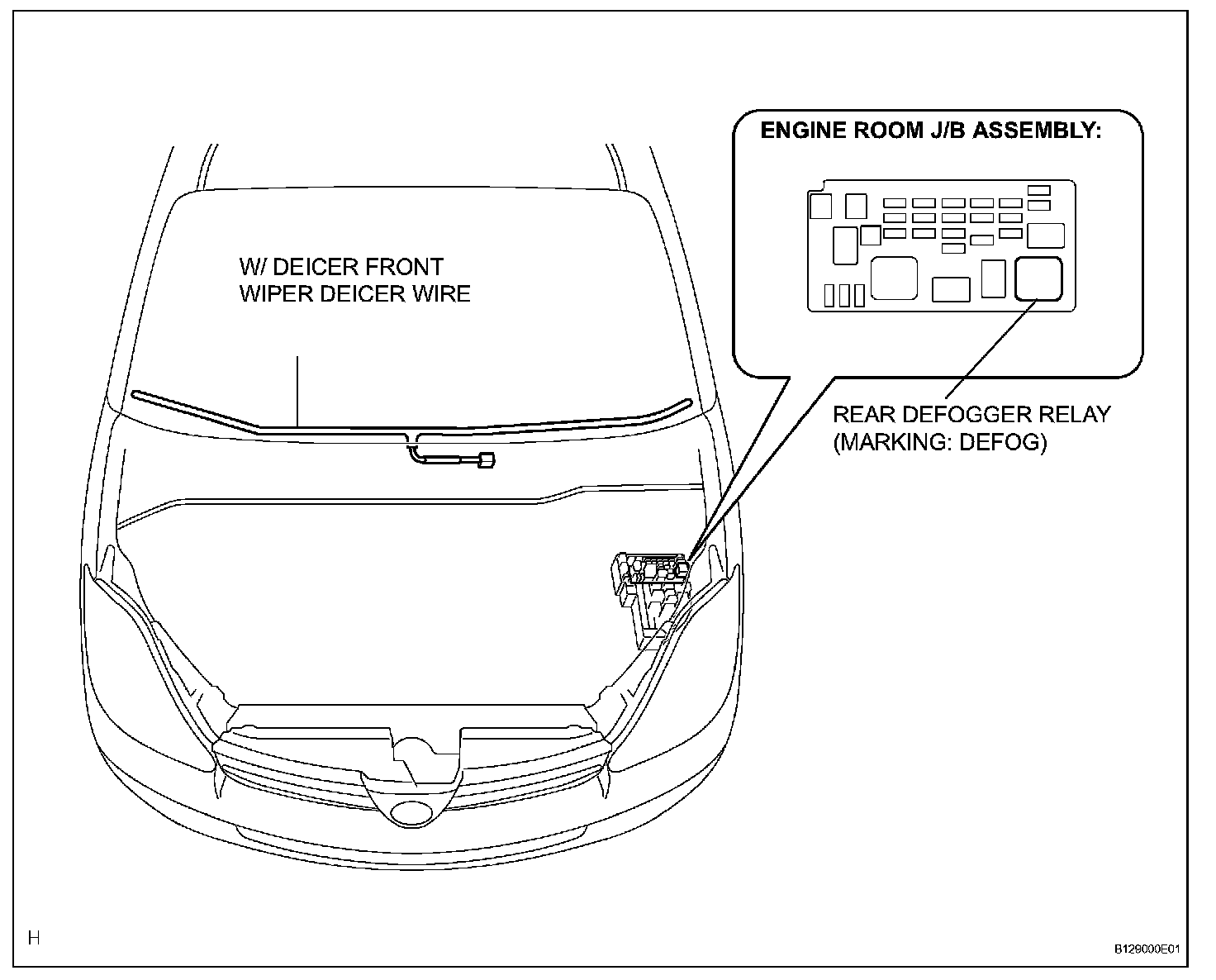

Window Defogger System:

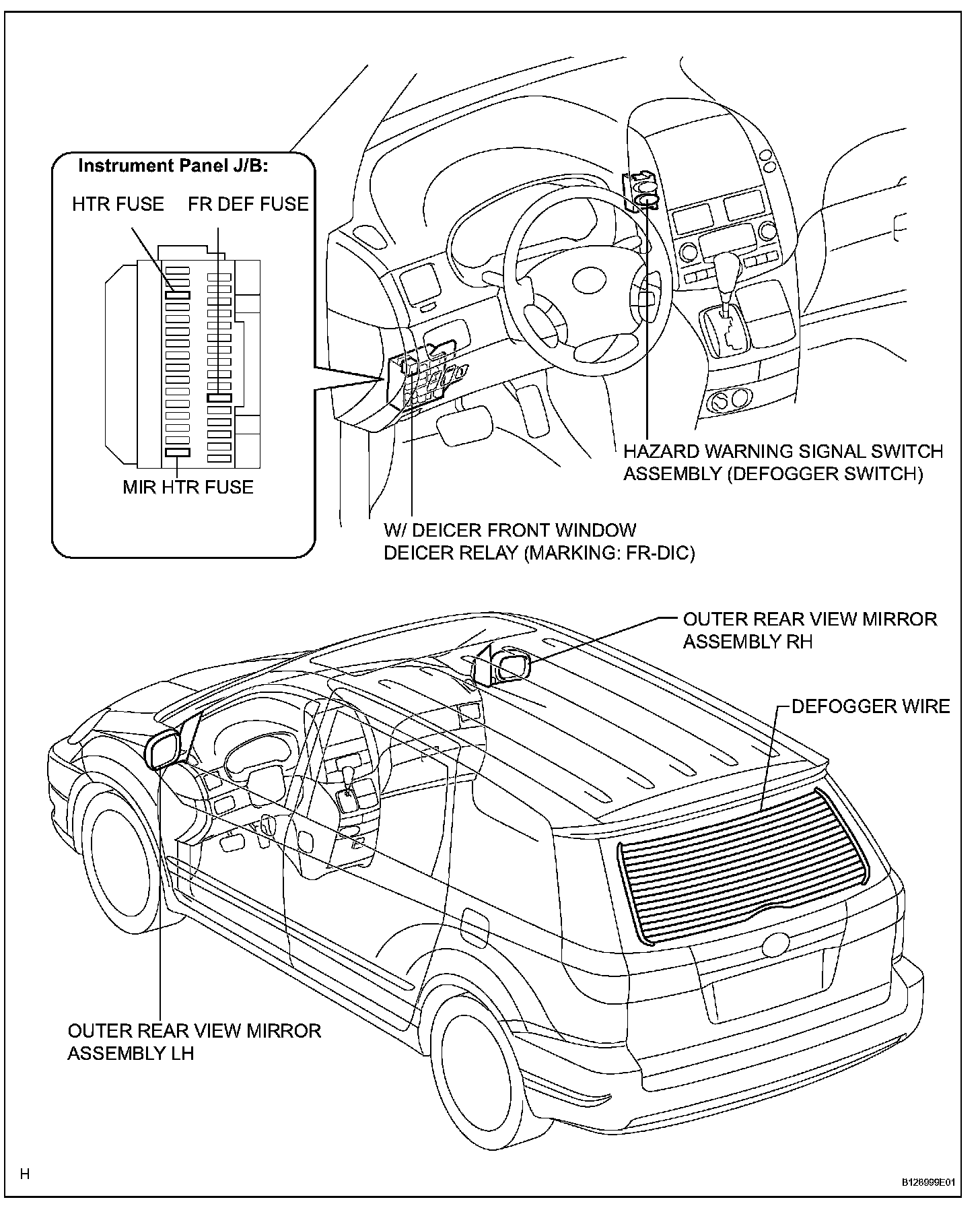

Window Defogger System:
