Electronic Brake Control Module
>>
Anti-Lock Brake System
Anti-Lock Brake System

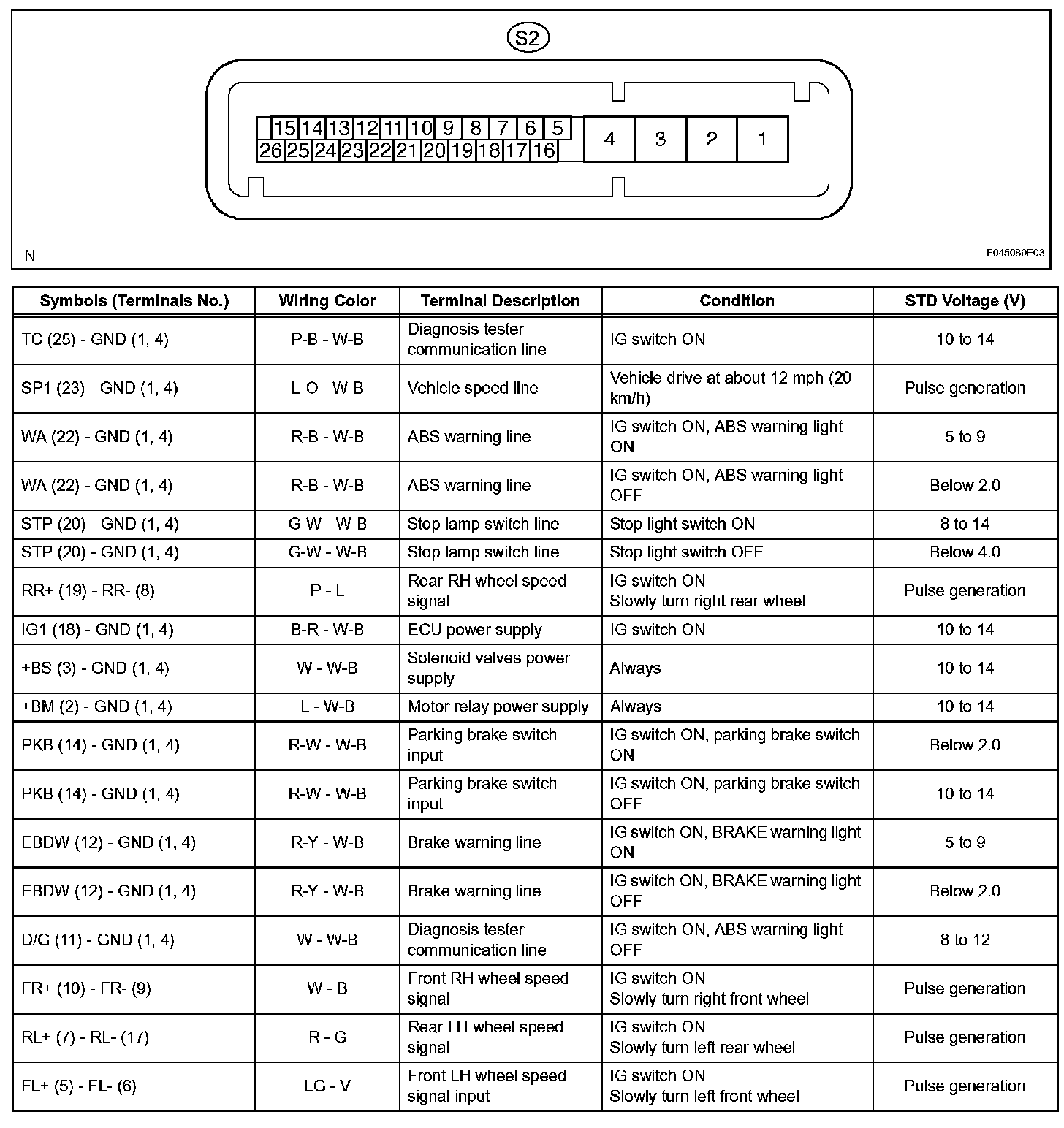

Terminals Of Control Module/Pinouts:
