Home >> Toyota >> 2006 >> Solara L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle

Manual Transmission/Transaxle

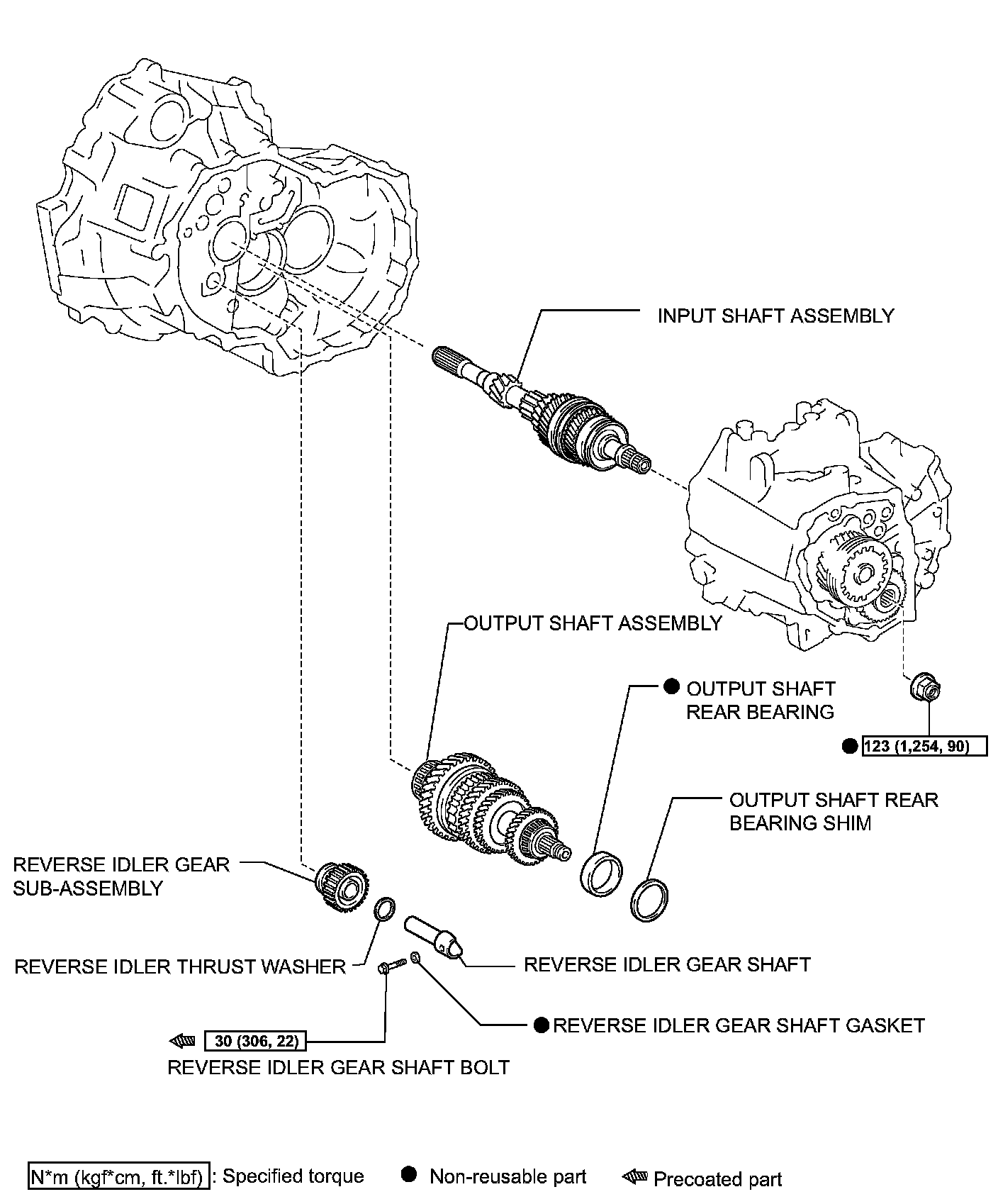

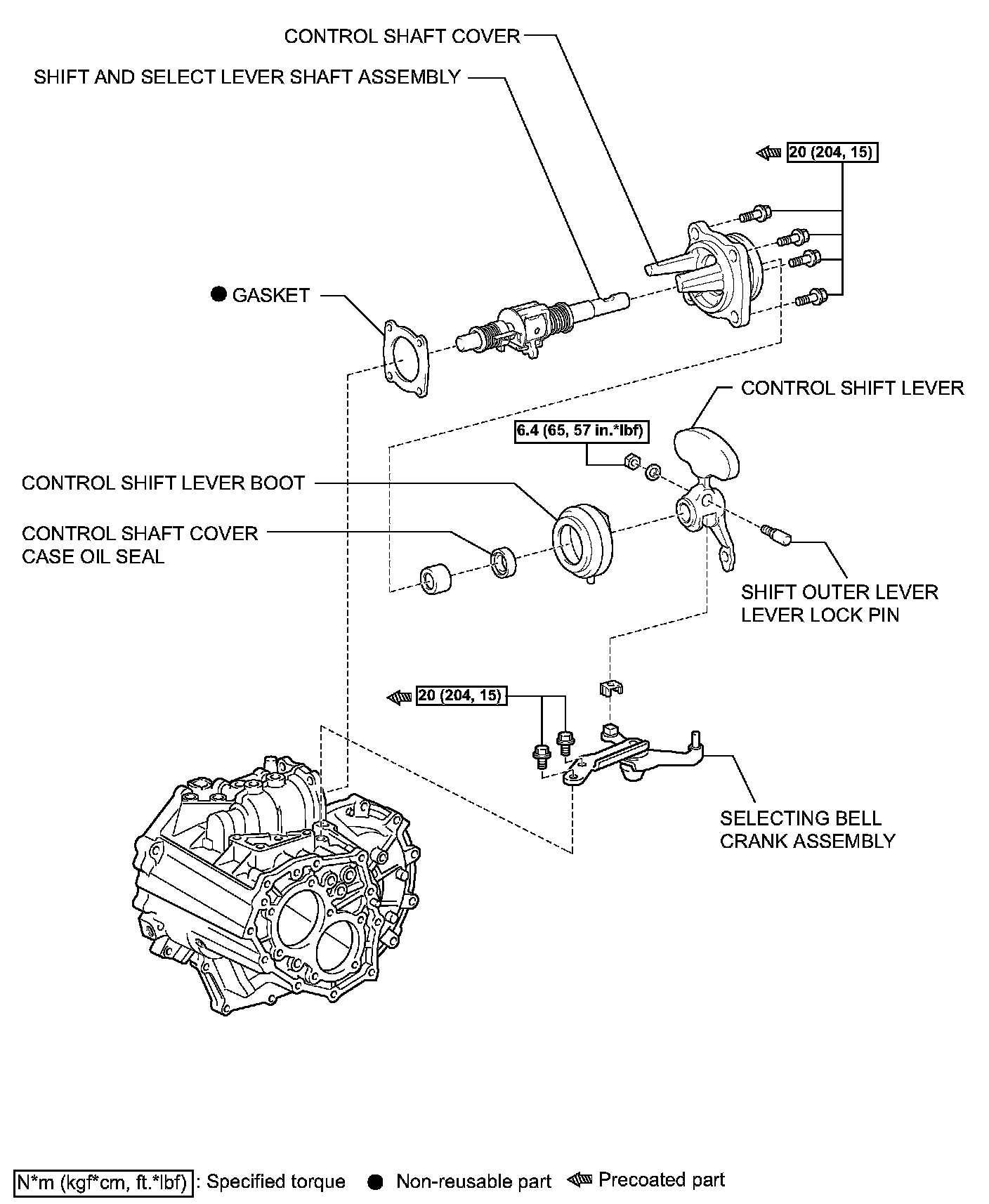

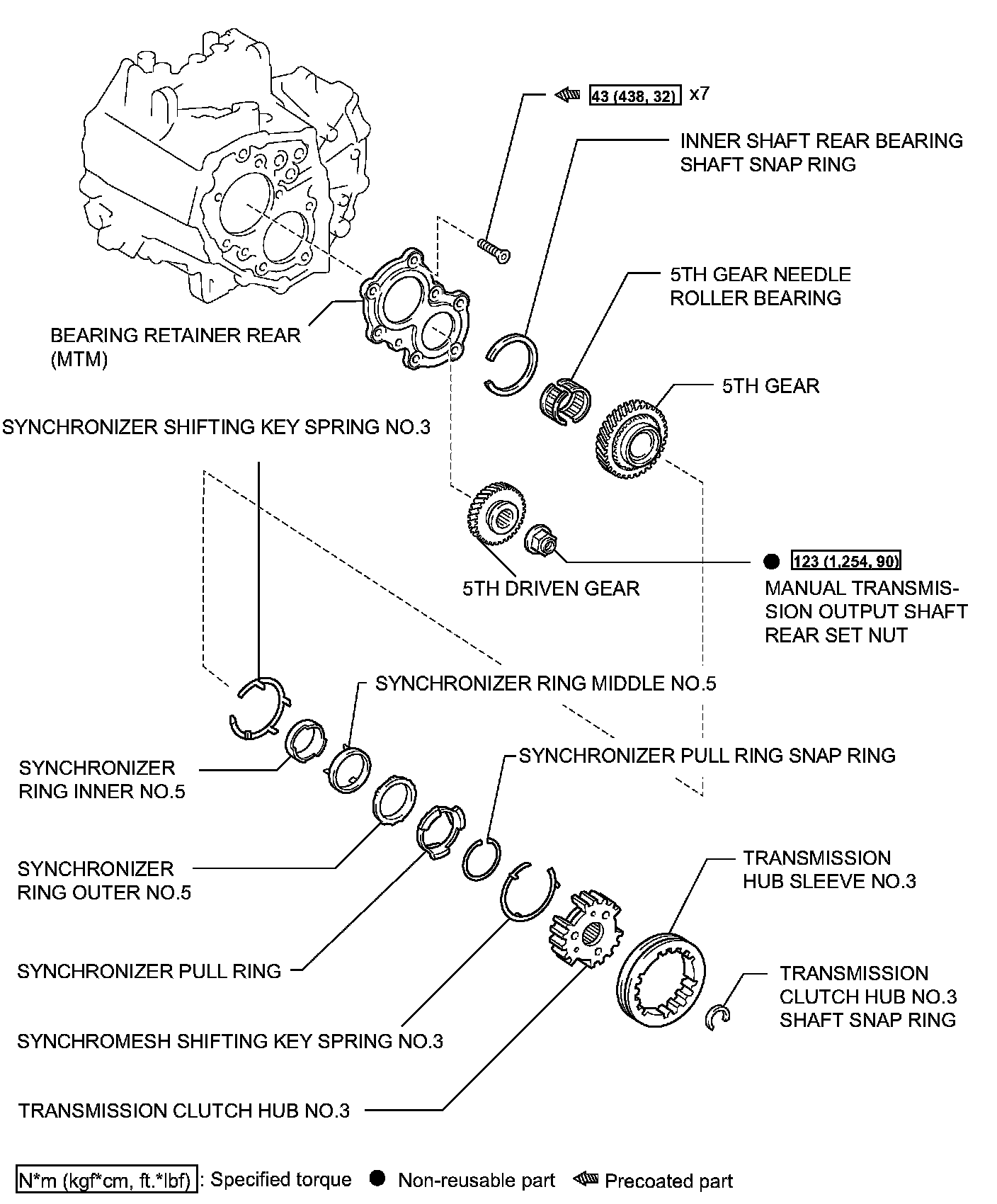

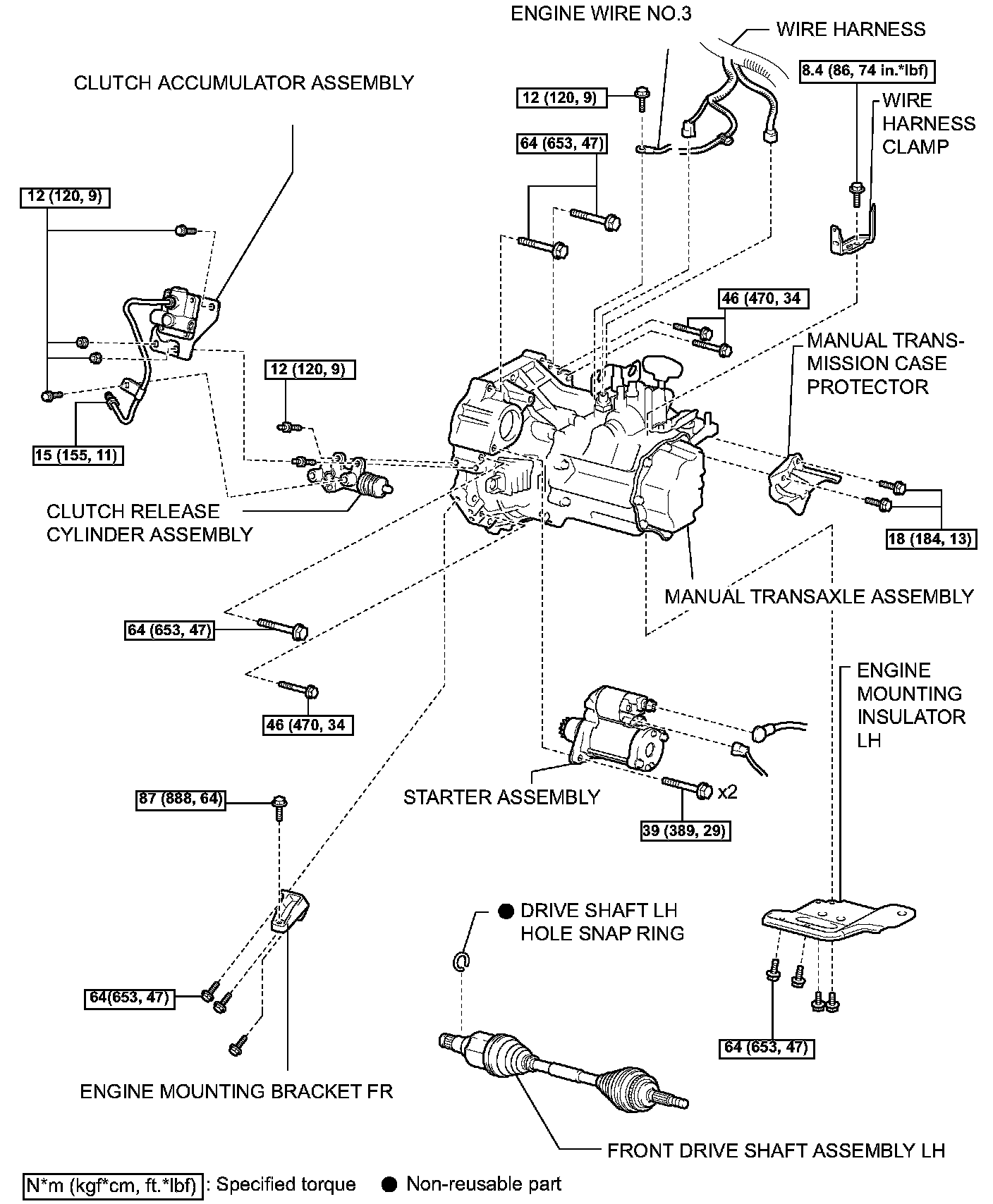

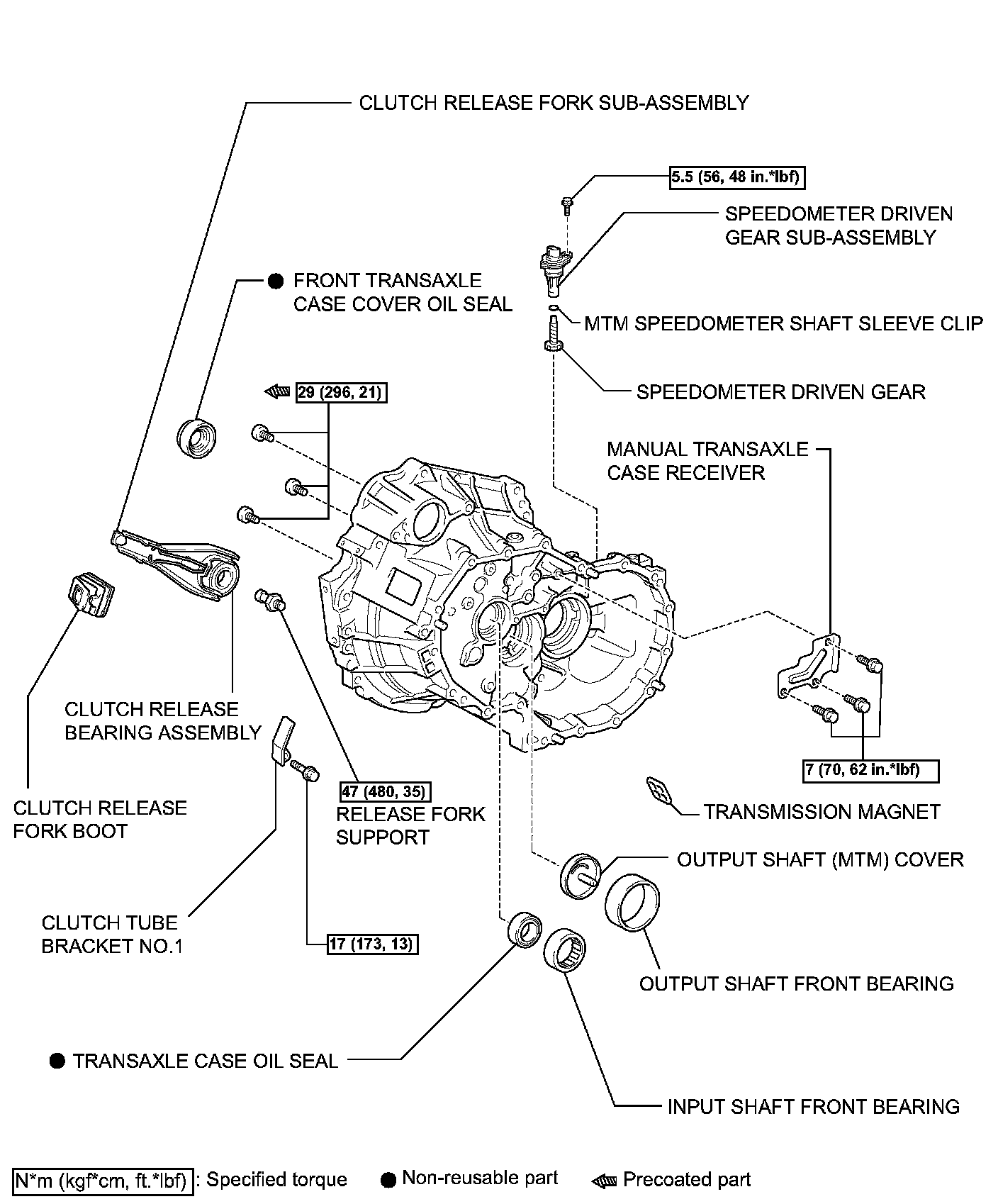

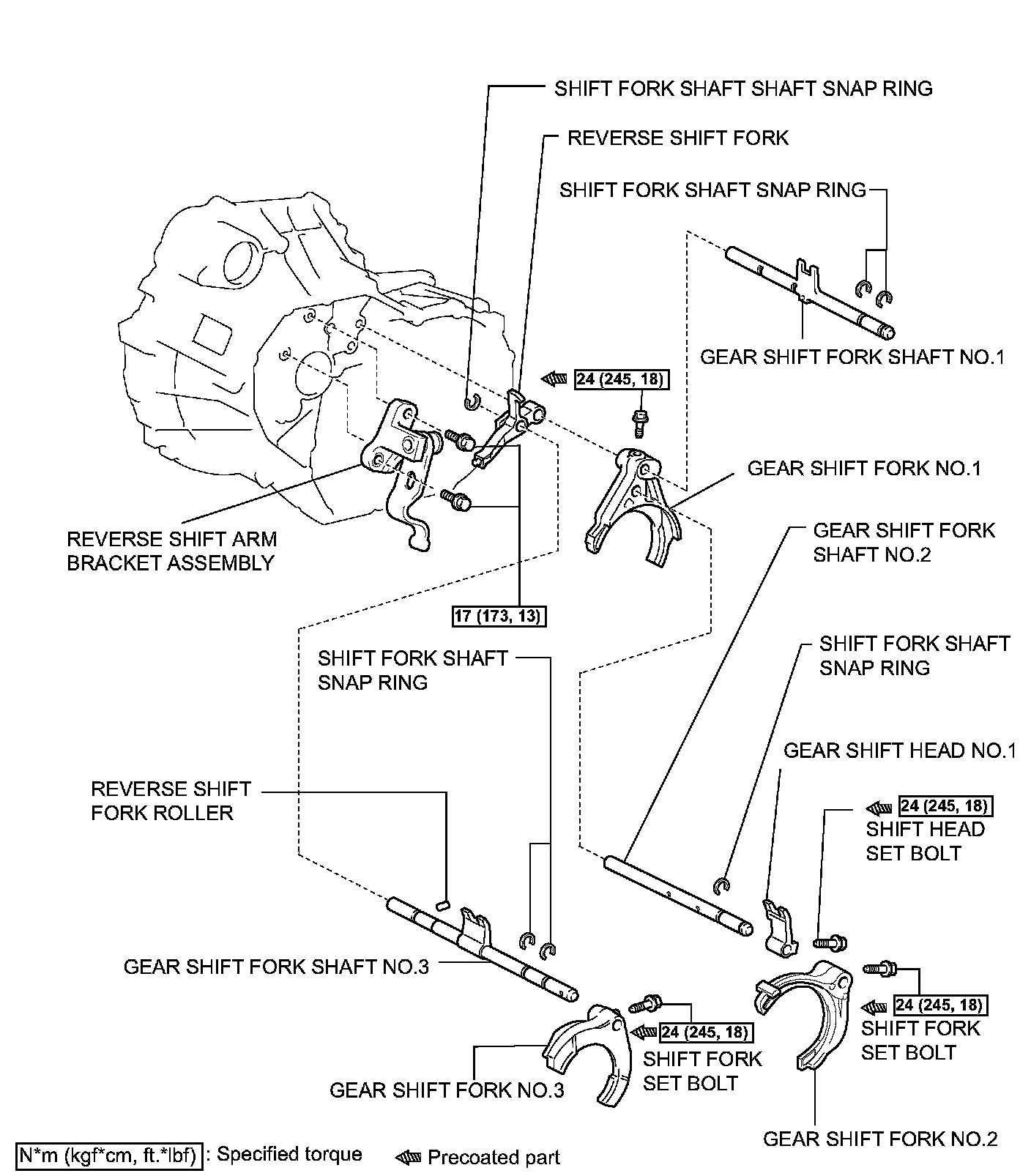

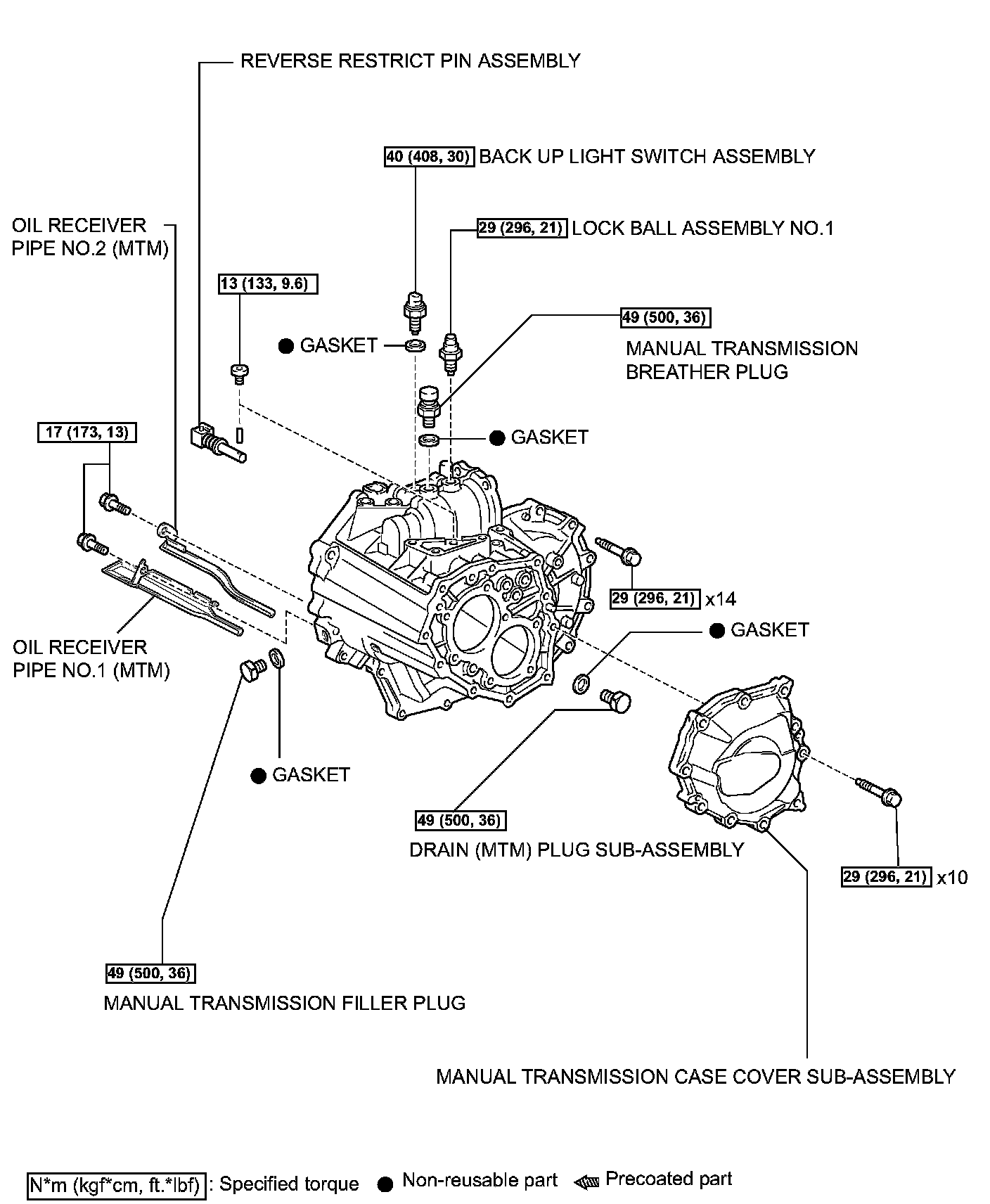

COMPONENTS

Components:




Components:




Components:




Components:




Components:




Components:




Components:




Components:




Components:
