Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
System Diagram
System Diagram

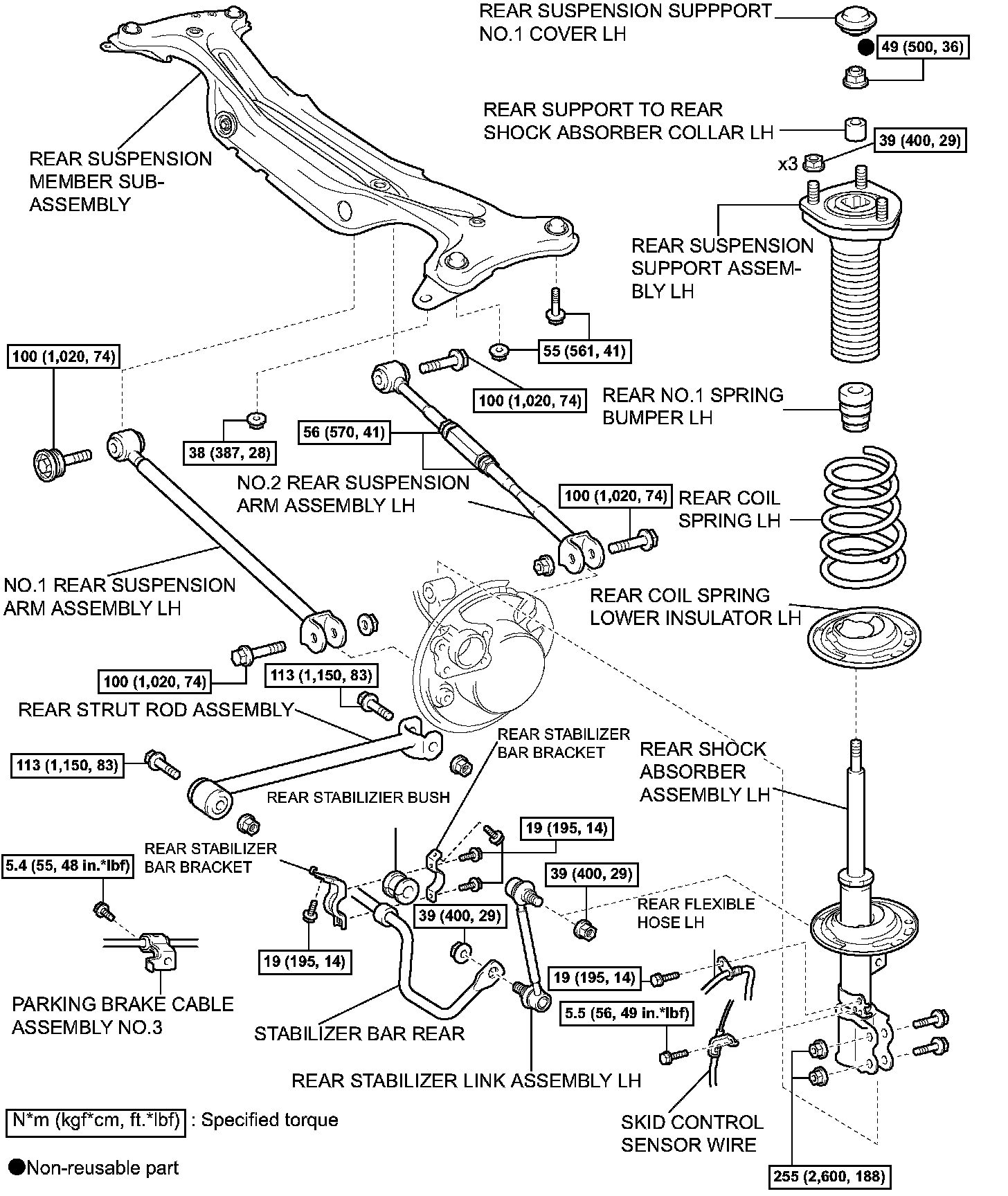

COMPONENTS

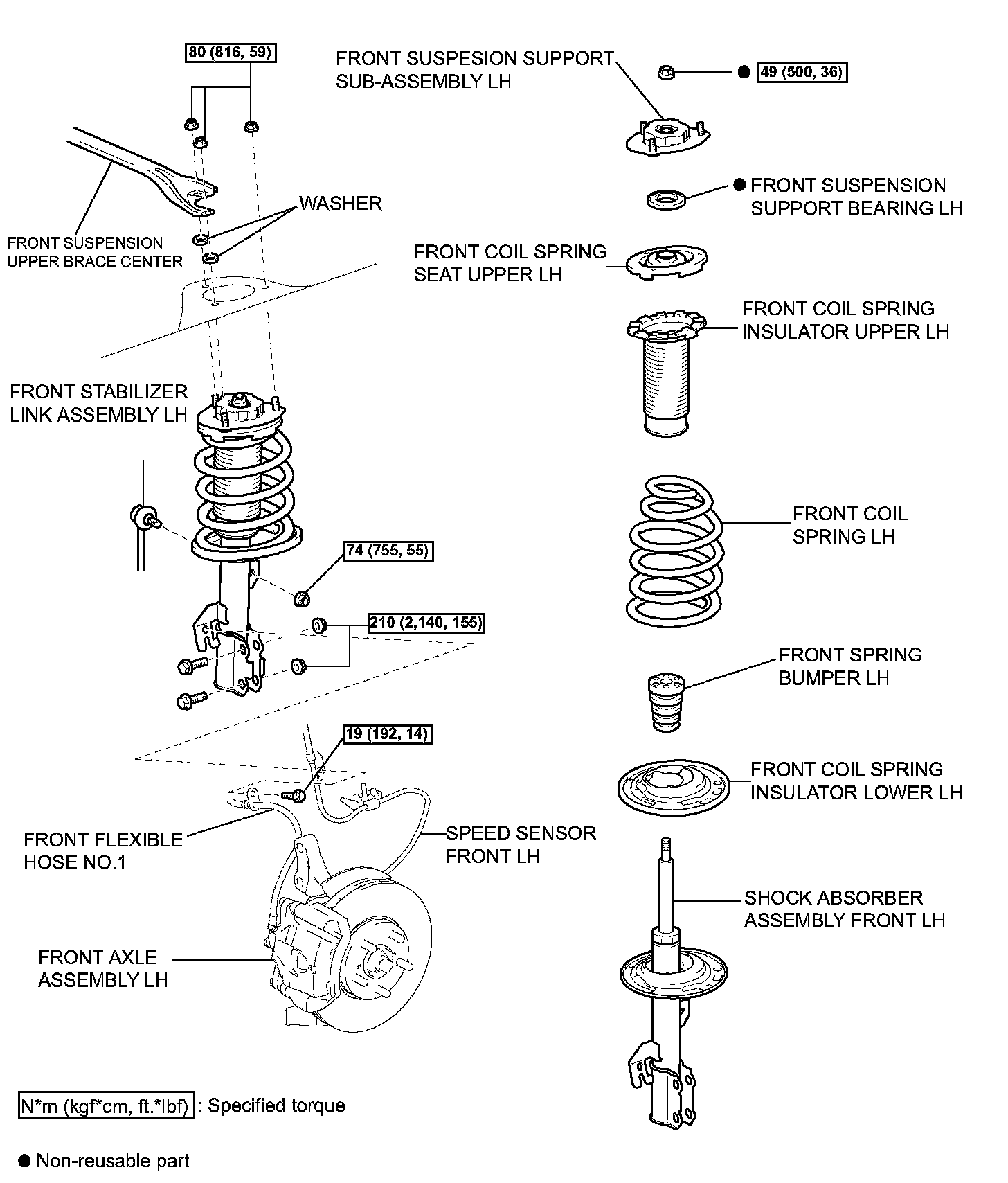

Components:

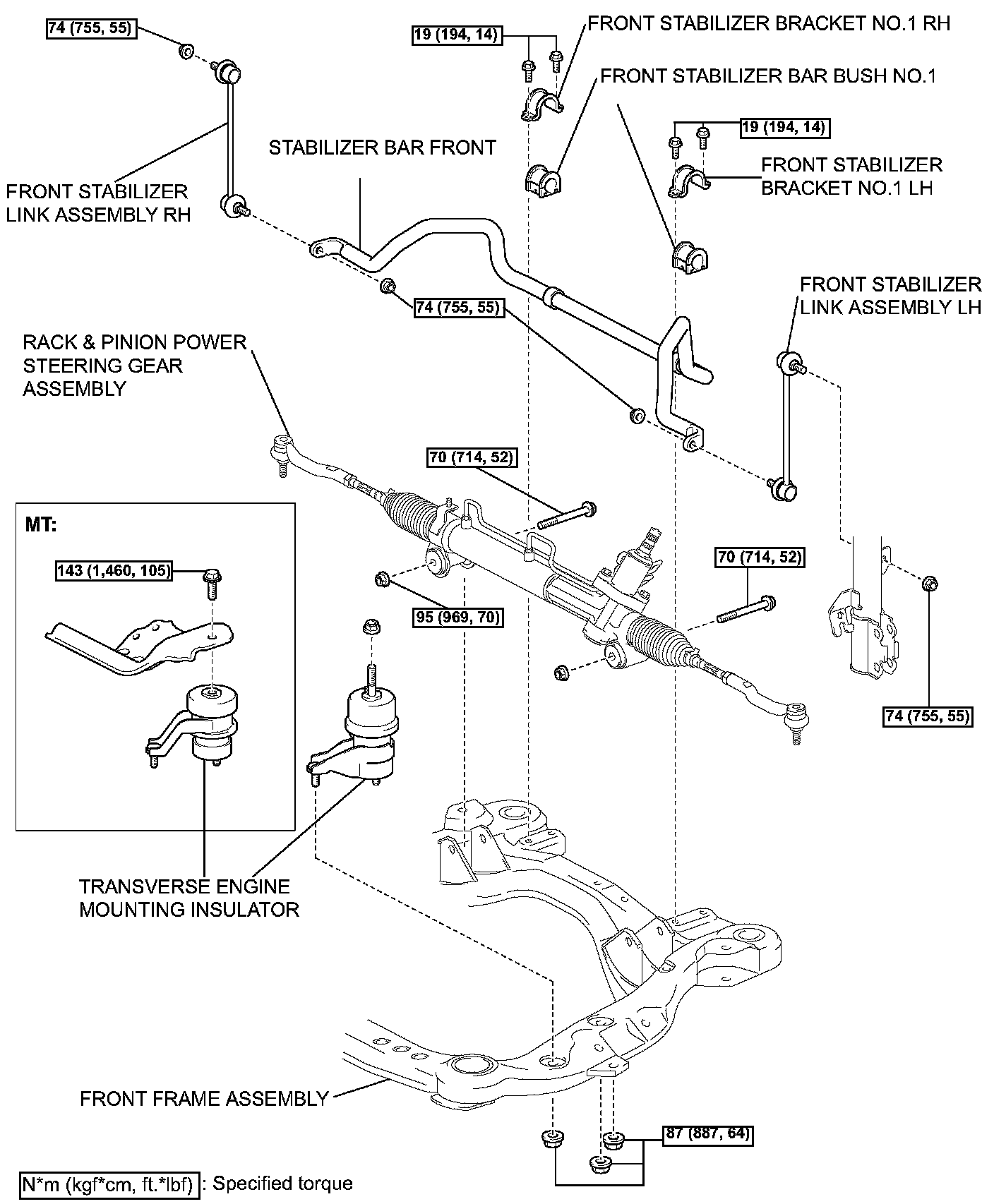

Components:

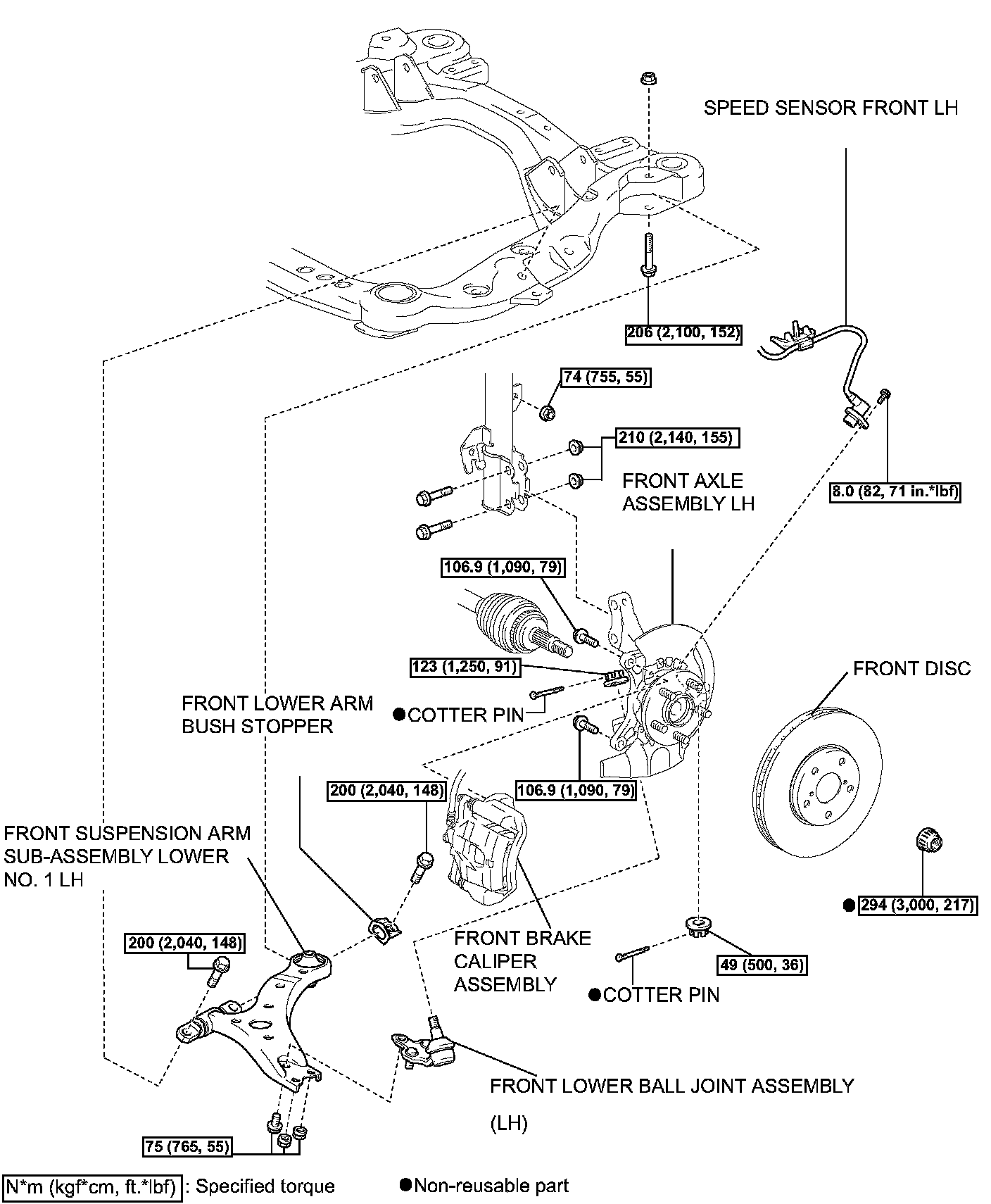

Components:

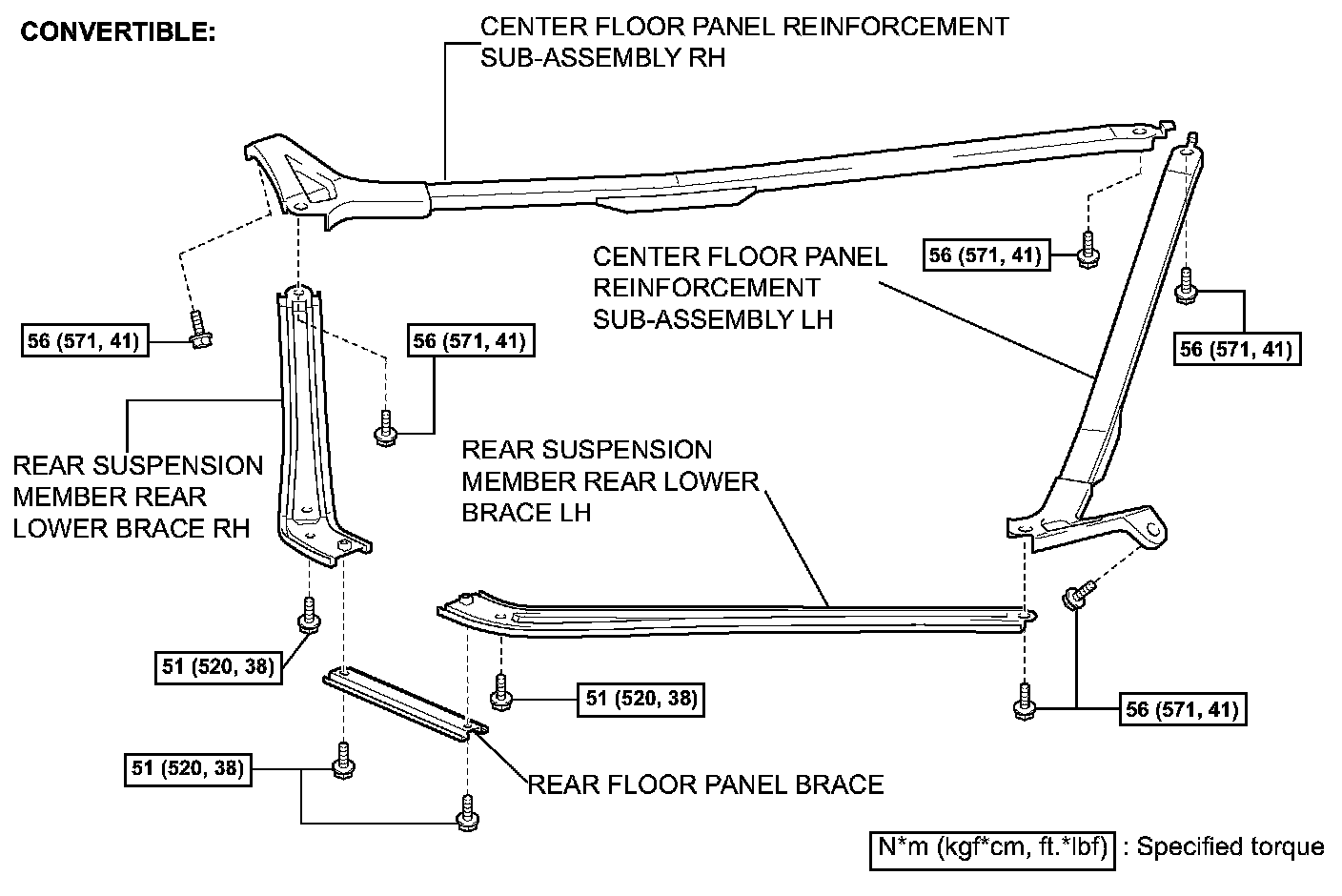

Components:
Components:
