Camshaft Position Sensor: Testing and Inspection

INSPECTION

INSPECT CAMSHAFT POSITION SENSOR

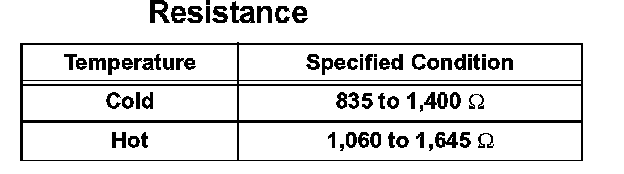

Measure the resistance between the terminals.

If the result is not as specified, replace the sensor.
