Oxygen Sensor: Testing and Inspection

INSPECTION

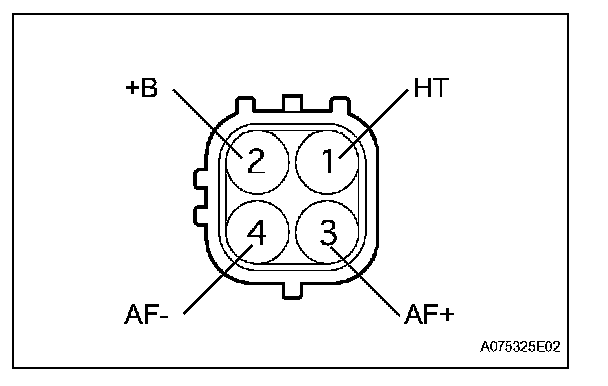

INSPECT AIR FUEL RATIO SENSOR (BANK 1 SENSOR 2)

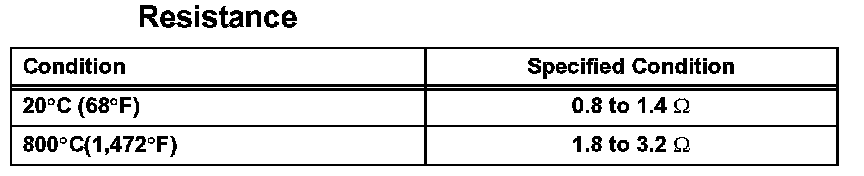

Measure the resistance between terminals 1 (HT) and 2 (+B).

If the result is not as specified, replace the sensor.

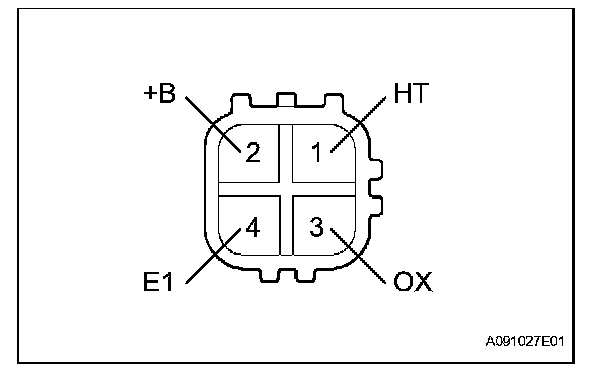

INSPECT OXYGEN SENSOR (BANK 1 SENSOR 2)

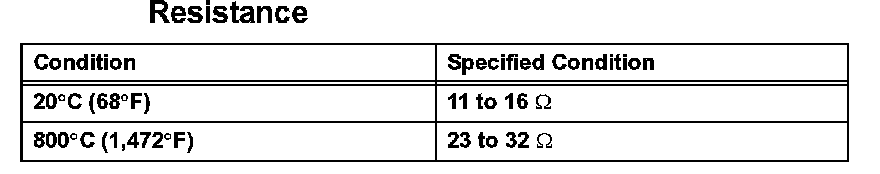

Measure the resistance between terminals 1 (HT) and 2 (+B).

If the result is not as specified, replace the sensor.
