Pinout Values and Diagnostic Parameters

TERMINALS OF ECM

1. ECM

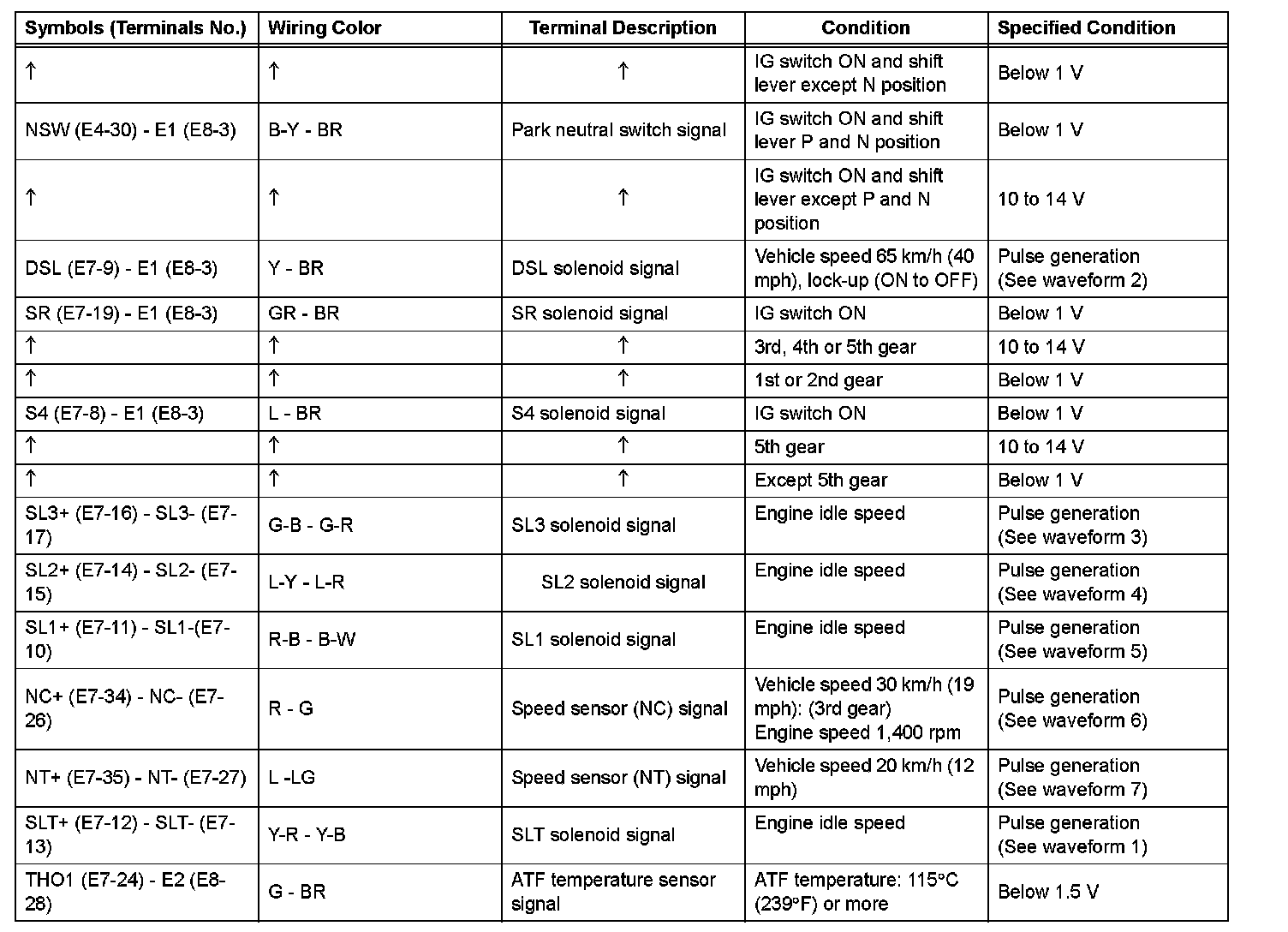

TERMINALS OF ECM (PART 1):

HINT: Each ECM terminal's standard voltage is shown in the table.

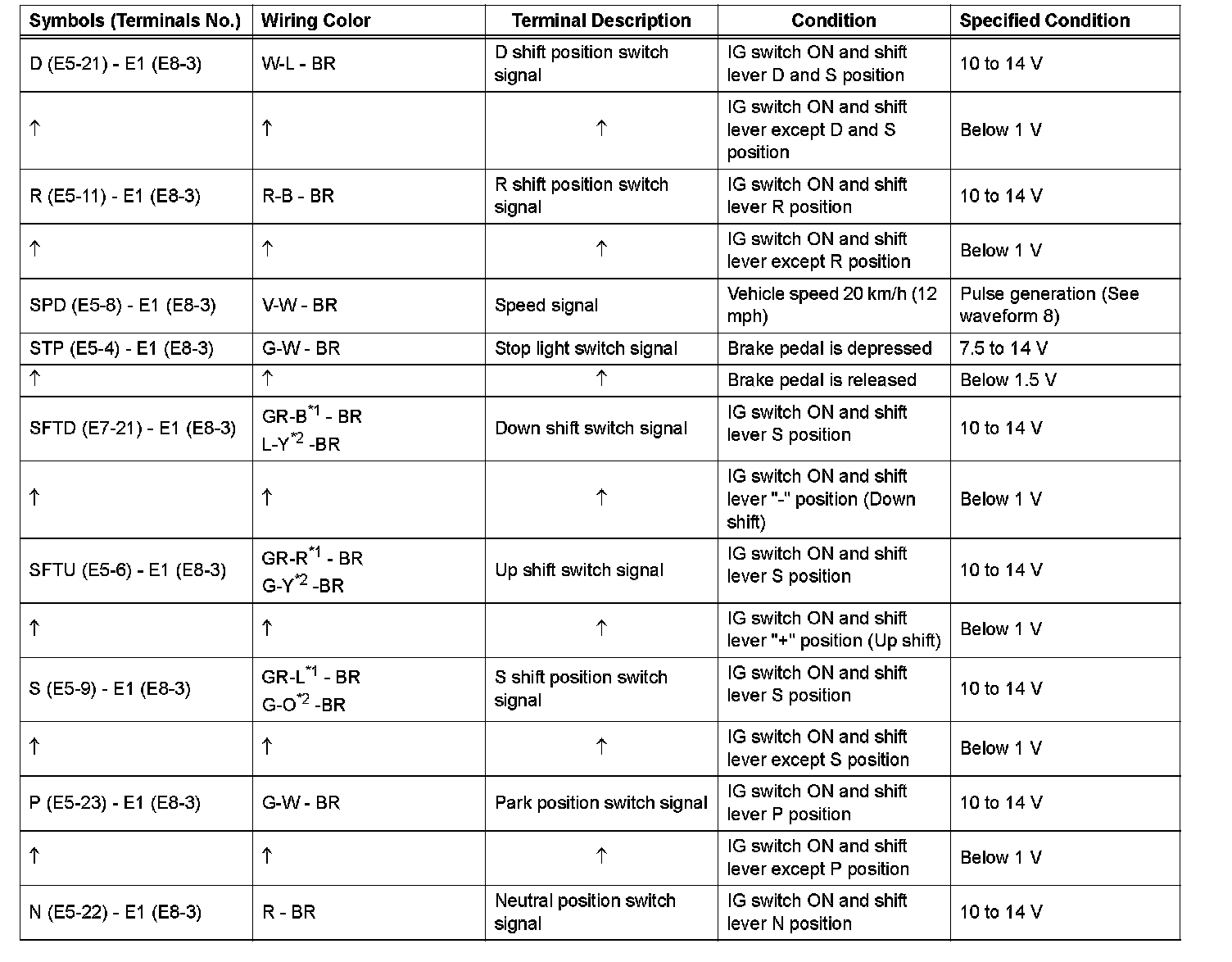

TERMINALS OF ECM (PART 2):

TERMINALS OF ECM (PART 3):

In the table, first follow the information under Condition. Look under Symbols (Terminal No.) for the terminals to inspected. The standard voltage between the terminals is shown under Specific Condition.

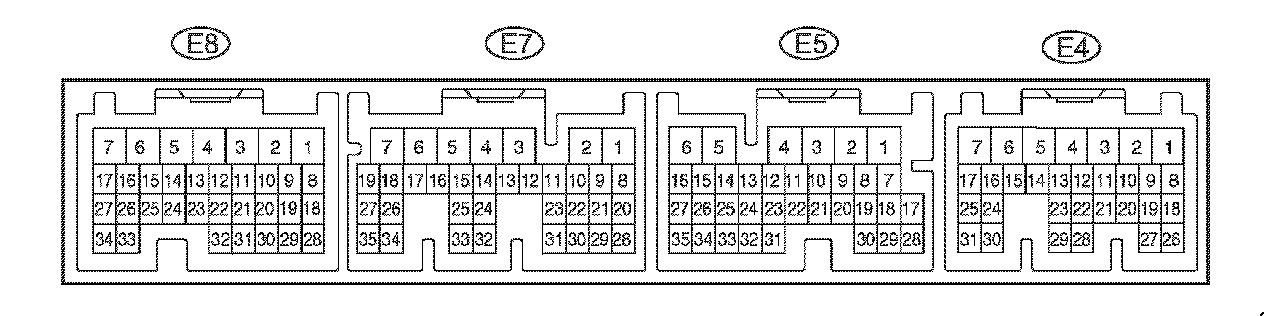

Use the illustration above as a reference for the ECM terminals.

HINT:
*1: C/P
*2: Convertible

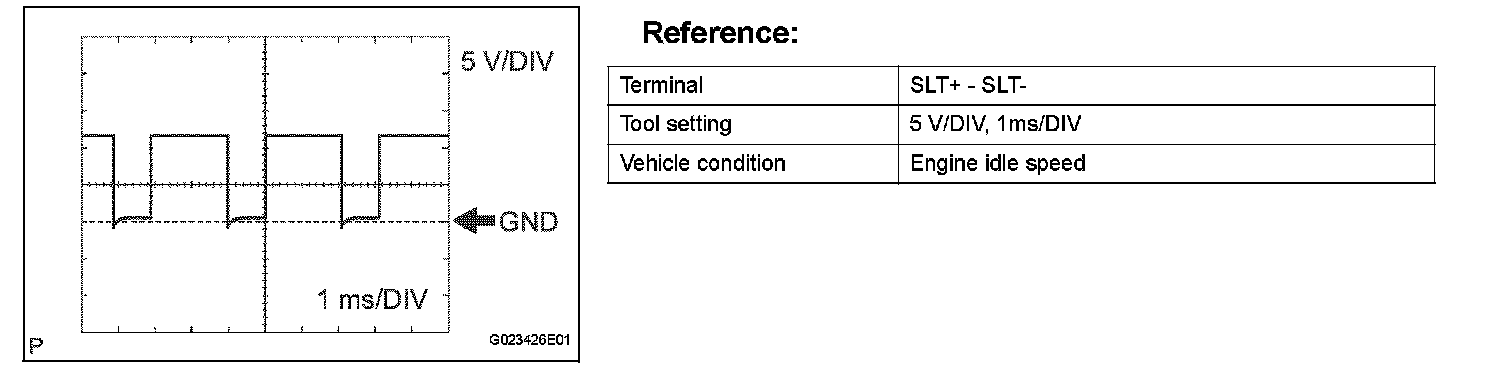

a. Waveform 1

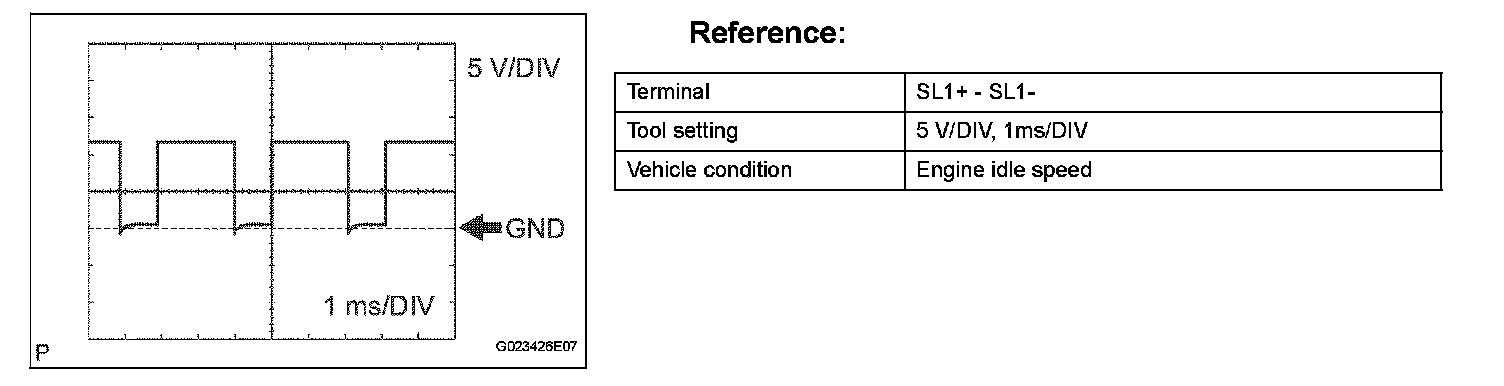

Waveform 1:

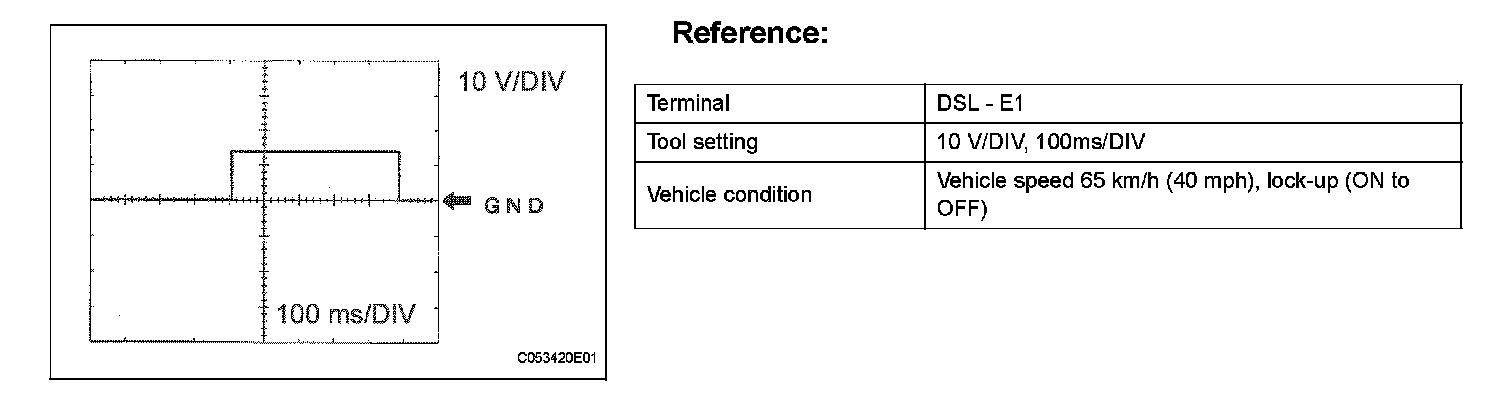

b. Waveform 2

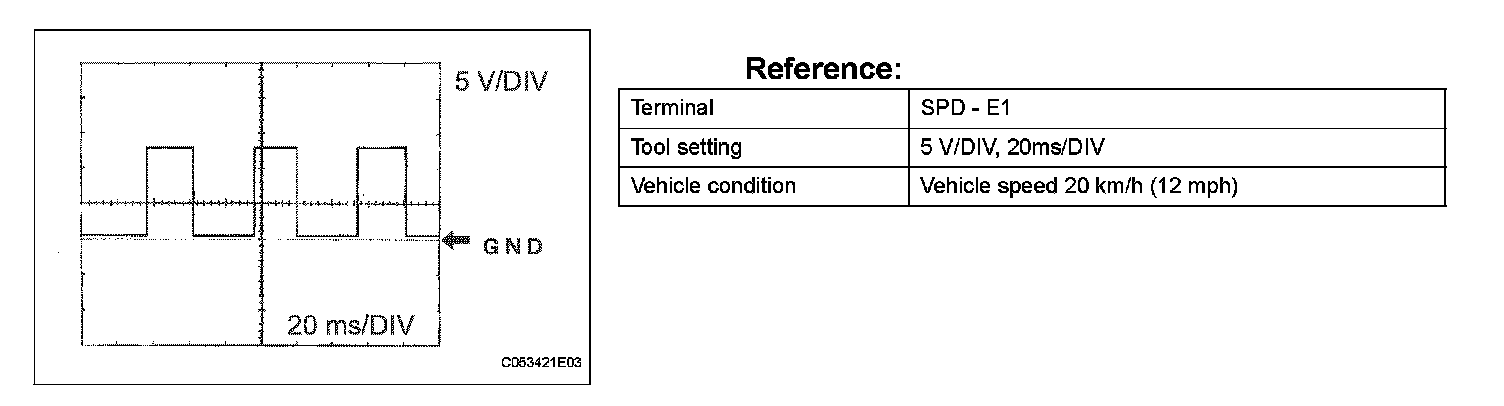

Waveform 2:

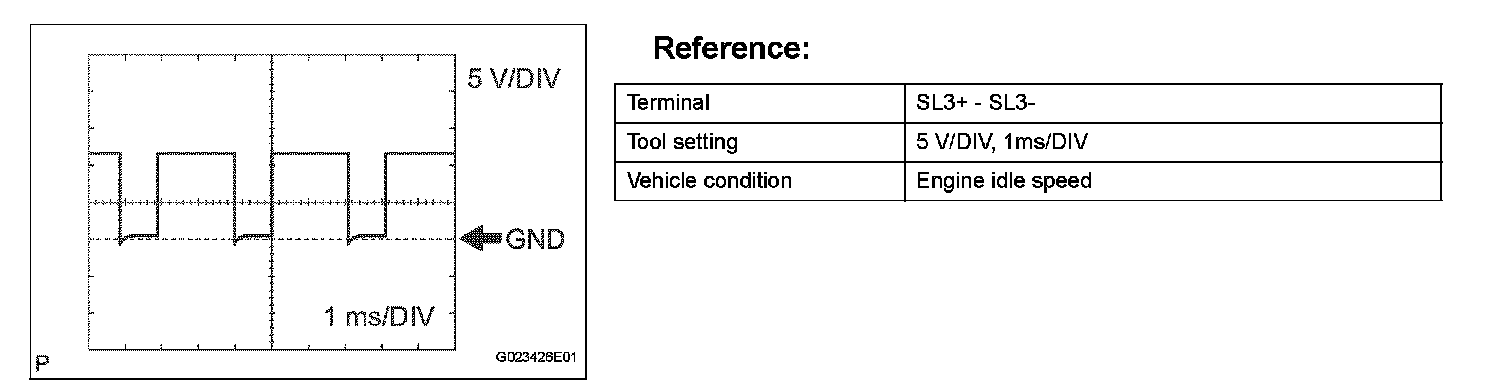

c. Waveform 3

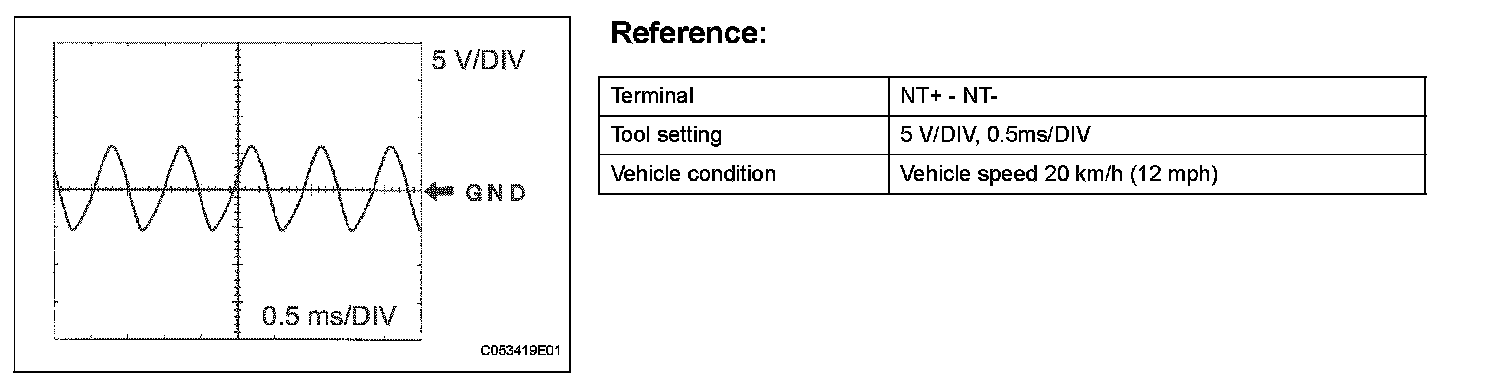

Waveform 3:

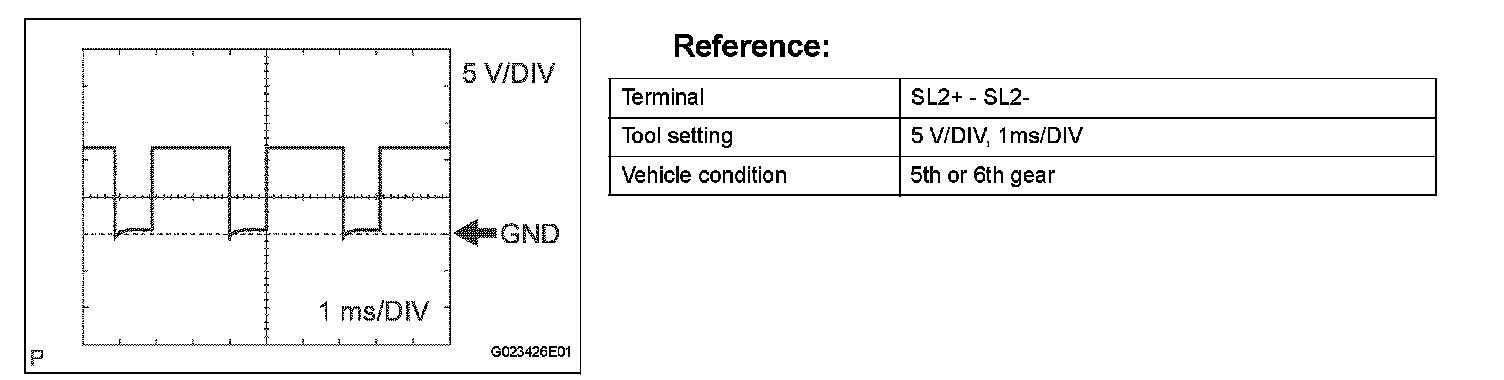

d. Waveform 4

Waveform 4:

e. Waveform 5

Waveform 5:

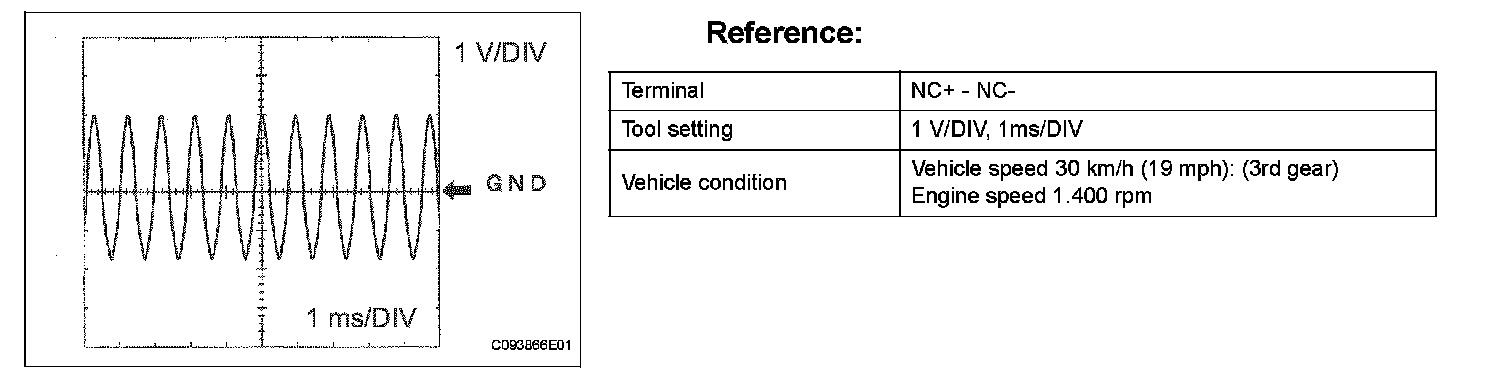

f. Waveform 6

Waveform 6:

g. Waveform 7

Waveform 7:

h. Waveform 8

Waveform 8:
